I've installed picture hanging tracks in three rooms now, and I'll be straight with you: the visible wires took some getting used to. But that's the trade-off for being able to rearrange my artwork without drilling fresh holes every time I change my mind. And I change my mind a lot.
These gallery rail systems have become popular in Australian homes for good reason. My walls stay intact. My security deposit stays safe. And frankly, the professional look beats the scattered nail holes I used to leave behind. The installation itself? Simpler than I expected, provided you're methodical about the levelling.
What surprised me most was how much weight these systems handle. My Gallery at Home track supports 25kg per metre—more than enough for my collection of framed prints and the occasional heavy canvas. That's with the aluminium track itself, not even the heavy-duty options some brands offer.
Understanding How Picture Hanging Tracks Actually Work
The system breaks down into three components: an aluminium track mounted near your ceiling, transparent nylon or steel wires that slide into the track's C-channel, and adjustable hooks that grip those wires. You insert the wires anywhere along the track, attach your hooks, and slide everything horizontally to position your artwork. Vertically? The hooks adjust up and down the wires without tools.
This matters because traditional picture hanging locks you into fixed positions. Miss the stud? You're using wall anchors. Want to shift that frame 10cm left? New holes. With a track system, I can reposition everything whilst barely touching the wall. The track stays put; the display changes.
The wire choice affects both appearance and capacity. Nylon (Perlon) wires are virtually invisible but typically support 5-20kg per wire. Steel wires show more but handle 10-40kg depending on thickness. I use nylon for lighter prints and steel for anything substantial. Using two wires per heavy piece increases the capacity and prevents tilting—not quite double, but significantly safer with better load distribution.
Most Australian suppliers recommend mounting tracks as close to the ceiling as possible, or 3-5 inches below crown moulding. That's not aesthetic preference—it's about maximising display space whilst keeping the hardware out of your eye line. The wires disappear better against white ceilings than they do at mid-wall height.
Installing Your Track: The Critical Steps That Matter

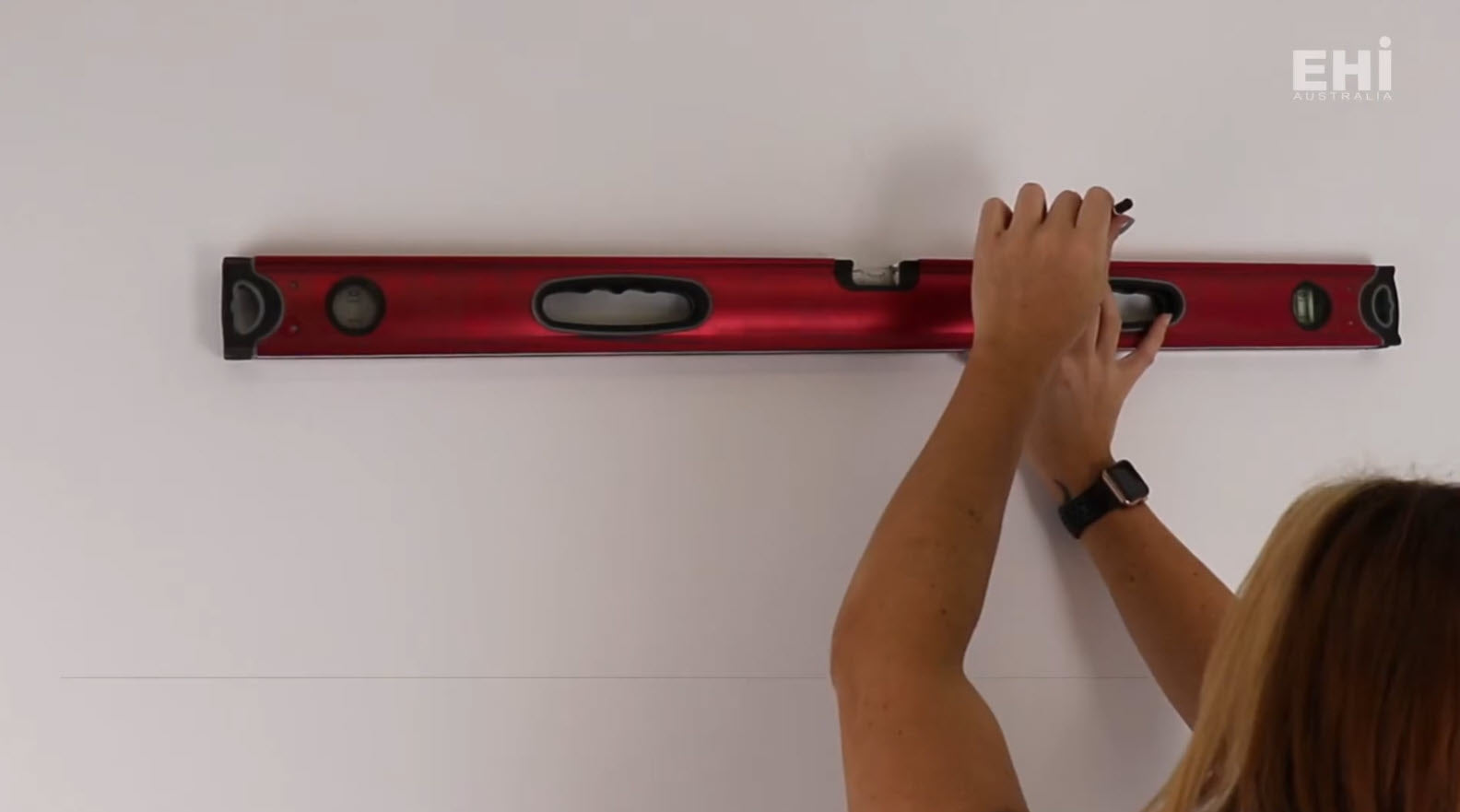

Start with accurate measurements. I mark the desired height with pencil, then use a spirit level across the entire wall. Even 2mm of tilt makes every picture look wrong. Measure twice, mark once, and trust the level over your eye.
Cut the aluminium track to length with a fine-tooth hacksaw—coarse blades leave rough edges that catch on the wires. Pre-drill pilot holes every 30-40cm along the track using a small metal bit. This spacing provides secure mounting without sagging. Then hold the track against the wall, mark through those pilot holes, and set it aside.
Wall type determines everything here. My drywall required 6mm masonry bits and proper wall plugs. Plaster needs low-speed drilling to prevent cracking. Concrete? Masonry bits and heavy-duty plugs. Don't guess—match your fixings to your wall construction or the whole system fails.
Once the wall holes are drilled and plugs inserted, attach the track with the provided screws. Here's where people go wrong: they overtighten, either stripping the wall plugs or warping the track. Snug is fine. Death grip is not. The track should sit flush but not compress the wall plugs.
For multiple track sections, slide a metal connector into the first track's C-channel before mounting the second section. This creates a seamless join that allows wires to slide continuously across both sections. Any visible gap looks unprofessional and blocks wire movement.
Common Mistakes I've Seen (and Made)
Not using a level is the big one. I eyeballed my first track install and spent an hour trying to work out why every picture looked tilted. The track was off by 5mm across 2 metres—barely visible on the track itself, glaringly obvious on the artwork.
Hanging too high is the second mistake. Centre your artwork at 145-155cm from the floor, not at the ceiling. That's eye level for most people. I initially pushed everything up near the track and wondered why my gallery wall felt disconnected from the furniture below. Lowering the pieces 20cm fixed the entire composition.
Wrong frame hardware causes problems too. Those sawtooth hangers work on nails but slip on wire hooks. D-rings mounted one-third down from the top of the frame work best. Position them too low and your artwork leans forward away from the wall.
Is It Worth the Investment?
The upfront cost runs higher than traditional hooks—my 2-metre track kit cost $98 versus $5 for a box of picture hooks. But I haven't patched a single hole in 18 months. No repainting where I changed my mind. No filler, no sanding, no touch-ups.
For renters, that's critical. For owners, it's convenience. I rearranged my living room gallery three times last month without touching a drill. Swapped seasonal prints in under 10 minutes. Added a new piece by sliding everything 15cm left to make space.
The visible wires remain the trade-off. They're less obvious than I feared—nylon against white ceilings practically disappears—but they're there. Some people mind, some don't. I've decided flexibility beats invisible perfection.
