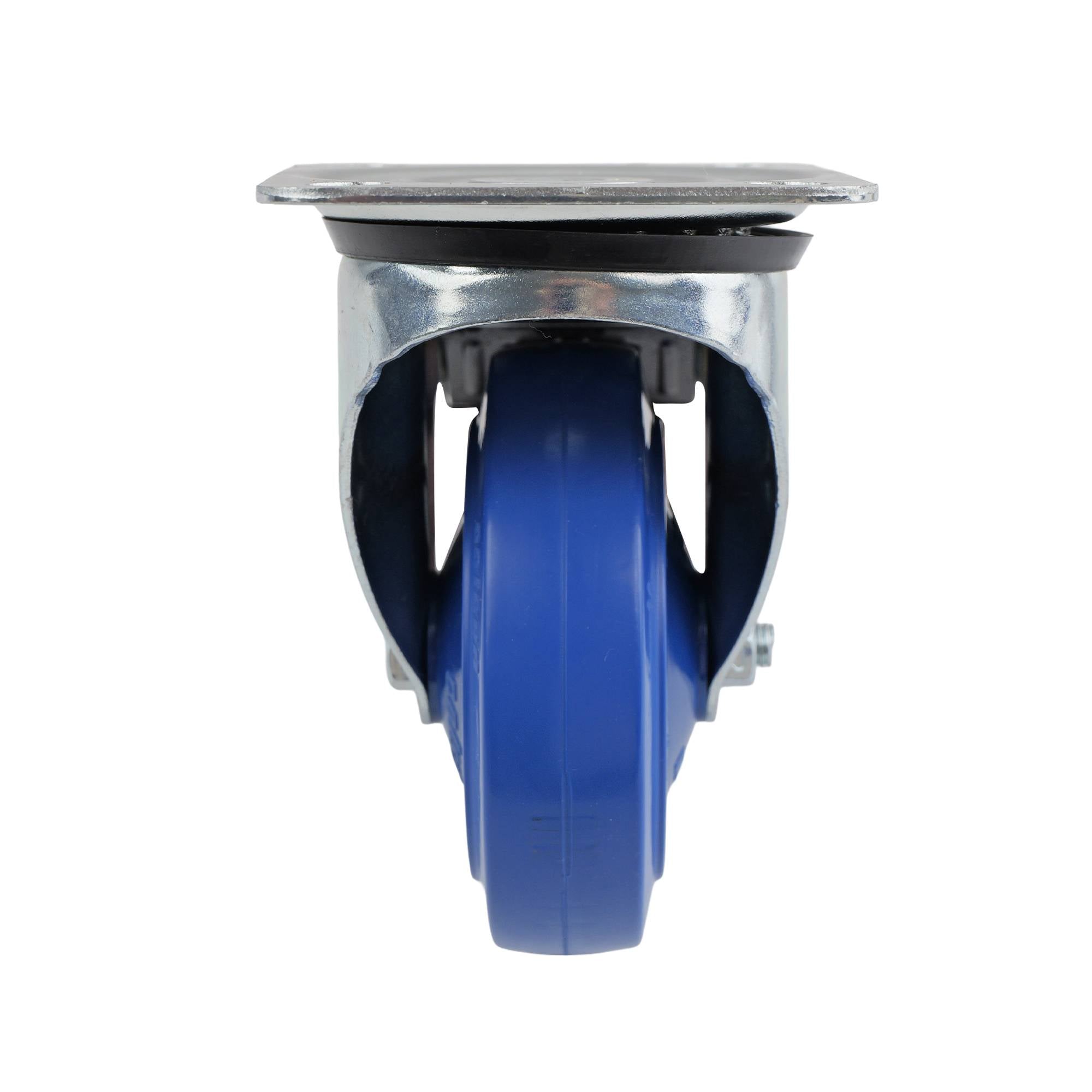

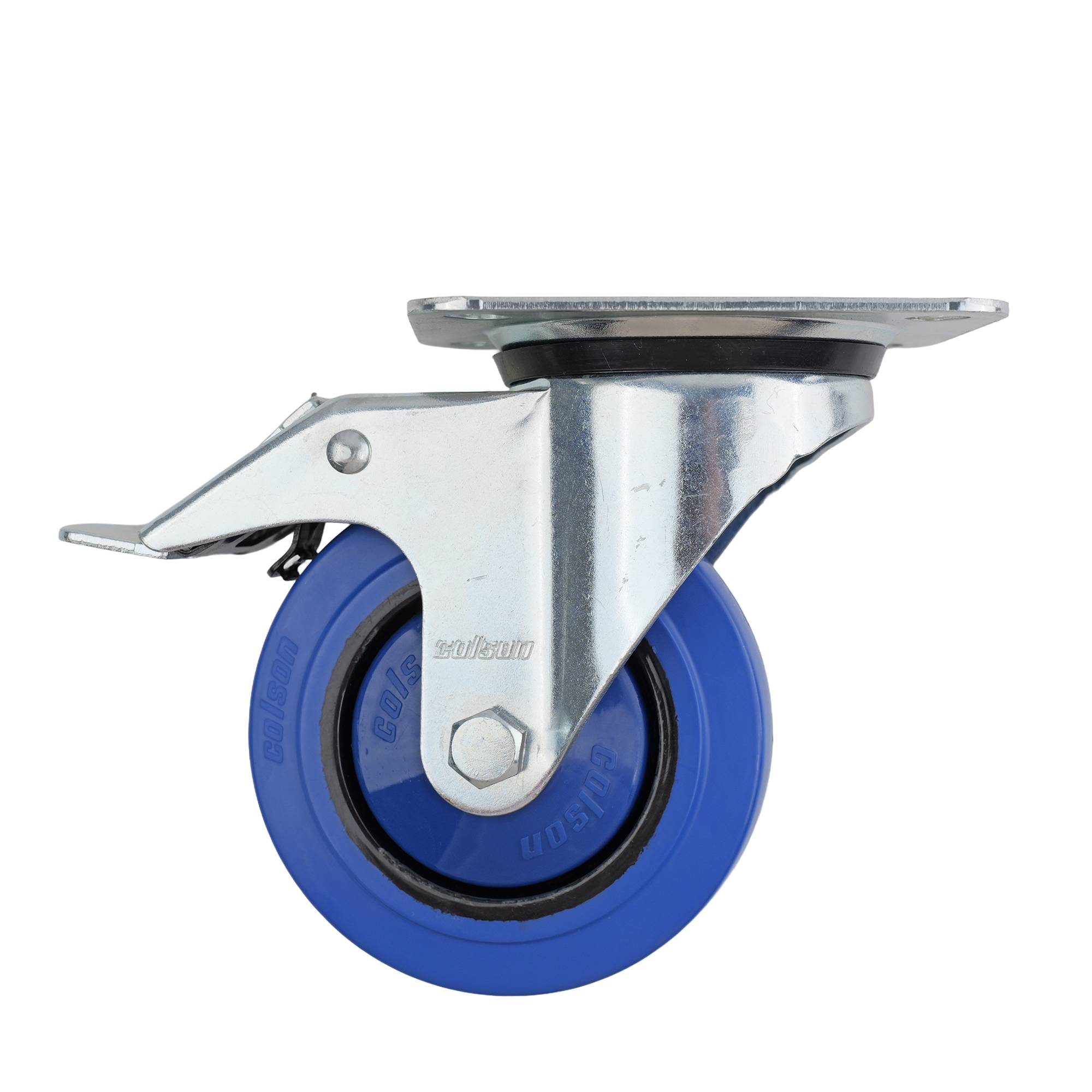

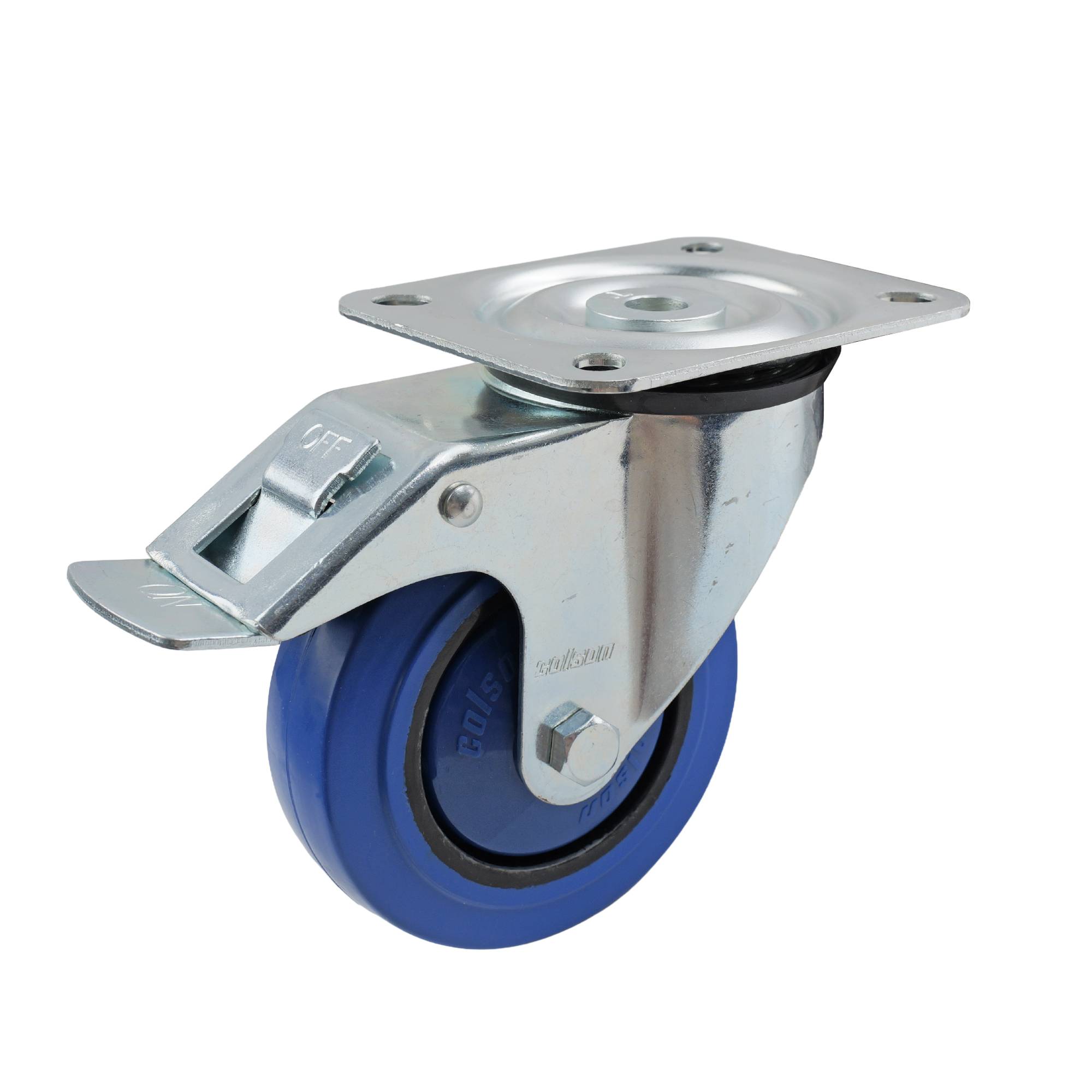

Colson 100mm Blue Rubber Swivel Plate Brake I6 Series Castor 140kg
Colson 100mm Blue Rubber Swivel Plate Brake I6 Series Castor 140kg is engineered with a zinc plated steel housing, dual raceway wheel design and precision steel bearings to ensure reliable manoeuvrability for heavy loads. The caster utilises a polyamide wheel core and blue elastic rubber wheels integrated with a total brake system and plate mount fitting. Its robust construction offers dependable performance and improved stability for trade professionals handling mobile equipment.
Couldn't load pickup availability
- Zinc plated steel housing ensures robust structural integrity
- Precision steel bearings deliver smooth and reliable rotation
- Dual raceway design enhances load distribution
- Total brake system ensures controlled and responsive stopping
- Blue elastic rubber wheels provide enhanced floor grip
- Polyamide wheel core supports consistent performance
- Plate mounting offers straightforward and reliable installation
- Silver blue finish provides clear visual contrast
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
| Brake Type | Total |
Construction
| Wheel Core Material | Polyamide |
| Wheel Material | Blue Elastic Rubber |
| Housing Material | Zinc Plated Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Blue |

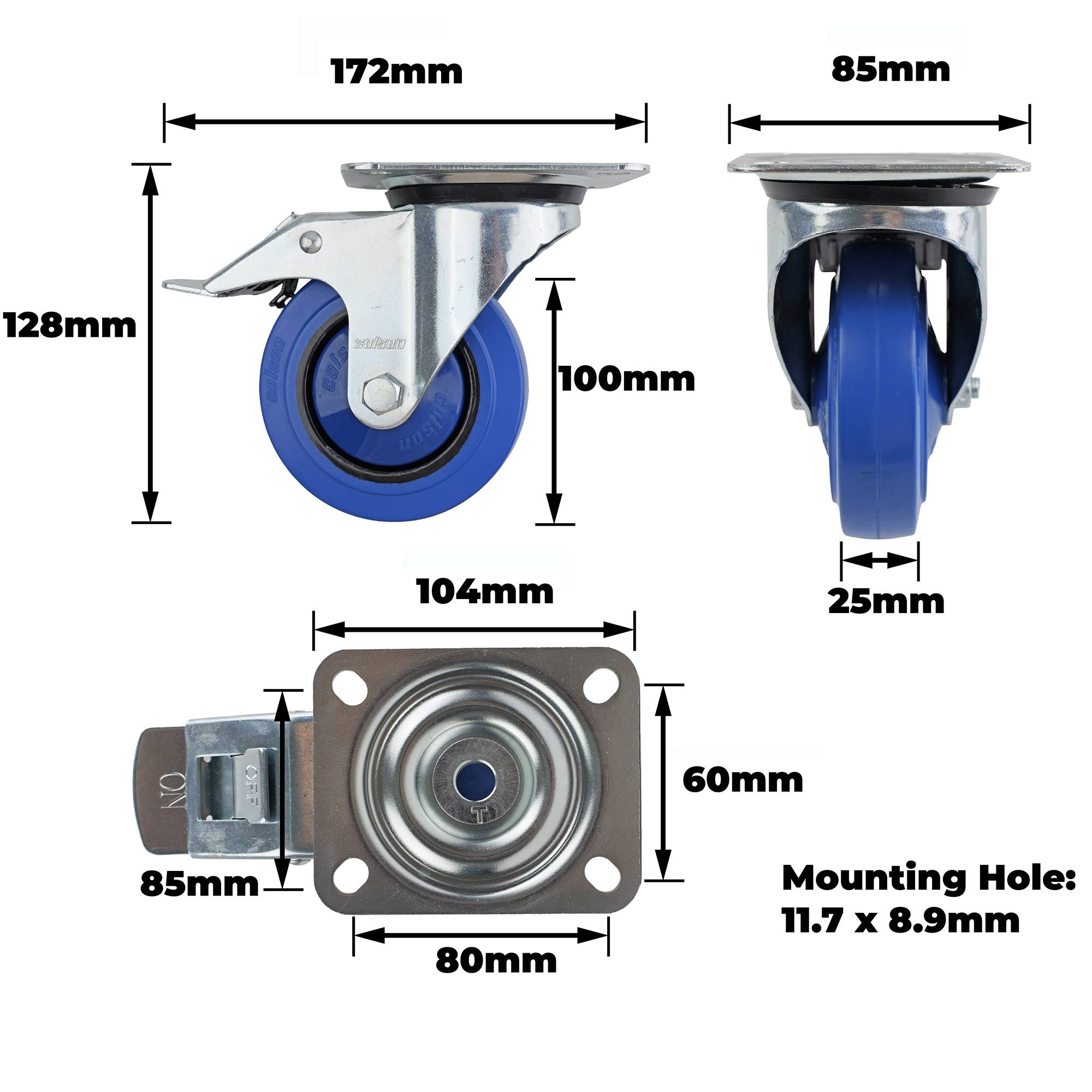

Dimensions
| Product Length (mm) | 176 |
| Product Width (mm) | 85 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 32 |
| Swivel Radius (mm) | 124 |
| Mounting Hole Dimensions (mm) | 11.8x9 |
| Hole Centre Dimensions (LxW) mm | 82/78x62/58 |
| Plate Dimensions (LxW) mm | 104x85 |
Weights
| Product Weight (grams) | 910 |
| Product Weight (kg) | 0.91 |
| Load Capacity (kg) | 140.0 |
