Colson 100mm Cast Iron Fixed Plate J3 Series Castor 320kg
Colson 100mm Cast Iron Fixed Plate J3 Series Castor 320kg is a robust equipment solution featuring cast iron wheels, a steel housing and roller bearings combined with a double raceway design. It provides dependable load handling with a rated capacity of 320kg and precise manoeuvrability for demanding operational work. Trade professionals benefit from its engineered efficiency and durability for effective material movement in various trade applications.
Couldn't load pickup availability
- Robust cast iron wheel with durable steel housing
- Roller bearing provides smooth movement and reduced friction
- Fixed plate design offers reliable stability during use
- Double raceway enhances rolling performance under load
- Precision engineered structure using cast iron and steel components
- Black and silver finish for clear visual identification
- Engineered for consistent performance under demanding conditions
- 100mm wheel size supports manoeuvrability and precise control
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Roller Bearing |
| Raceway Type | Double |
Construction
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

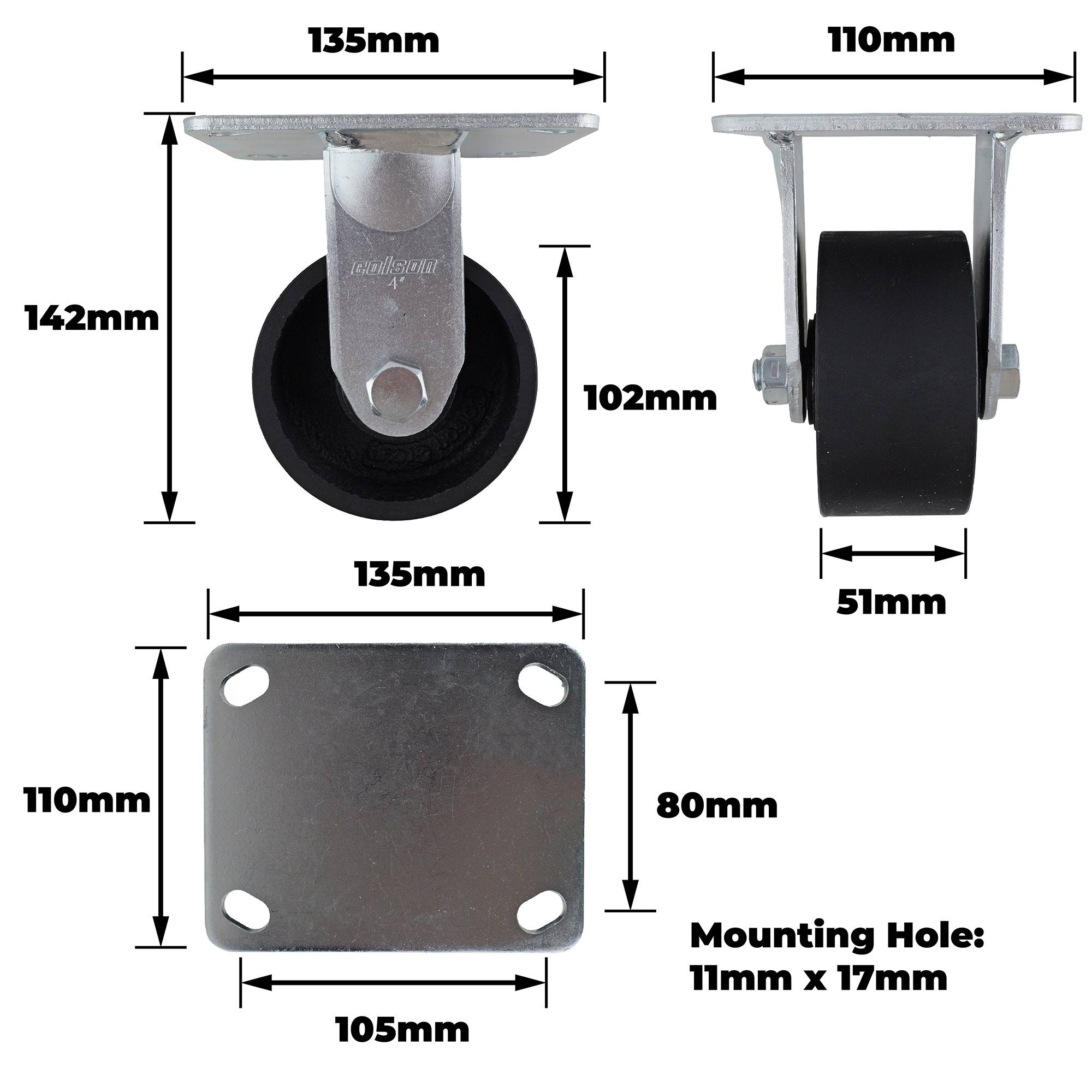

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 110 |
| Product Height (mm) | 141 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 51 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 2456 |
| Product Weight (kg) | 2.456 |
| Load Capacity (kg) | 320.0 |
