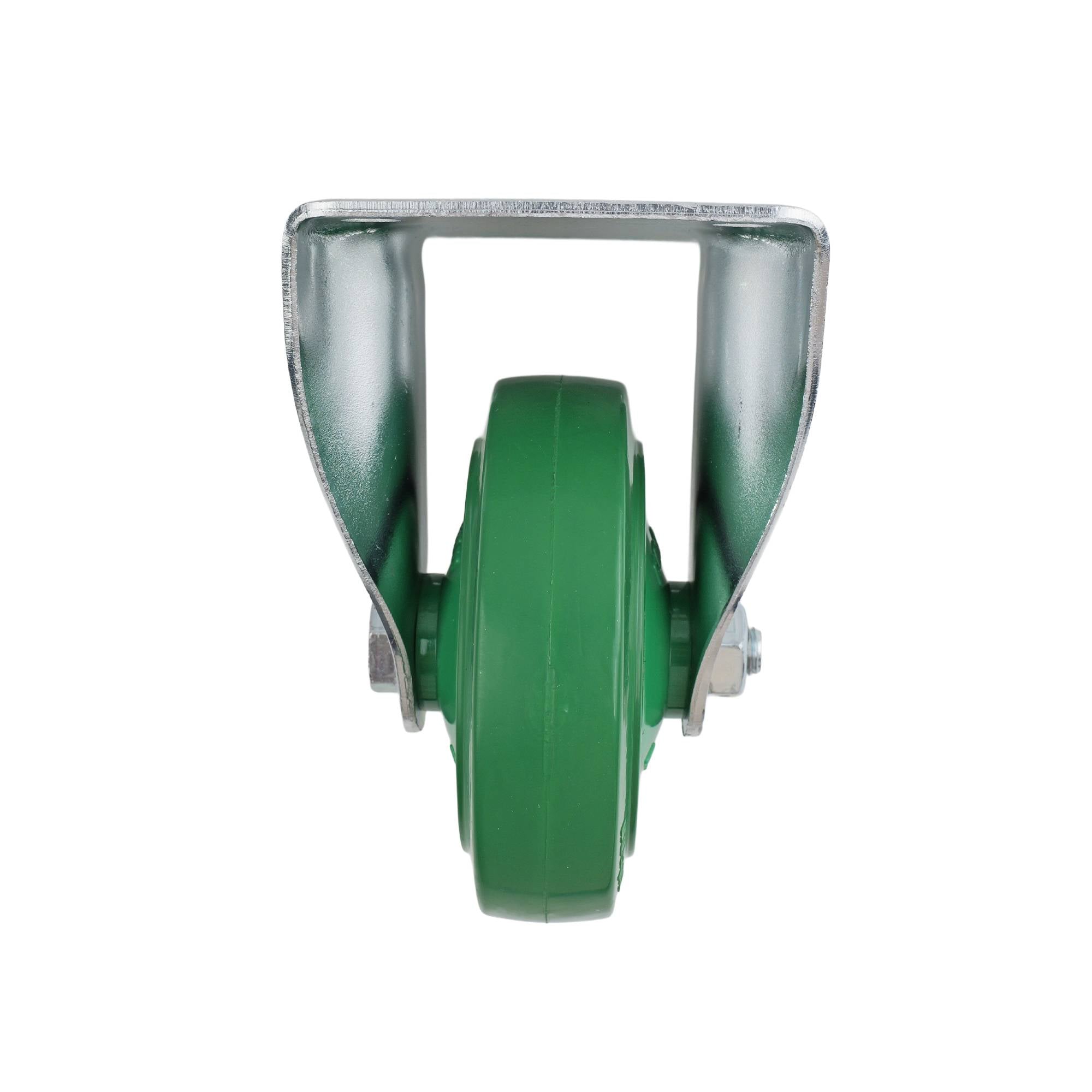

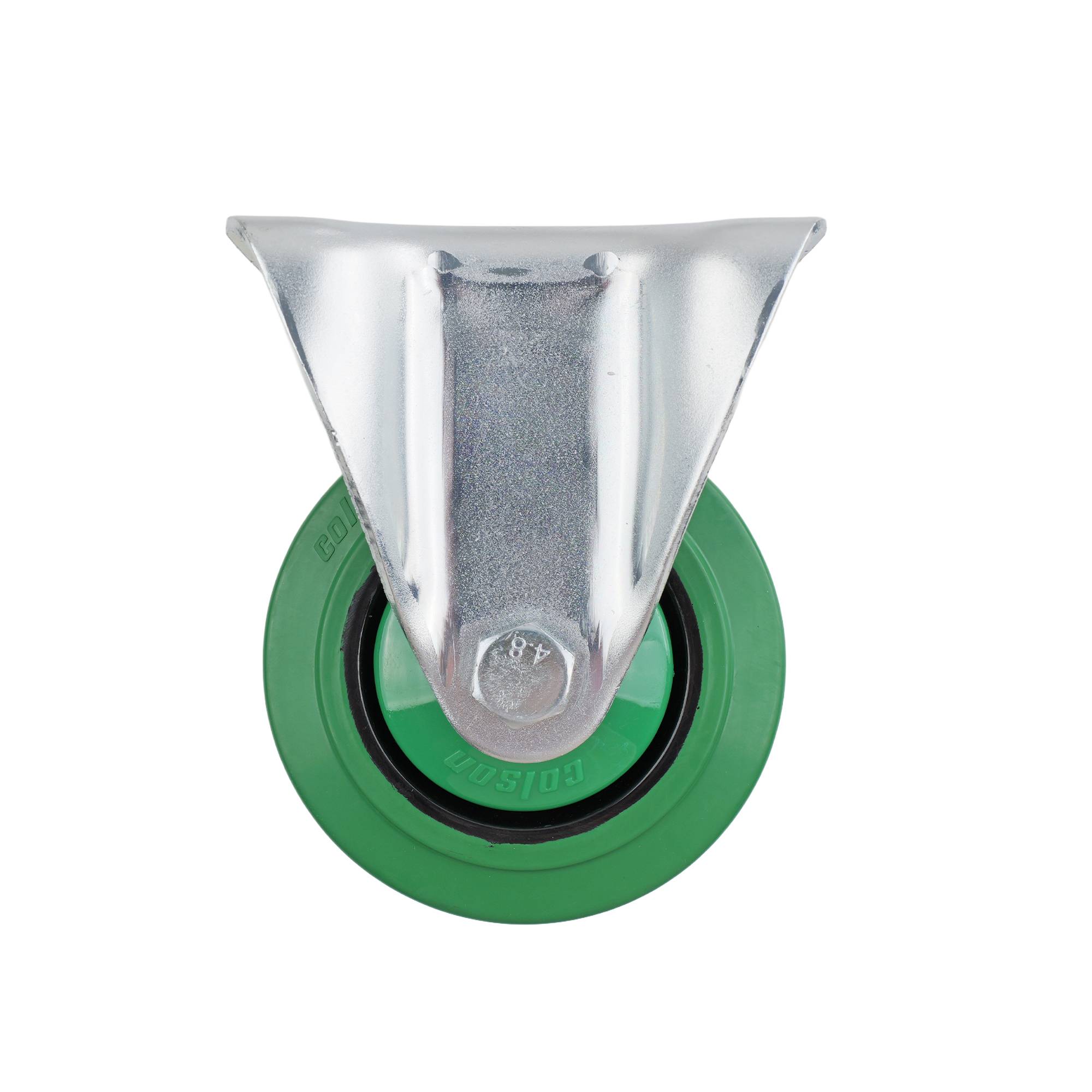

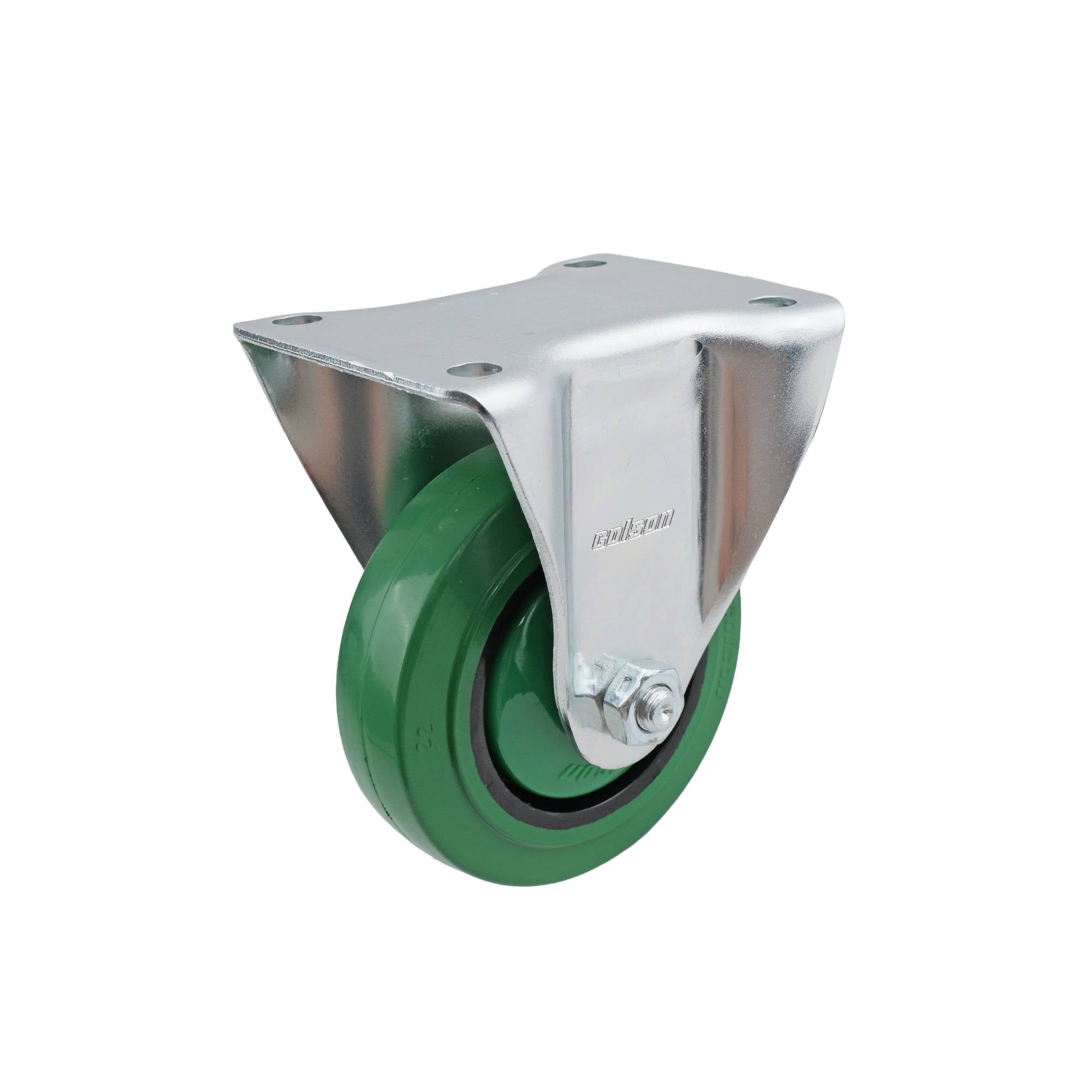

Colson 100mm Green Rubber Fixed Plate I3 Series Castor 170kg
Colson 100mm Green Rubber Fixed Plate I3 Series Castor 170kg is engineered with a steel housing, robust ball bearings, and a green rubber wheel with a plastic core, offering a fixed plate mount for efficient movement on multiple surfaces. It provides consistent performance with a single raceway design and supports a maximum load of 170kg. Trade professionals appreciate its balanced combination of practicality and reliable mobility for routine applications.
Couldn't load pickup availability
- Sturdy steel housing ensures durability under frequent movement
- Green finish offers excellent visibility in busy work areas
- Rubber wheel reduces vibrations and dampens noise
- Solid plastic wheel core provides reliable support
- Ball bearing raceway delivers smooth rolling action
- Plate mount design simplifies straightforward installation and upkeep
- Suitable for both indoor and outdoor operating conditions
- Engineered to support loads up to 170kg each
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
Construction
| Wheel Core Material | Plastic |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Green |

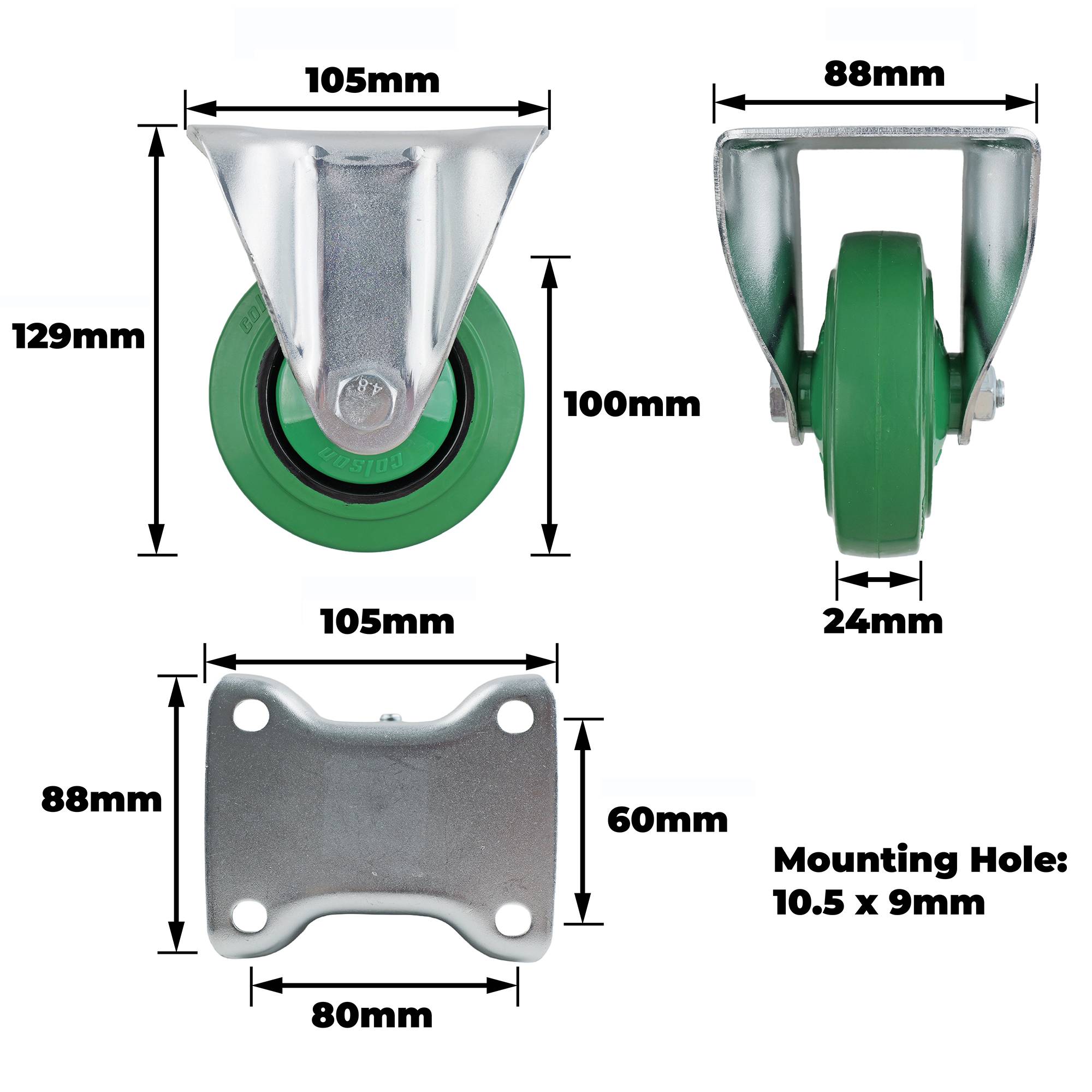

Dimensions
| Product Length (mm) | 105 |
| Product Width (mm) | 88 |
| Product Height (mm) | 129 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 24 |
| Mounting Hole Dimensions (mm) | 10.5x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x88 |
Weights
| Product Weight (grams) | 728 |
| Product Weight (kg) | 0.728 |
| Load Capacity (kg) | 170.0 |
