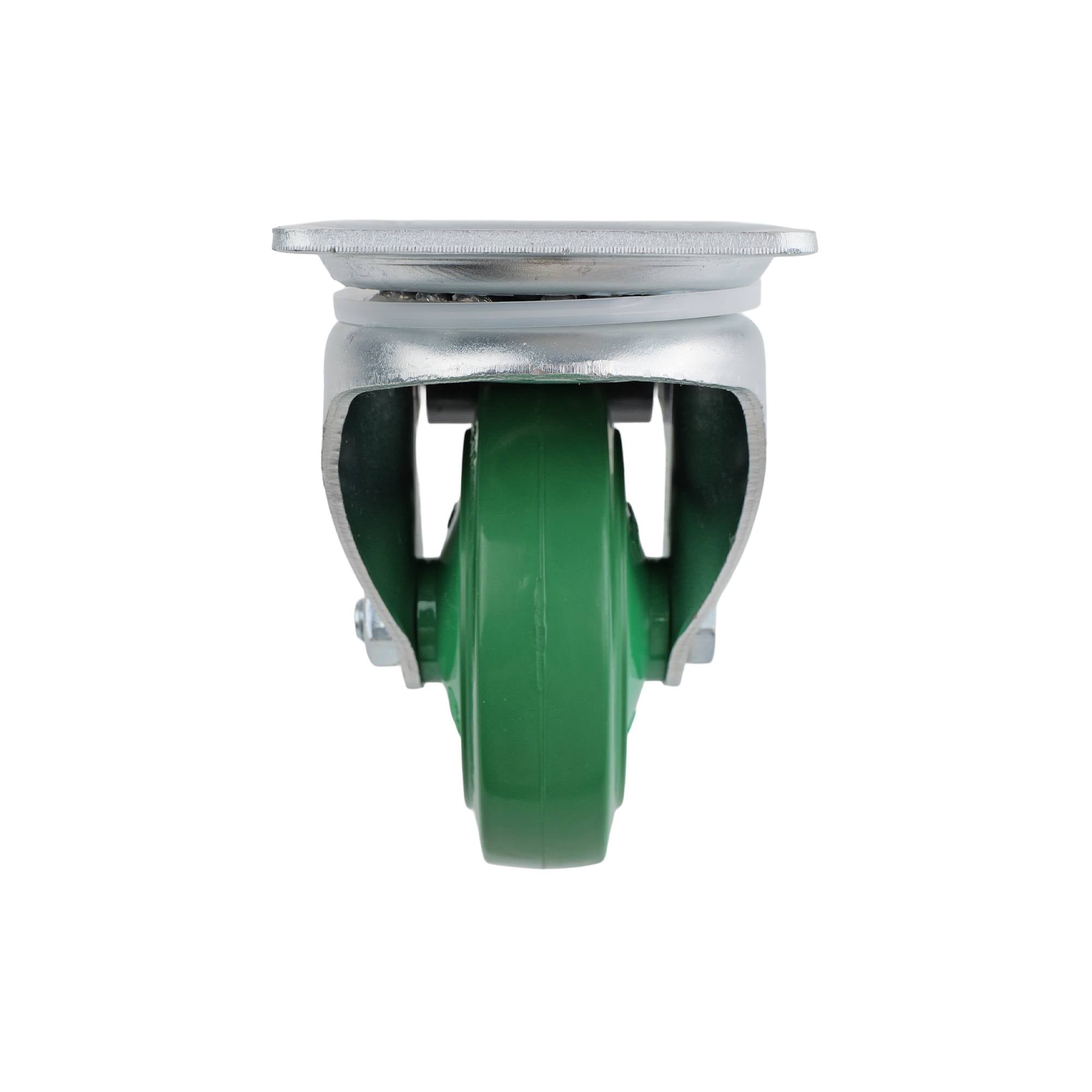

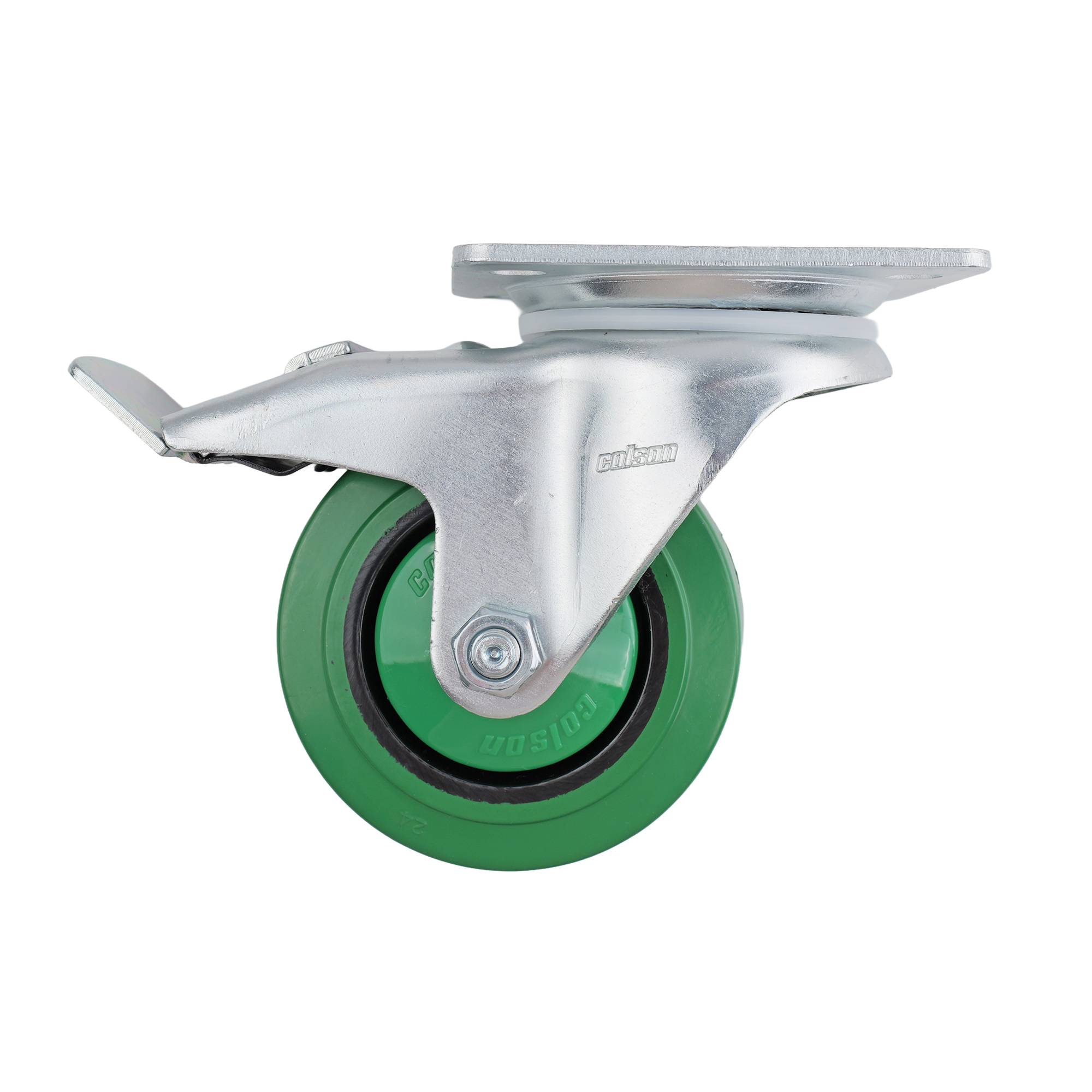

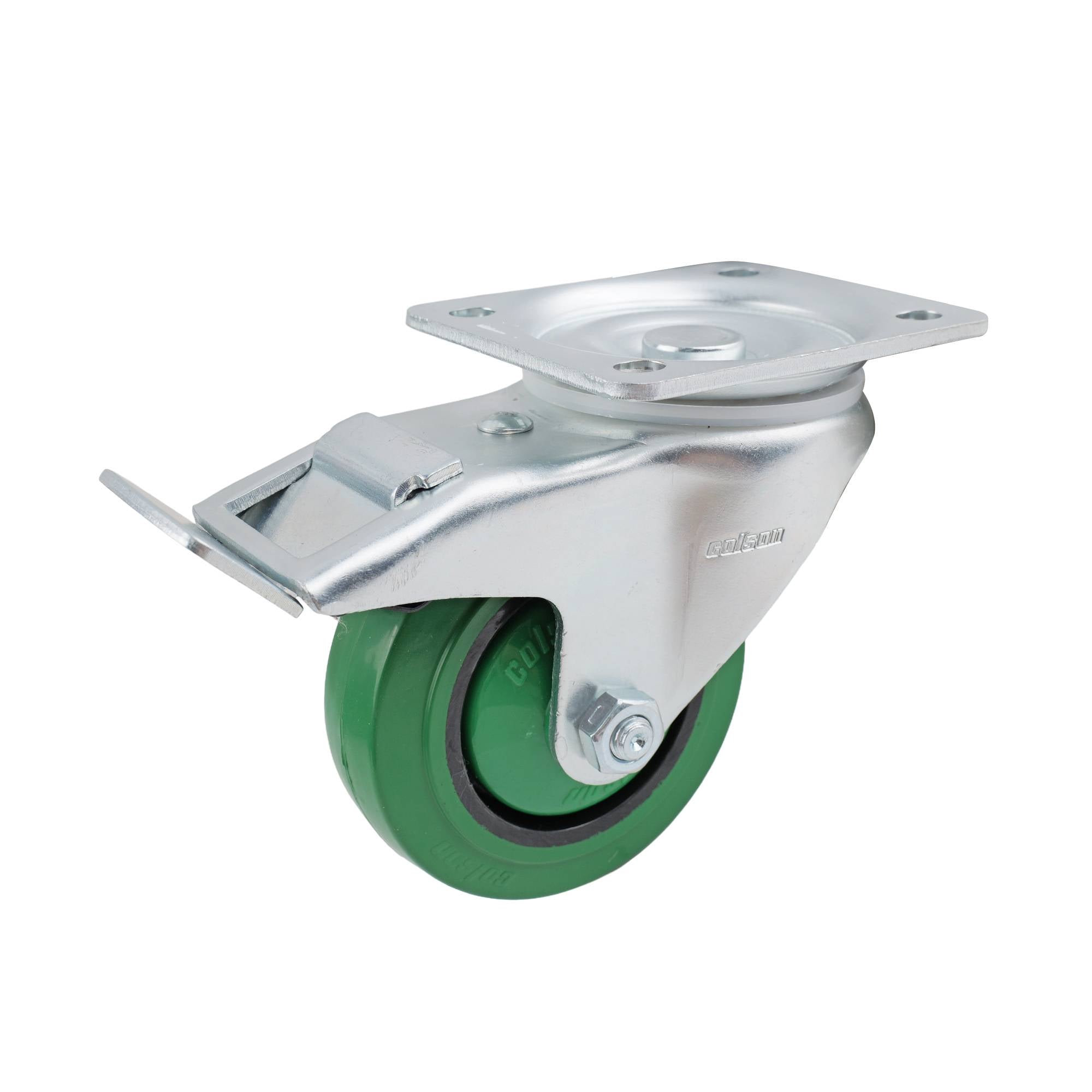

Colson 100mm Green Rubber Swivel Plate Brake I3 Series Castor 170kg
Colson 100mm Green Rubber Swivel Plate Brake I3 Series Castor 170kg. This product offers a robust and reliable solution built with a plastic wheel core, rubber wheels and a steel housing that supports a ball bearing system. The plate mount fitting and single raceway design enable precise manoeuvrability, while the total brake mechanism affords effective motion control. It is designed to meet the practical demands and technical requirements of trade professionals.
Couldn't load pickup availability
- Durable steel housing construction delivers long lasting performance
- Stable plate mount provides secure attachment
- High-grip rubber wheel enhances manoeuvrability on diverse surfaces
- Precision ball bearing smooth swivel improves directional control
- Single raceway design minimises friction and resistance
- Total brake mechanism provides secure, reliable locking
- Versatile indoor and outdoor use enhances operational flexibility
- Distinctive green colour improves equipment identification
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Double |
| Brake Type | Total Lock |
Construction
| Wheel Core Material | Plastic |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Green |

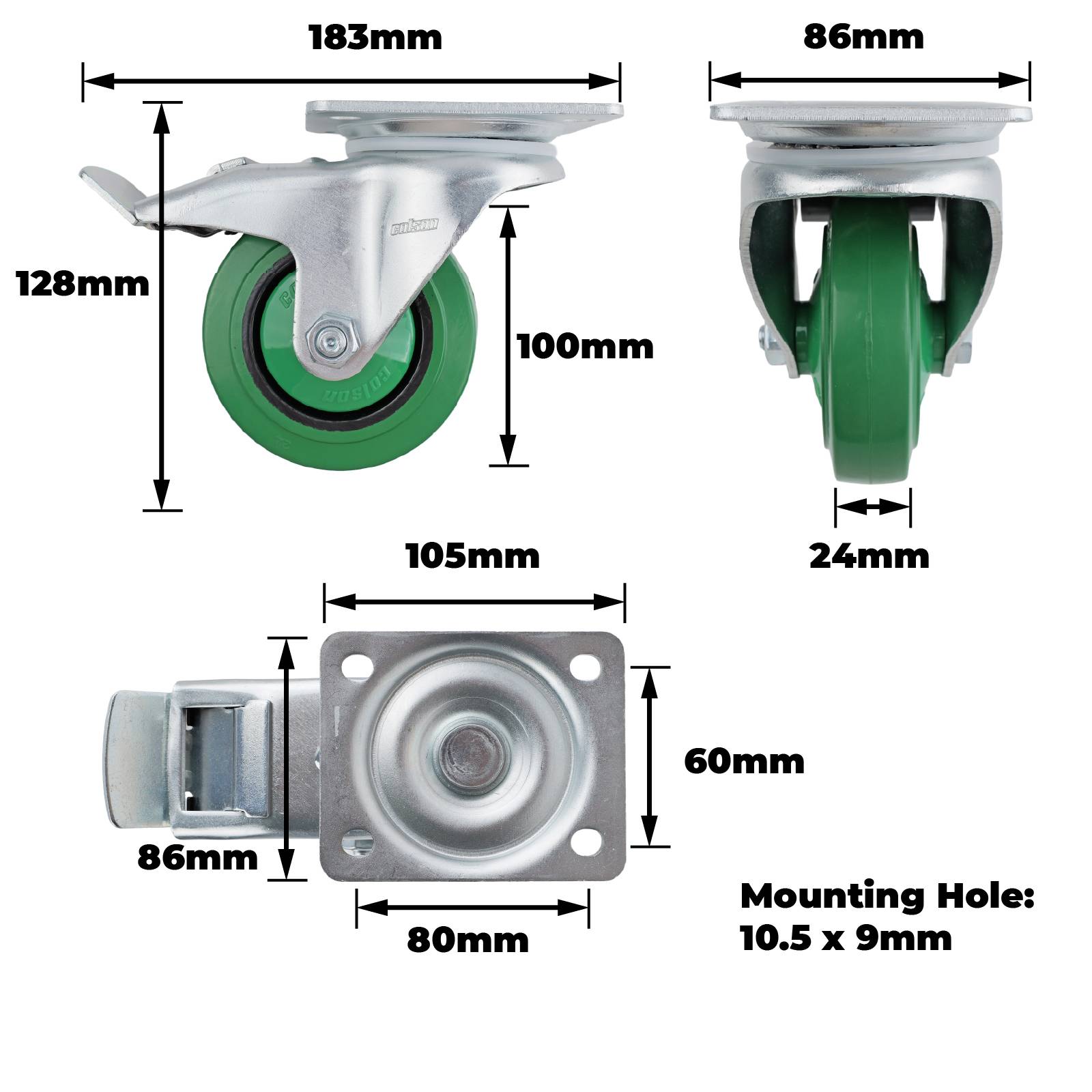

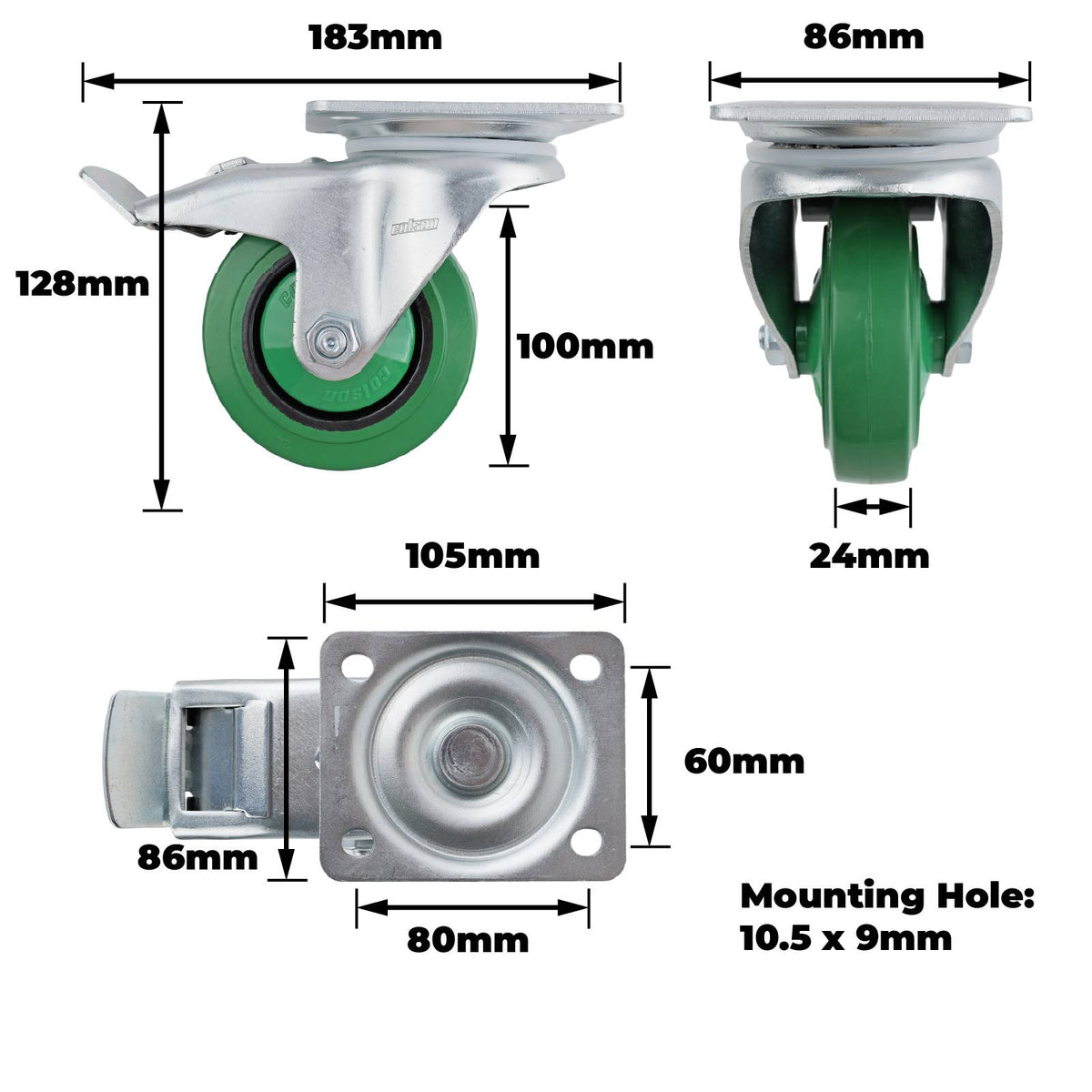

Dimensions
| Product Length (mm) | 183 |
| Product Width (mm) | 86 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 24 |
| Swivel Radius (mm) | 130.5 |
| Mounting Hole Dimensions (mm) | 10.5x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1287 |
| Product Weight (kg) | 1.287 |
| Load Capacity (kg) | 170.0 |
