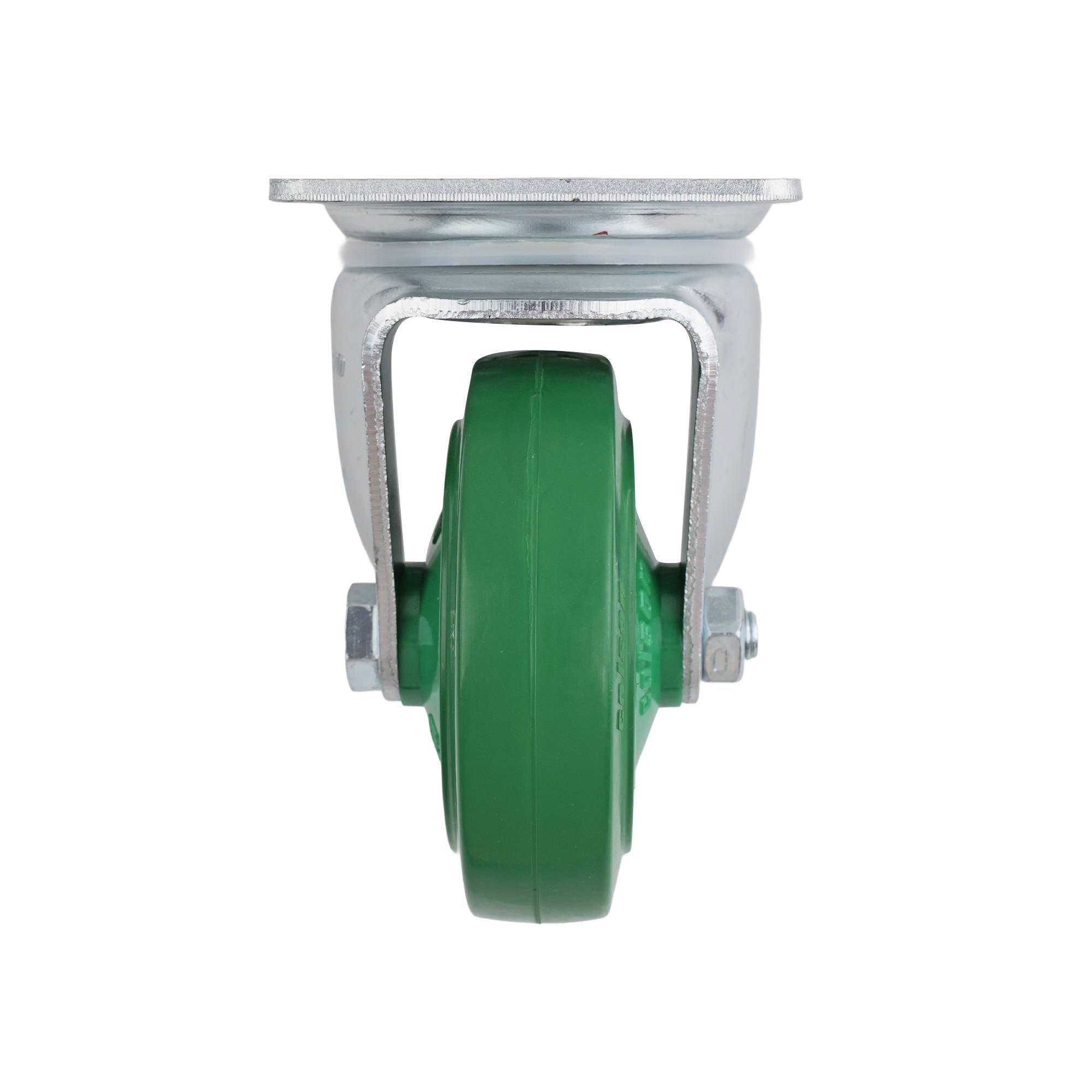

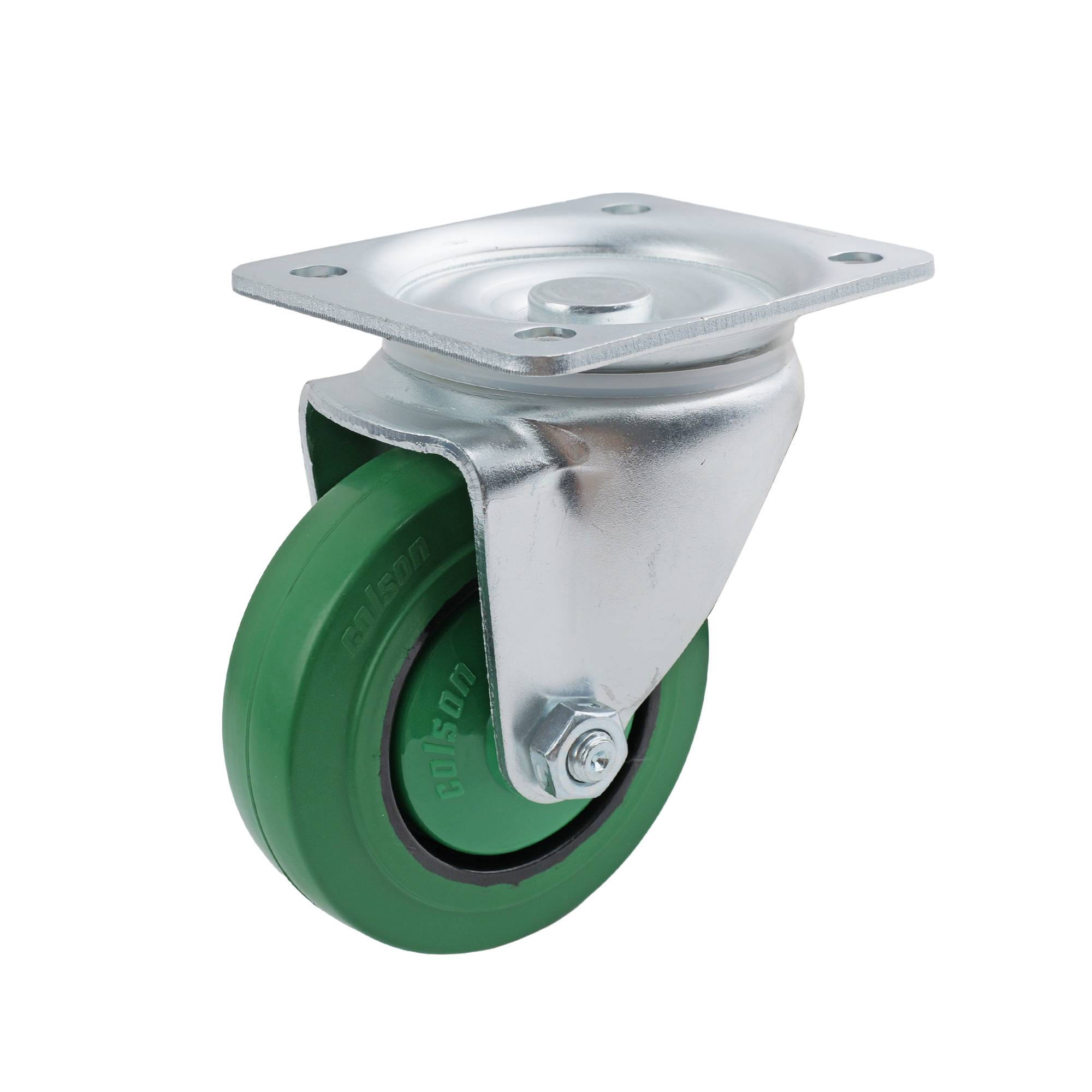

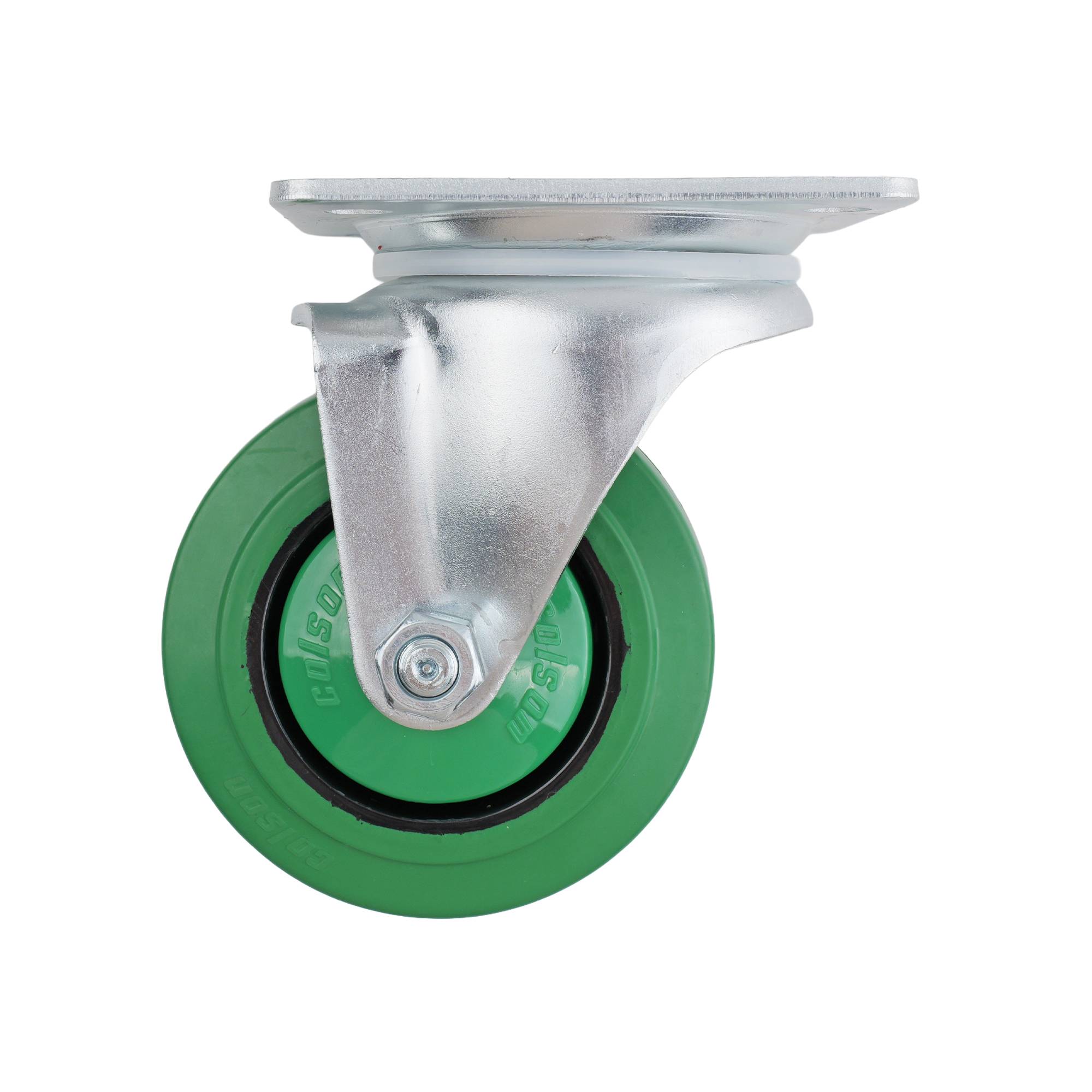

Colson 100mm Green Rubber Swivel Plate I3 Series Castor 170kg
Colson 100mm Green Rubber Swivel Plate I3 Series Castor 170kg is engineered for efficient movement of equipment in professional settings. It utilises a steel housing combined with a ball bearing mechanism to ensure smooth rotation and reliable performance. The green rubber wheel and plastic wheel core deliver optimal traction and durability, while the plate mount fitting simplifies integration. Designed for both indoor and outdoor use, this castor offers practical mobility solutions for a variety of trade applications.
Couldn't load pickup availability
- Steel housing provides robust structural integrity
- Rubber wheel ensures reliable shock absorption
- High quality ball bearing enables smooth swivelling
- Single raceway design promotes efficient load distribution
- Plate mount fitting simplifies installation process
- Compatible with indoor and outdoor applications
- Plastic wheel core contributes to reduced overall weight
- Supports a load capacity of 170kg
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
Construction
| Wheel Core Material | Plastic |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Green |

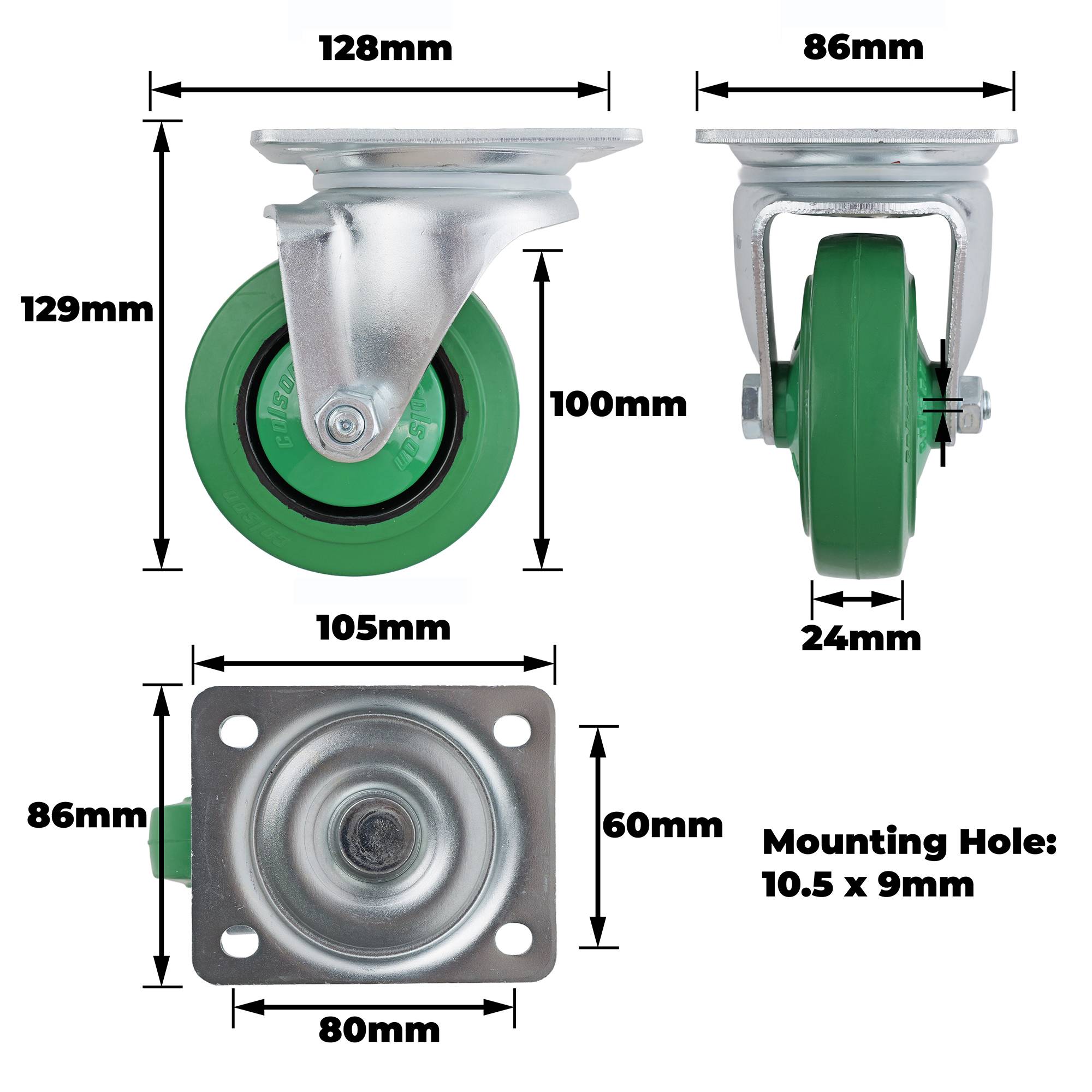

Dimensions
| Product Length (mm) | 128 |
| Product Width (mm) | 86 |
| Product Height (mm) | 129 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 24 |
| Swivel Radius (mm) | 75.5 |
| Mounting Hole Dimensions (mm) | 10.5x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1038 |
| Product Weight (kg) | 1.038 |
| Load Capacity (kg) | 170.0 |
