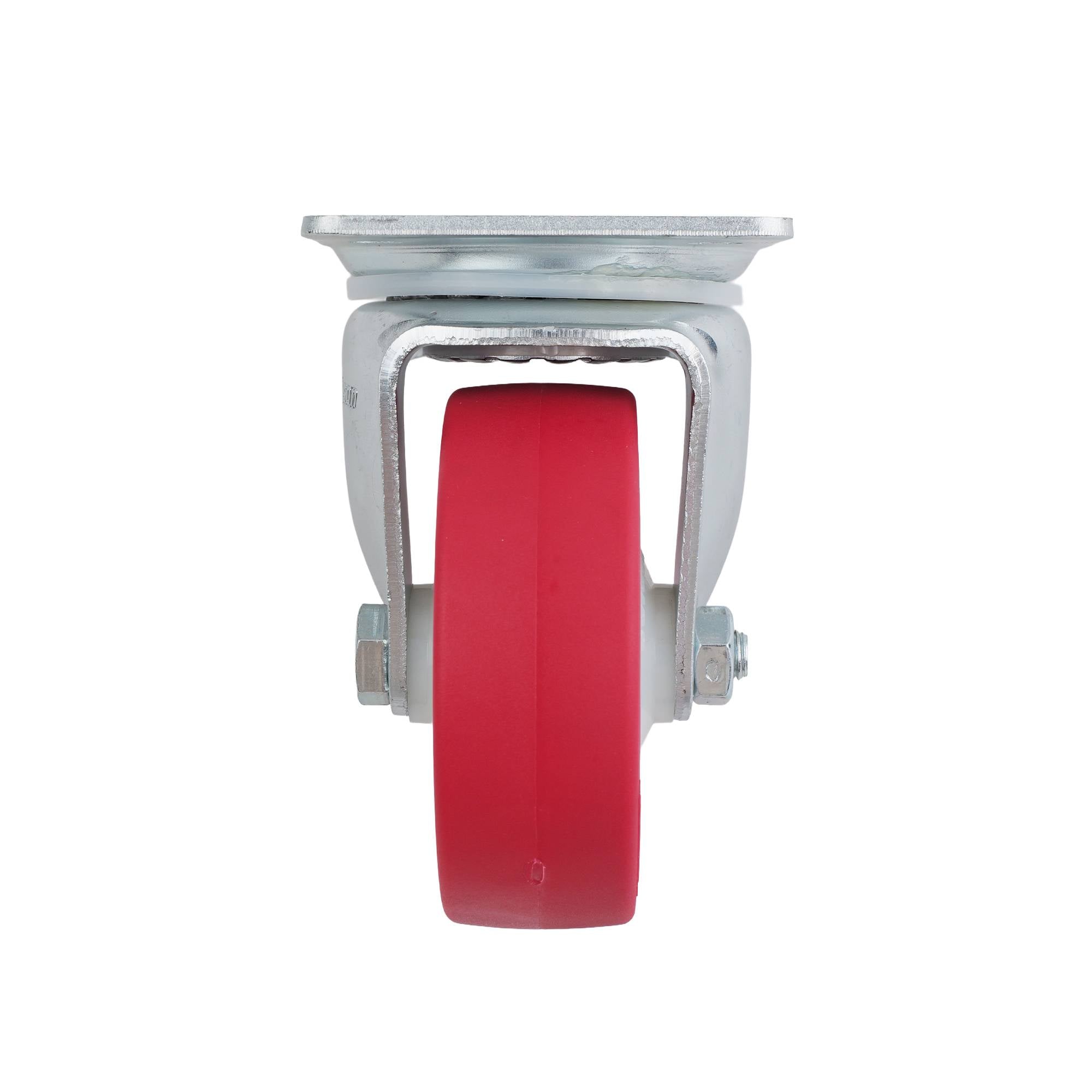

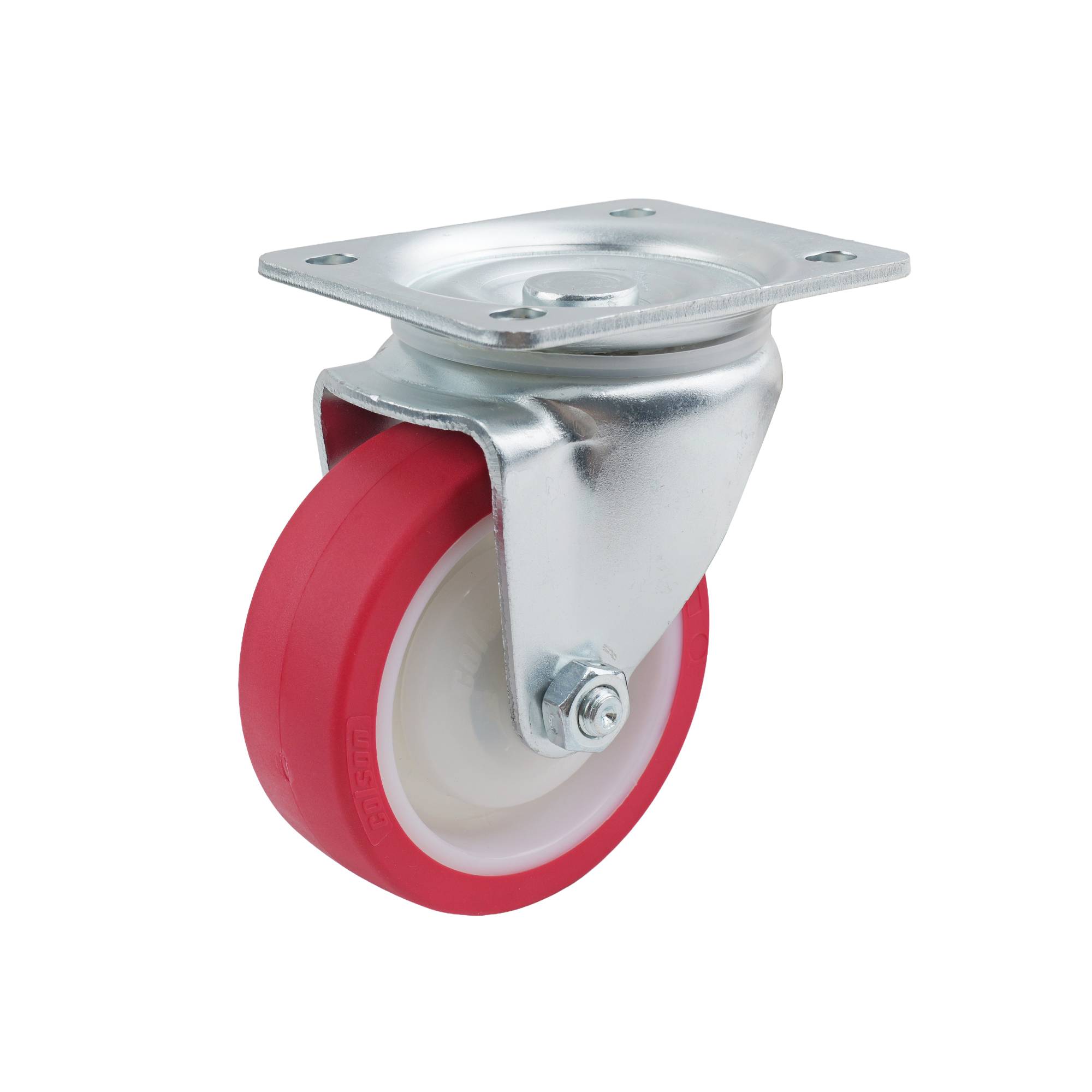

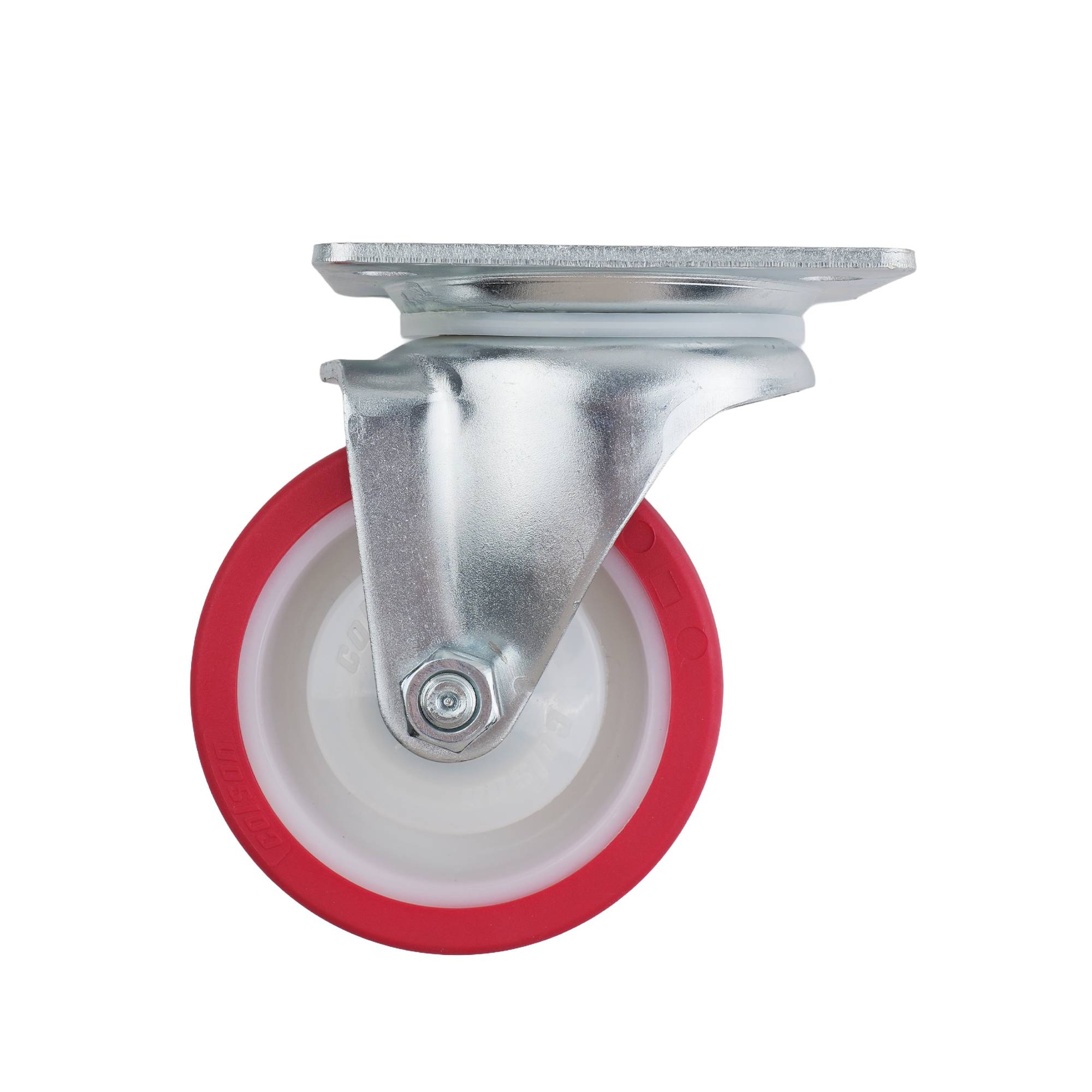

Colson 100mm Red Urethane Swivel Plate I3 Series Castor 230kg
Colson 100mm Red Urethane Swivel Plate I3 Series Castor 230kg. This castor features a robust design with a steel housing and ball bearing assembly, paired with a plastic wheel core and thermoplastic rubber wheels. Its plate mount fitting ensures straightforward integration for a range of movement applications, offering dependable load support. The construction facilitates efficient manoeuvrability and reliable performance for various professional settings.
Couldn't load pickup availability
- Steel housing provides durability and strength
- Thermoplastic rubber wheels offer smooth rotational movement
- Plastic wheel core reduces weight while maintaining support
- Ball bearing system ensures precise swivel rotation
- Single raceway design simplifies tracking and performance
- Plate mount design allows straightforward fixture installation
- Red finish facilitates quick visual identification
- 230kg load capacity supports demanding applications
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
Construction
| Wheel Core Material | Plastic |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red |

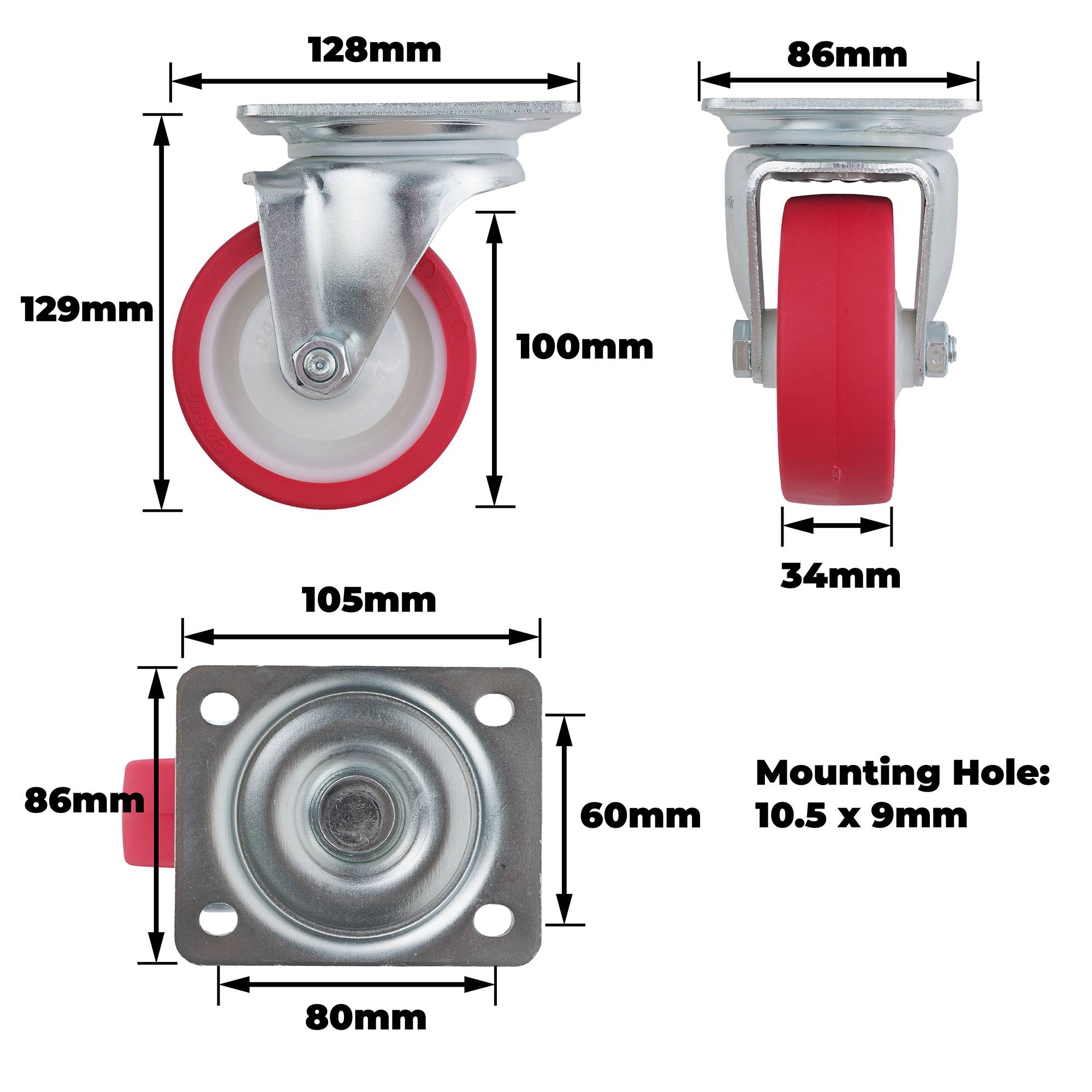

Dimensions
| Product Length (mm) | 128 |
| Product Width (mm) | 86 |
| Product Height (mm) | 129 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 34 |
| Swivel Radius (mm) | 75.5 |
| Mounting Hole Dimensions (mm) | 10.5x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1037 |
| Product Weight (kg) | 1.037 |
| Load Capacity (kg) | 230.0 |
