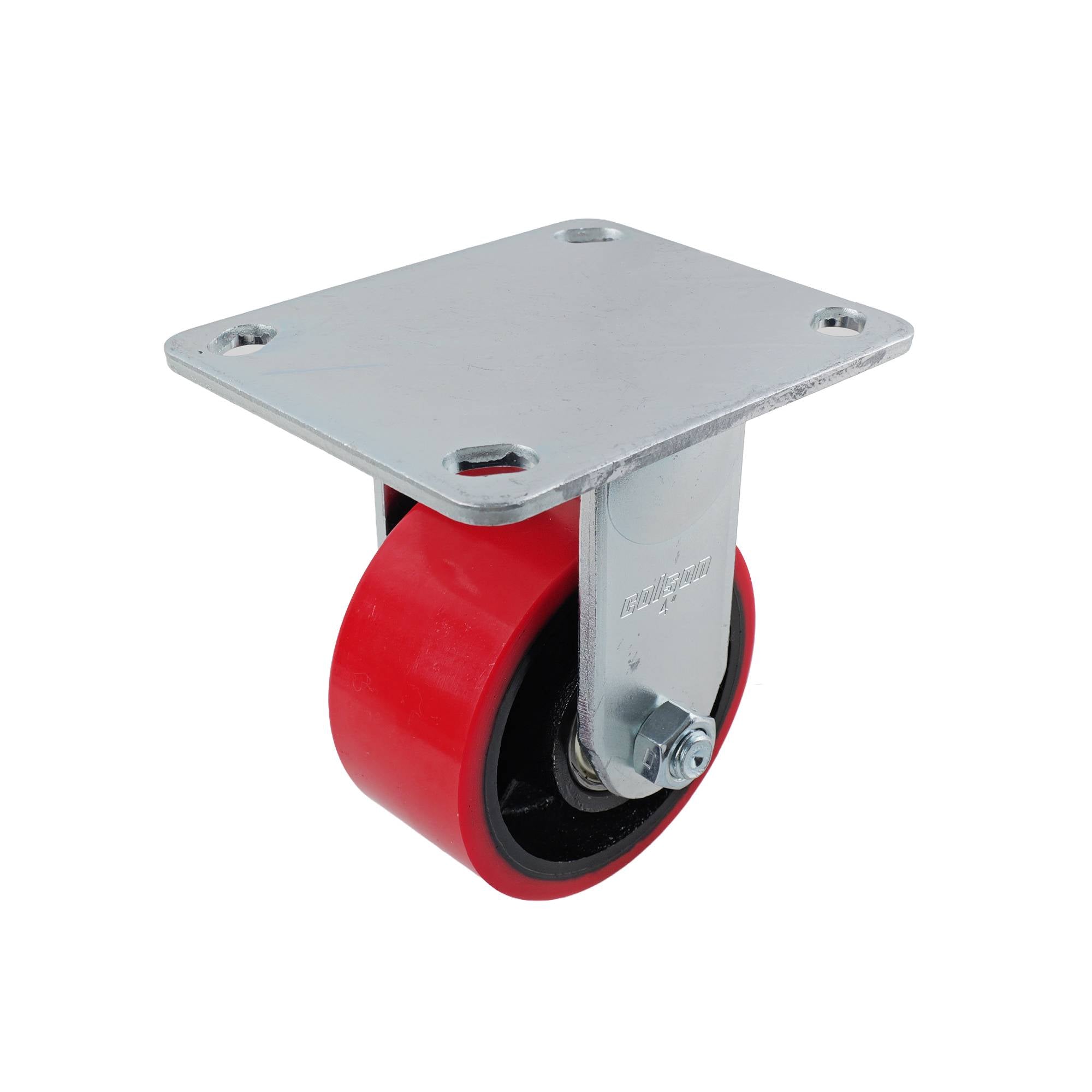

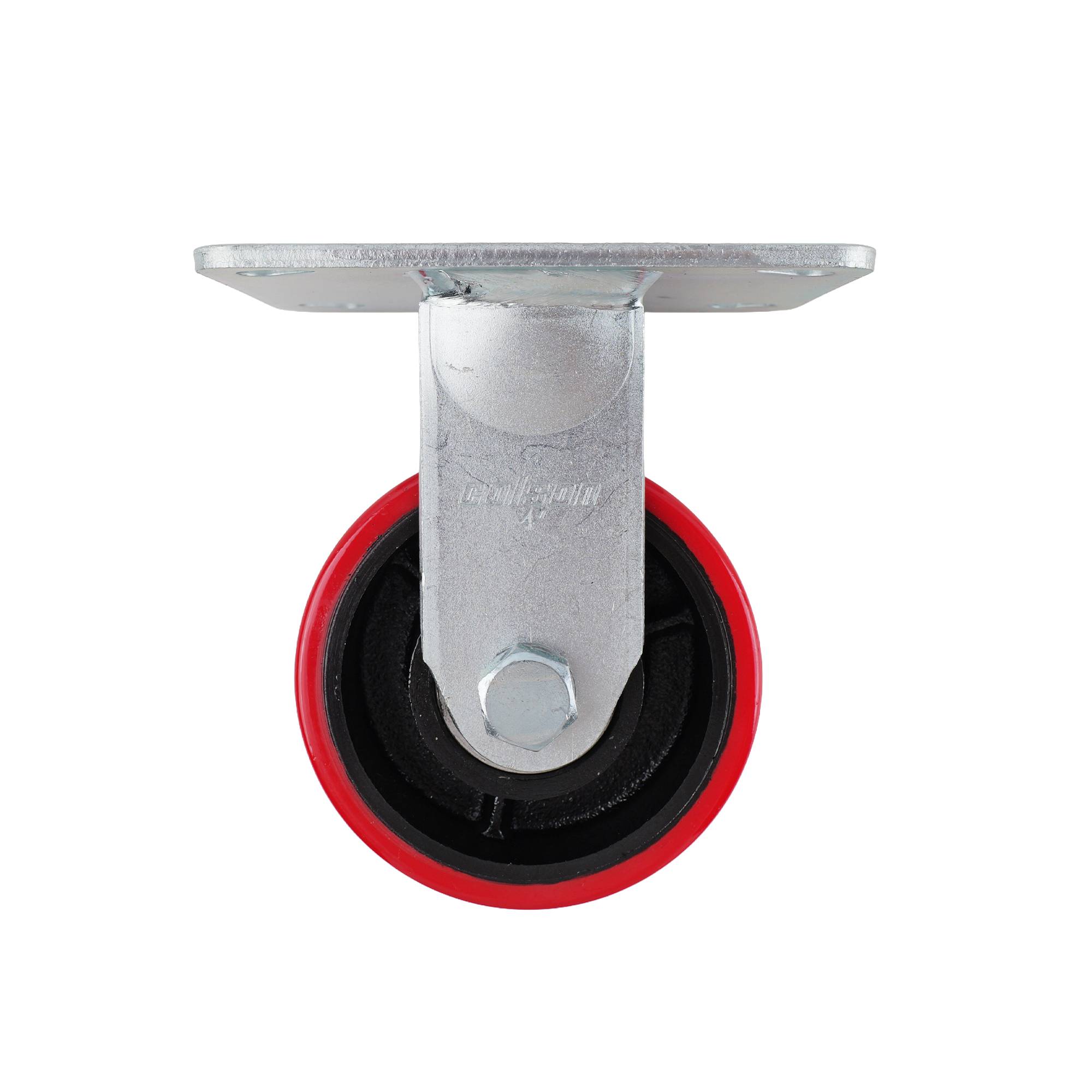

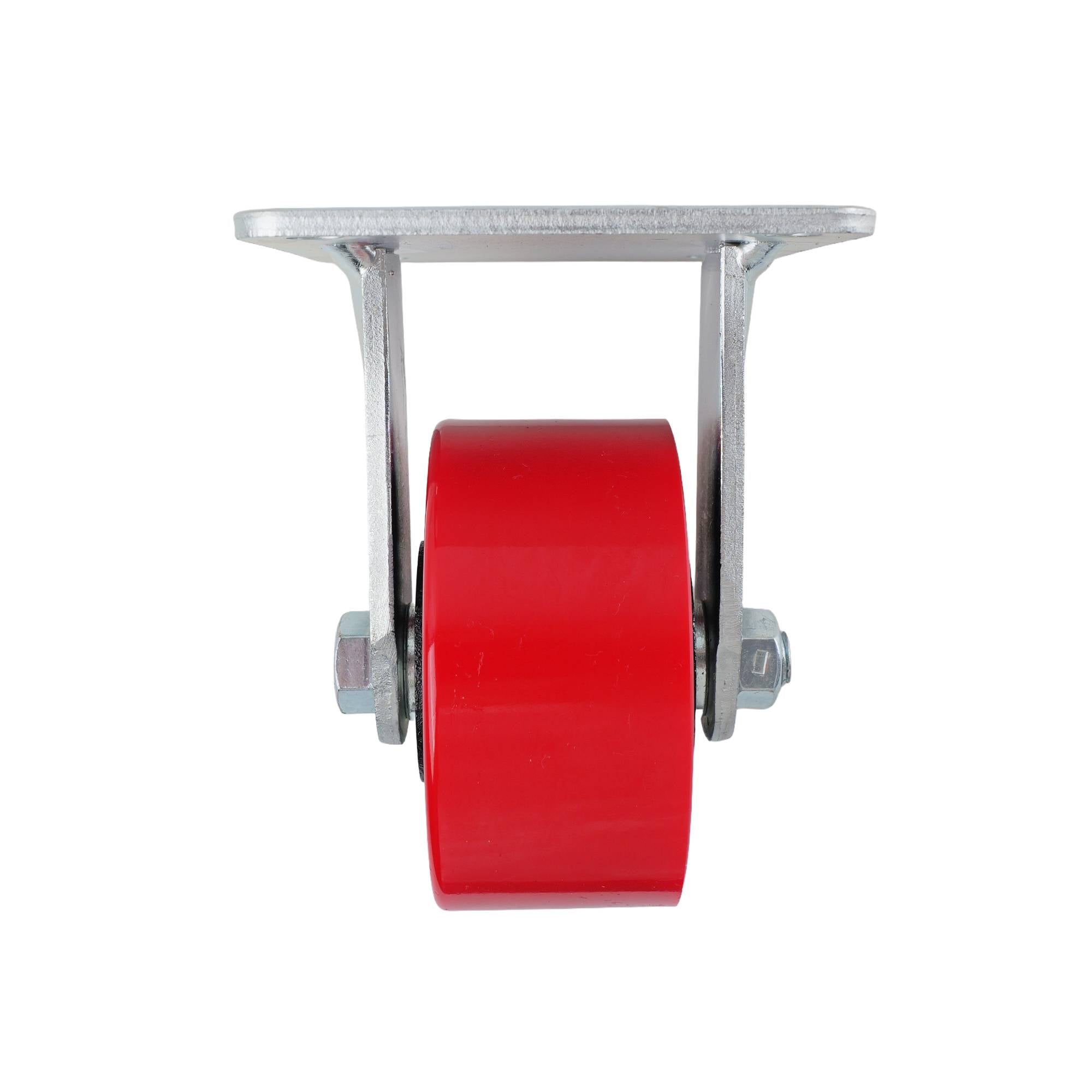

Colson 100mm Urethane on Cast Iron Fixed Plate J3 Series Castor 320kg
Colson 100mm Urethane on Cast Iron Fixed Plate J3 Series Castor 320kg is designed with a cast iron wheel core, red urethane wheel and steel housing that delivers reliable performance. Its double ball bearing and double raceway provide smooth and consistent mobility under varied loading requirements. The fixed plate design ensures secure mounting and durability for efficient material handling in demanding trade and industrial applications.
Couldn't load pickup availability
- 100mm red urethane wheel provides durable rolling performance
- Cast iron wheel core ensures strong structural integrity
- Steel housing and bearings guarantee reliable movement
- Double ball bearings with double raceway reduce operational friction
- Fixed plate design offers secure mounting for machinery
- Load capacity rated at 320kg accommodates heavy usage
- Robust steel construction promotes long-lasting durability
- Colson engineering supports precise control and performance
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Double Ball Bearing |
| Raceway Type | Double |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Red Urethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

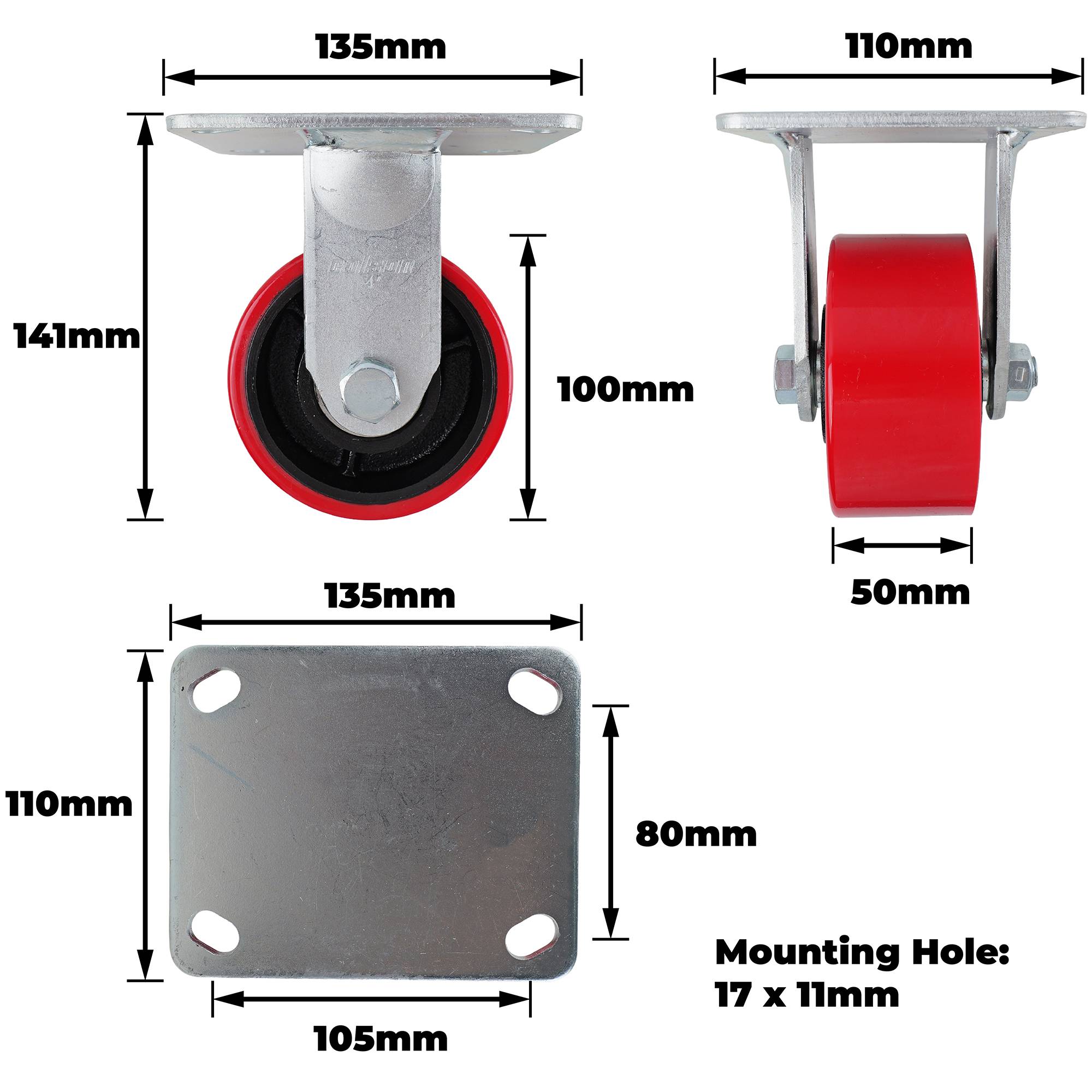

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 110 |
| Product Height (mm) | 141 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 2390 |
| Product Weight (kg) | 2.39 |
| Load Capacity (kg) | 320.0 |
