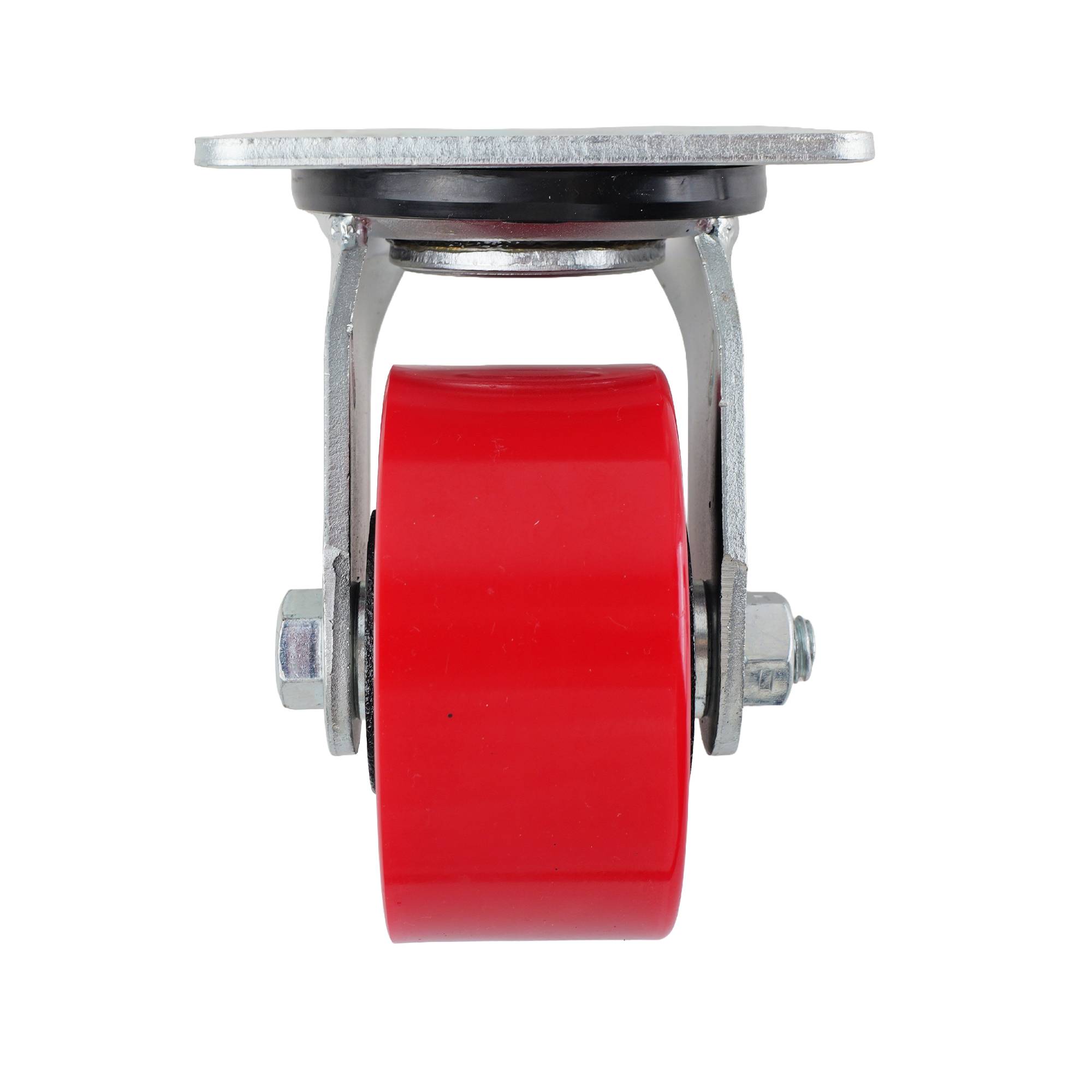

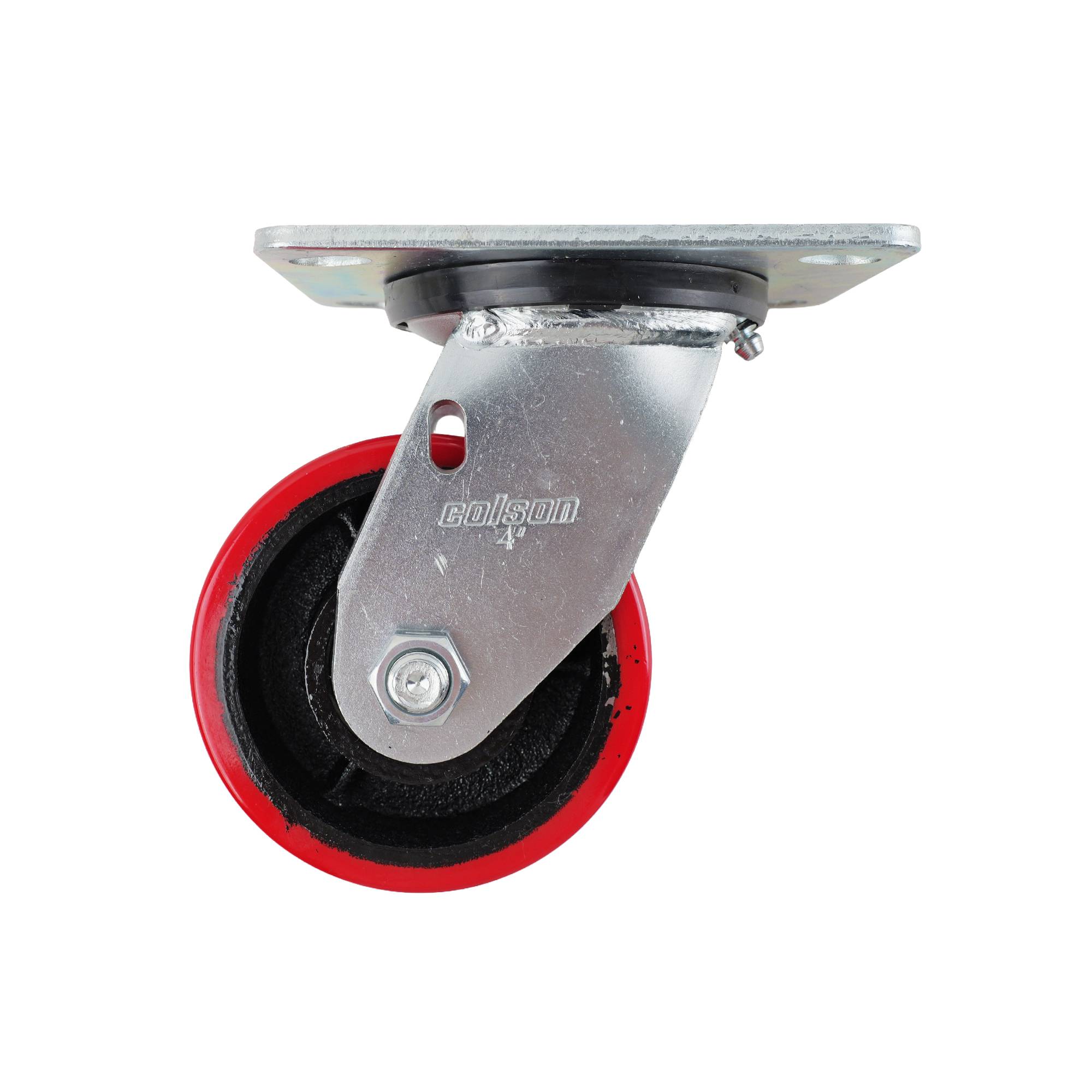

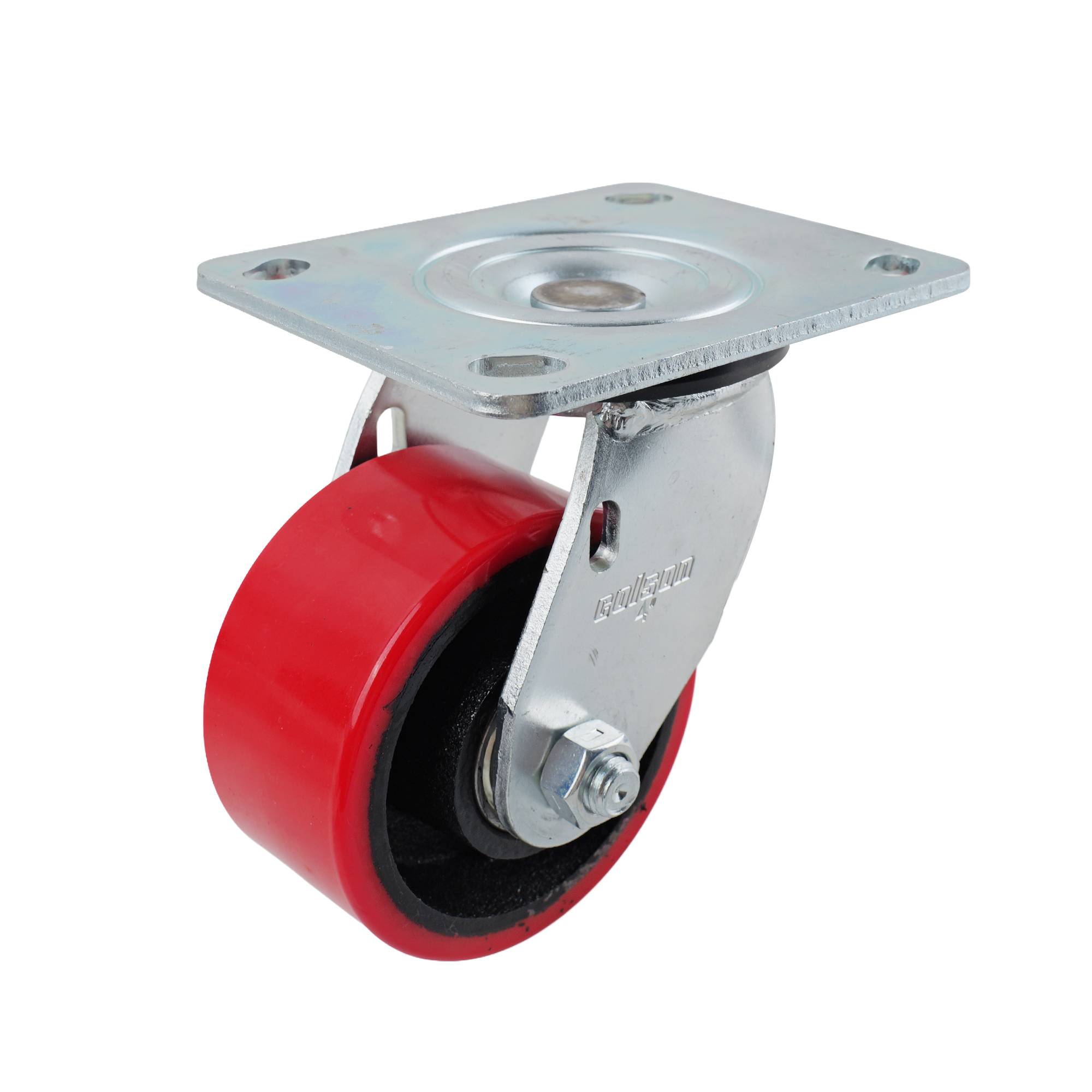

Colson 100mm Urethane on Cast Iron Swivel Plate J3 Series Castor 320kg
Colson 100mm Urethane on Cast Iron Swivel Plate J3 Series Castor 320kg offers precise movement and load handling capabilities for trade and professional settings. The cast iron wheel core paired with a red urethane wheel delivers durability and consistent performance. Enhanced by a steel housing and double ball bearing system, this castor provides reliable rotation and stability for equipment transport. Its swivel plate design simplifies navigation and efficient manoeuvring in varied technical applications.
Couldn't load pickup availability
- Robust cast iron wheel core strengthens load capacity
- Red urethane wheel surface enhances wear performance
- Steel housing and bearings provide reliable support
- Double ball bearings enable smooth rotation
- Double raceway design contributes to stable movement
- Swivel plate configuration allows precise manoeuvrability
- Supports up to 320kg operational loads
- Colson quality materials ensure long-term durability
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Double Ball Bearing |
| Raceway Type | Double |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Red Urethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |
Dimensions
| Product Length (mm) | 154 |
| Product Width (mm) | 110 |
| Product Height (mm) | 141 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 87 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 2791 |
| Product Weight (kg) | 2.791 |
| Load Capacity (kg) | 320.0 |
