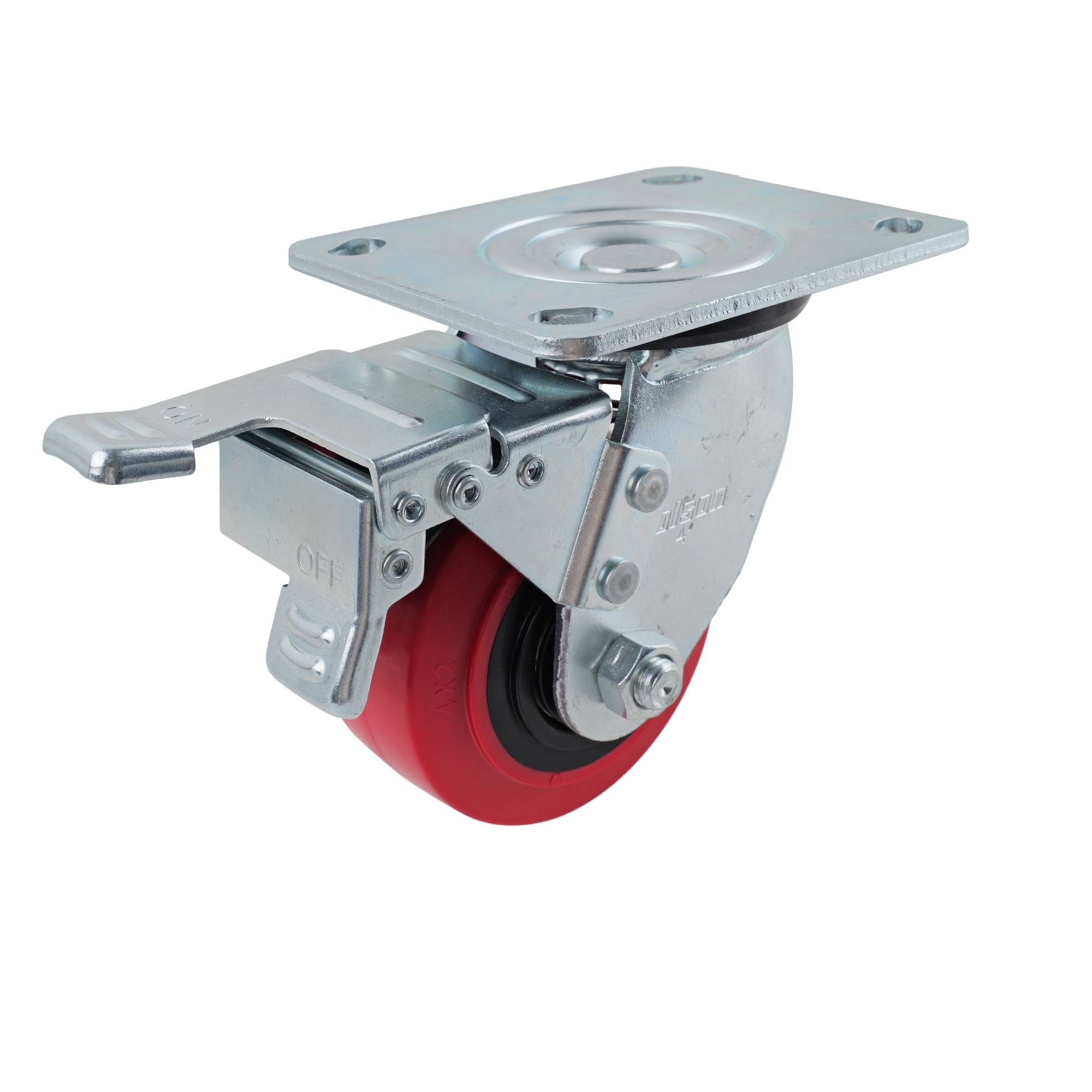

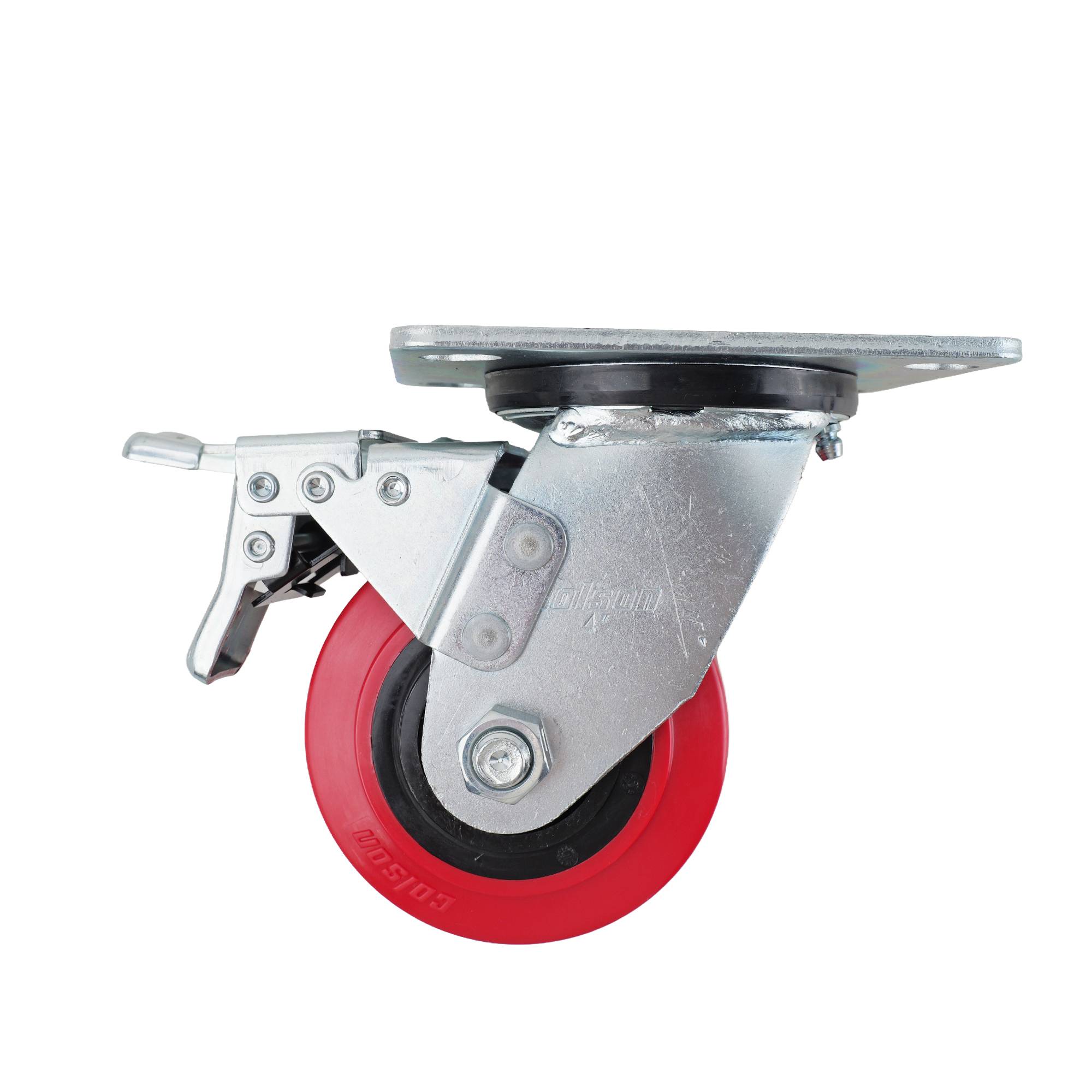

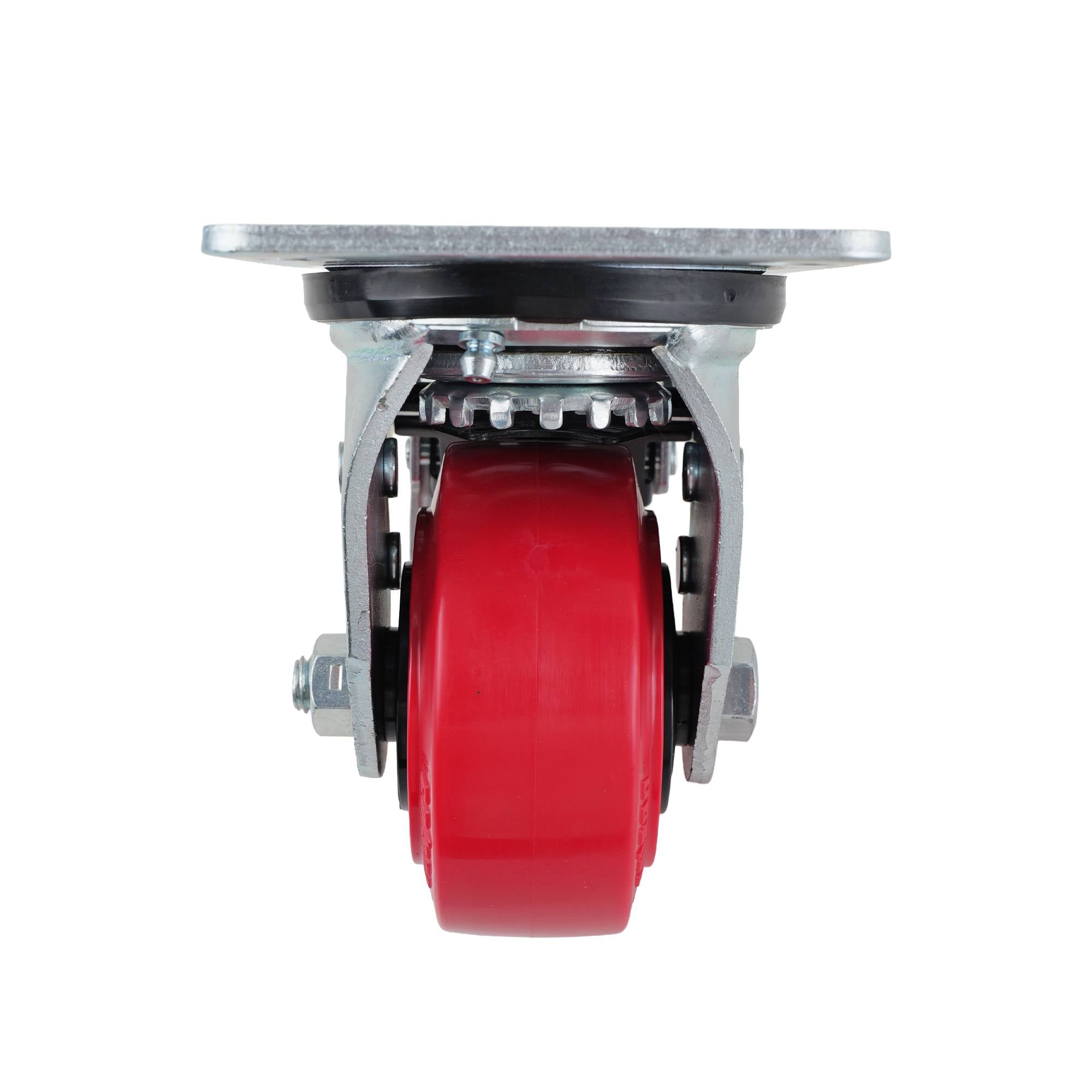

Colson 100mm Urethane Swivel Plate Brake J3 Series Castor 280kg
Colson 100mm Urethane Swivel Plate Brake J3 Series Castor 280kg is a COLSON product designed for secure load handling and efficient manoeuvrability in trade applications. It features a robust polypropylene wheel core with a red urethane wheel and steel housing, offering smooth movement and reliable performance. The double ball bearing and double raceway design provide consistent operation, while the integrated plate enhances stability during use.
Couldn't load pickup availability
- Red urethane wheel ensures reliable performance for heavy loads
- Steel housing and bearing offer durable construction and support
- Double ball bearing reduces friction for smooth castor movement
- Double raceway design evenly distributes load across the wheel
- Plate mount ensures quick installation and secure connection
- Swivel plate brake enhances movement control and positioning
- Polypropylene wheel core offers stable and low-maintenance operation
- Rated up to 280kg for demanding operational tasks
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Double Ball Bearing |
| Raceway Type | Double |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Red Urethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

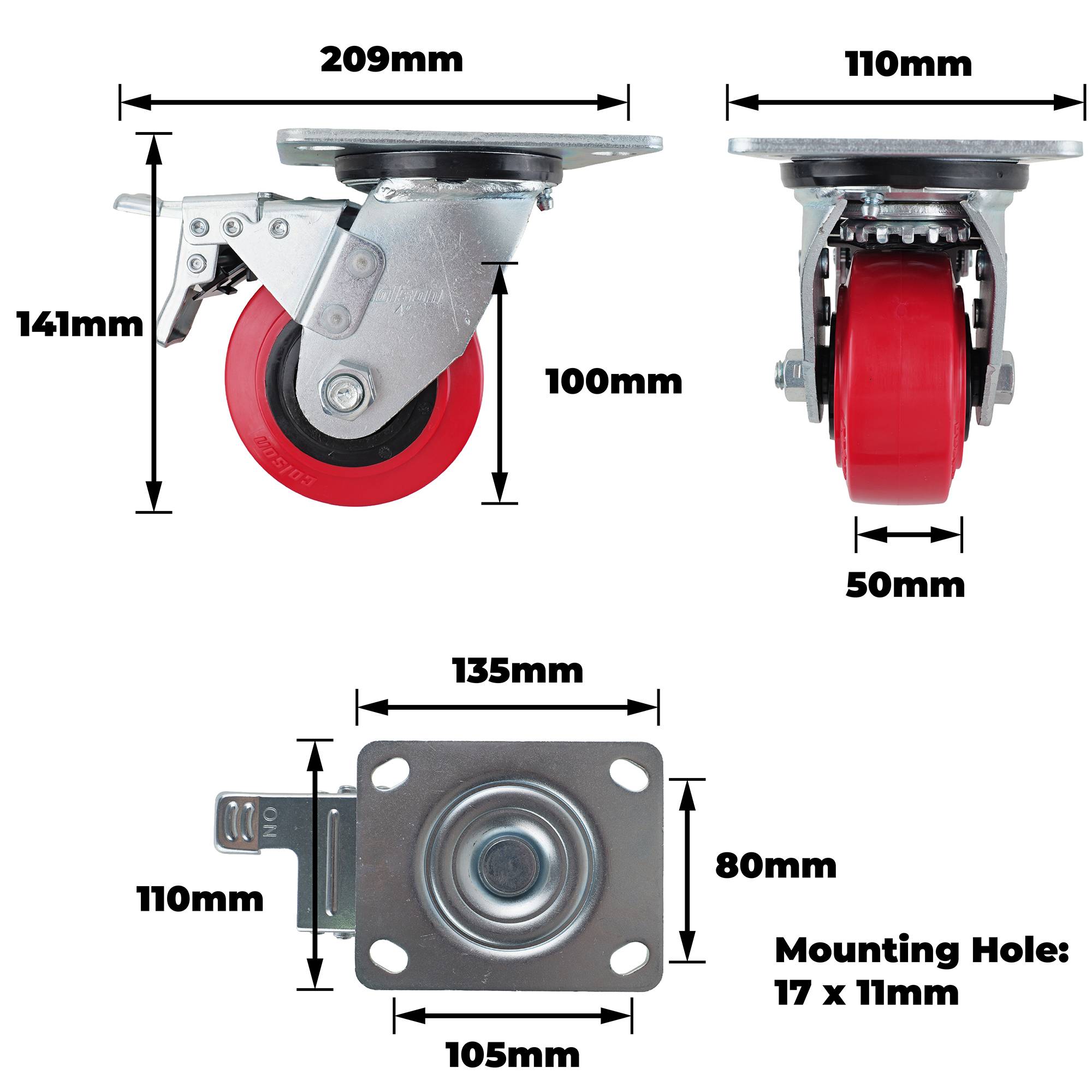

Dimensions
| Product Length (mm) | 209 |
| Product Width (mm) | 110 |
| Product Height (mm) | 141 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 142 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 2395 |
| Product Weight (kg) | 2.395 |
| Load Capacity (kg) | 280.0 |
