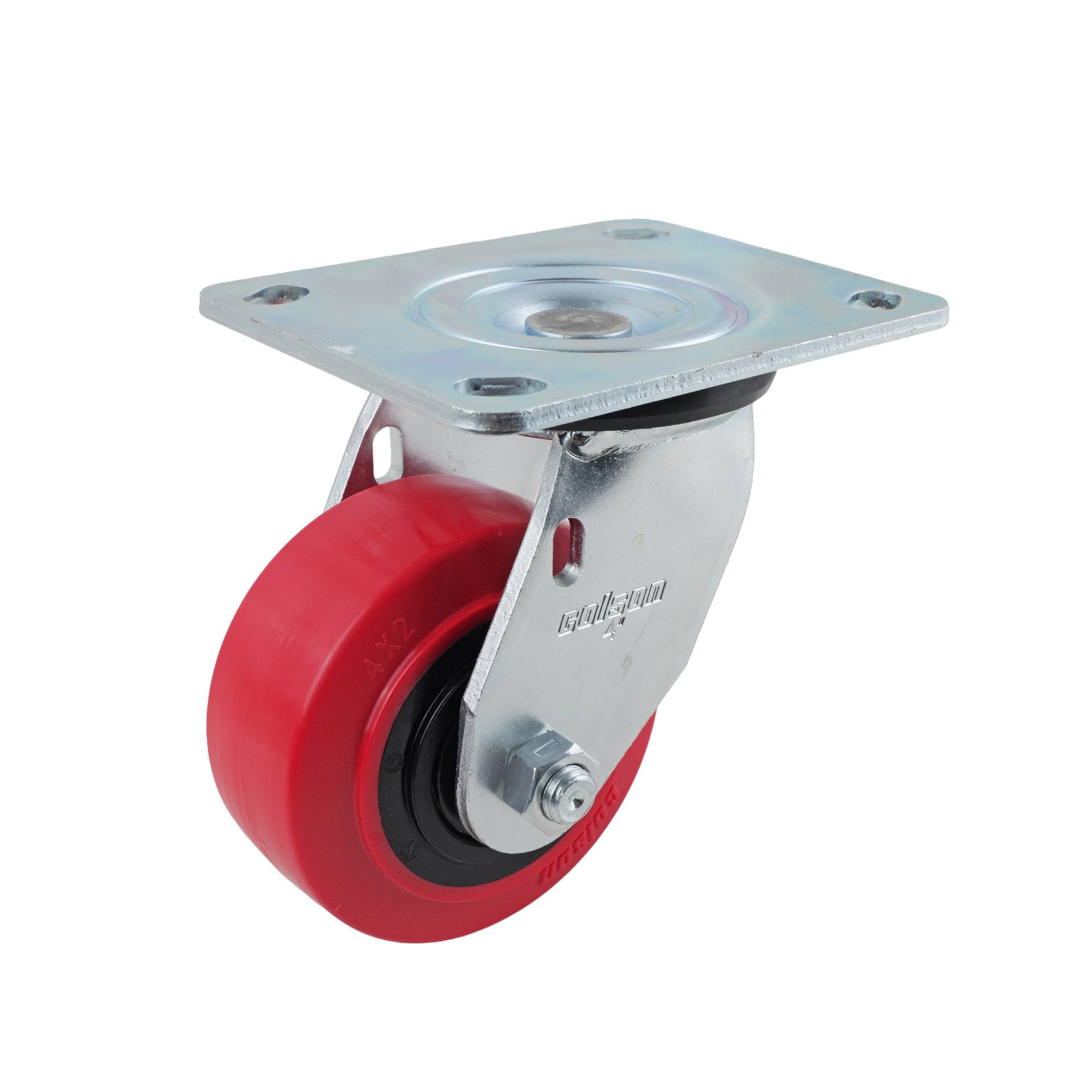

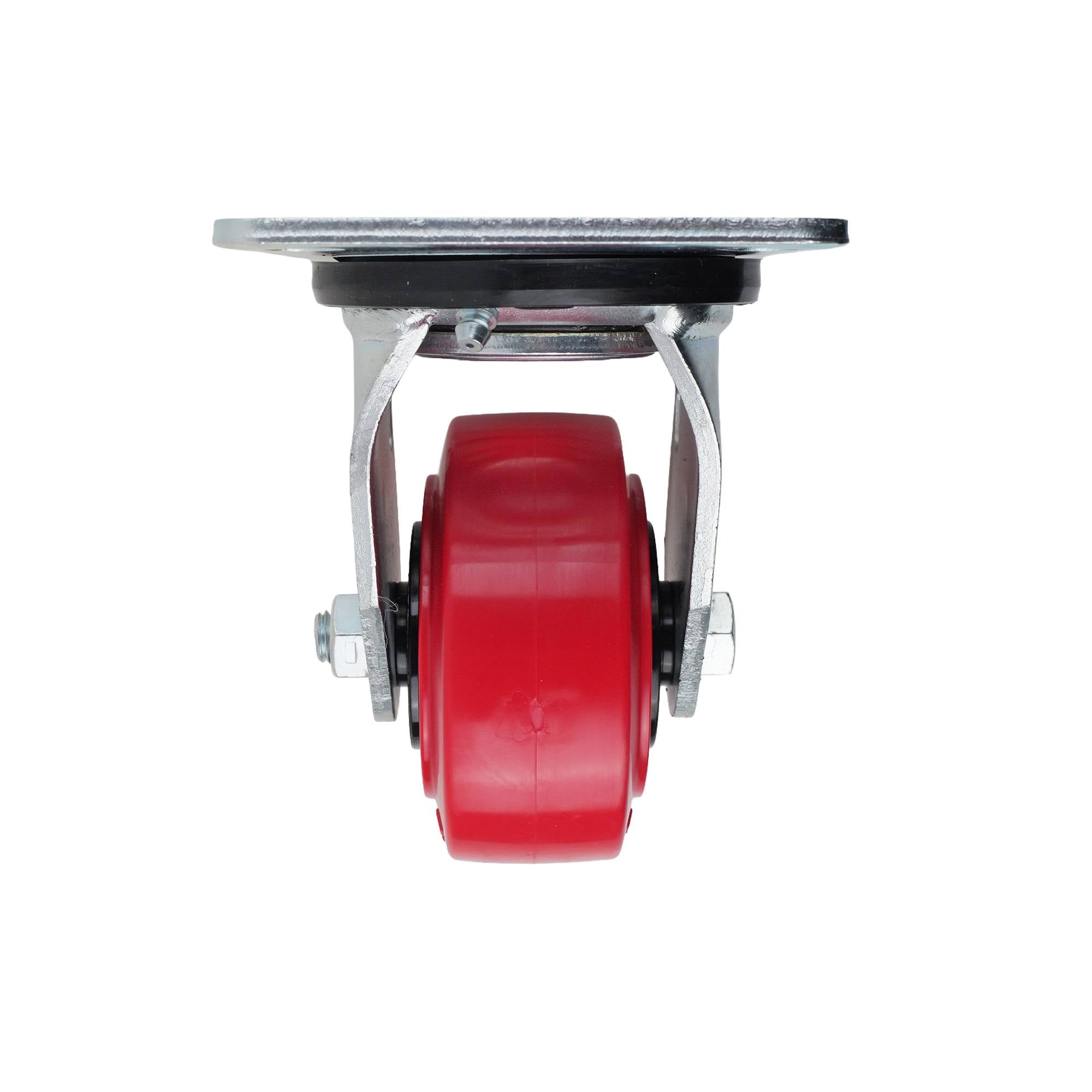

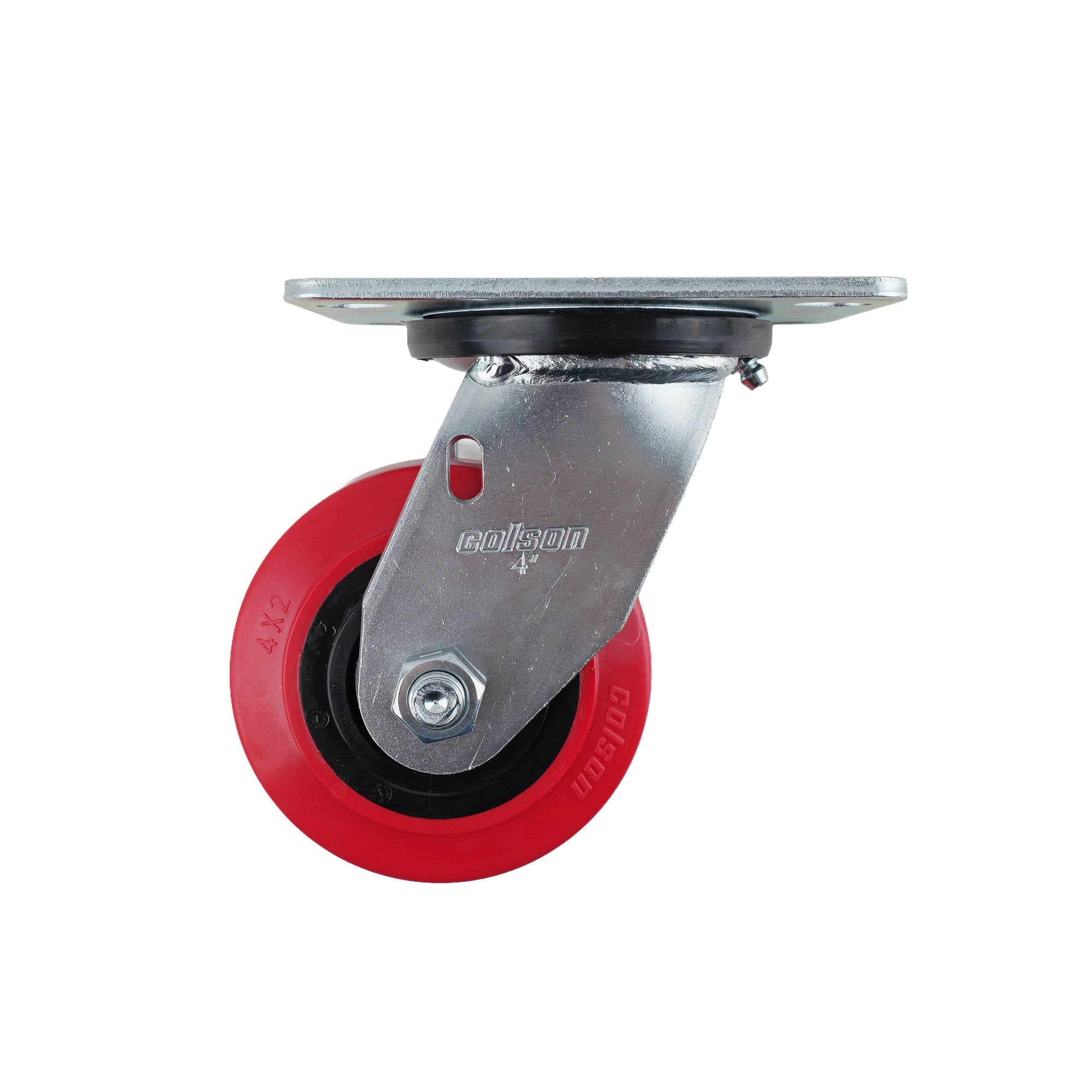

Colson 100mm Urethane Swivel Plate J3 Series Castor 280kg
Colson 100mm Urethane Swivel Plate J3 Series Castor 280kg is built with a steel housing, a red urethane wheel and a polypropylene wheel core that contribute to stable and smooth manoeuvrability. It features a double ball bearing system and a double raceway for consistent rotation while its true plate design supports secure mounting. This castor provides practical advantages for trade professionals, ensuring controlled movement and reliable performance in technical applications.
Couldn't load pickup availability
- Robust steel housing for extended durability
- Double ball bearings deliver smooth and reliable rotation
- Dual raceway design distributes load during swivelling
- Swivel plate design offers versatile mounting options
- High performance red urethane wheel ensures smooth movement
- Durable polypropylene core provides resilient wheel structure
- Engineered by COLSON for robust dependable performance
- Available in red black and silver finish
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Double Ball Bearing |
| Raceway Type | Double |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Red Urethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

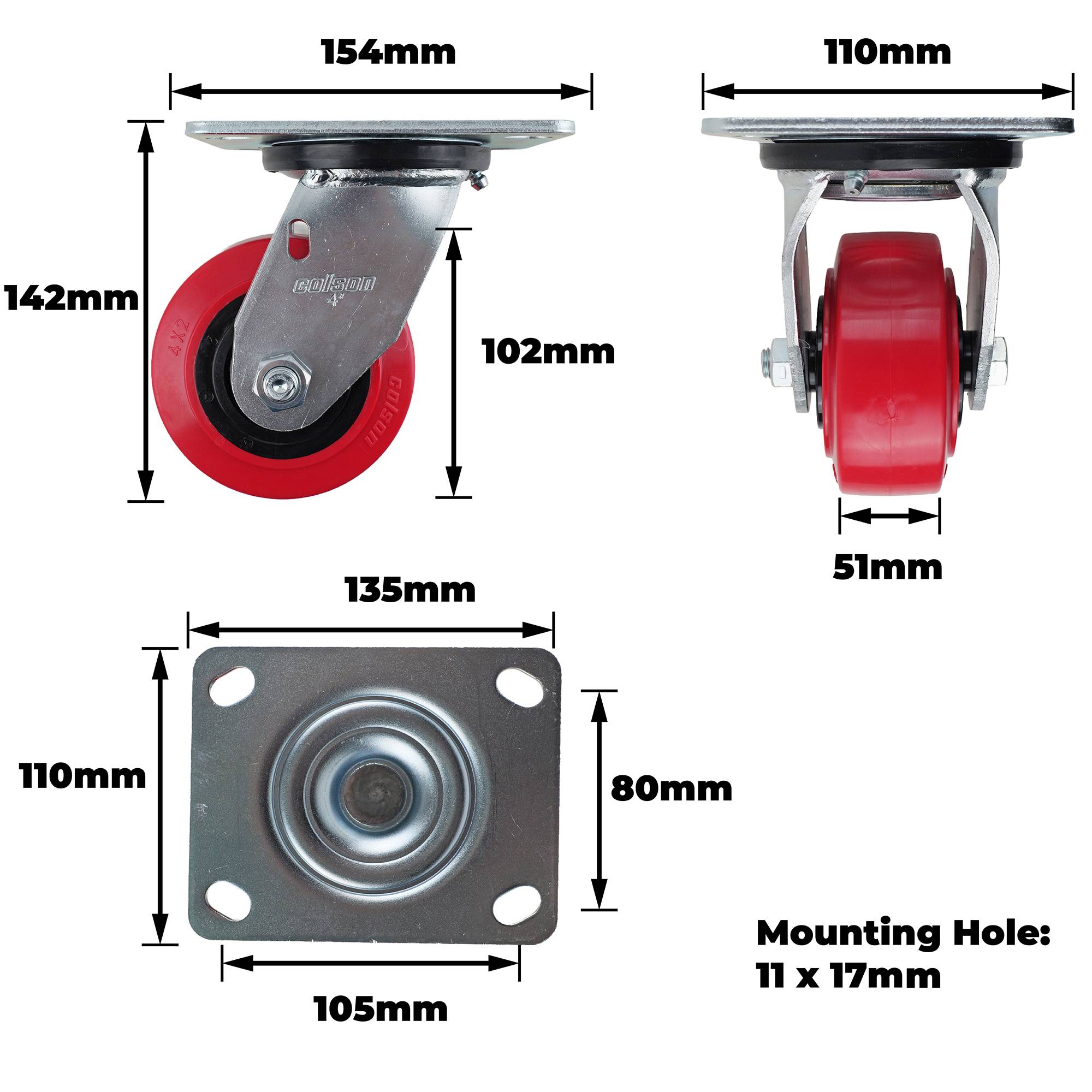

Dimensions
| Product Length (mm) | 154 |
| Product Width (mm) | 110 |
| Product Height (mm) | 141 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 87 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 1959 |
| Product Weight (kg) | 1.959 |
| Load Capacity (kg) | 280.0 |
