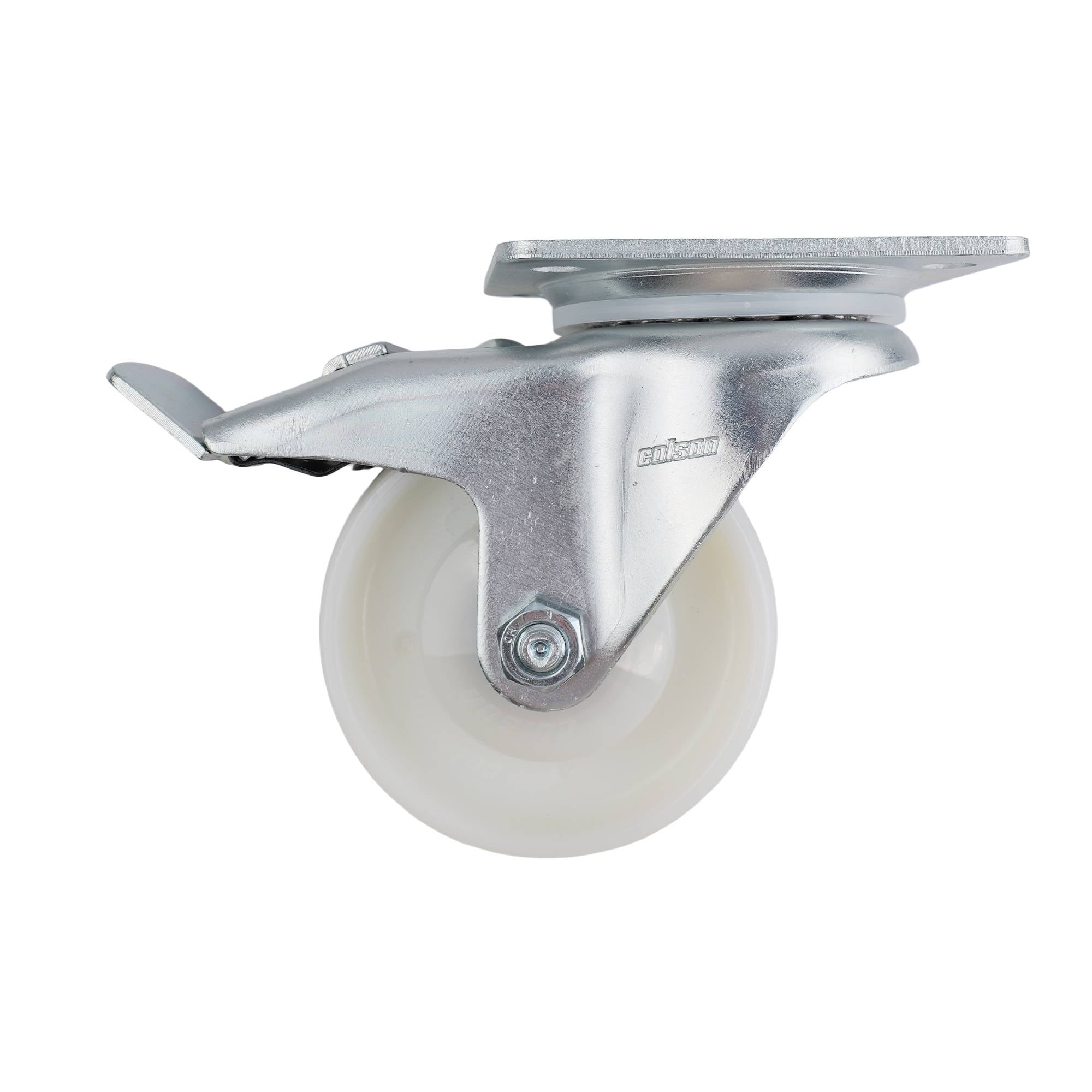

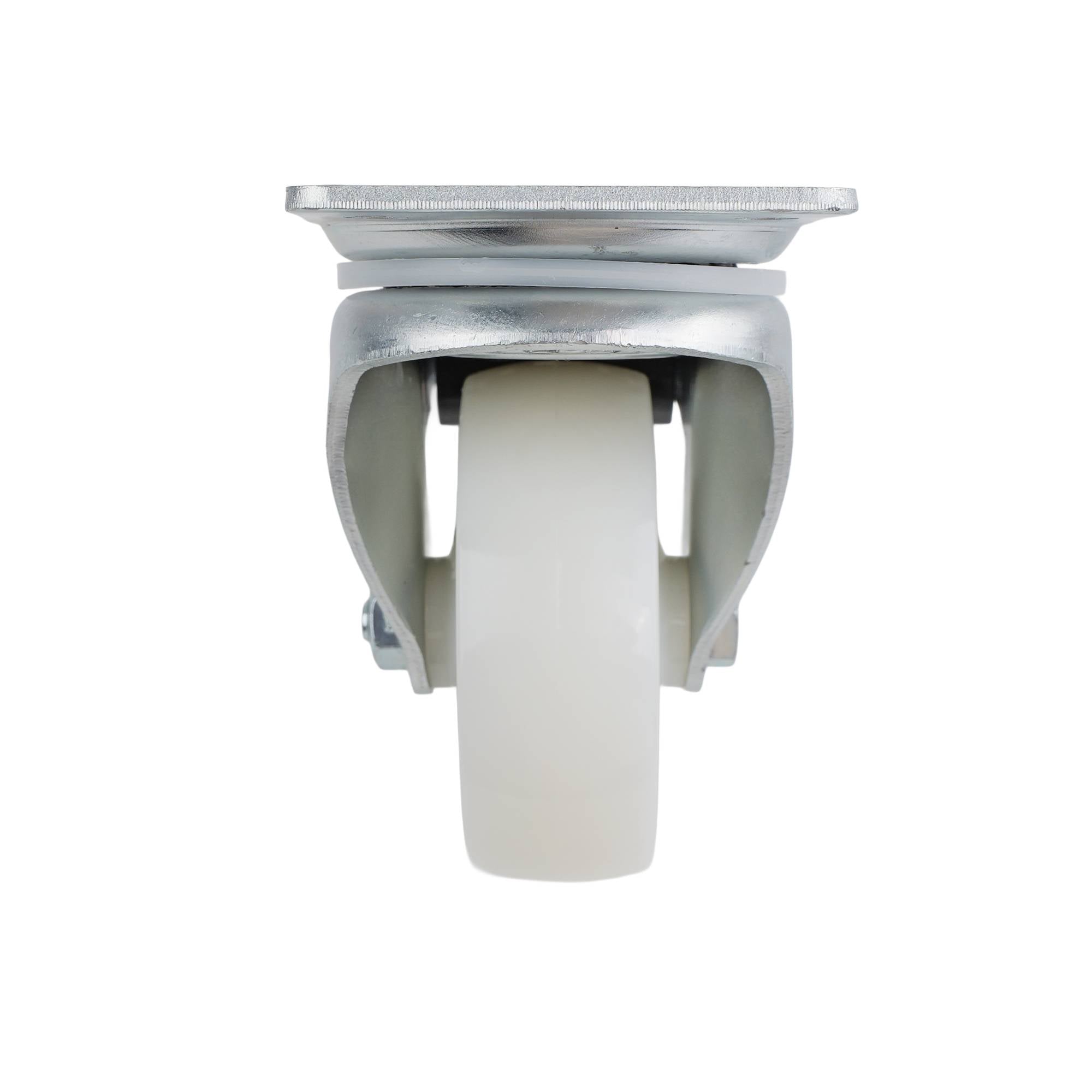

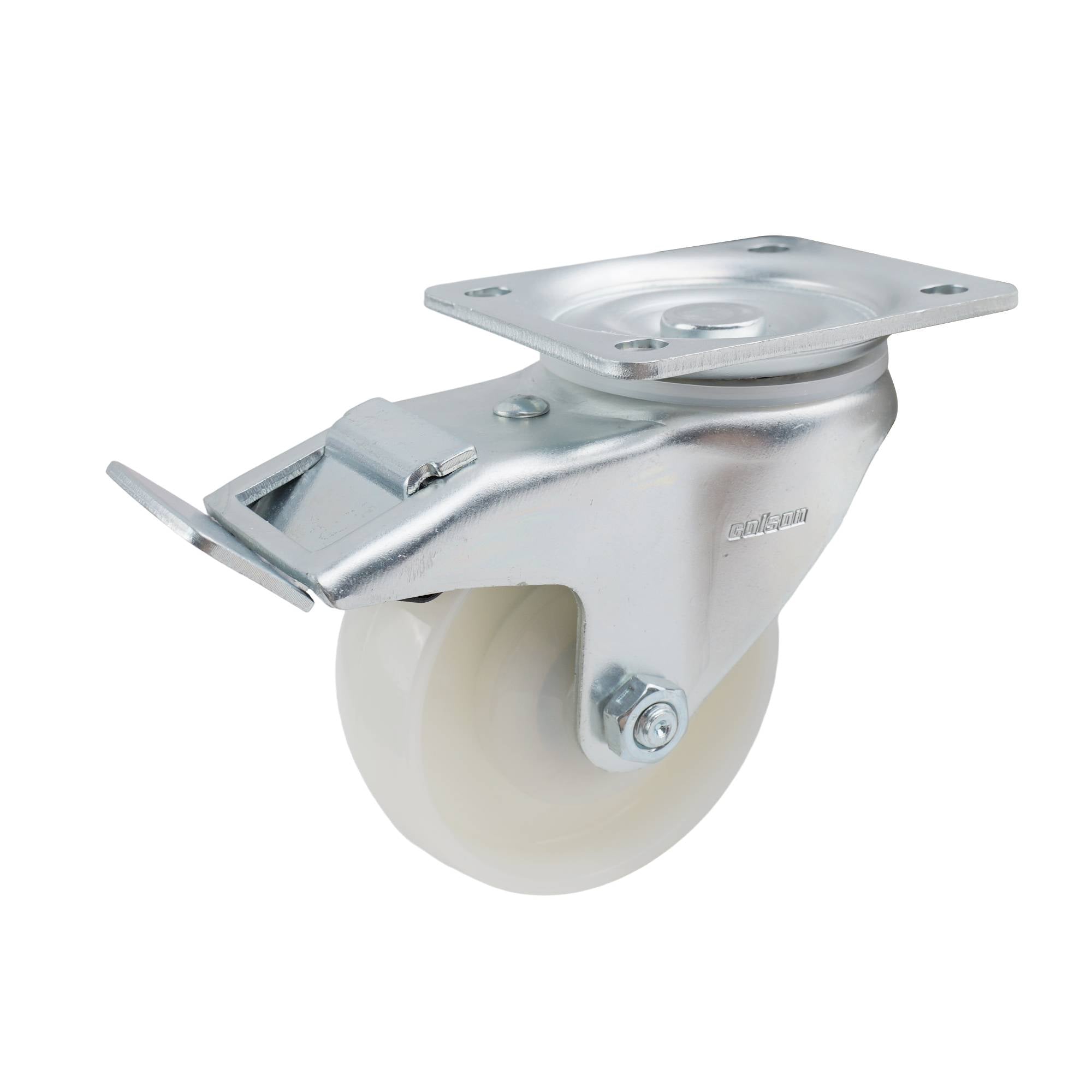

Colson 100mm White Nylon Swivel Plate Brake I3 Series Castor 230kg
Colson 100mm White Nylon Swivel Plate Brake I3 Series Castor 230kg is designed to deliver reliable manoeuvrability with a durable white nylon wheel mounted on a robust steel housing. It comprises a plastic wheel core and ball bearings with a single raceway, supporting both indoor and outdoor applications. The plate mount design and total brake system provide precision control for professional trade applications.
Couldn't load pickup availability
- Robust steel housing and bearing construction
- White finish provides a clear, professional appearance
- Plate mount design offers flexible installation options
- Nylon wheel material provides smooth, reliable movement
- Plastic wheel core delivers lightweight operational performance
- Single raceway ball bearings support smooth swivel action
- Total brake mechanism provides secure mobility control
- Engineered for both indoor and outdoor operation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
Construction
| Wheel Core Material | Plastic |
| Wheel Material | Nylon |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | White |

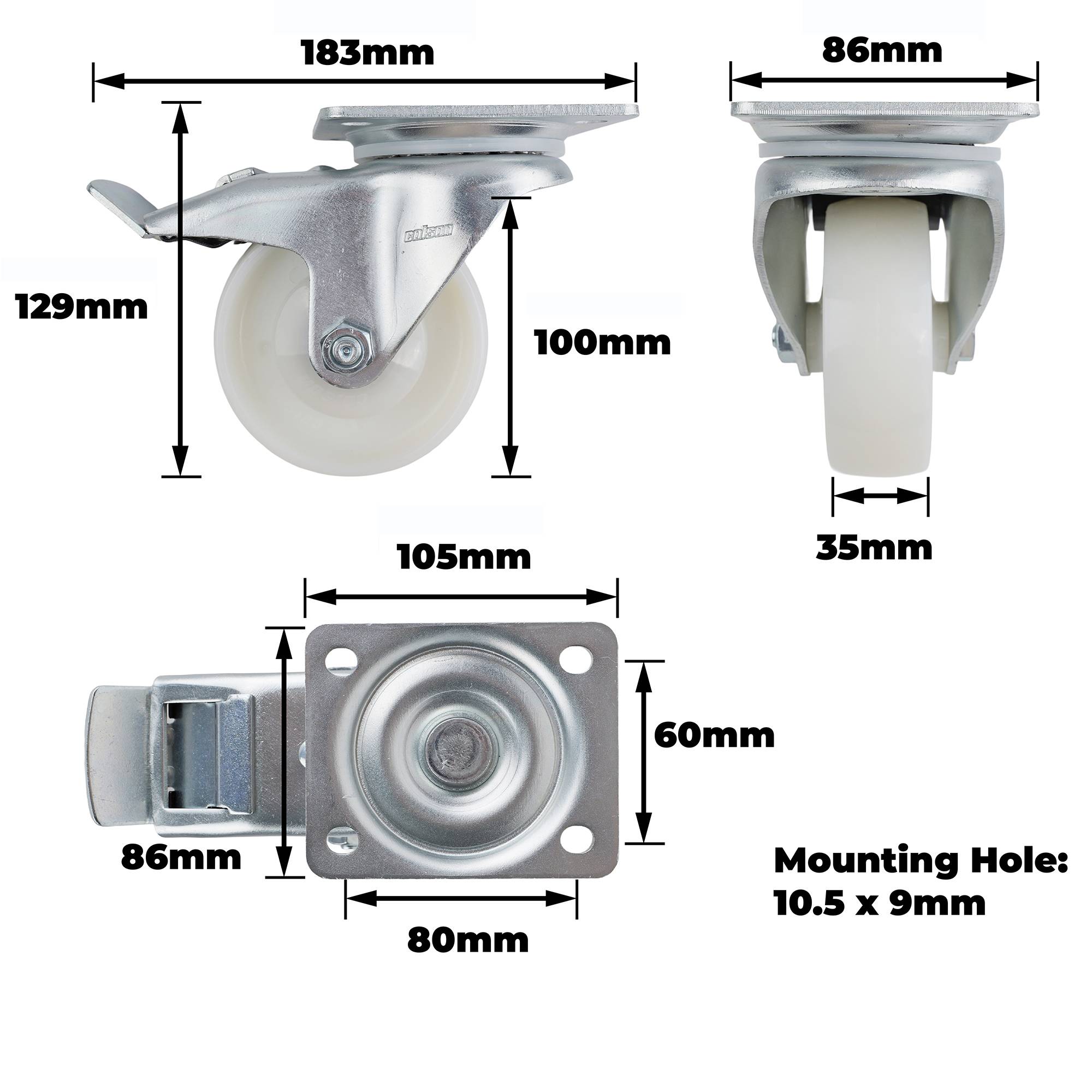

Dimensions
| Product Length (mm) | 183 |
| Product Width (mm) | 86 |
| Product Height (mm) | 129 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 35 |
| Swivel Radius (mm) | 130.5 |
| Mounting Hole Dimensions (mm) | 10.5x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1212 |
| Product Weight (kg) | 1.212 |
| Load Capacity (kg) | 230.0 |
