Colson 125mm Cast Iron Fixed Plate J3 Series Castor 410kg
Colson 125mm Cast Iron Fixed Plate J3 Series Castor 410kg is a component engineered for effective load transport in trade operations. The cast iron wheel works in conjunction with a steel housing and a steel roller bearing set in a double raceway configuration. The fixed plate design ensures secure mounting while offering a precise build that supports reliable motion control for professionals using equipment in commercial settings.
Couldn't load pickup availability
- Robust cast iron wheel supports heavy loads
- Steel housing ensures strength and resilience
- Double raceway enhances stability during movement
- Fixed plate design offers secure mounting options
- Roller bearings provide smooth performance under load
- Black and silver finish suits a professional aesthetic
- Quality construction delivers reliable service in demanding applications
- Engineered for durability with precision crafted components
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Roller Bearing |
| Raceway Type | Double |
Construction
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

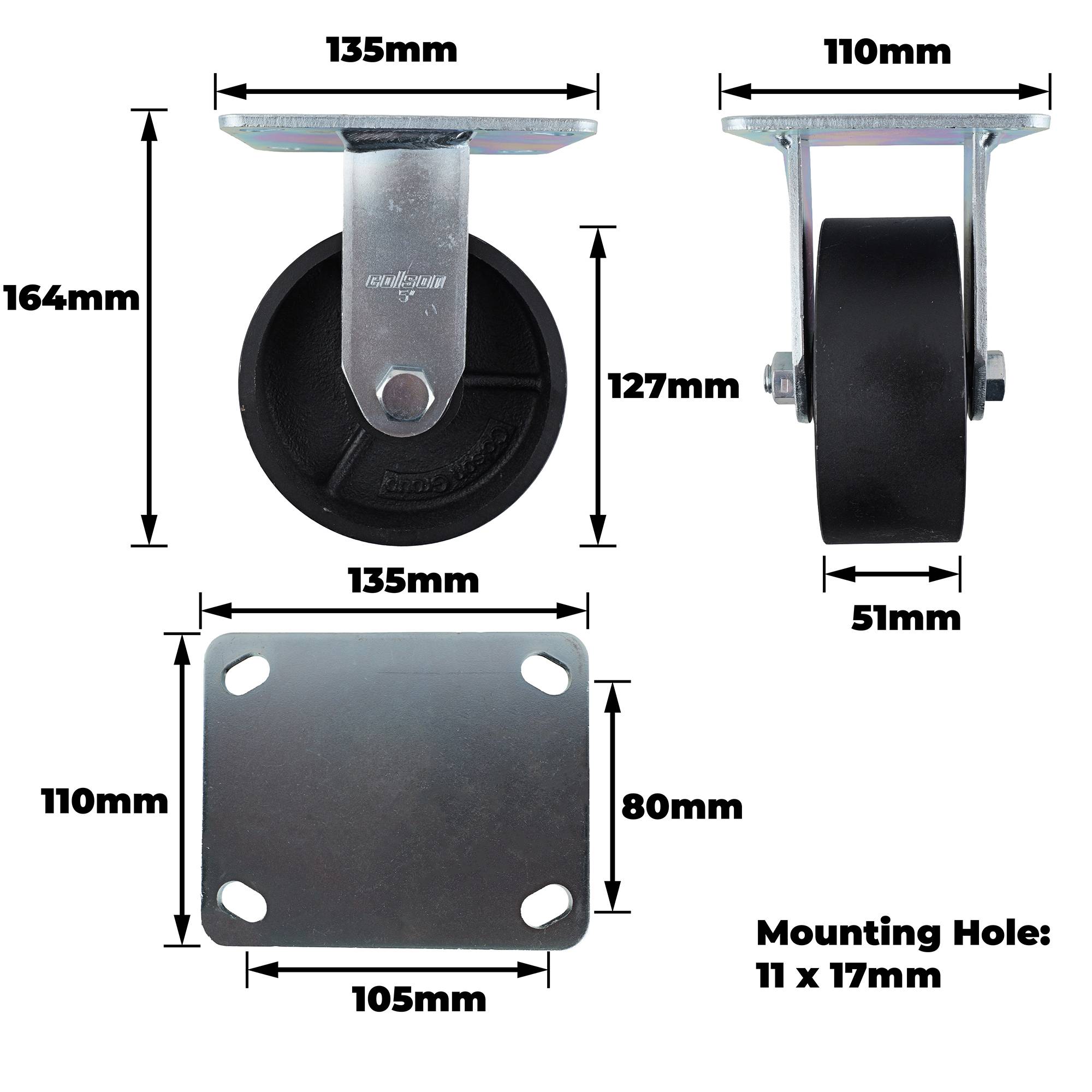

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 110 |
| Product Height (mm) | 164 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 51 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 3044.7 |
| Product Weight (kg) | 3.0447 |
| Load Capacity (kg) | 410.0 |
