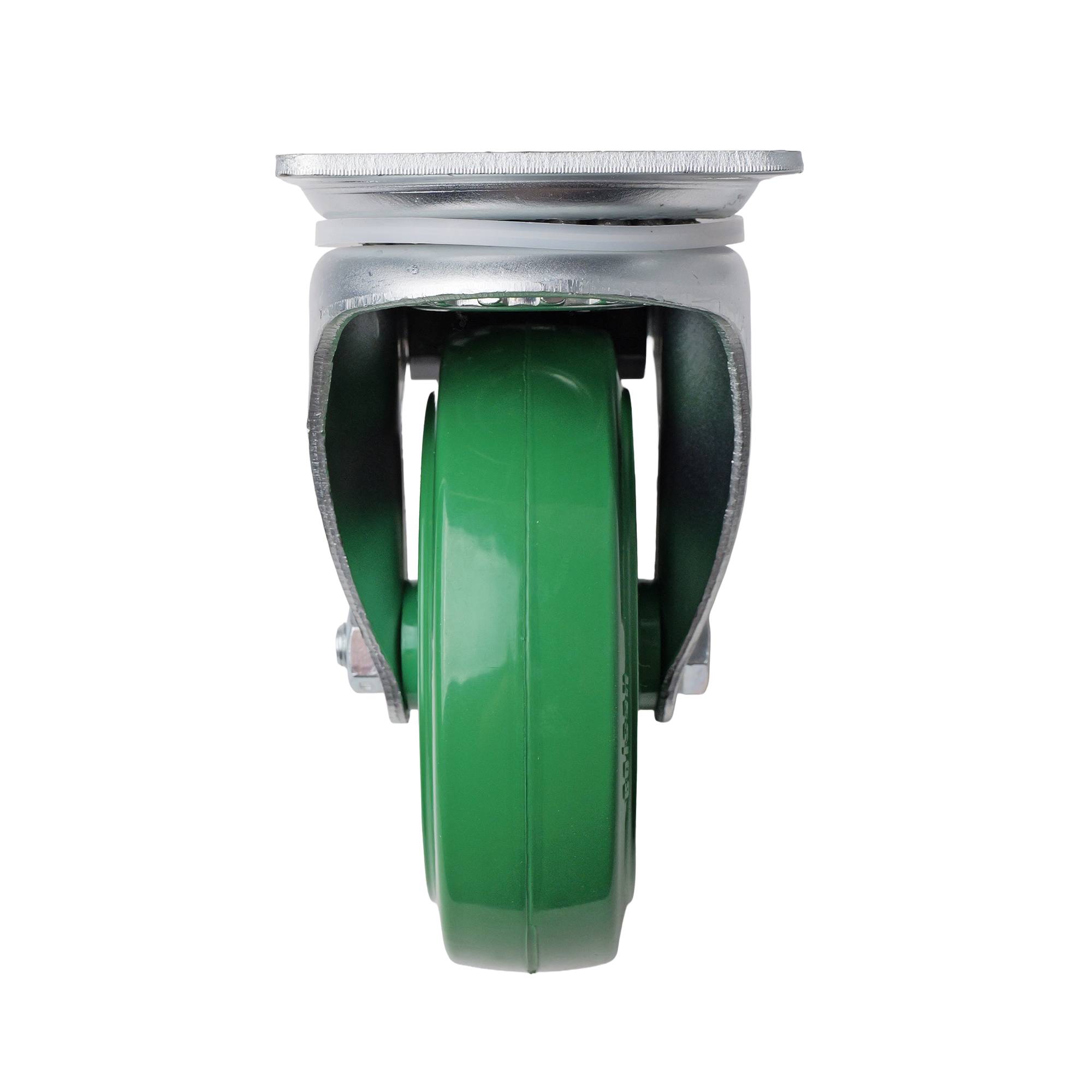

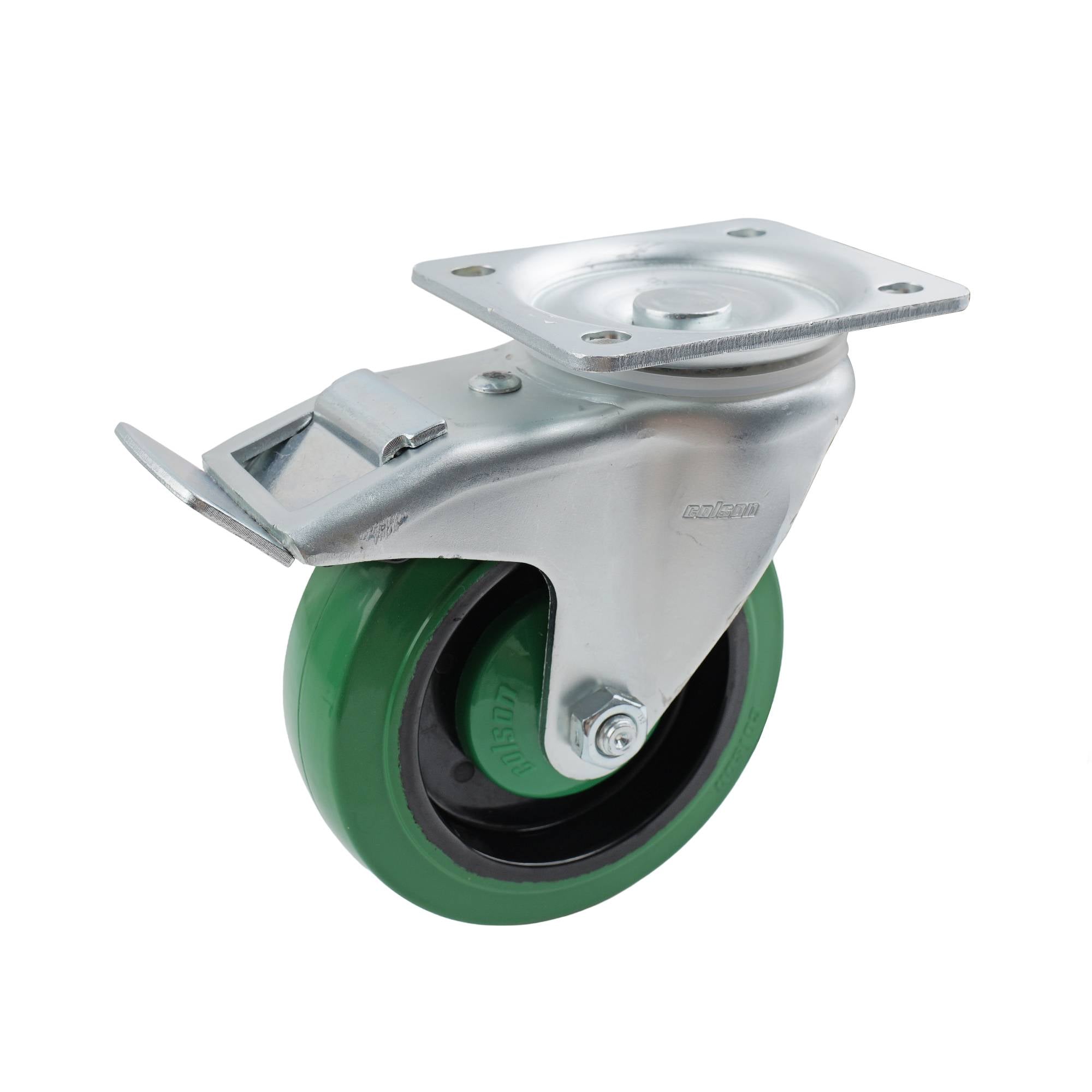

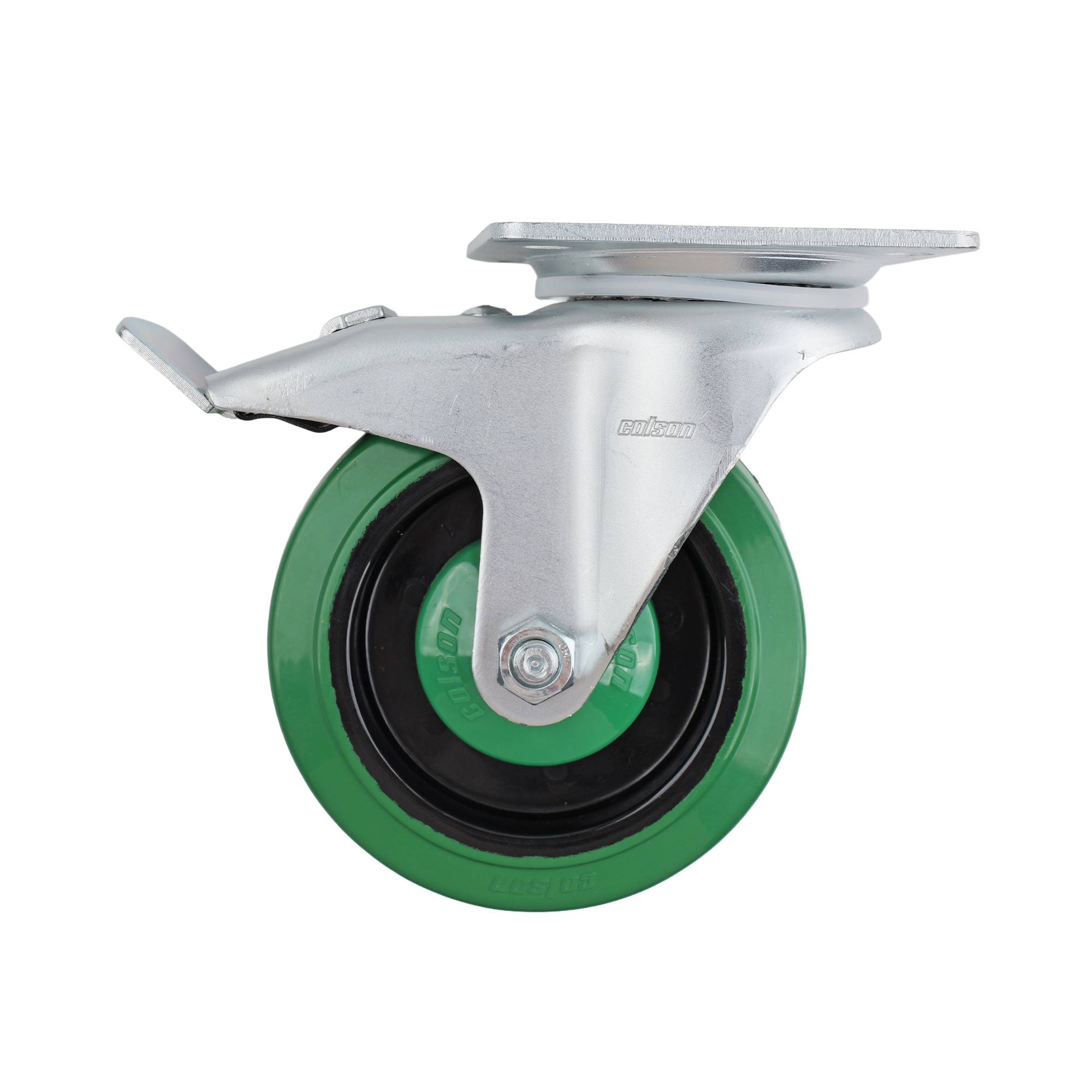

Colson 125mm Green Rubber Swivel Plate Brake I3 Series Castor 200kg
Colson 125mm Green Rubber Swivel Plate Brake I3 Series Castor 200kg is a plate mount castor constructed with a steel housing and ball bearing mechanism to provide controlled movement and precise braking. It incorporates a green elastic rubber wheel with a plastic core to support smooth mobility and effective load handling. Designed for both outdoor and indoor applications, it offers practical benefits for trade professionals through dependable performance and straightforward engineering.
Couldn't load pickup availability
- Steel housing and bearing offer robust structural integrity
- Green elastic rubber wheel design enhances grip and longevity
- Ball bearings deliver smooth swivel for precise manoeuvring
- Total brake system secures load firmly when movement stops
- Plate mount fitting ensures secure, stable caster installation
- Plastic wheel core reduces overall weight for precise manoeuvrability
- Precise swivel mechanics enable controlled, manoeuvrable load positioning
- Configured for both indoor environments and outdoor spaces
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
Construction
| Wheel Core Material | Plastic |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Green |

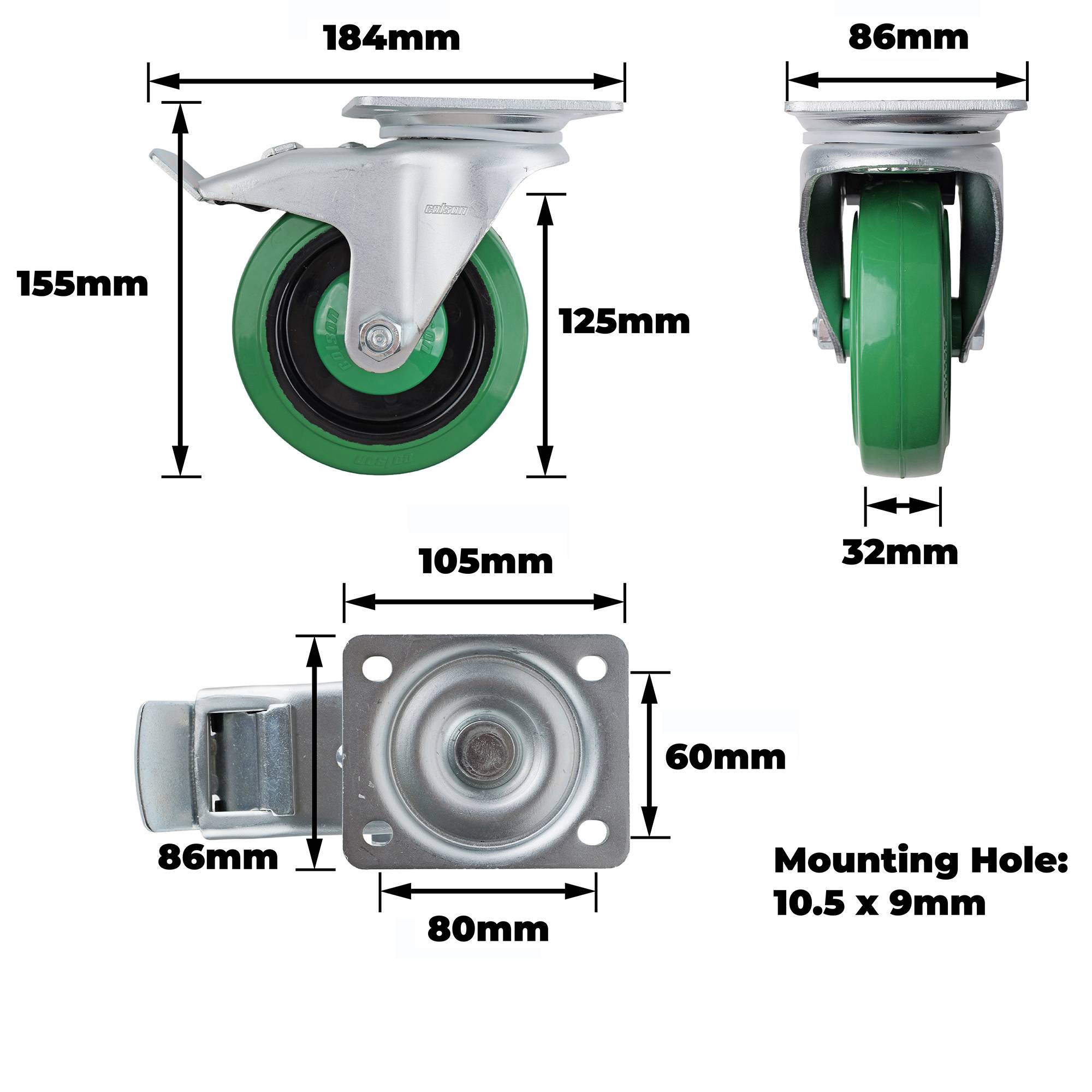

Dimensions
| Product Length (mm) | 184 |
| Product Width (mm) | 86 |
| Product Height (mm) | 155 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 32 |
| Swivel Radius (mm) | 131.5 |
| Mounting Hole Dimensions (mm) | 10.5x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1495 |
| Product Weight (kg) | 1.495 |
| Load Capacity (kg) | 200.0 |
