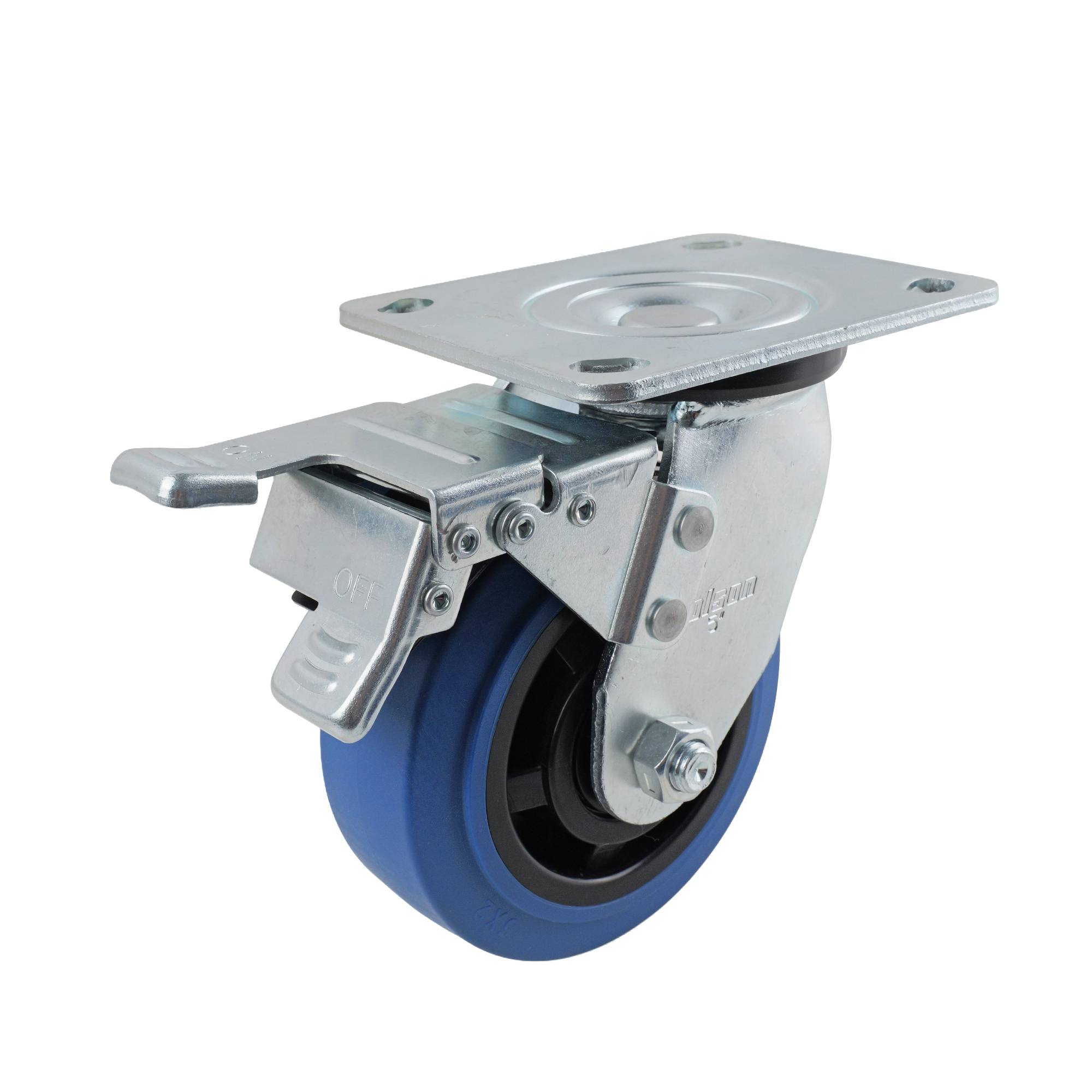

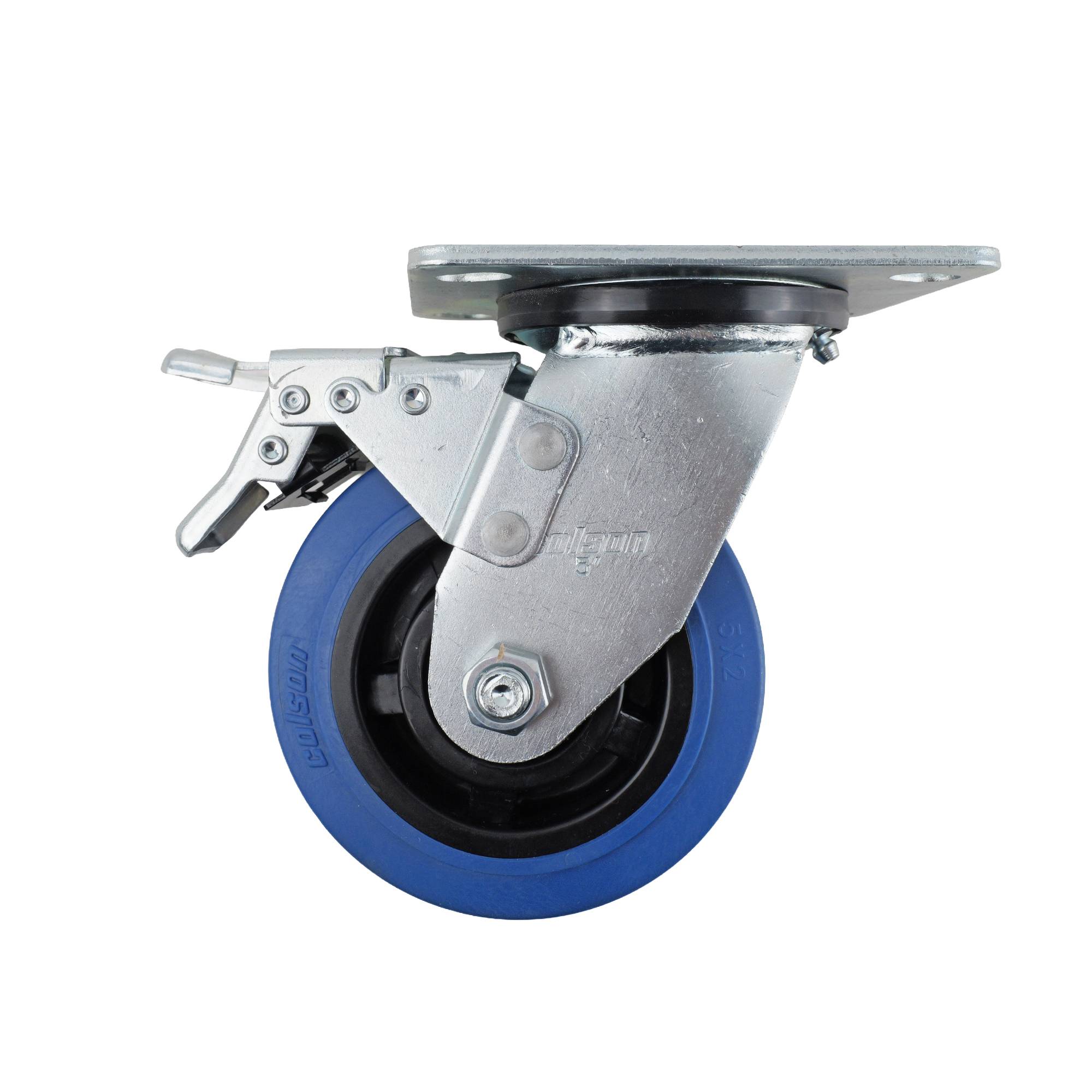

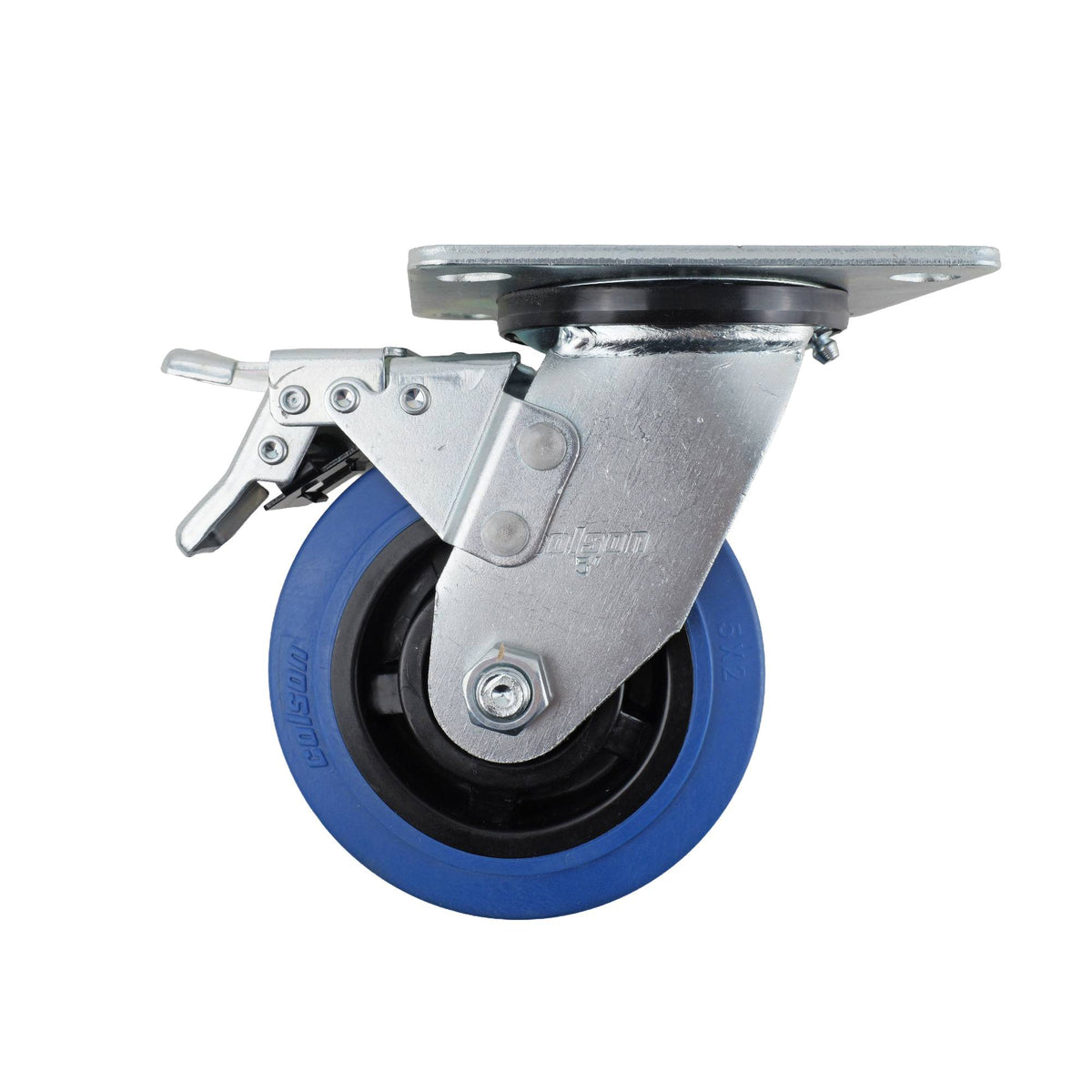

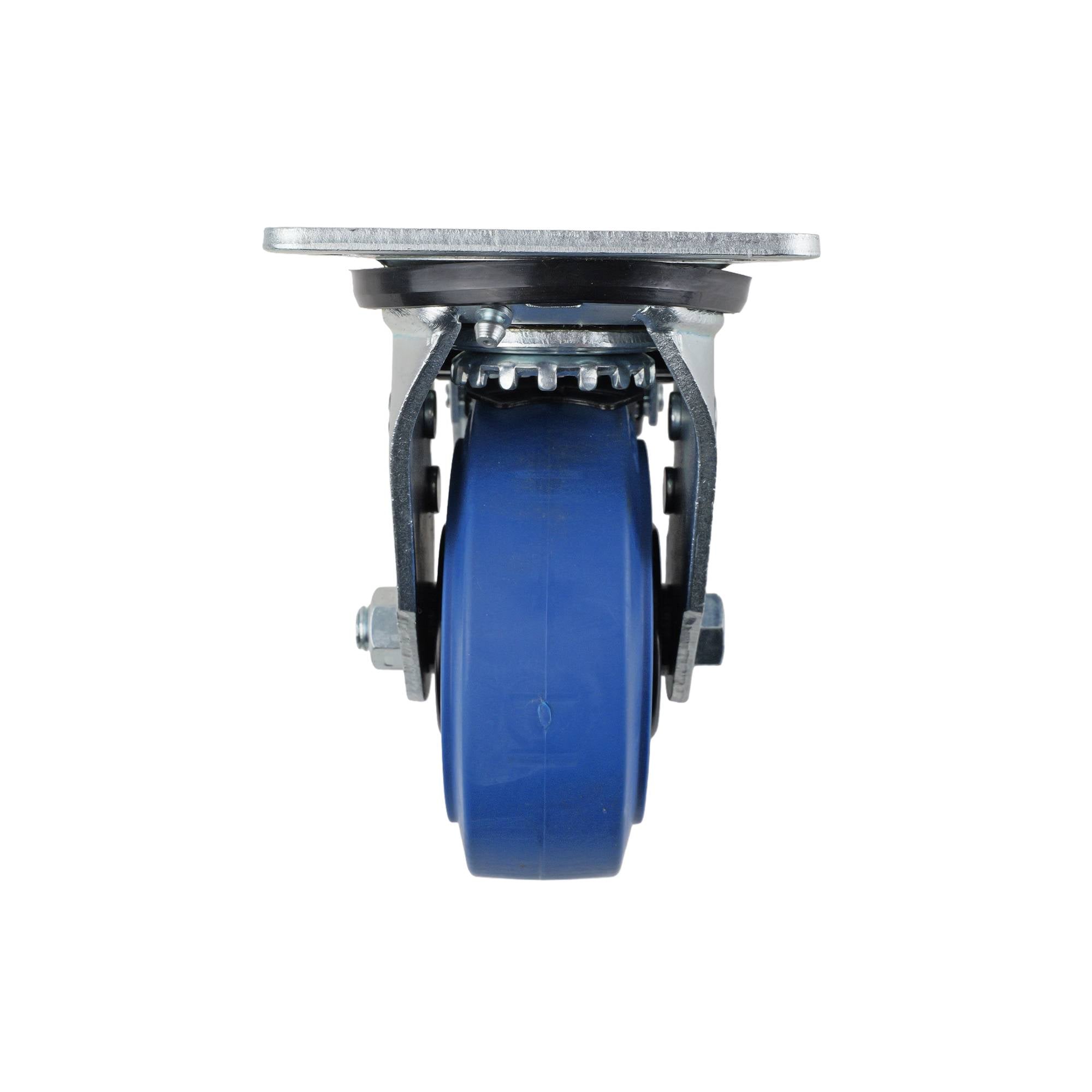

Colson 125mm Performa TPR Swivel Plate Brake J3 Series Castor 240kg
Colson 125mm Performa TPR Swivel Plate Brake J3 Series Castor 240kg is designed with a steel housing and double ball bearing system to offer durability and smooth manoeuvrability. It utilises a blue hi tech performa TPE wheel material and polypropylene wheel core for reliable performance, providing effective movement support for materials handling applications. The design integrates a true plate for secure mounting and efficiency in transport tasks. Engineered for precise manoeuvre and controlled motion, the system supports heavy loads with clear benefits in transportation efficiency and operational consistency.
Couldn't load pickup availability
- Robust steel housing ensures durable structural support
- Polypropylene wheel core balances lightness with reliability
- Double ball bearings and raceways deliver smoother rotation
- High tech Performa TPE wheel offers controlled manoeuvrability
- Swivel plate design simplifies movement and position adjustments
- Handles up to 240kg load with precision and balance
- Engineered with blue, black and silver aesthetics
- Braking function integrated for improved operational control
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Double Ball Bearing |
| Raceway Type | Double |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Blue Hi Tech Performa Tpe |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Blue/Black/Silver |

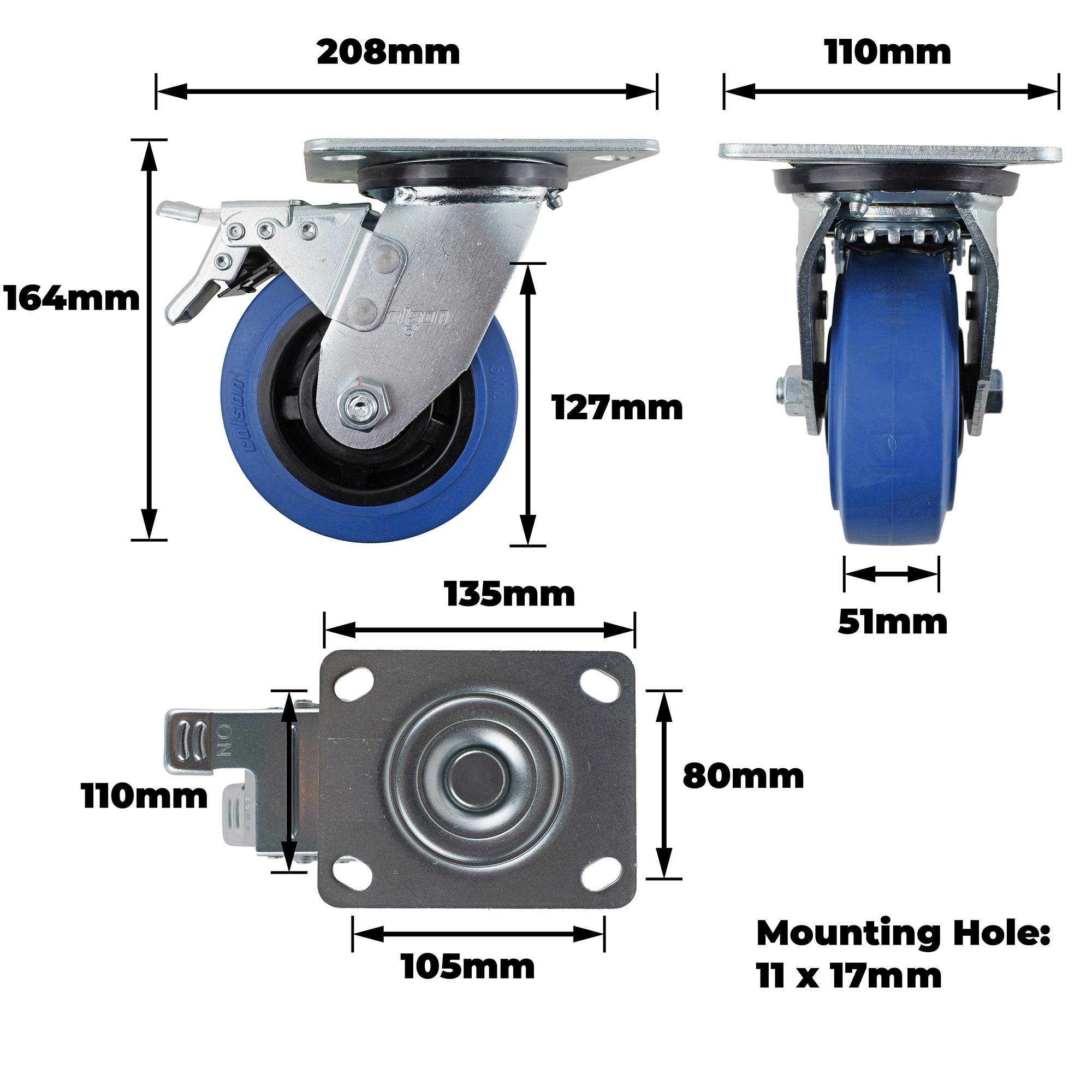

Dimensions
| Product Length (mm) | 209 |
| Product Width (mm) | 110 |
| Product Height (mm) | 164 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 142 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 2537 |
| Product Weight (kg) | 2.537 |
| Load Capacity (kg) | 240.0 |
