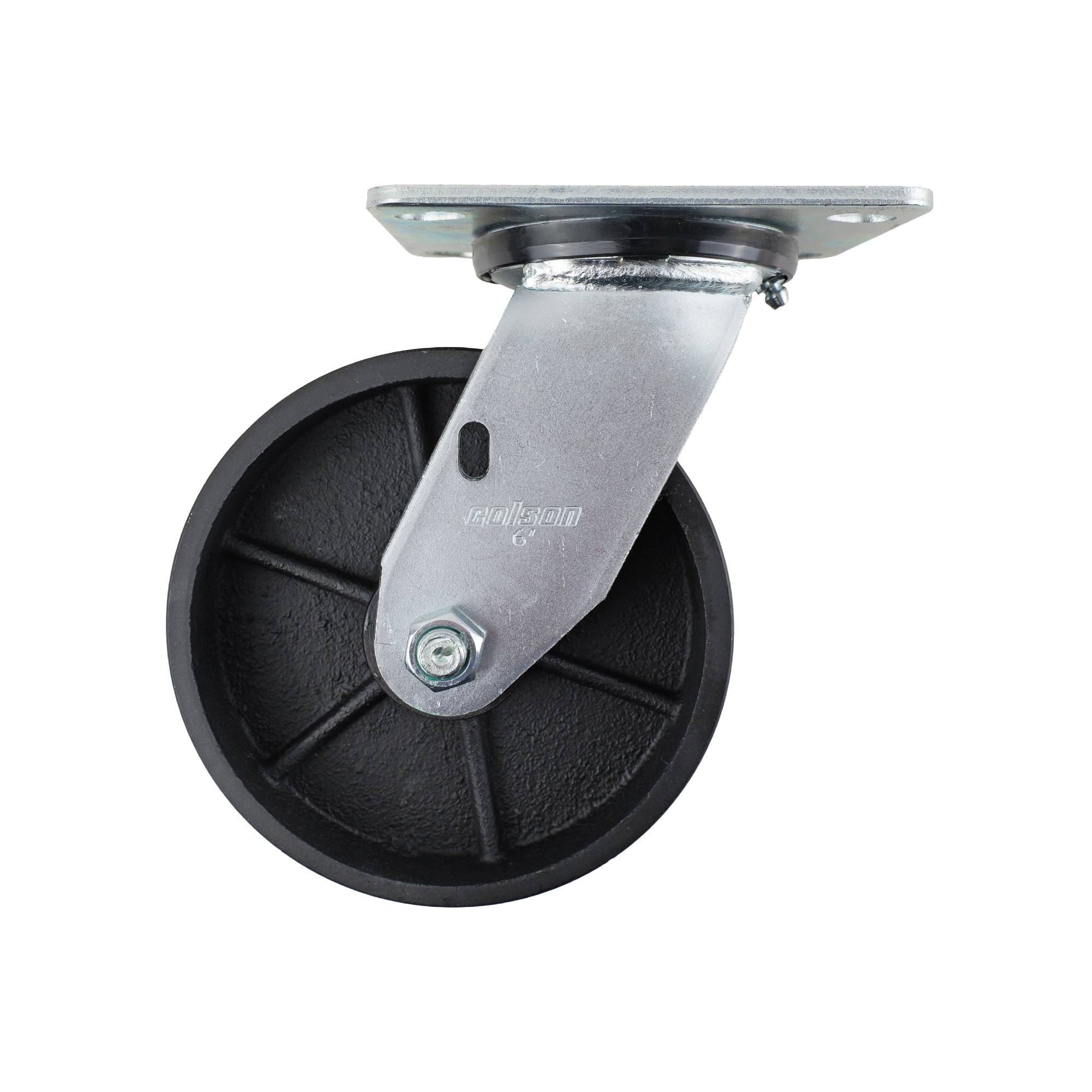

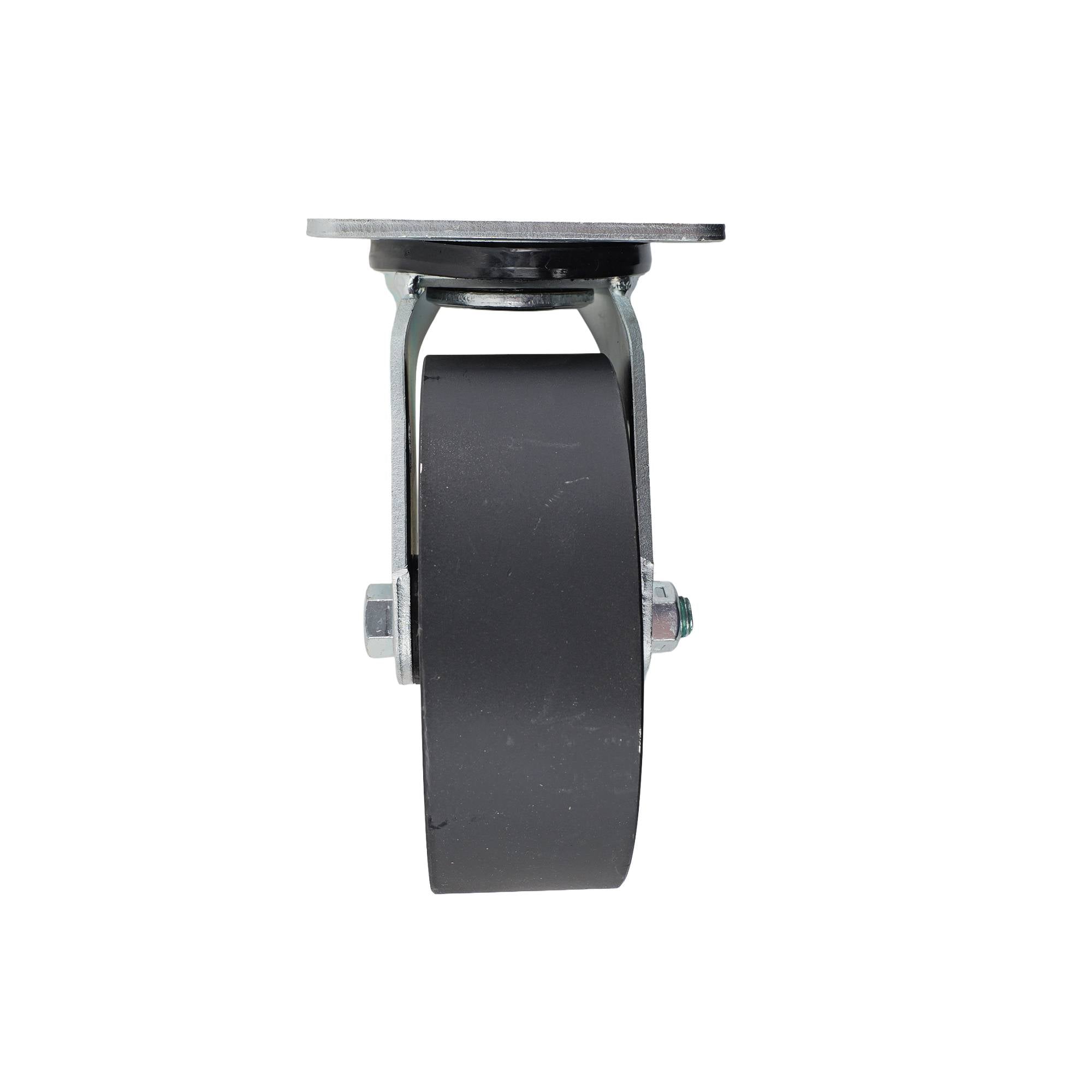

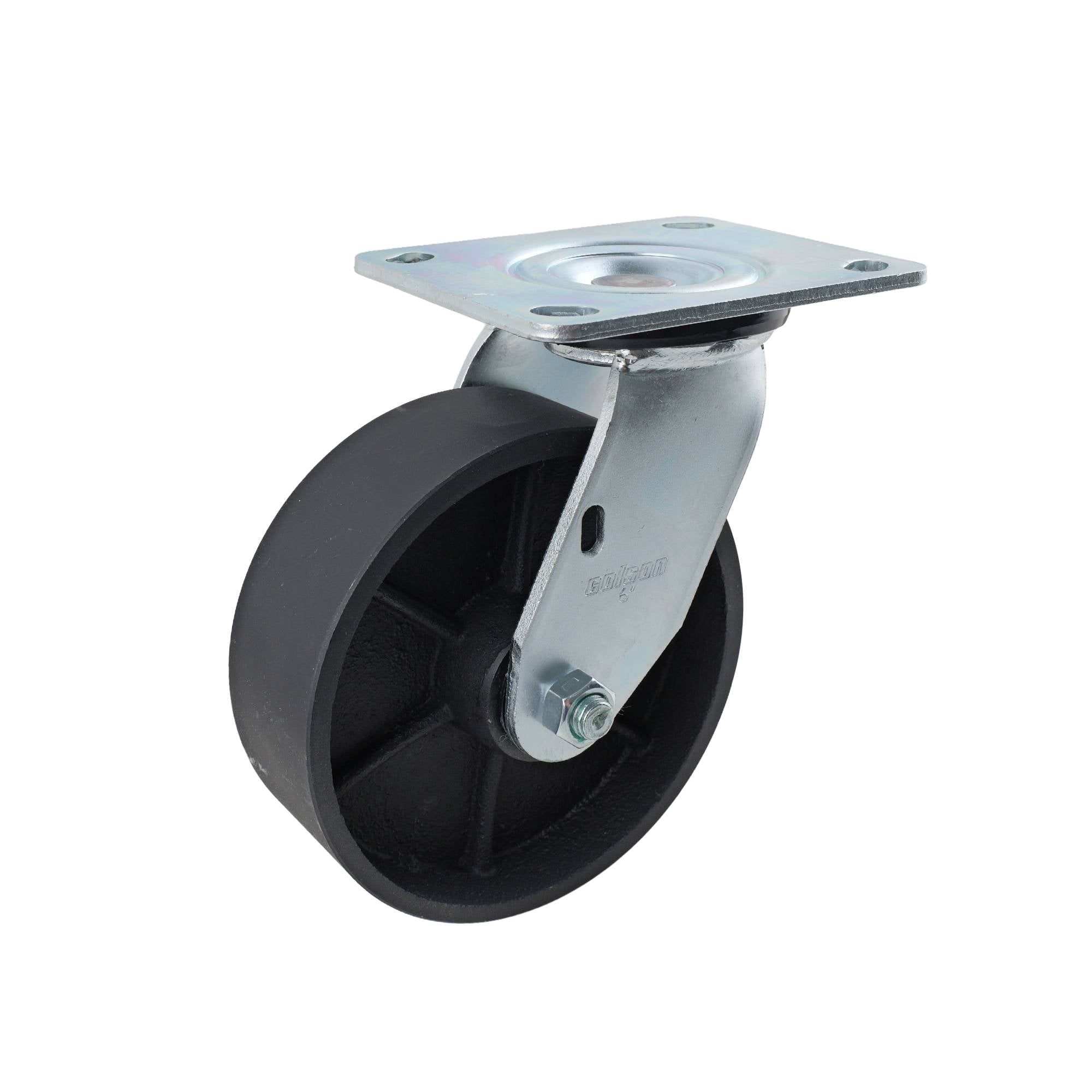

Colson 150mm Cast Iron Swivel Plate J3 Series Castor 410kg
Colson 150mm Cast Iron Swivel Plate J3 Series Castor 410kg is a robust castor designed for dependable load handling and manoeuvrability in various trade applications. It features a cast iron wheel, a steel housing and steel roller bearings that work together to provide smooth rotation through a double raceway design. The integrated swivel plate optimises movement and positioning while maintaining a solid build for consistent performance in demanding settings.
Couldn't load pickup availability
- Cast iron wheel provides robust load-bearing performance
- Steel housing offers strong structural support
- Roller bearing assembly delivers smooth rotational movement
- Double raceway design ensures balanced load distribution
- Precision machined swivel plate enables reliable manoeuvrability
- Robust steel bearing supports high weight capacity
- Sleek black and silver finish adds professional aesthetics
- Trusted COLSON engineering delivers proven castor performance
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Roller Bearing |
| Raceway Type | Double |
Construction
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

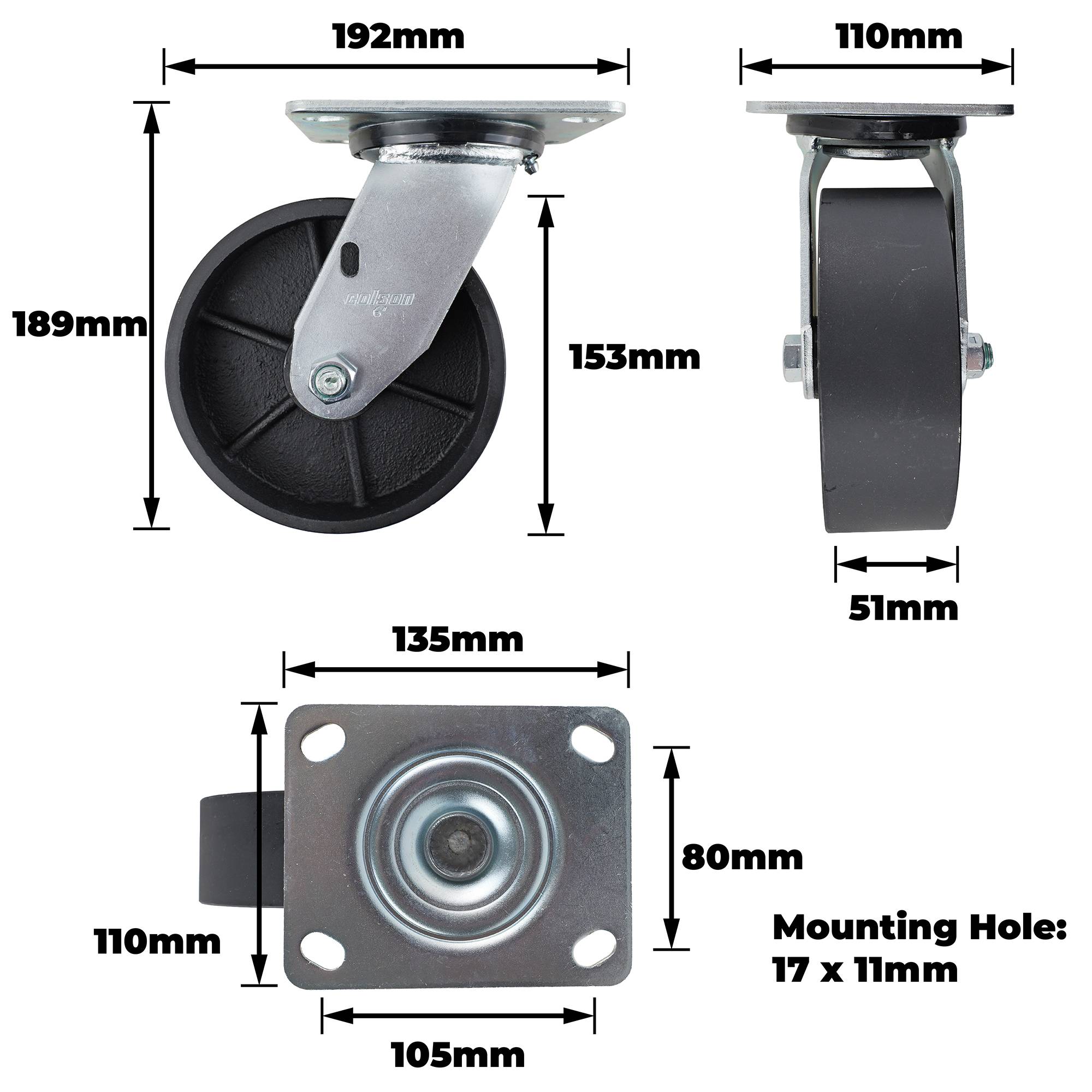

Dimensions
| Product Length (mm) | 192 |
| Product Width (mm) | 110 |
| Product Height (mm) | 189 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 51 |
| Swivel Radius (mm) | 124 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 3696 |
| Product Weight (kg) | 3.696 |
| Load Capacity (kg) | 410.0 |
