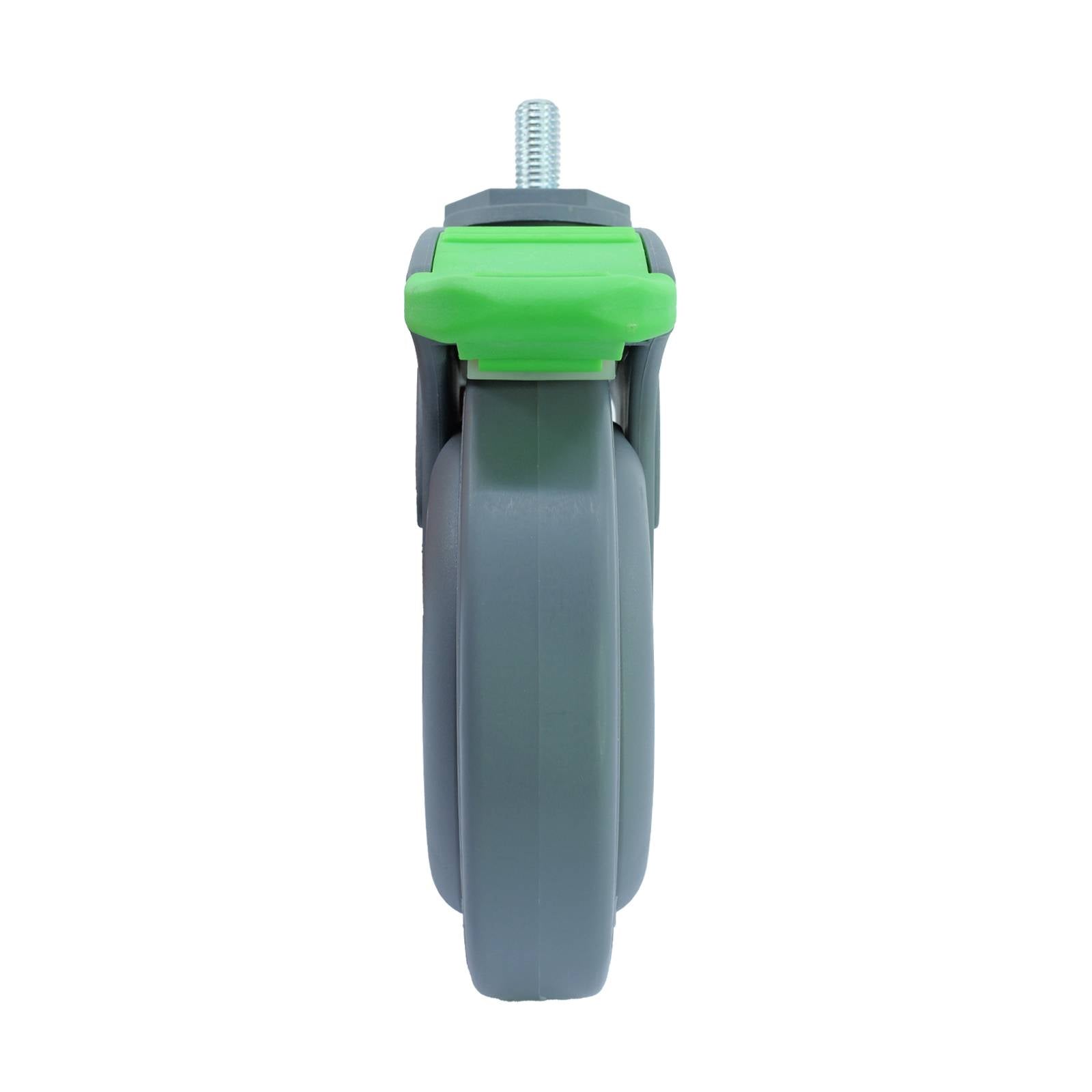

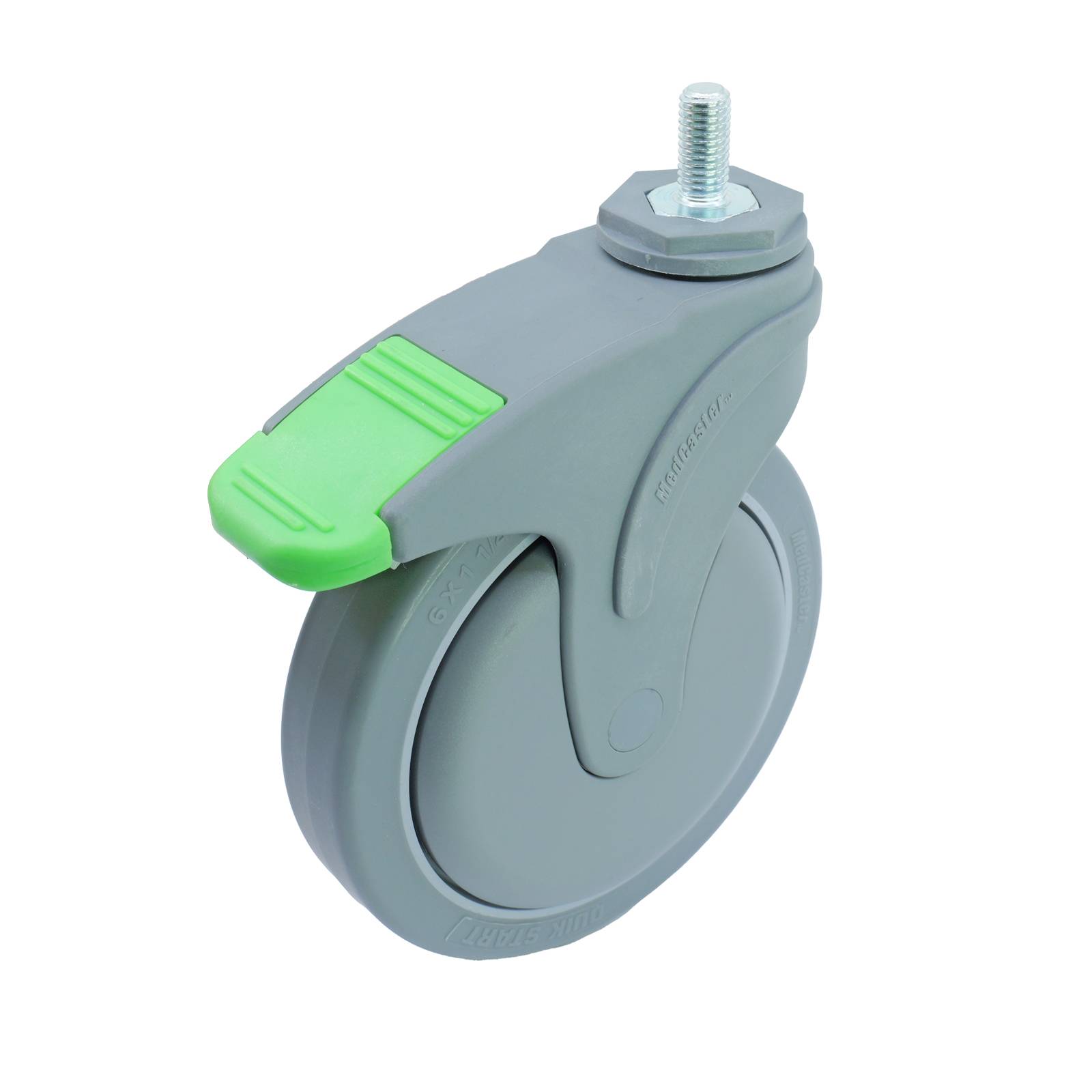

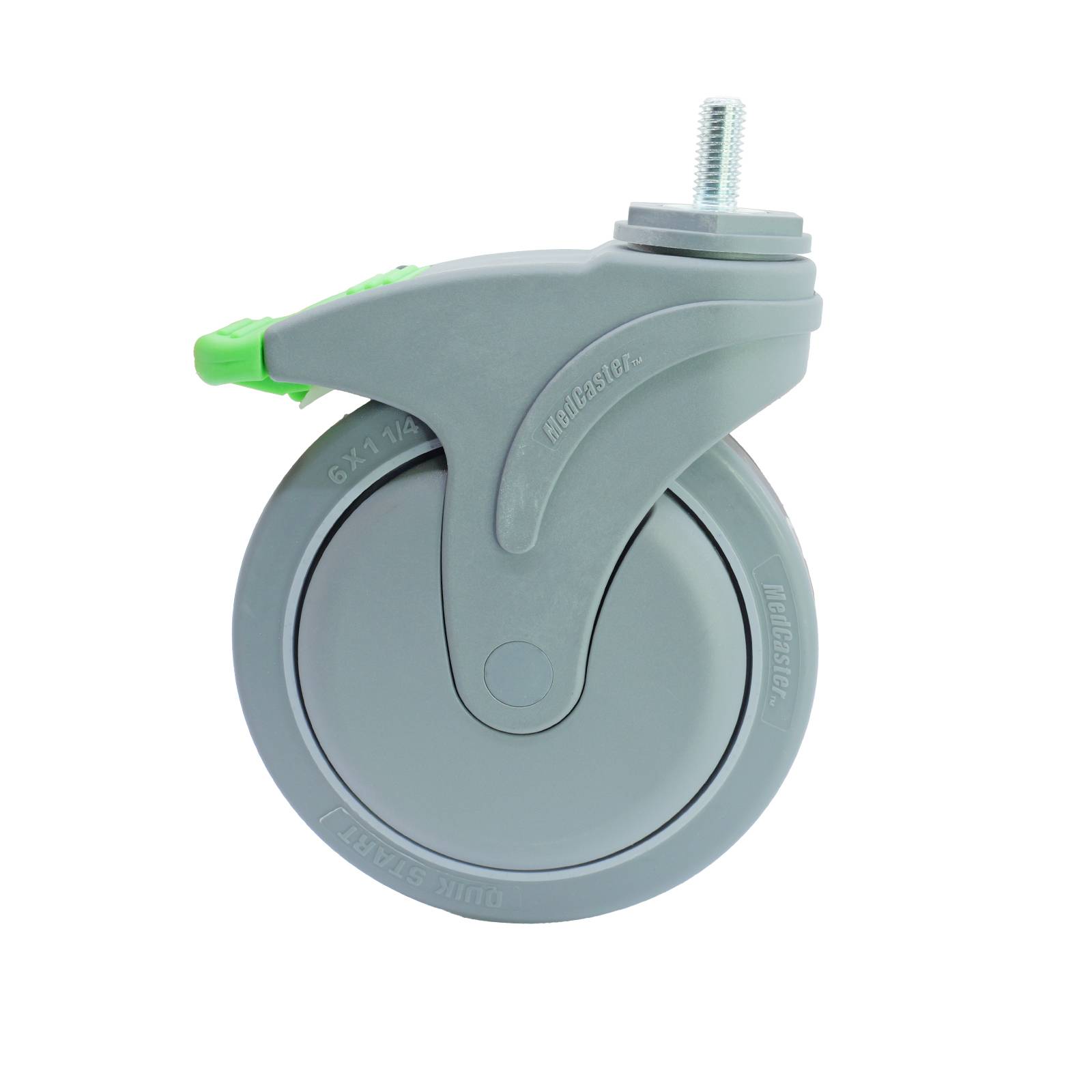

Colson 150mm Dual Lock FS Series Castor 100kg
Colson 150mm Dual Lock FS Series Castor 100kg is designed for efficient transport and material handling in professional settings. It features a robust polypropylene wheel core with a thermoplastic rubber wheel, a carbon steel ball bearing, a single raceway and a total brake system. The secure bolt fitting ensures straightforward installation and effective manoeuvrability for controlled movement in both indoor and outdoor applications.
Couldn't load pickup availability
- 150mm wheel diameter accommodates substantial load capacity
- Thermoplastic rubber wheel paired with polypropylene core construction
- Total locking brake system ensures controlled movement
- Durable carbon steel ball bearings provide smooth rotation
- Plastic housing and component integration enhance long service life
- Bolted fitting ensures reliable mounting without extra hardware
- All-weather performance for both indoor and outdoor conditions
- 100kg load rating supports robust operational requirements
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Fitting Type | Bolt Hole |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Plastic |
| Bearing Material | Carbon Steel |
| Product Colour | Grey |
Dimensions
| Product Length (mm) | 125 |
| Product Width (mm) | 53 |
| Product Height (mm) | 81 |
| Wheel Diameter (mm) | 152 |
| Tread Width (mm) | 32 |
| Finish Height (mm) | 184 |
| Bolt Thread Length (mm) | 25 |
| Bolt Thread Width (mm) | 12 |
| Mounting Size M | M12 |
Weights
| Product Weight (grams) | 910 |
| Product Weight (kg) | 0.91 |
| Load Capacity (kg) | 100.0 |
