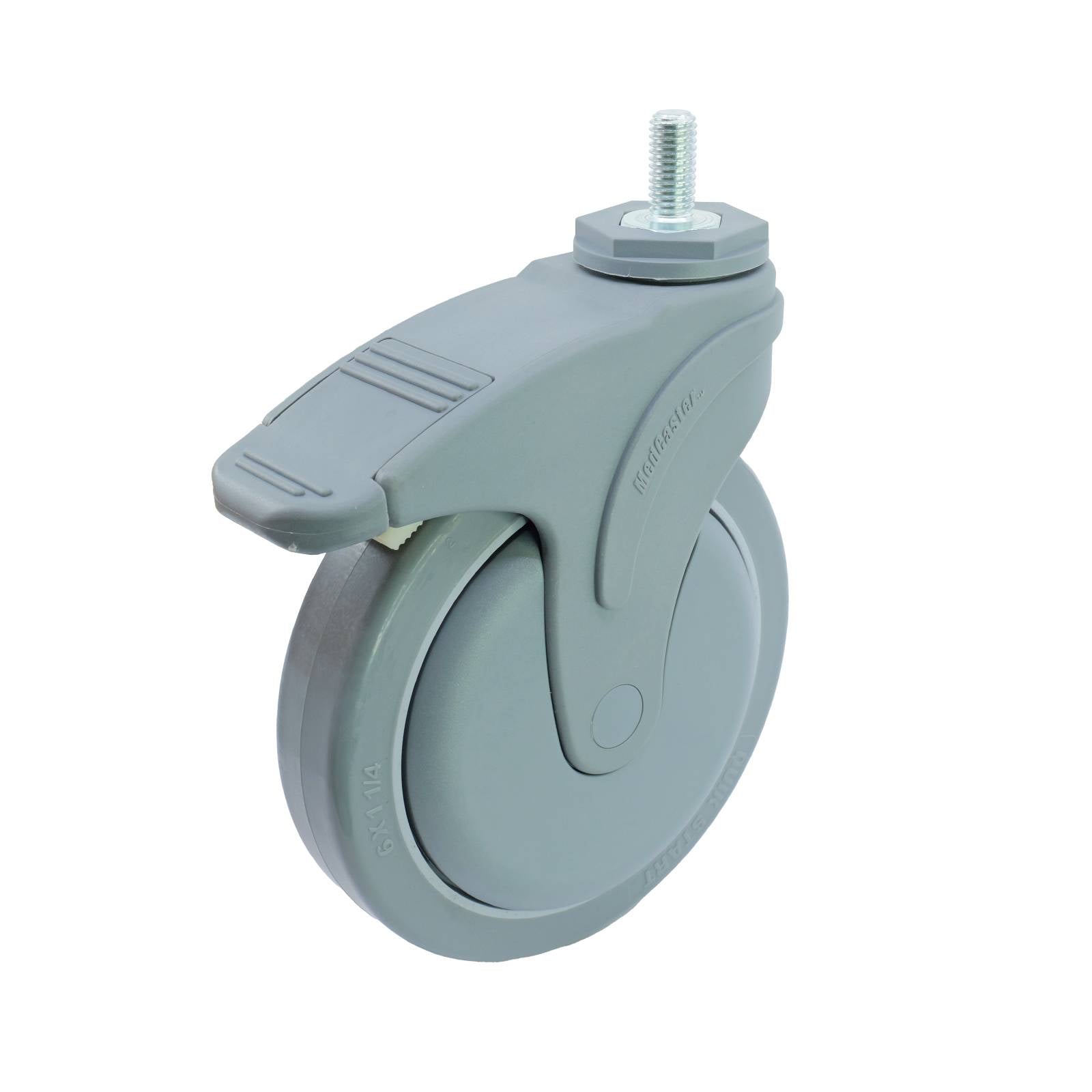

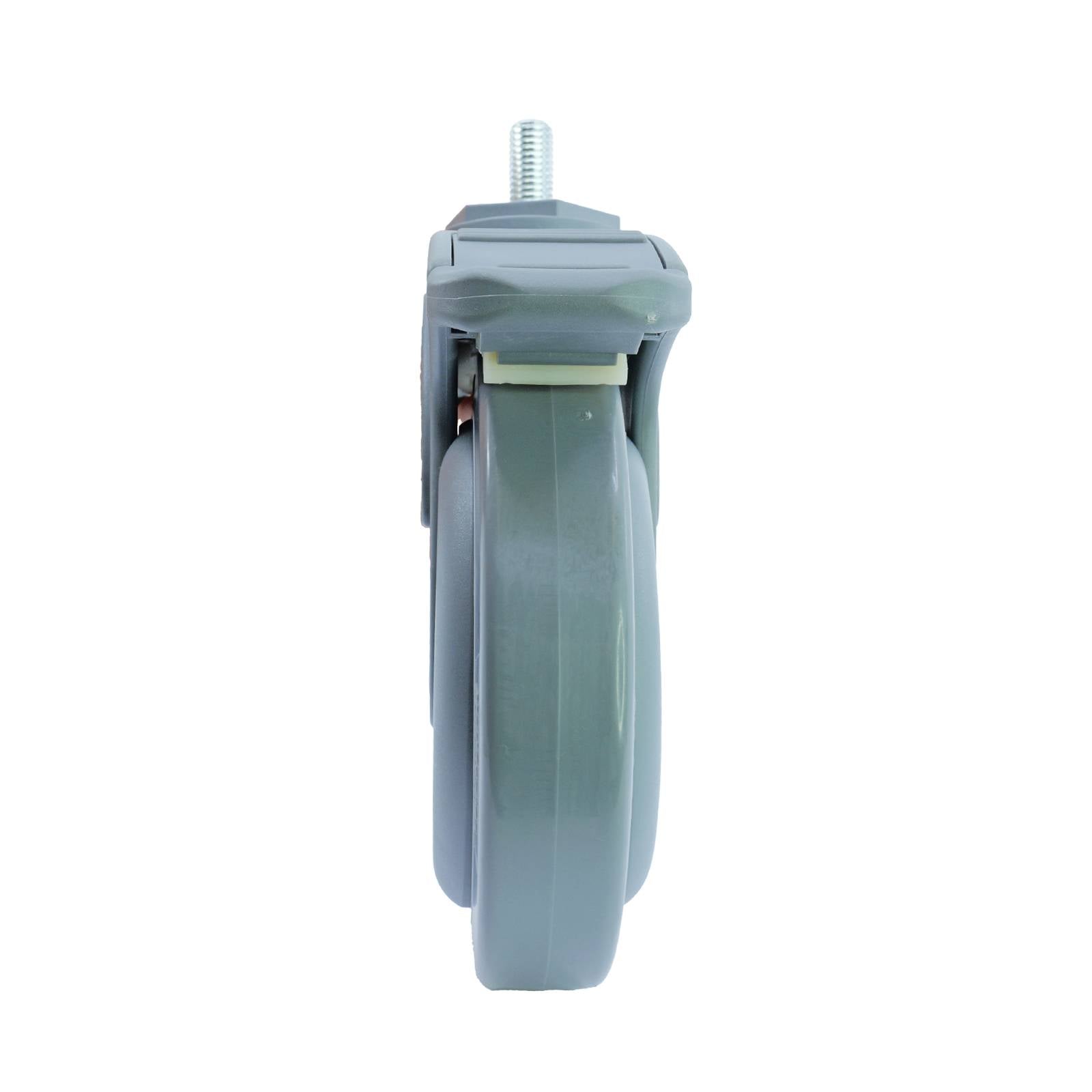

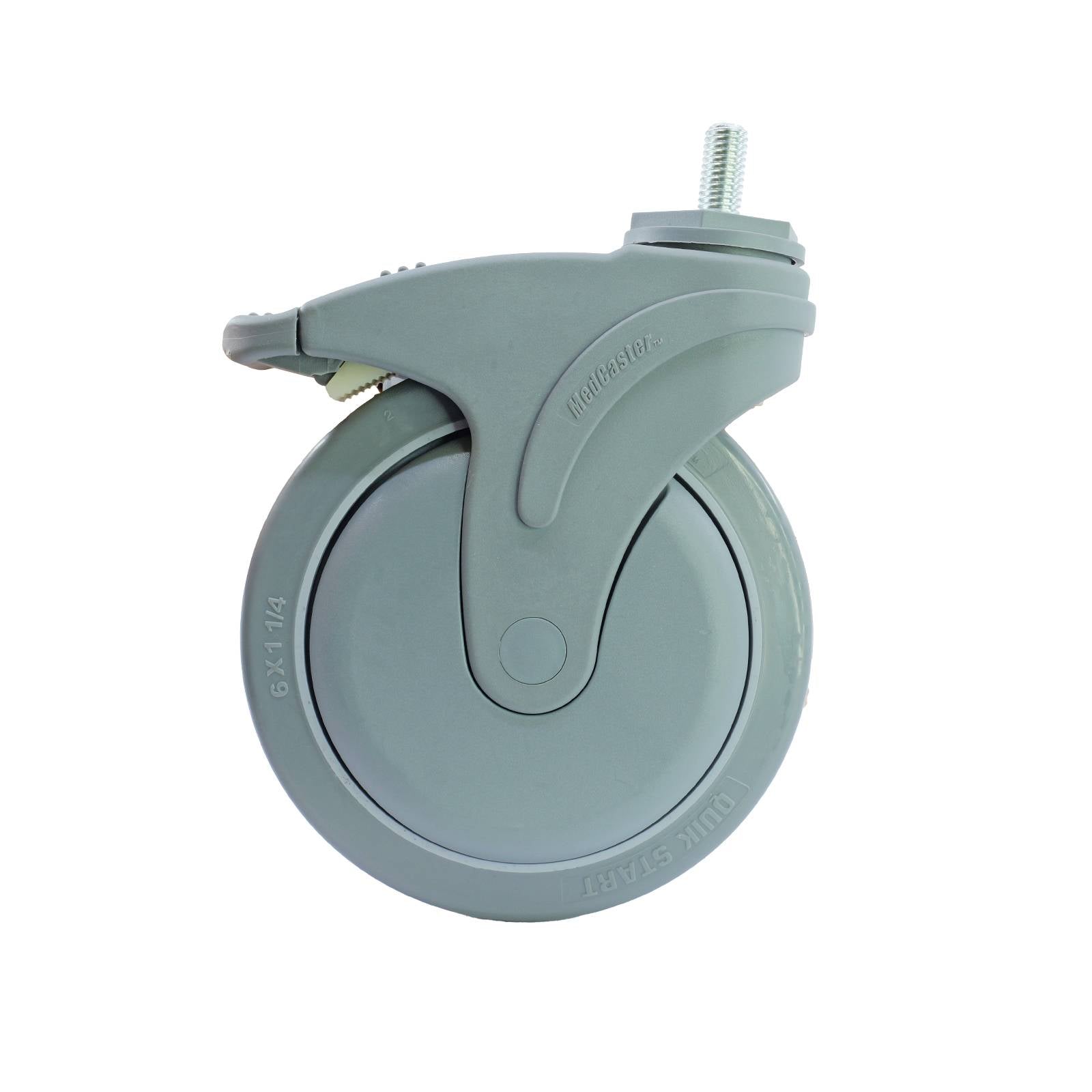

Colson 150mm Total Lock FS Series Castor 100kg
Colson 150mm Total Lock FS Series Castor 100kg is a special order castor designed to provide reliable performance for trade professionals. It features a polypropylene wheel core with a thermoplastic rubber outer wheel and is constructed using durable plastic housing and carbon steel ball bearings. The castor incorporates a bolt-fit design and total lock brake functionality, ensuring secure and precise movement control in both indoor and outdoor applications.
Couldn't load pickup availability
- Robust thermoplastic rubber wheel provides reliable movement
- Total locking brake secures caster in fixed positions
- Engineered plastic housing offers durability and light weight
- Polypropylene wheel core for consistent load performance
- Precision ball bearing ensures smooth caster rotation
- Bolt hole fitting provides secure attachment to platform
- Single raceway design supports stable, controlled rotational movement
- Special order configuration caters to unique application requirements
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Fitting Type | Bolt Hole |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Plastic |
| Bearing Material | Carbon Steel |
| Product Colour | Grey |
Dimensions
| Product Length (mm) | 125 |
| Product Width (mm) | 53 |
| Product Height (mm) | 209 |
| Wheel Diameter (mm) | 152 |
| Tread Width (mm) | 32 |
| Finish Height (mm) | 184 |
| Bolt Thread Length (mm) | 25 |
| Bolt Thread Width (mm) | 12 |
| Mounting Size M | M12 |
Weights
| Product Weight (grams) | 910 |
| Product Weight (kg) | 0.91 |
| Load Capacity (kg) | 100.0 |
