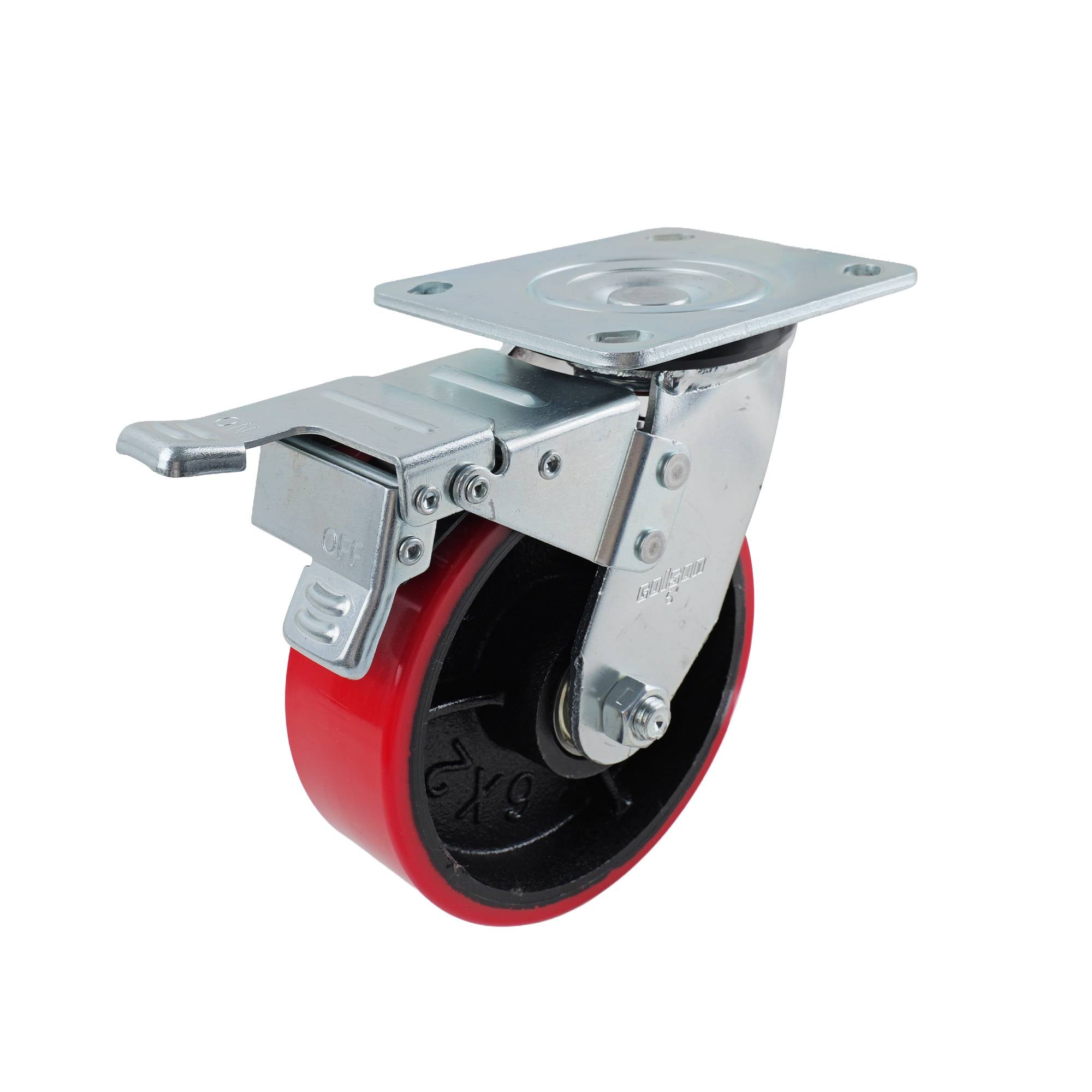

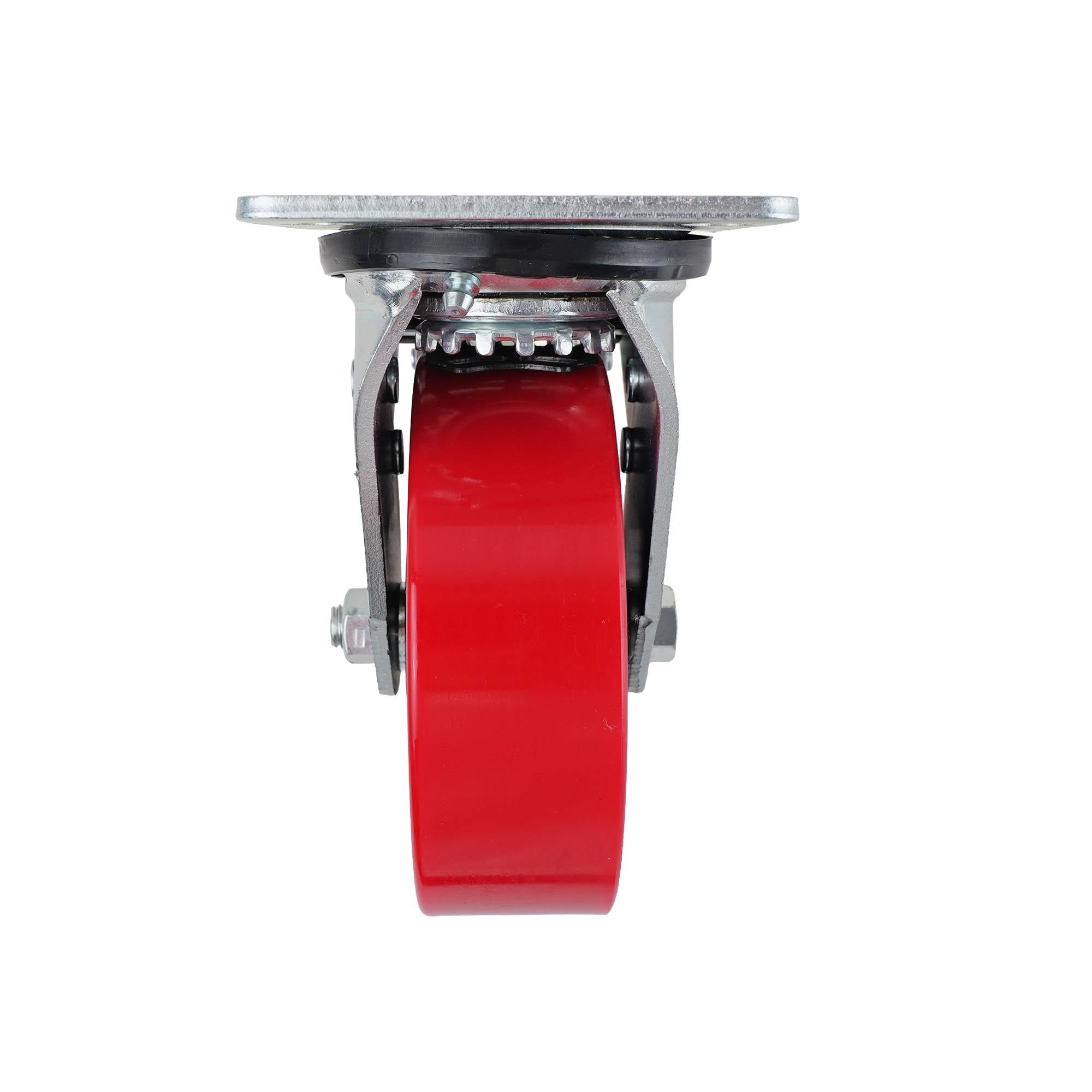

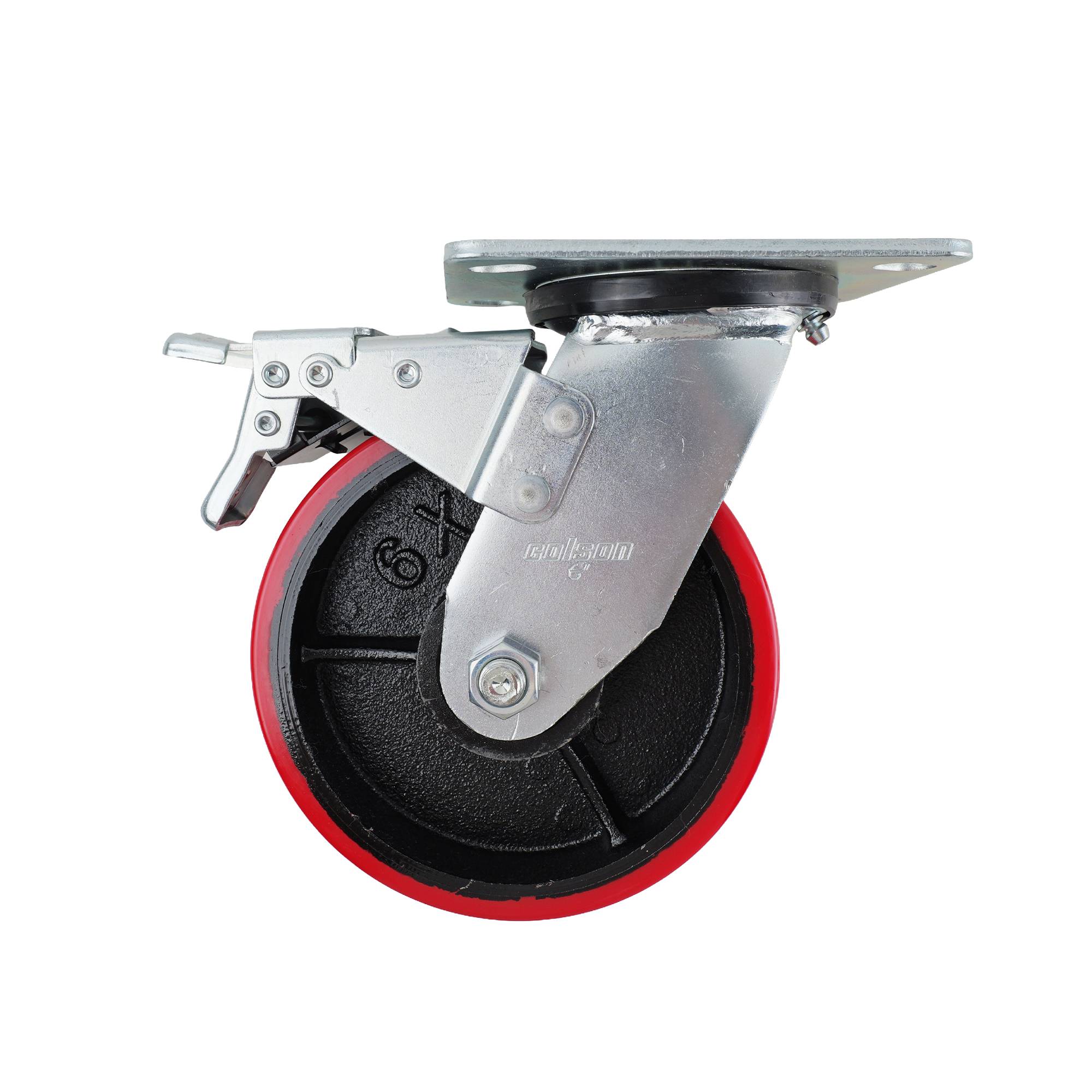

Colson 150mm Urethane on Cast Iron Swivel Plate Brake J3 Series Castor 410kg
Colson 150mm Urethane on Cast Iron Swivel Plate Brake J3 Series Castor 410kg is built with a cast iron core wheel and red urethane for durability, combined with a steel housing and double ball bearing mechanism. The design includes a fixed swivel plate brake and double raceway configuration that delivers reliable movement and precise control for material handling tasks. Trade professionals benefit from its robust construction and efficient performance when managing heavy loads.
Couldn't load pickup availability
- Durable steel housing engineered for stable castor operation
- Cast iron wheel core provides robust support and strength
- Red urethane wheel reduces floor damage during movement
- Double ball bearings allow smooth swivel and rotation
- Double raceway design improves load distribution and balance
- Engineered steel and cast iron boost structural integrity
- Distinct red, black and silver finish supports easy identification
- Precision swivel plate aids manoeuvrability in practical tasks
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Double Ball Bearing |
| Raceway Type | Double |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Red Urethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

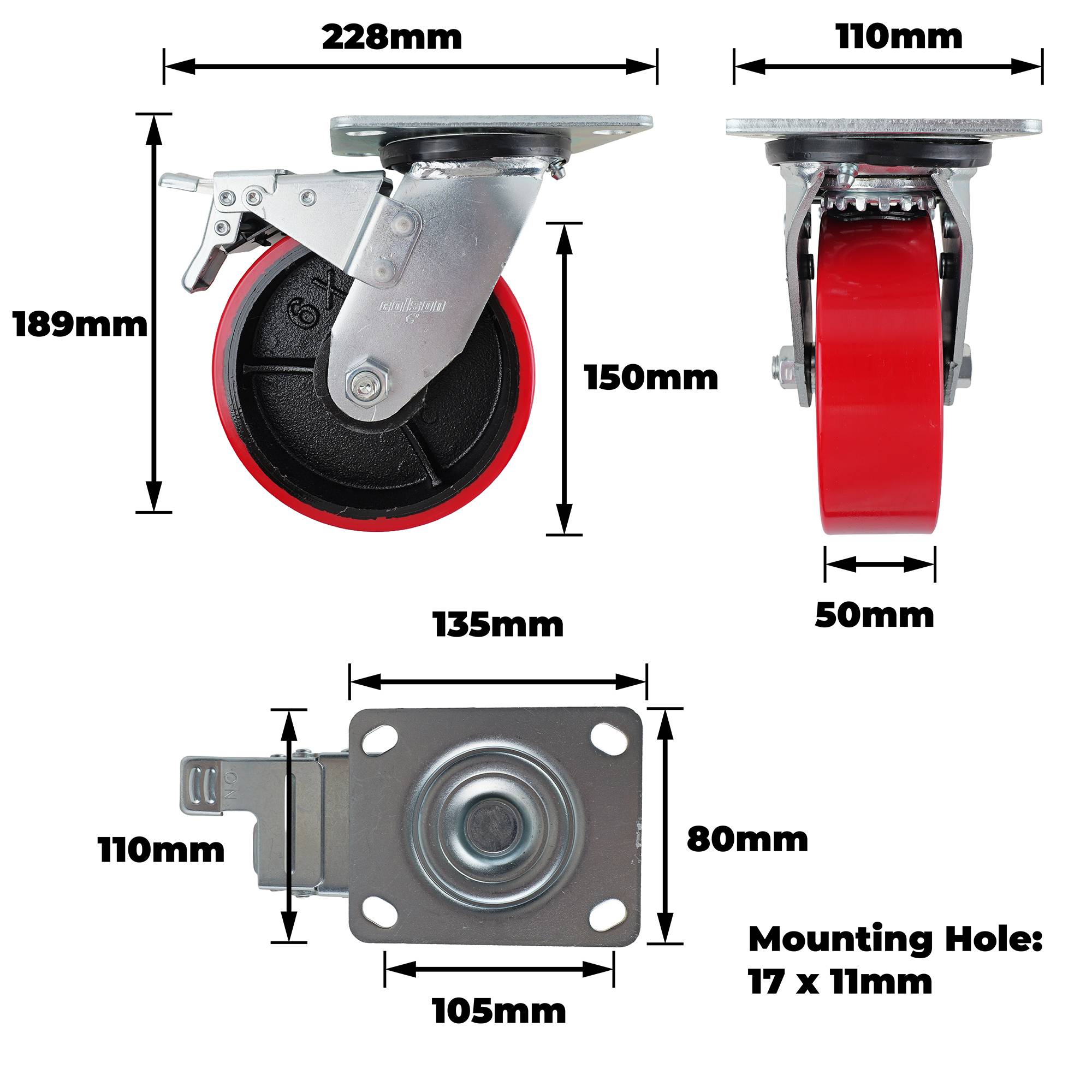

Dimensions
| Product Length (mm) | 228 |
| Product Width (mm) | 110 |
| Product Height (mm) | 189 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 161 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 3980 |
| Product Weight (kg) | 3.98 |
| Load Capacity (kg) | 410.0 |
