Colson 160mm Grey Performa TPE Fixed Plate I6 Series Castor 225kg
Colson 160mm Grey Performa TPE Fixed Plate I6 Series Castor 225kg features a robust design built with a polypropylene wheel core and grey Performa thermoplastic elastomer wheel, paired with precision steel bearings and zinc plated steel housing. It offers stable, secure movement for heavy loads while providing reliable performance in diverse applications. This castor optimises manoeuvrability and load handling, making it a practical choice for professionals in trade and technical operations.
Couldn't load pickup availability
- Zinc plated steel housing for added durability
- Polypropylene wheel core improves impact resistance
- Grey Performa thermoplastic elastomer wheel provides consistent performance
- Precision steel bearings ensure smooth and steady rotation
- Rigid raceway offers targeted motion control
- Fixed plate mount secures castor attachment reliably
- Designed for indoor and outdoor use
- Supports load capacity of 225kg for robust performance
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Rigid |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Grey Performa Thermoplastic Elastomer |
| Housing Material | Zinc Plated Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Grey |

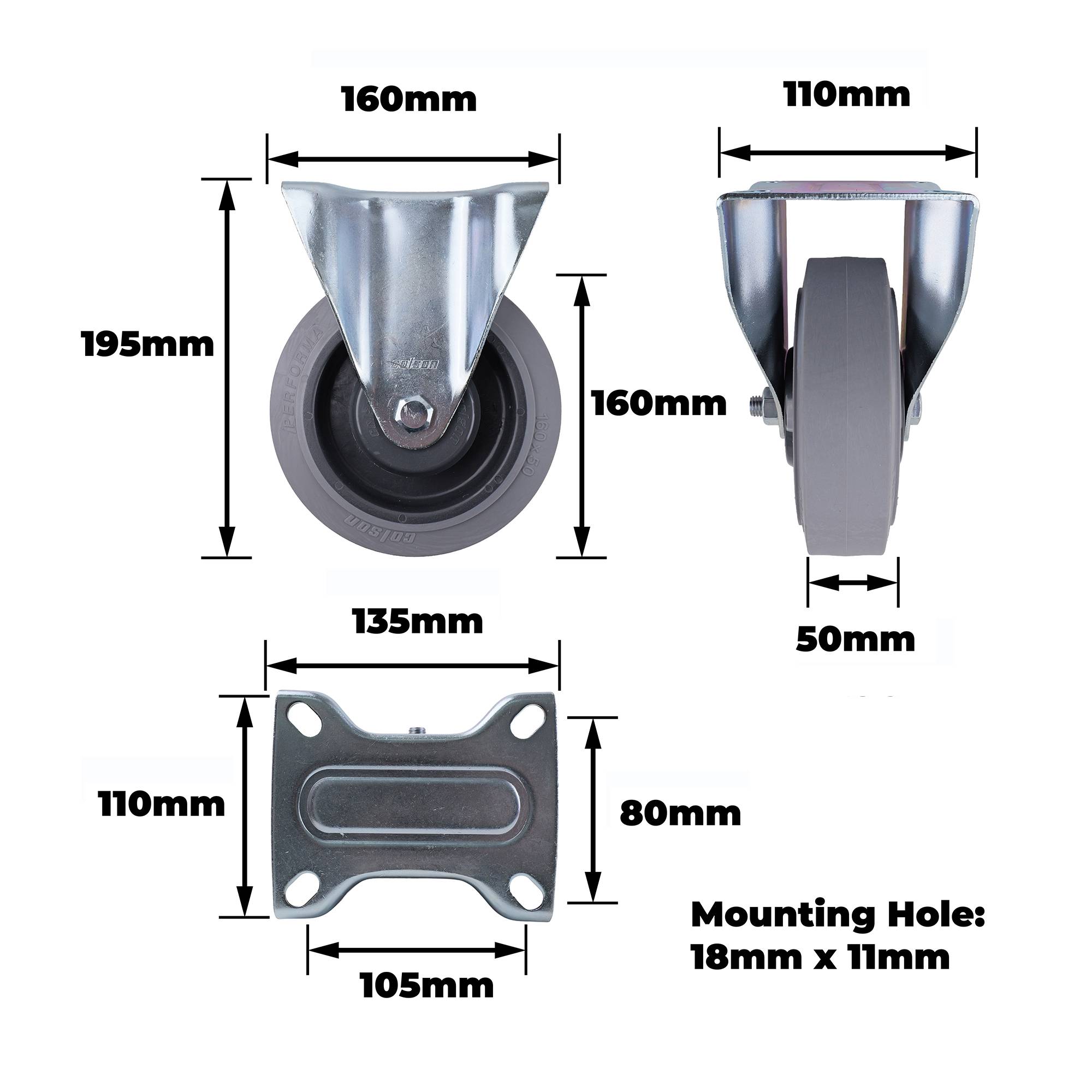

Dimensions
| Product Length (mm) | 160 |
| Product Width (mm) | 110 |
| Product Height (mm) | 195 |
| Wheel Diameter (mm) | 160 |
| Tread Width (mm) | 50 |
| Mounting Hole Dimensions (mm) | 18x11 |
| Hole Centre Dimensions (LxW) mm | 110/100x85/75 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 1710 |
| Product Weight (kg) | 1.71 |
| Load Capacity (kg) | 225.0 |
