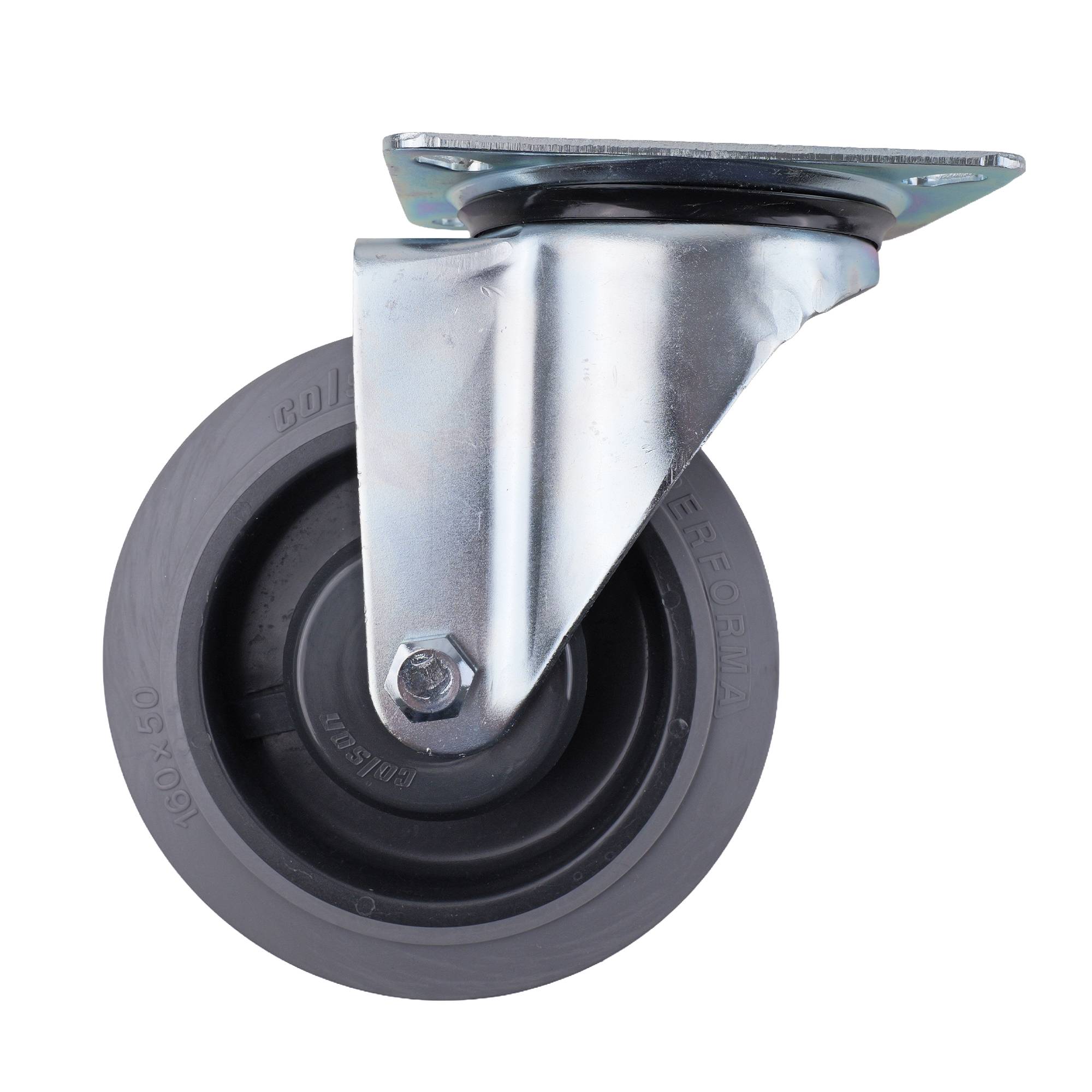

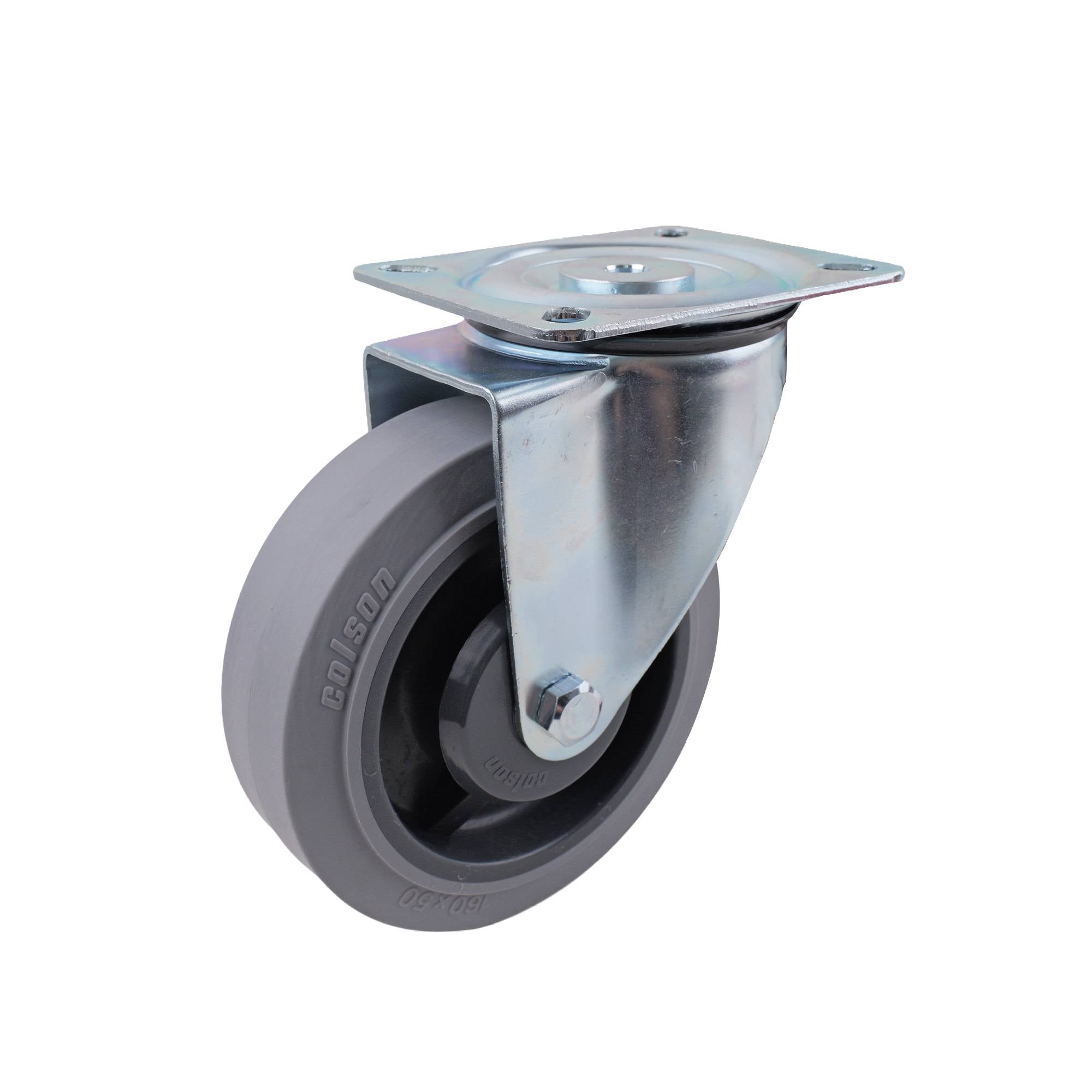

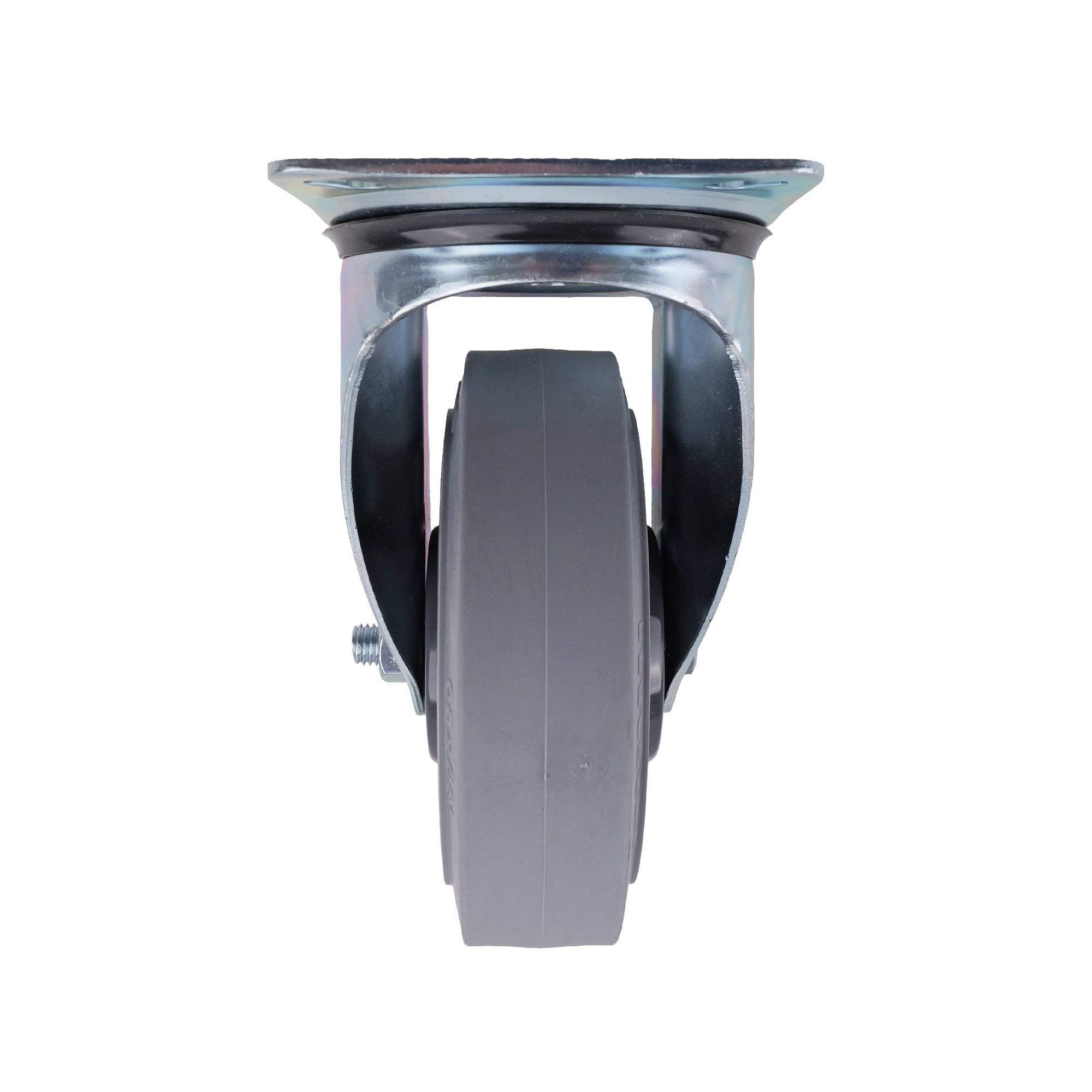

Colson 160mm Grey Performa TPE Swivel Plate I6 Series Castor 225kg
Colson 160mm Grey Performa TPE Swivel Plate I6 Series Castor 225kg is built with zinc plated steel housing, a polypropylene wheel core and precision steel bearings. It features a dual raceway design and plate mount fitting for effective load management. The grey Performa thermoplastic elastomer wheel facilitates smooth movement for indoor and outdoor tasks. Its design offers practical mobility solutions for industrial and trade professionals in various operational settings.
Couldn't load pickup availability
- Precision bearing supports smooth and responsive swivel motion
- Dual raceway design ensures balanced load distribution
- Robust zinc plated steel housing withstands operational stresses
- Grey Performa thermoplastic elastomer wheel promotes quiet rolling
- Secure plate mount fitting for reliable castor installation
- Polypropylene wheel core enhances overall wheel stability
- High load capacity supporting up to 225kg per castor
- Versatile design performs in both outdoor and indoor settings
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Grey Performa Thermoplastic Elastomer |
| Housing Material | Zinc Plated Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Grey |

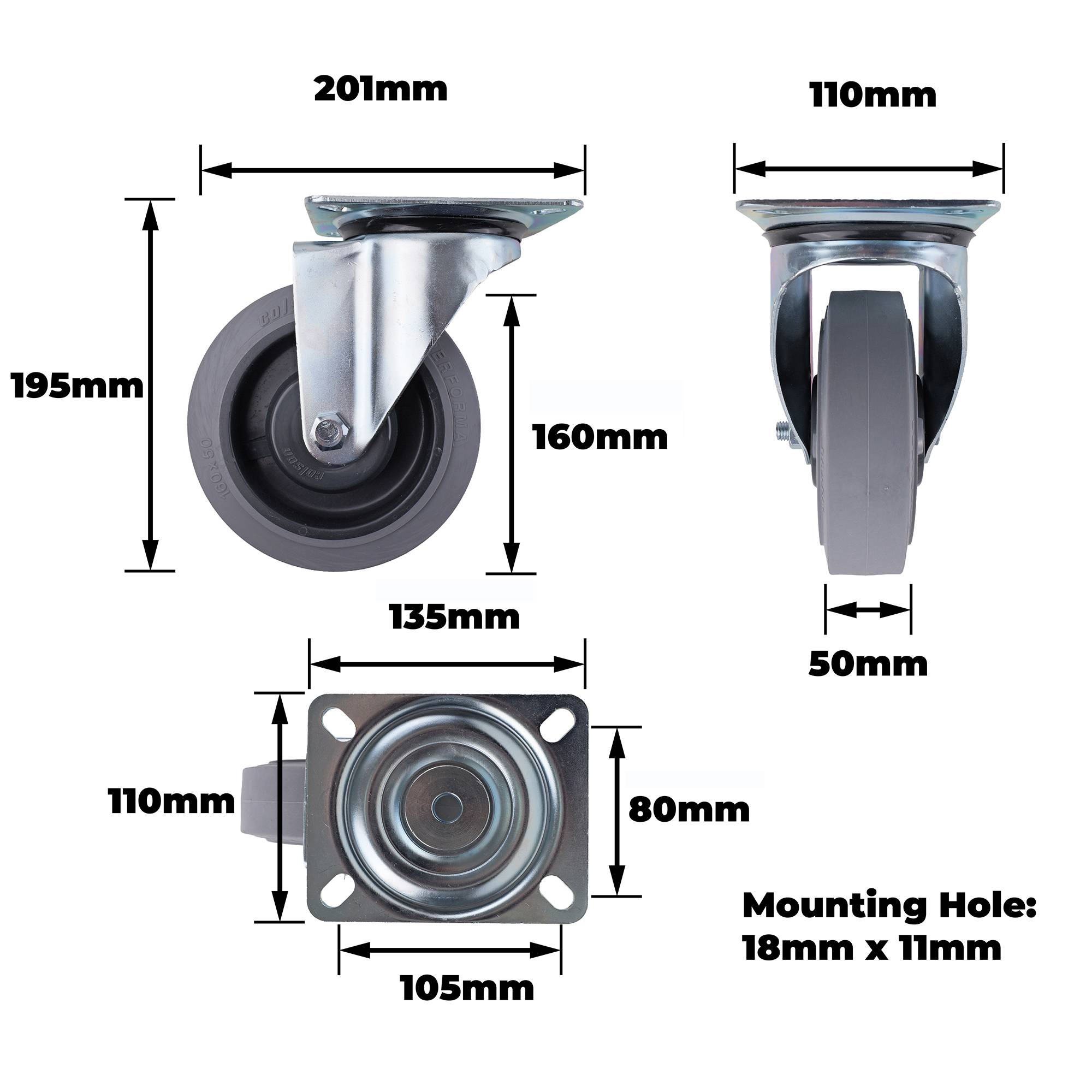

Dimensions
| Product Length (mm) | 201 |
| Product Width (mm) | 110 |
| Product Height (mm) | 195 |
| Wheel Diameter (mm) | 160 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 133 |
| Mounting Hole Dimensions (mm) | 18x11 |
| Hole Centre Dimensions (LxW) mm | 110/100x85/75 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2170 |
| Product Weight (kg) | 2.17 |
| Load Capacity (kg) | 225.0 |
