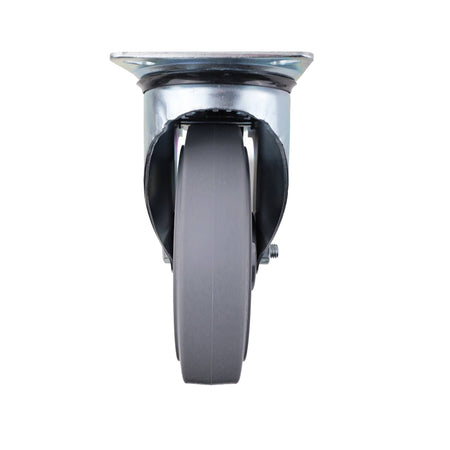

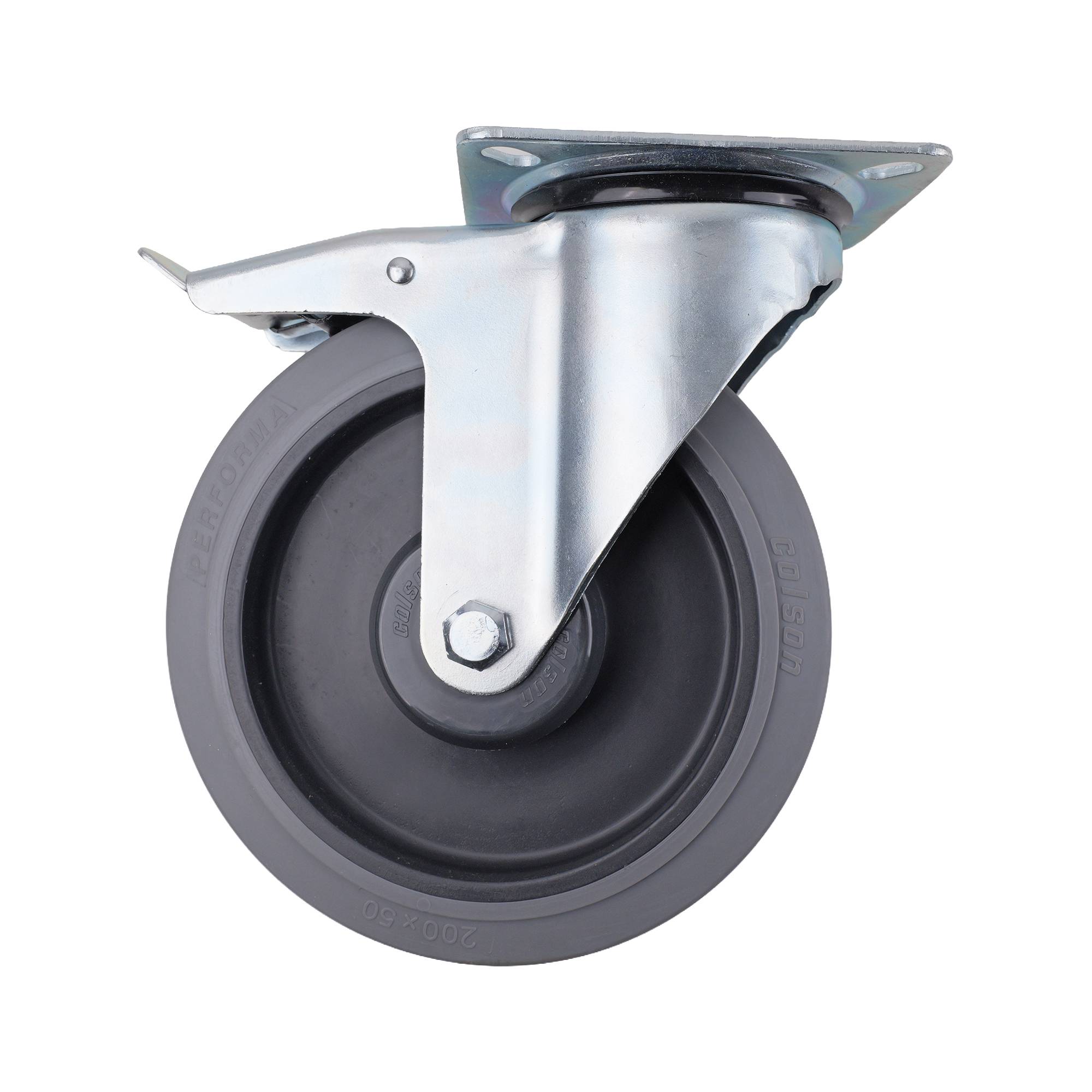

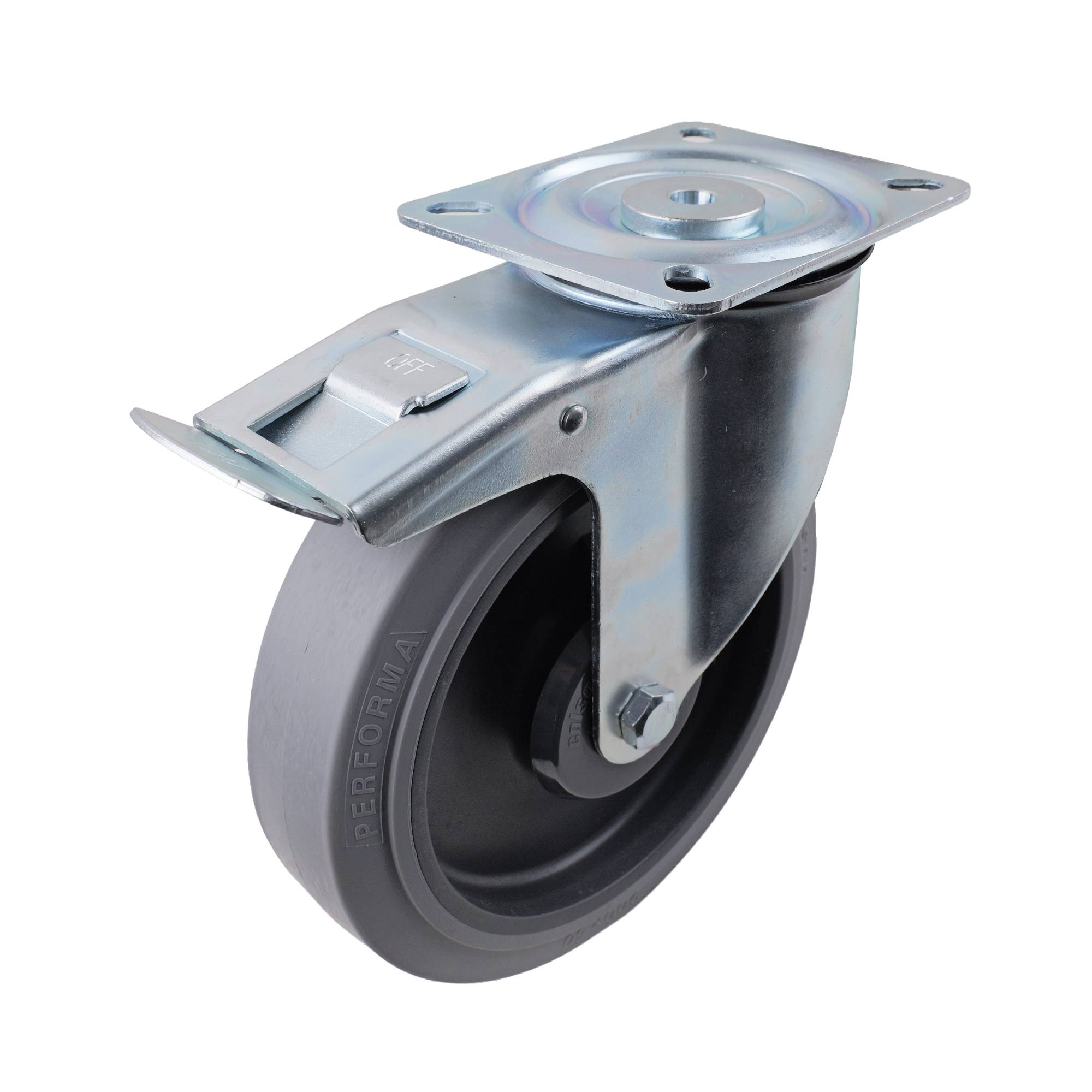

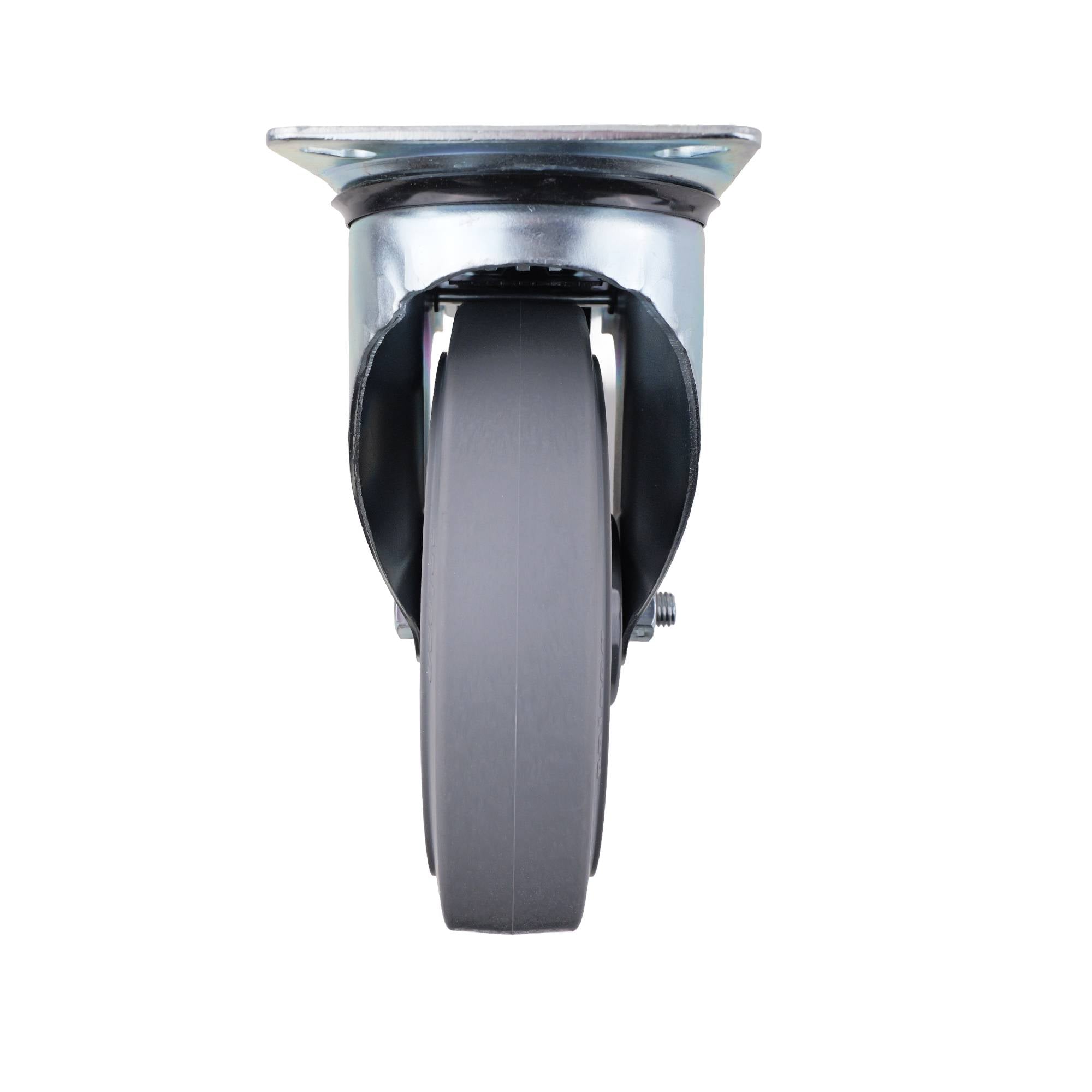

Colson 200mm Grey Performa TPE Swivel Plate Brake I6 Series Castor 280kg
Colson 200mm Grey Performa TPE Swivel Plate Brake I6 Series Castor 280kg is designed for controlled movement in commercial applications. It features a plate mount design with zinc plated steel housing, precision steel bearings and a dual raceway configuration for stability and smooth rolling. The castor is constructed with a polypropylene wheel core and a grey Performa thermoplastic elastomer wheel, ensuring a practical and reliable solution that meets the mobility requirements of trade professionals in both indoor and outdoor settings.
Couldn't load pickup availability
- Precision steel bearing ensures smooth castor rotation
- Dual raceway supports even wheel contact and load distribution
- Total brake provides secure stationary positioning
- Polypropylene wheel core offers robust structural support
- Grey Performa thermoplastic elastomer wheel maintains low noise operation
- Zinc plated steel components enhance wear resistance and longevity
- Plate mount design allows straightforward integration and installation
- Engineered for continuous indoor and outdoor operation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
| Brake Type | Total |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Grey Performa Thermoplastic Elastomer |
| Housing Material | Zinc Plated Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Grey |

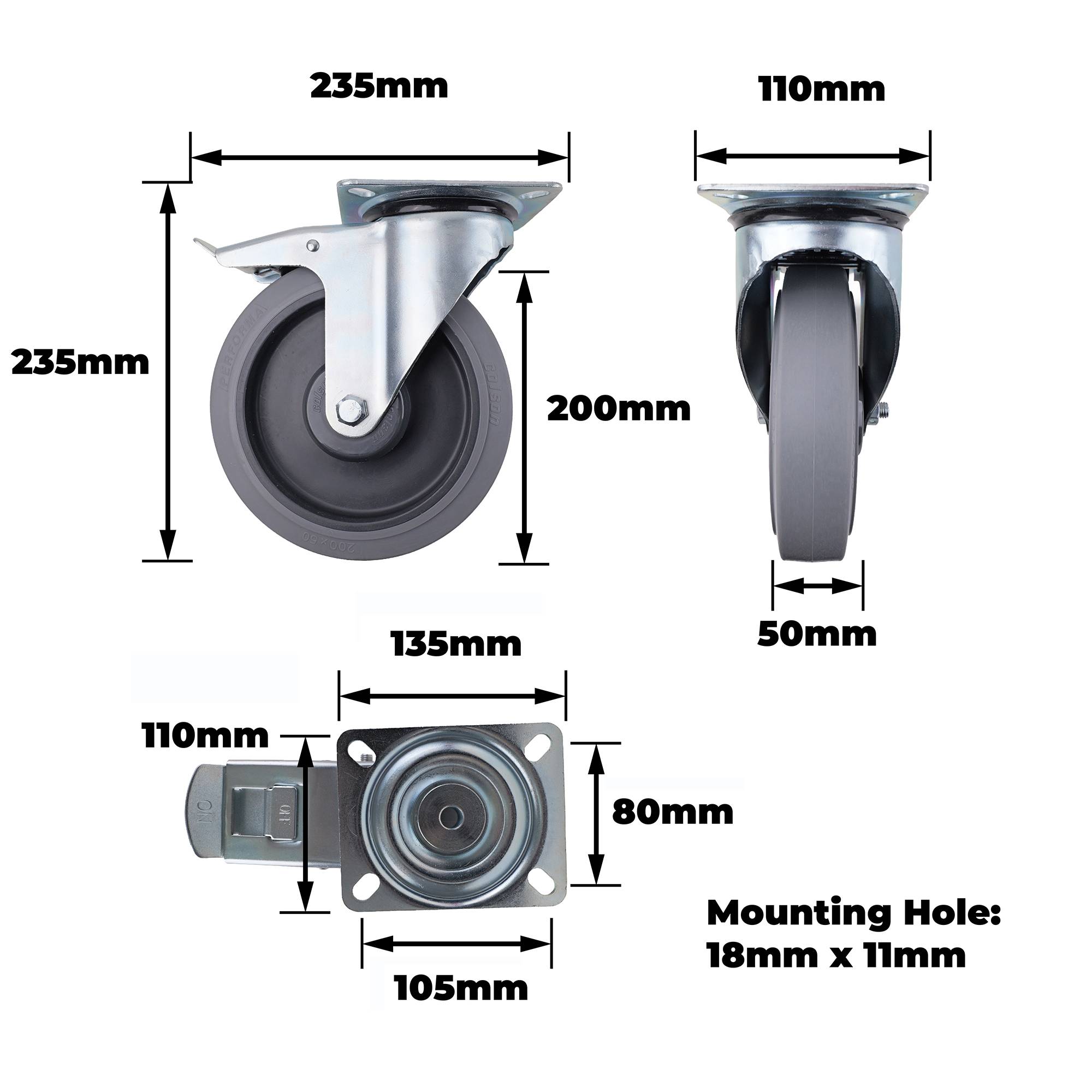

Dimensions
| Product Length (mm) | 235 |
| Product Width (mm) | 110 |
| Product Height (mm) | 235 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 167 |
| Mounting Hole Dimensions (mm) | 18x11 |
| Hole Centre Dimensions (LxW) mm | 110/100x85/75 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3000 |
| Product Weight (kg) | 3 |
| Load Capacity (kg) | 280.0 |
