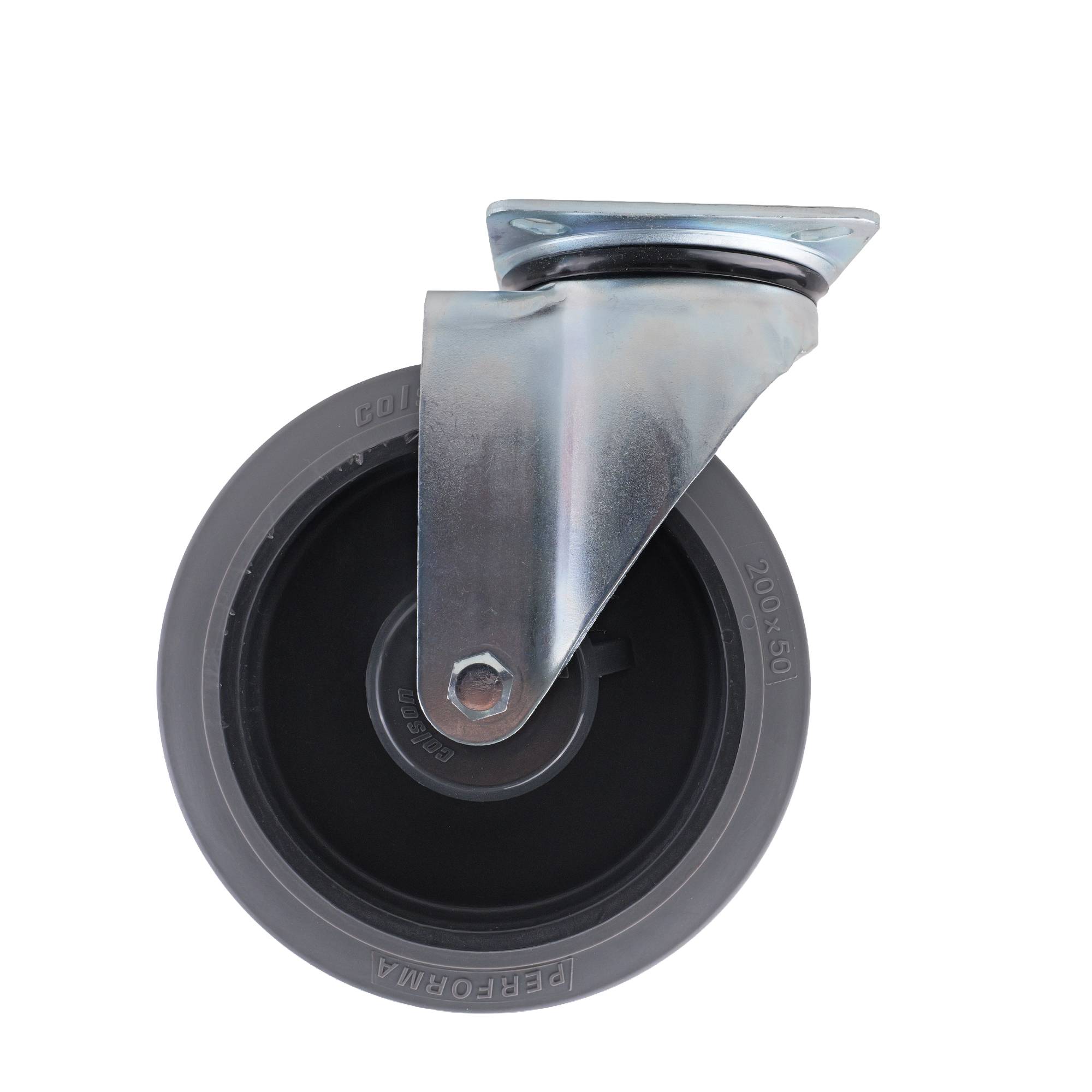

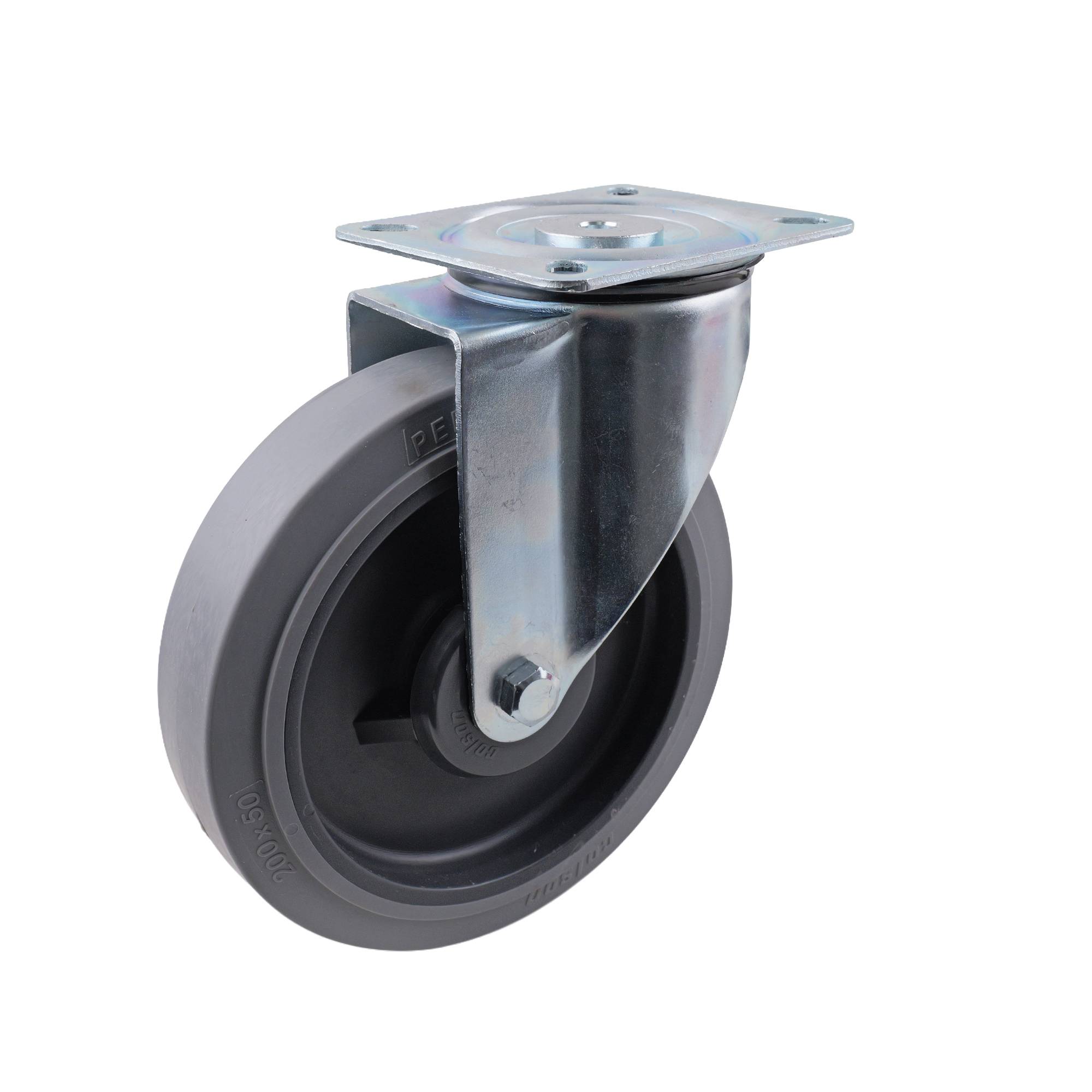

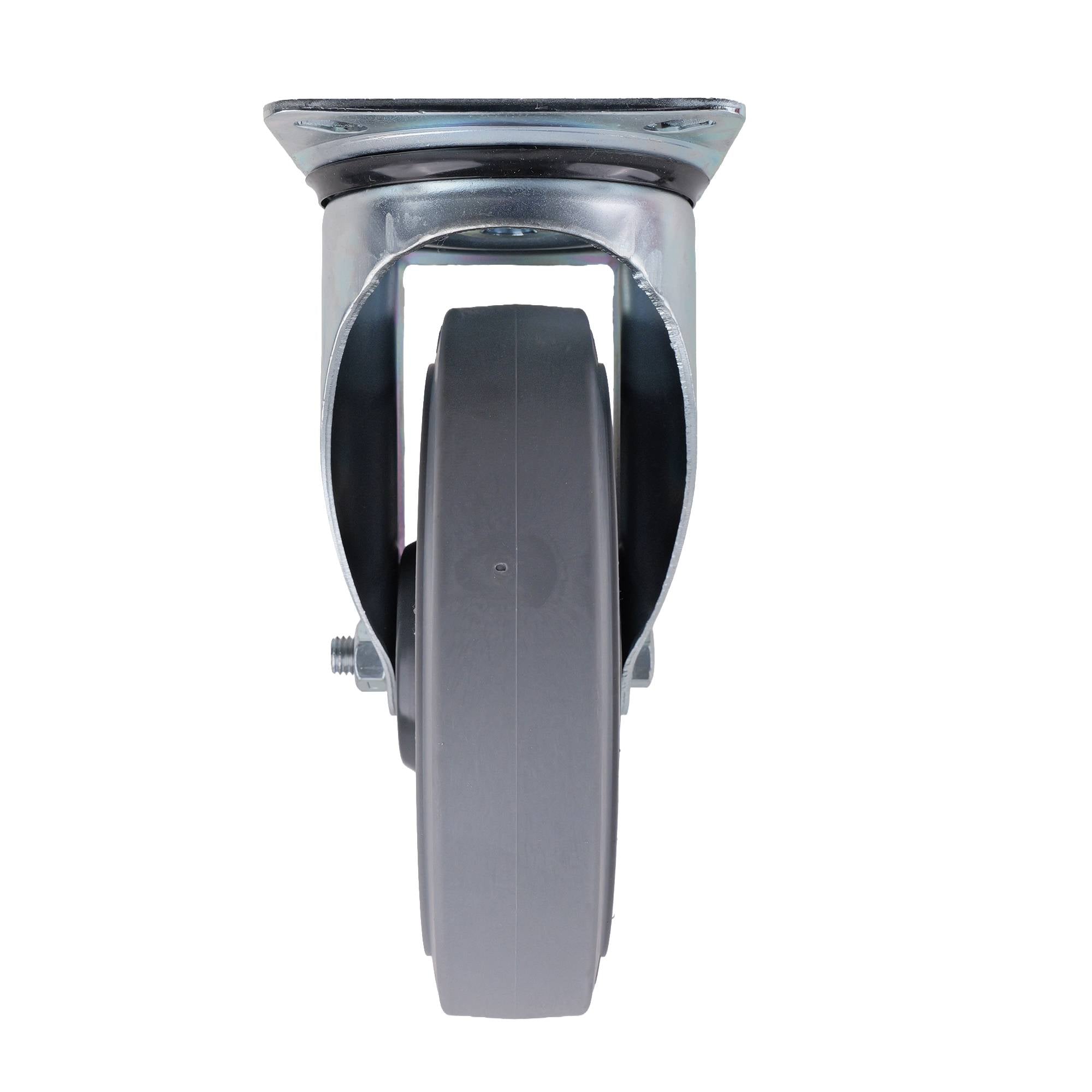

Colson 200mm Grey Performa Rubber Swivel Plate I6 Series Castor 280kg
Colson 200mm Grey Performa Rubber Swivel Plate I6 Series Castor 280kg is designed to provide reliable mobility for equipment used by industrial and trade professionals. Constructed with a zinc plated steel housing and precision steel bearings, it features a dual raceway wheel made from hi-tech Performa thermoplastic rubber with a polypropylene core. The integrated plate mount ensures secure installation while the silver/grey finish offers a clean, practical appearance.
Couldn't load pickup availability
- Precision steel bearing ensures smooth swivel performance
- Hi-Tech Performa thermoplastic rubber wheel enables quiet movement
- Polypropylene wheel core delivers durability under repeated use
- Zinc plated steel housing resists rust and wear
- Dual raceway design enhances stability during directional shifts
- Plate mount fitting secures attachment to various surfaces
- Grey rubber wheel provides reliable grip on diverse surfaces
- Suitable for indoor and outdoor applications in varied settings
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Hi-Tech Performa Thermoplastic Rubber |
| Housing Material | Zinc Plated Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Grey |

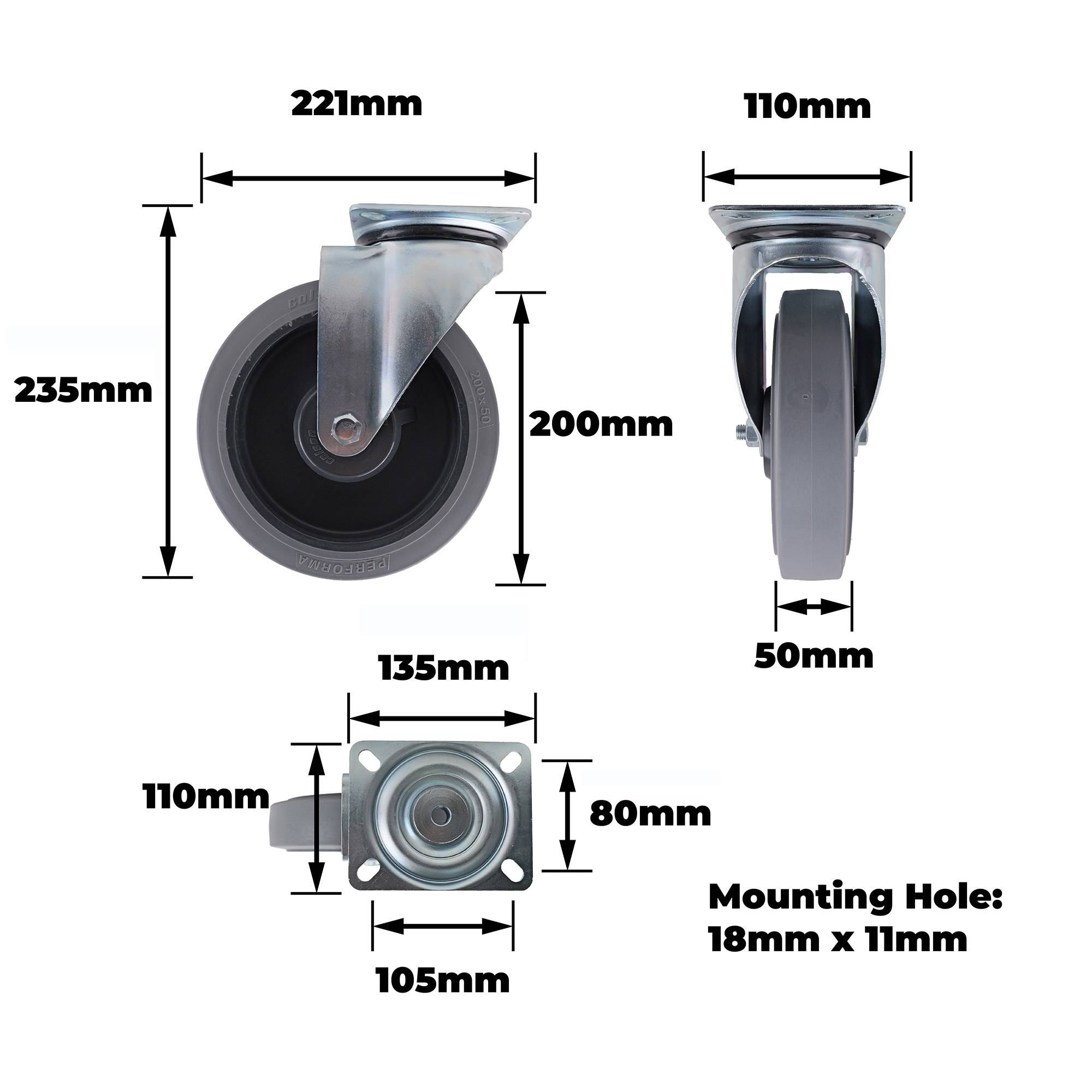

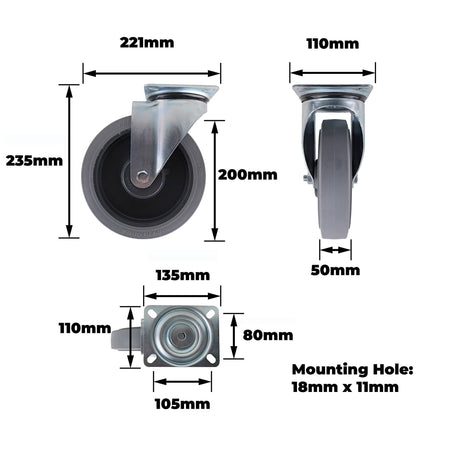

Dimensions
| Product Length (mm) | 221 |
| Product Width (mm) | 110 |
| Product Height (mm) | 235 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 153 |
| Mounting Hole Dimensions (mm) | 18x11 |
| Hole Centre Dimensions (LxW) mm | 110/100x85/75 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2530 |
| Product Weight (kg) | 2.53 |
| Load Capacity (kg) | 280.0 |
