Colson 200mm Urethane Swivel Plate J3 Series Castor 455kg
Colson 200mm Urethane Swivel Plate J3 Series Castor 455kg is a castor that features a fixed plate, steel housing and double ball bearings for accurate load handling and manoeuvrability. It is constructed with a red urethane wheel, a polypropylene wheel core and a double raceway for enhanced performance. This product offers precise motion control and efficient manoeuvring, delivering value to industrial and trade professionals engaged in material transport and equipment handling.
Couldn't load pickup availability
- Steel housing offers robust structural stability
- Double ball bearing for smooth swivel movement
- Red urethane wheel provides high abrasion resistance
- Polypropylene wheel core reduces wear during operation
- Double raceway design supports reliable rotation
- High load capacity designed to support 455kg
- Manufactured by COLSON with quality and durability
- Plate design fitted for versatile installations
Product Data Sheet (Download PDF)
Specifications
| Bearing Type | Double Ball Bearing |
| Raceway Type | Double |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Red Urethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

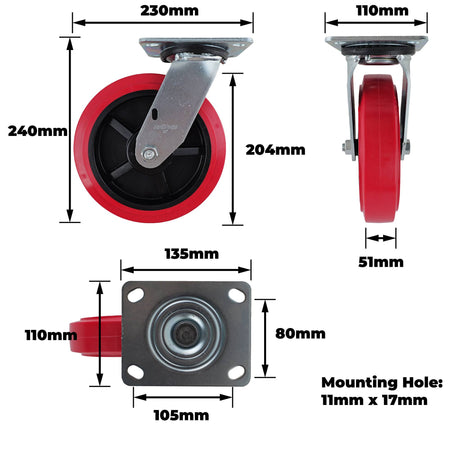

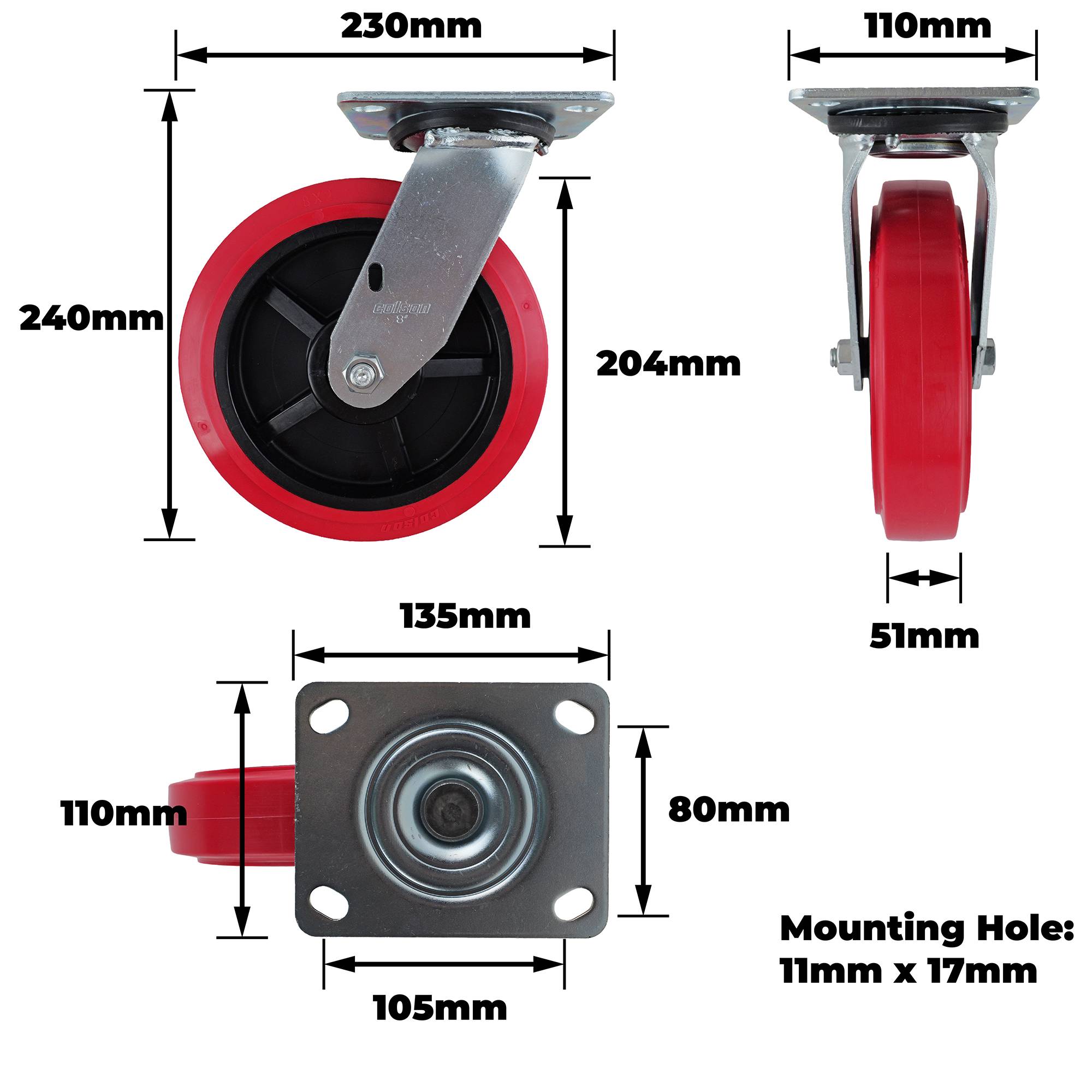

Dimensions
| Product Length (mm) | 230 |
| Product Width (mm) | 110 |
| Product Height (mm) | 240 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 162 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105X80 |
| Plate Dimensions (LxW) mm | 135X110 |
Weights
| Product Weight (grams) | 2901 |
| Product Weight (kg) | 2.901 |
| Load Capacity (kg) | 455.0 |
