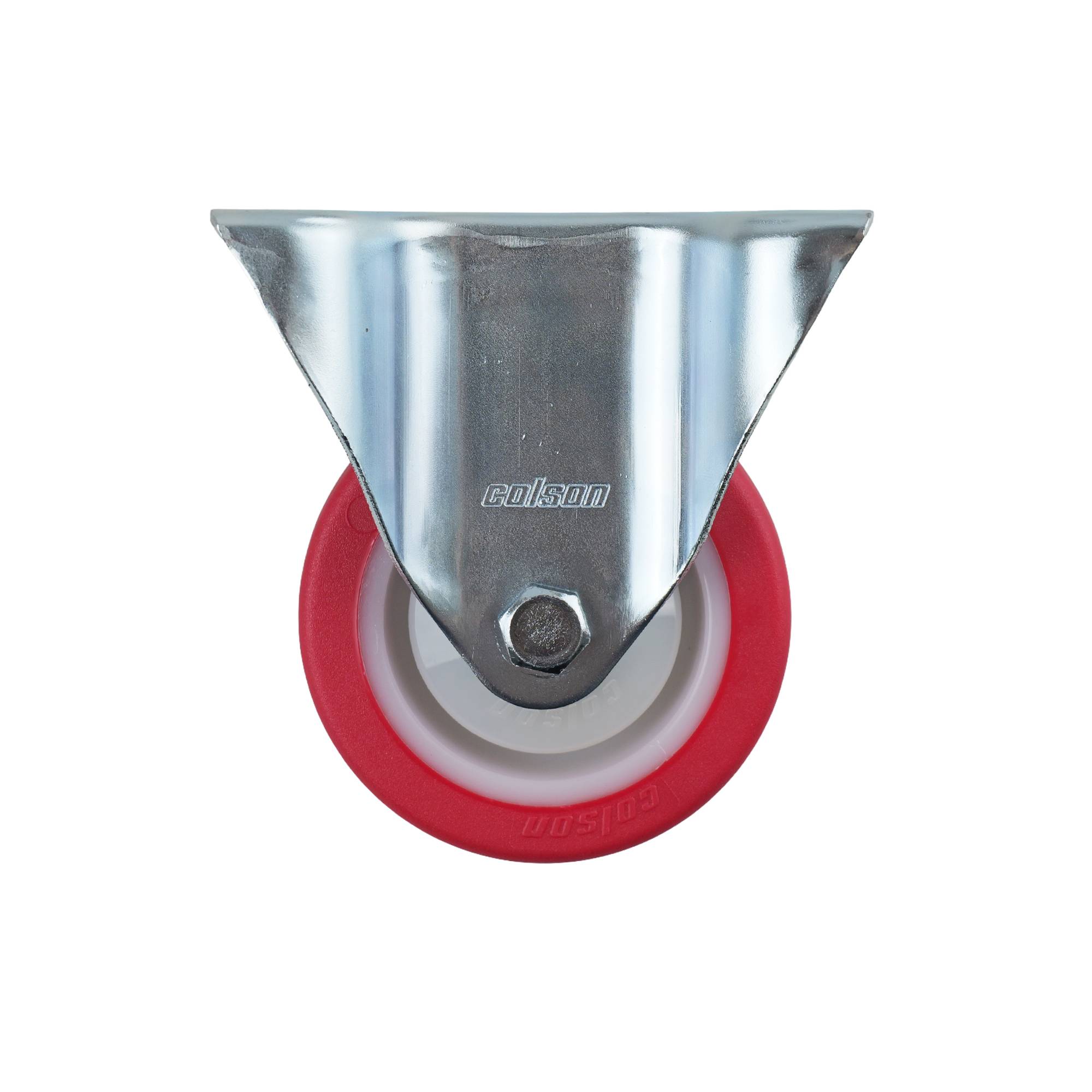

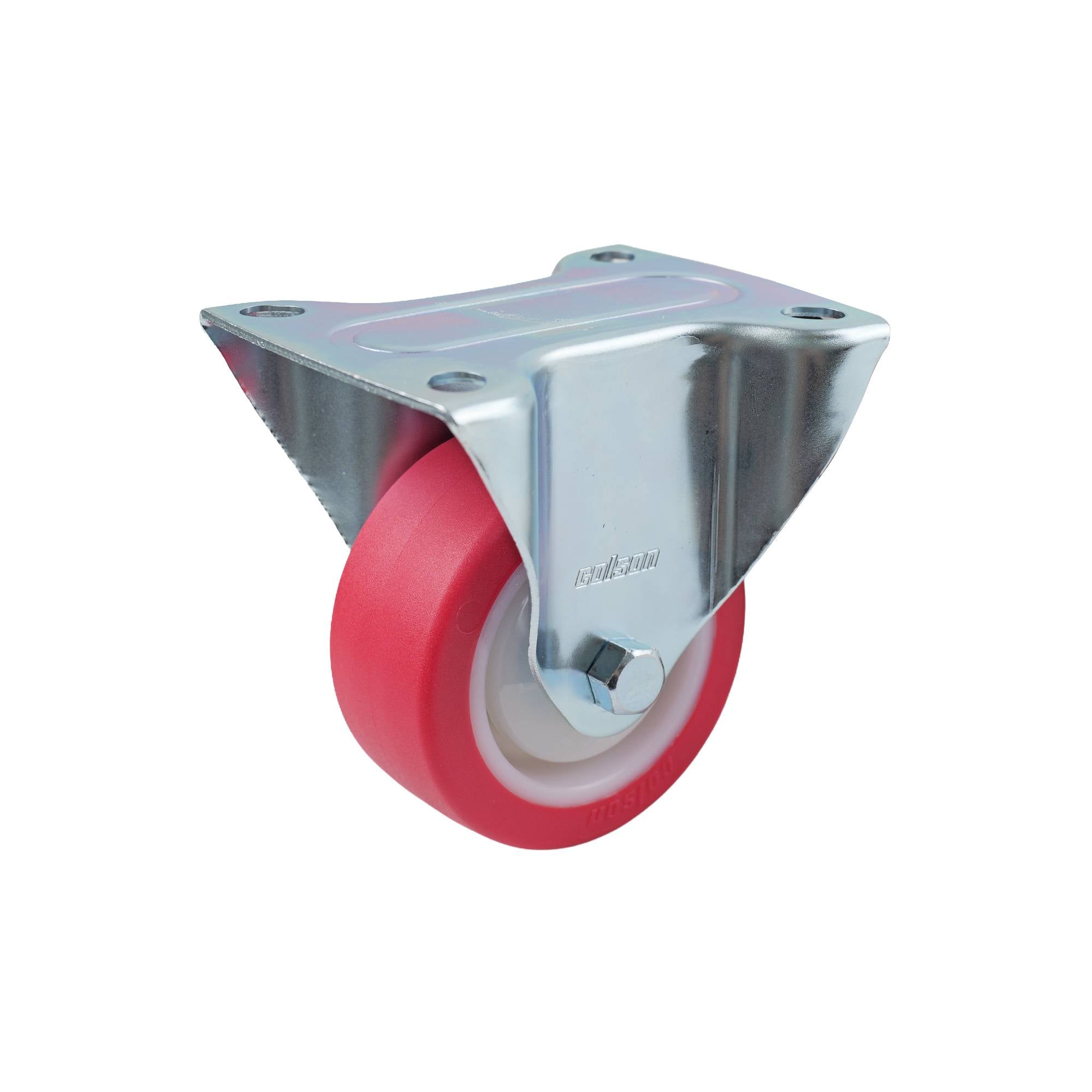

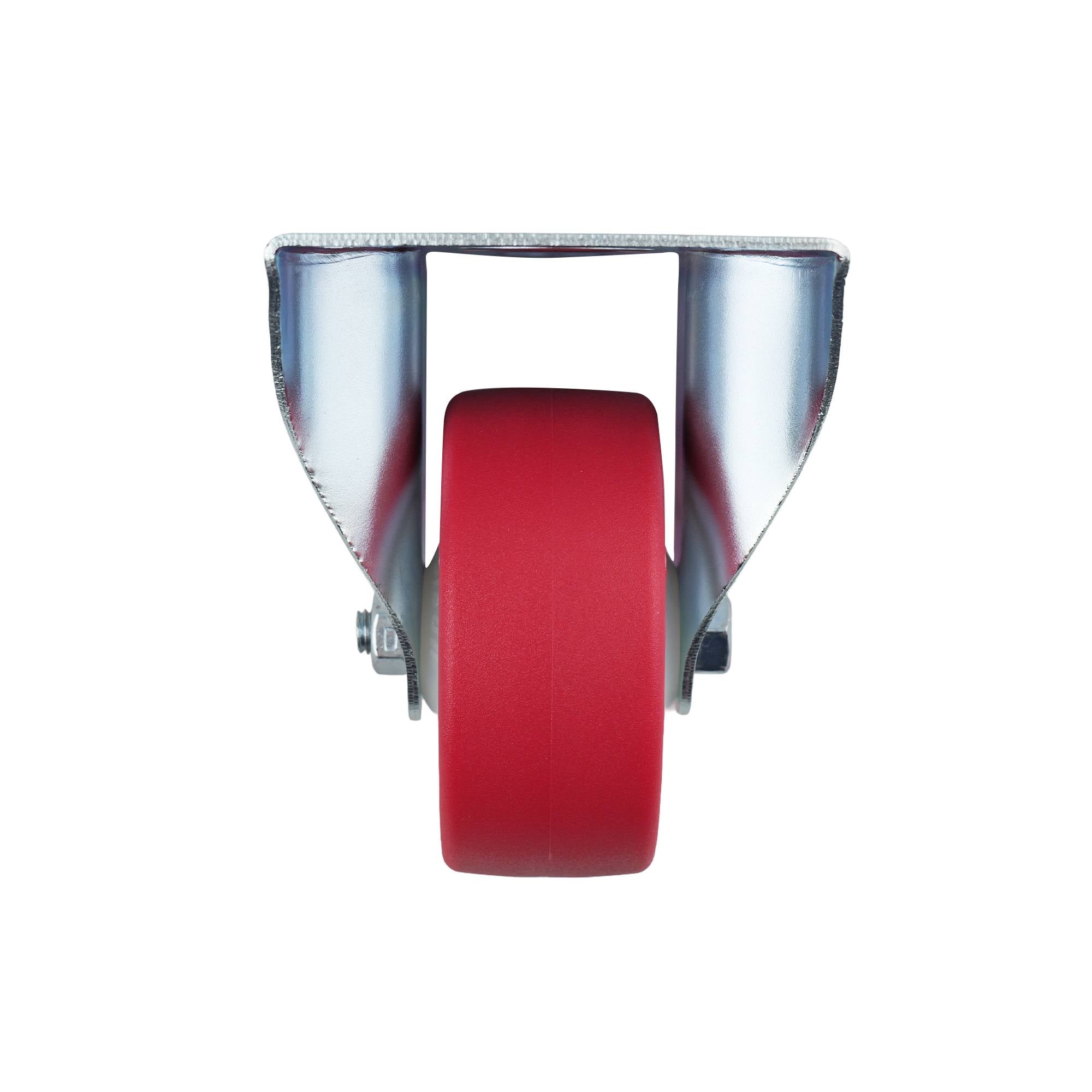

Colson 80mm Red Urethane Fixed Plate I3 Series Castor 130kg
Colson 80mm Red Urethane Fixed Plate I3 Series Castor 130kg is a precision castor engineered for effective load transport. It incorporates a single raceway and precision bearing within a carbon steel housing, utilising a polyamide 6 wheel core and thermoplastic rubber wheel, combined with a red urethane tread. The plate mount fitting provides secure attachment and reliable manoeuvrability for trade professionals seeking consistent performance and technical advantages in their applications.
Couldn't load pickup availability
- Colson I3 Series castors feature robust carbon steel housing
- Red urethane wheel improves traction on varied surfaces
- Wheel core built from polyamide 6 for enhanced durability
- Thermoplastic rubber wheel material offers resilient performance
- Precision chrome steel bearings support smooth movement under load
- Single raceway design contributes to reliable operational efficiency
- Plate mount fitting ensures stable installation and secure operation
- Engineered for indoor and outdoor projects
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Single |
Construction
| Wheel Core Material | Polyamide 6 |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Carbon Steel |
| Bearing Material | Chrome Steel |
| Product Colour | Red |

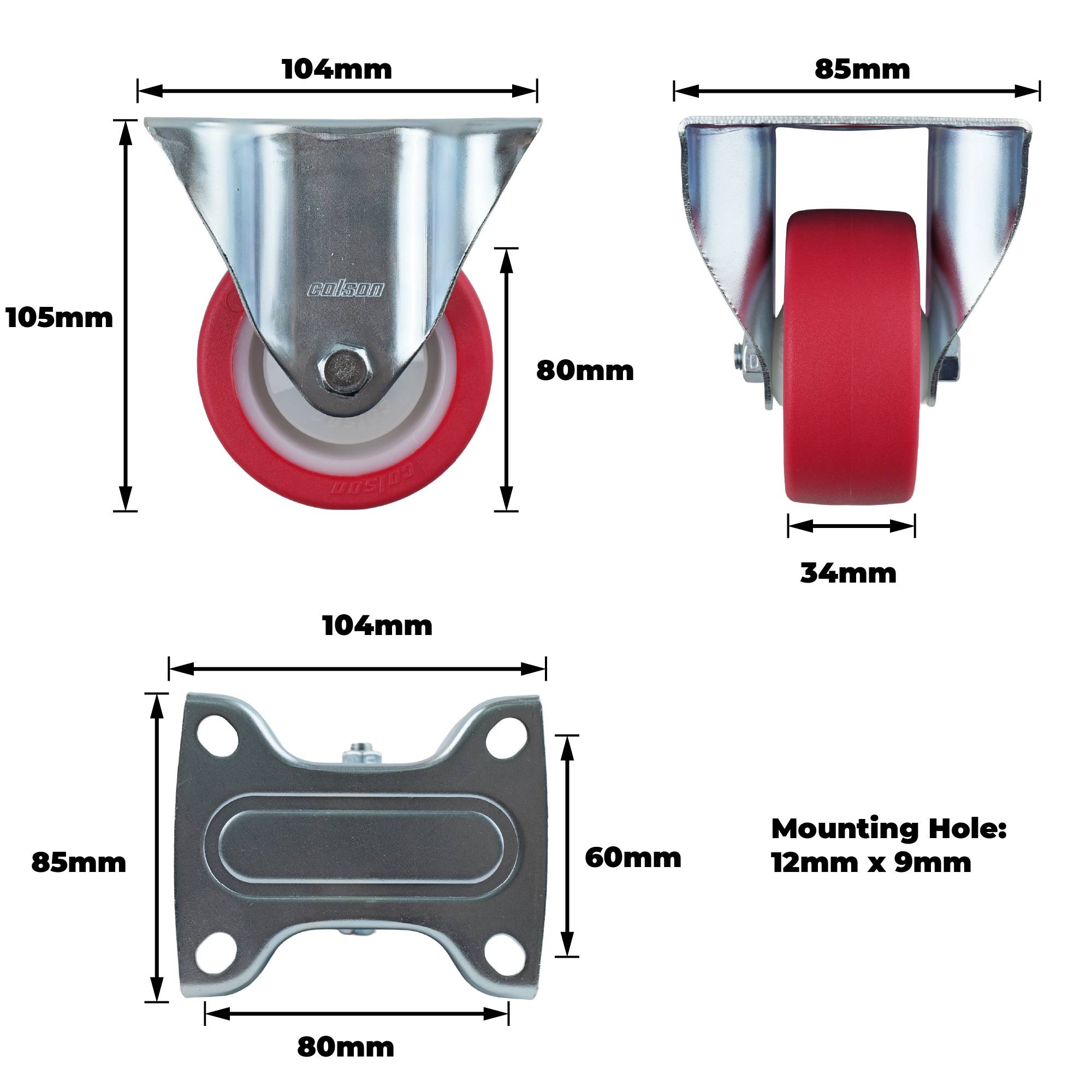

Dimensions
| Product Length (mm) | 104 |
| Product Width (mm) | 85 |
| Product Height (mm) | 105 |
| Wheel Diameter (mm) | 80 |
| Tread Width (mm) | 34 |
| Mounting Hole Dimensions (mm) | 12x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 104x85 |
Weights
| Product Weight (grams) | 450 |
| Product Weight (kg) | 0.45 |
| Load Capacity (kg) | 130.0 |
