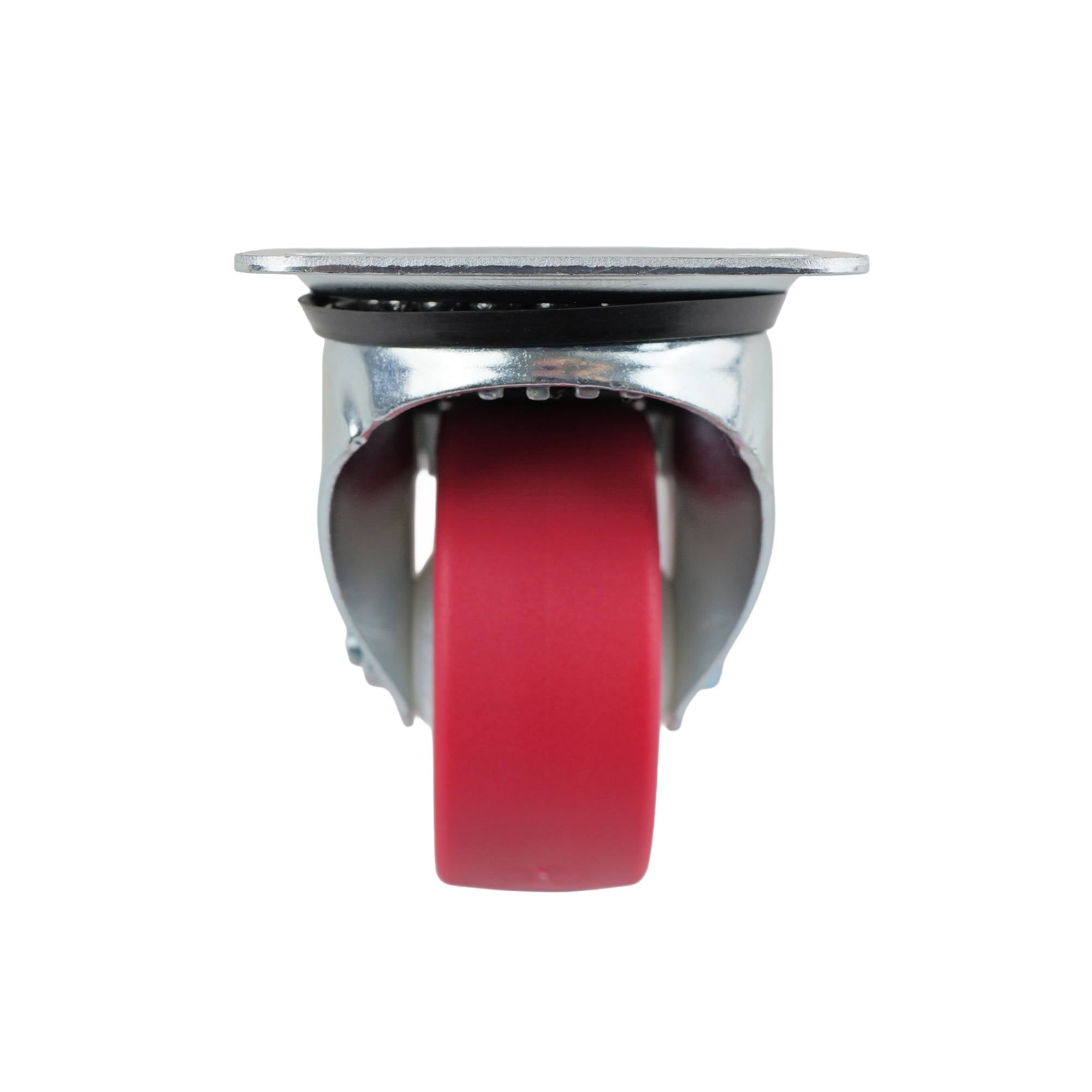

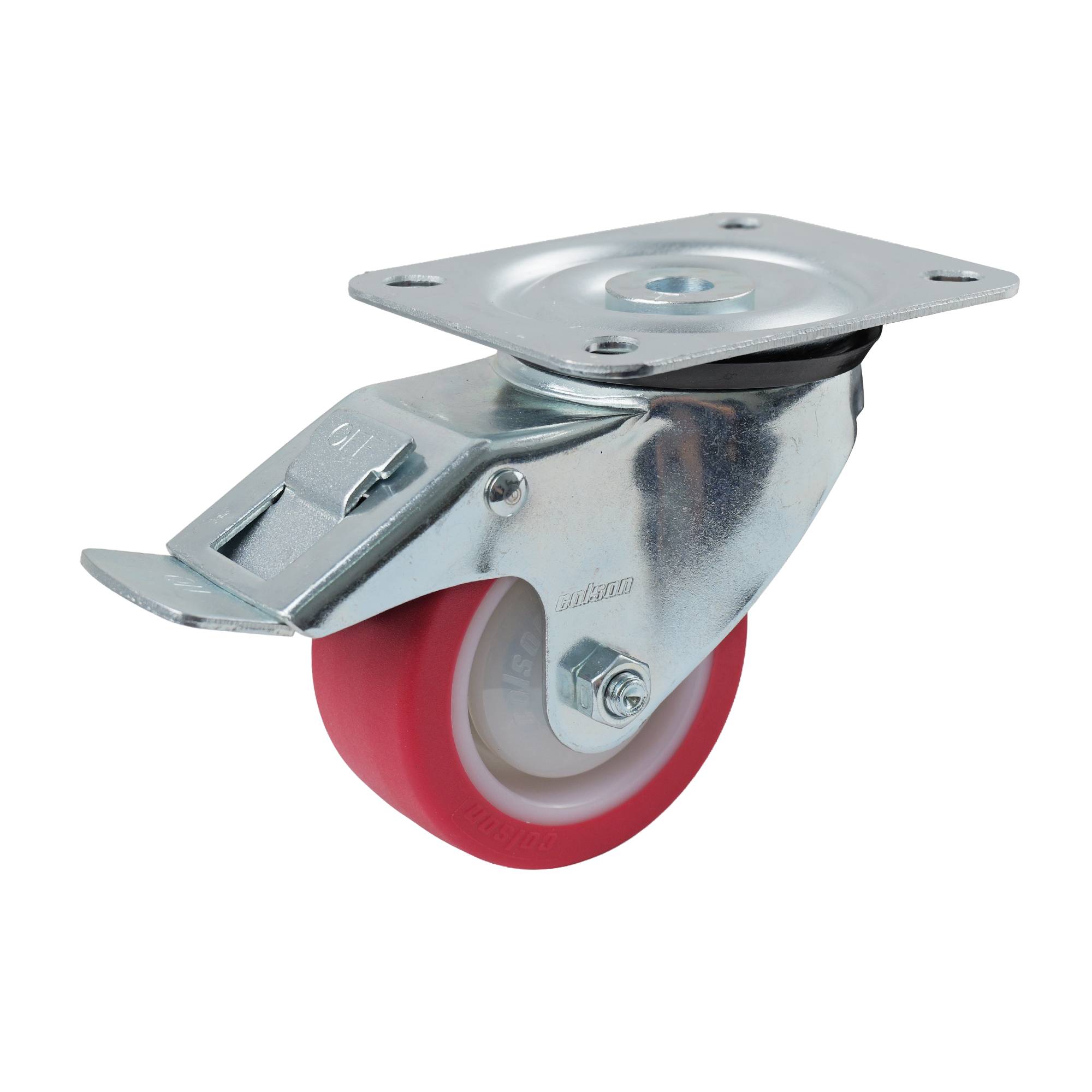

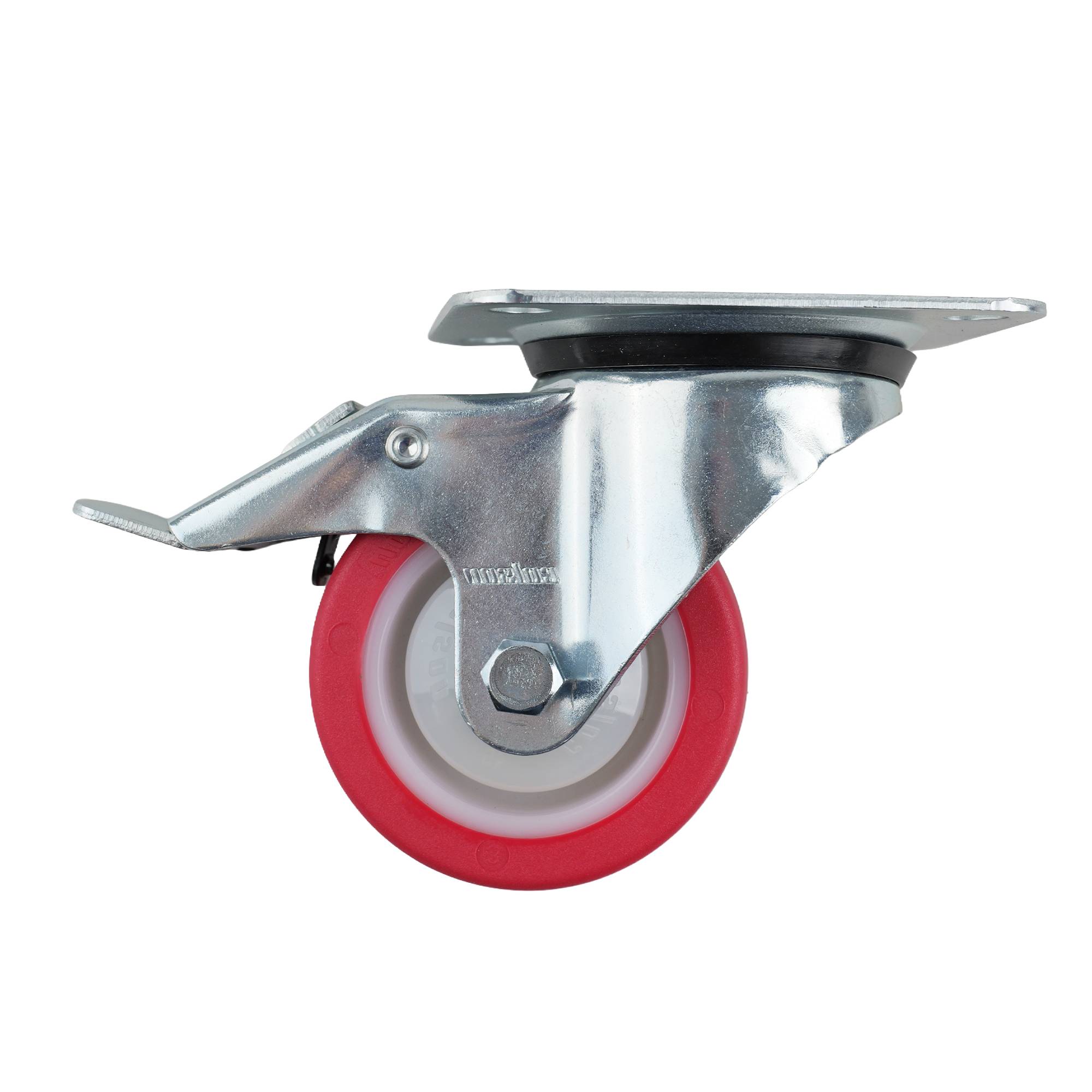

Colson 80mm Red Urethane Swivel Plate Brake I3 Series Castor 130kg
Colson 80mm Red Urethane Swivel Plate Brake I3 Series Castor 130kg is engineered for precision movement and reliable braking performance in professional settings. It incorporates a plate mount design with a robust carbon steel housing and precision chrome steel bearings. The polyamide 6 wheel core and thermoplastic rubber wheel provide consistent performance and controlled mobility. The red urethane wheel ensures durability and effective braking for safe handling in trade applications.
Couldn't load pickup availability
- Precision bearing system delivers smooth roll and reliable braking
- High-strength carbon steel housing for enhanced durability
- Plate mount design enables secure and efficient fitting
- Red urethane wheels built for dependable performance
- Rugged thermoplastic rubber wheels provide excellent shock absorption
- Total brake system offers complete control when manoeuvring
- Engineered for reliable use across varied worksite conditions
- Polyamide 6 wheel core resists wear and maintains integrity
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Single |
| Brake Type | Total |
Construction
| Wheel Core Material | Polyamide 6 |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Carbon Steel |
| Bearing Material | Chrome Steel |
| Product Colour | Red |

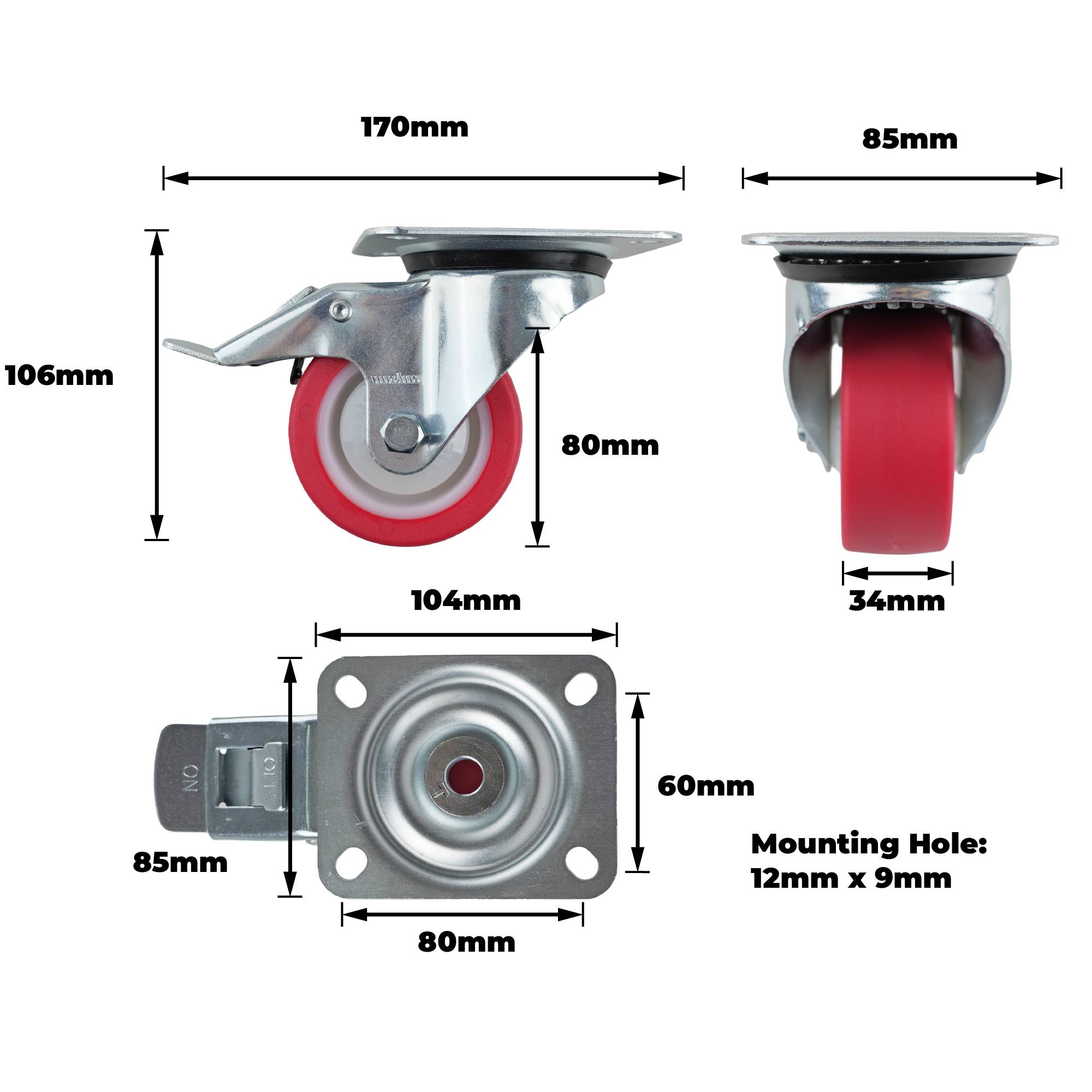

Dimensions
| Product Length (mm) | 170 |
| Product Width (mm) | 85 |
| Product Height (mm) | 106 |
| Wheel Diameter (mm) | 80 |
| Tread Width (mm) | 34 |
| Swivel Radius (mm) | 130 |
| Mounting Hole Dimensions (mm) | 12x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 104x85 |
Weights
| Product Weight (grams) | 799 |
| Product Weight (kg) | 0.799 |
| Load Capacity (kg) | 130.0 |
