Colson 80mm Red Urethane Swivel Plate I3 Series Castor 130kg
Colson 80mm Red Urethane Swivel Plate I3 Series Castor 130kg is engineered for precision movement and reliability. It utilises a red urethane wheel with a polyamide 6 core and precision bearing, providing robust load support for diverse operational tasks. Constructed from carbon steel with chrome steel bearings, it offers consistent performance. The plate mount design and single raceway configuration allow for easy manoeuvrability and stable handling during routine use in both indoor and outdoor settings.
Couldn't load pickup availability
- Carbon steel housing provides strong structural support
- Precision chrome steel bearings ensure smooth rotation
- Red urethane wheel delivers dependable low friction motion
- Plate mount design simplifies castor installation
- Durable polyamide 6 wheel core supports consistent performance
- Thermoplastic rubber wheels offer resilient flexible movement
- Functions on both indoor and outdoor mixed surfaces
- Single raceway design supports precise directional movement
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Single |
Construction
| Wheel Core Material | Polyamide 6 |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Carbon Steel |
| Bearing Material | Chrome Steel |
| Product Colour | Red |

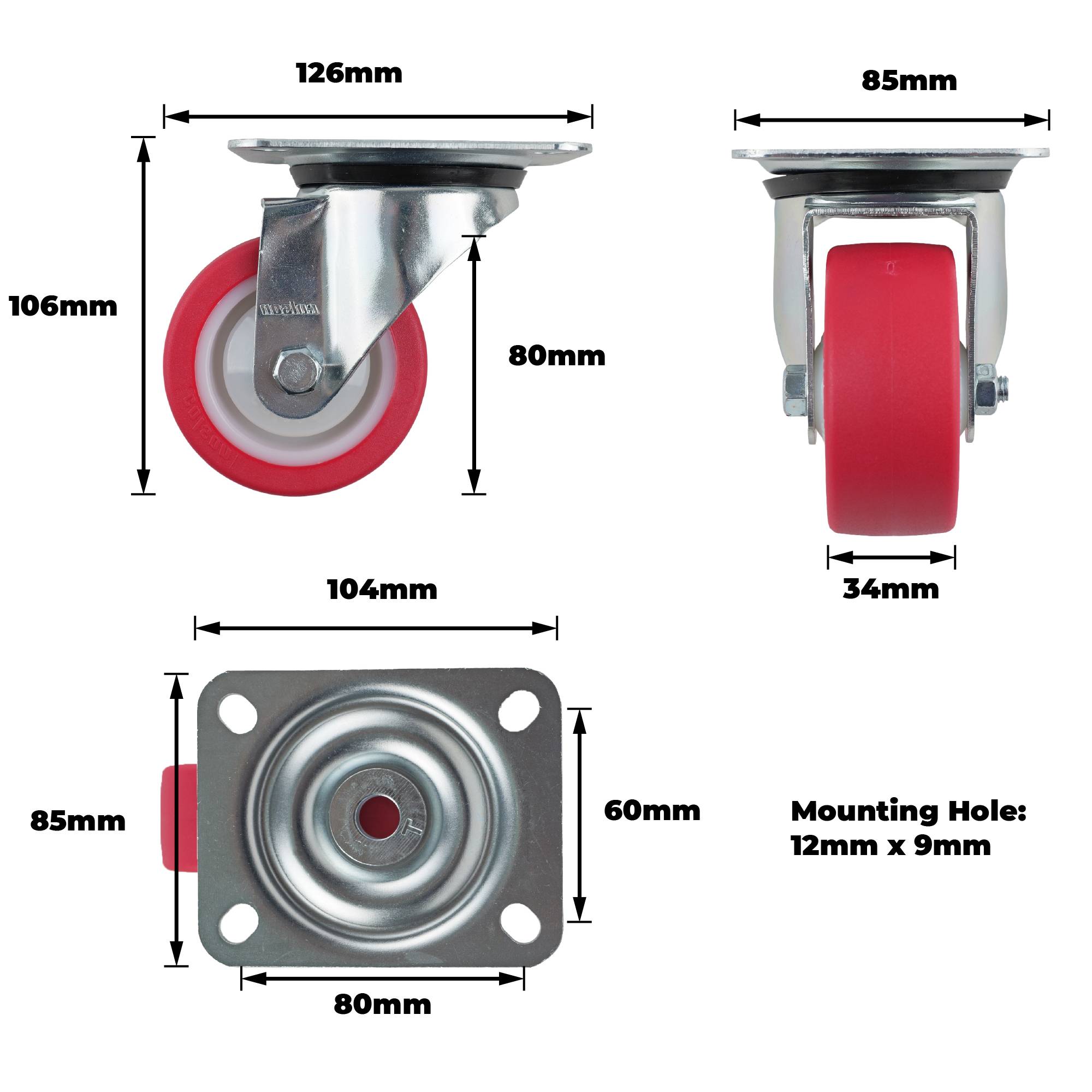

Dimensions
| Product Length (mm) | 126 |
| Product Width (mm) | 85 |
| Product Height (mm) | 106 |
| Wheel Diameter (mm) | 80 |
| Tread Width (mm) | 34 |
| Swivel Radius (mm) | 86 |
| Mounting Hole Dimensions (mm) | 12x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 104x85 |
Weights
| Product Weight (grams) | 659 |
| Product Weight (kg) | 0.659 |
| Load Capacity (kg) | 130.0 |
