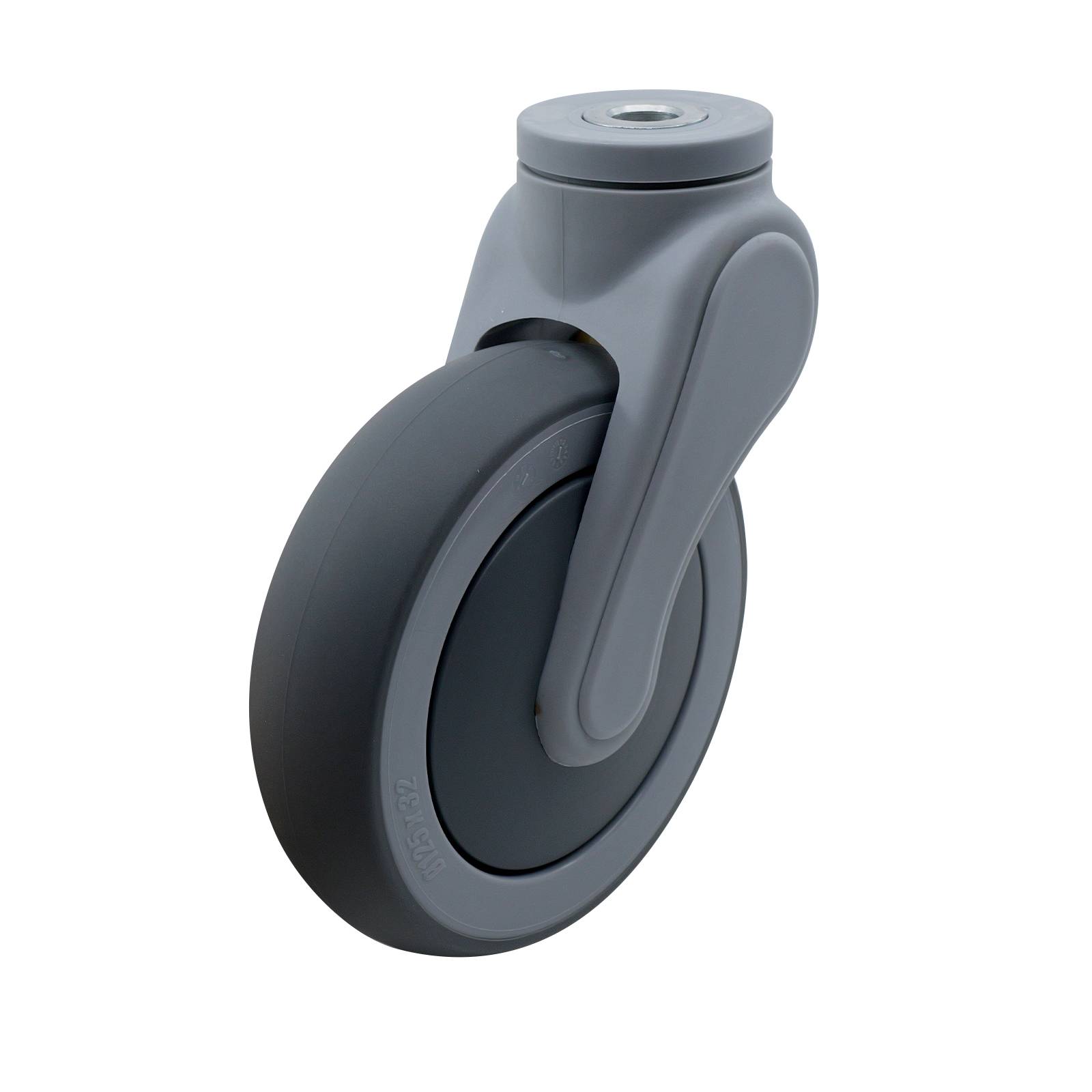

Colson 125mm Bolt Hole Swivel P6 Series Castor 100kg
Colson 125mm Bolt Hole Swivel P6 Series Castor 100kg is a well-engineered castor suited for applications requiring reliable manoeuvrability in controlled indoor settings. The design features a polypropylene wheel core and durable rubber wheel that provides smooth movement. Constructed with a robust polyamide 6 housing and precision steel bearings, it offers controlled rotation and stability, supporting a load capacity of 100kg. Its bolt hole fitting allows for secure integration with various platforms in industrial and trade environments.
Couldn't load pickup availability
- Precision bearings support smooth swivel movement
- Rubber wheel provides reliable floor protection
- Polyamide housing offers enhanced structural integrity
- Steel bearings deliver accurate rotational performance
- Single raceway optimises caster stability
- Bolt hole fitting simplifies secure caster installation
- Intended for indoor use with precise manoeuvring
- 125mm wheel diameter supports 100kg load capacity
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Single |
| Fitting Type | Bolt Hole |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Rubber |
| Housing Material | Polyamide 6 |
| Bearing Material | Steel |
| Product Colour | Grey |
Dimensions
| Product Length (mm) | 460 |
| Product Width (mm) | 440 |
| Product Height (mm) | 134 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 32 |
| Finish Height (mm) | 162 |
Weights
| Product Weight (grams) | 497 |
| Product Weight (kg) | 0.497 |
| Load Capacity (kg) | 100.0 |
