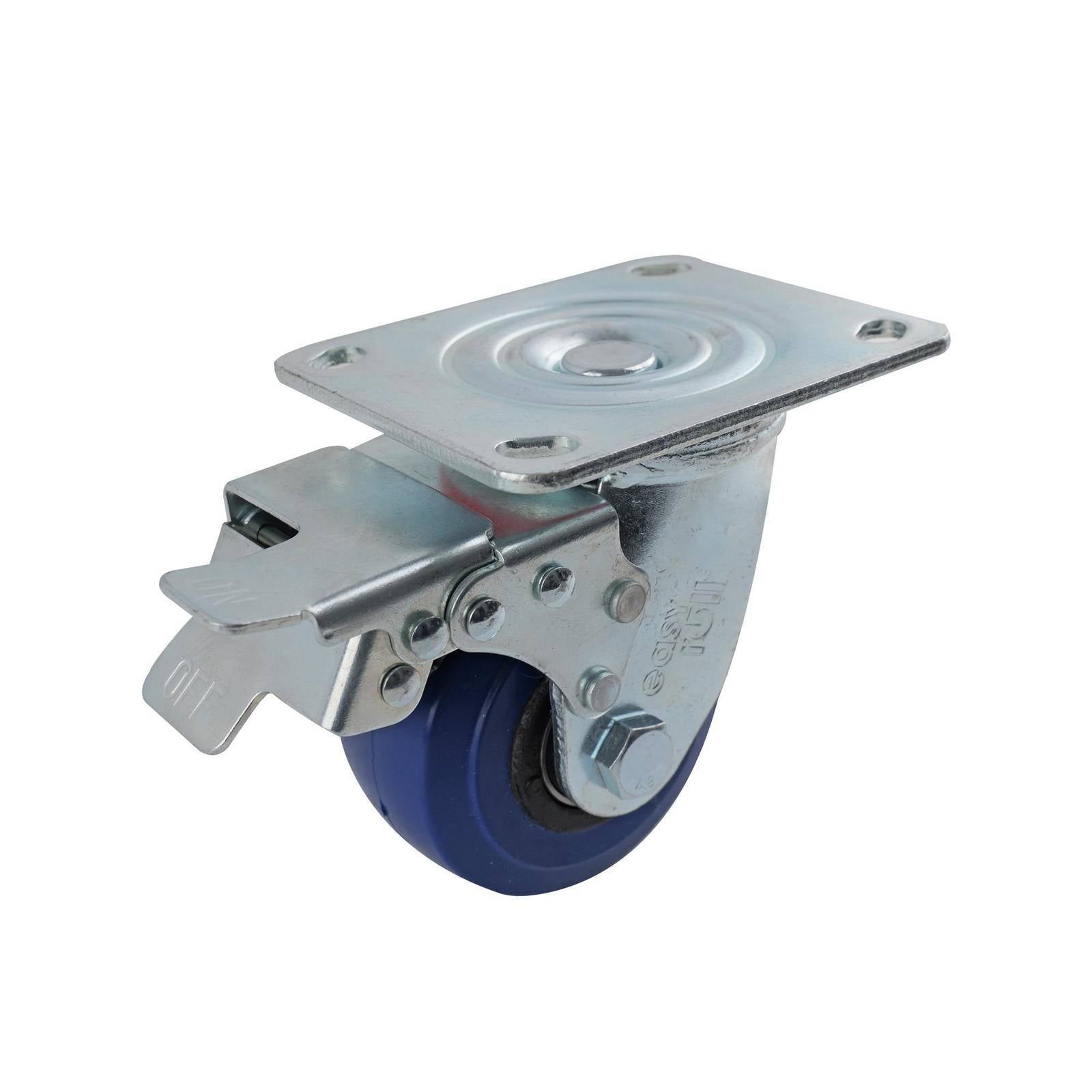

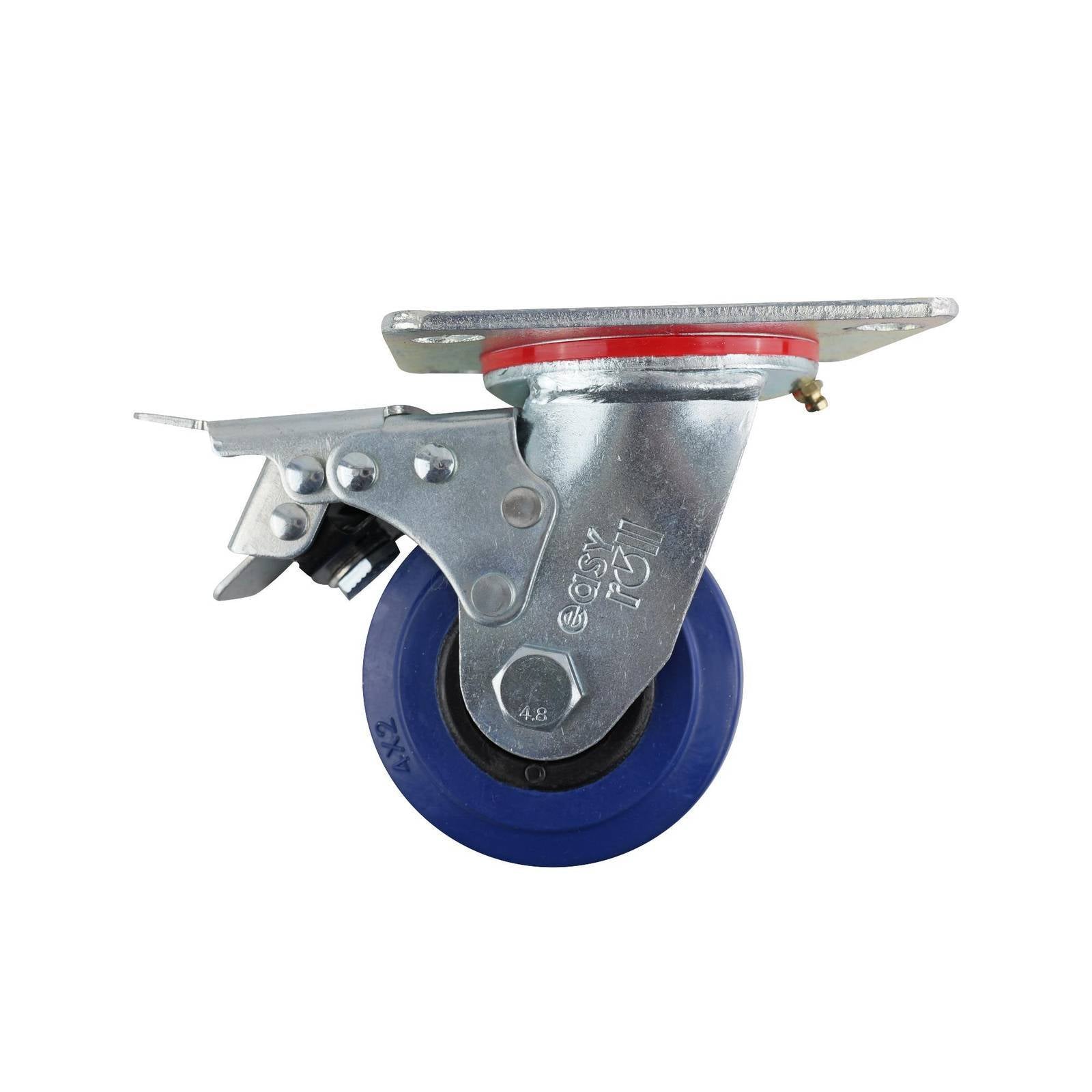

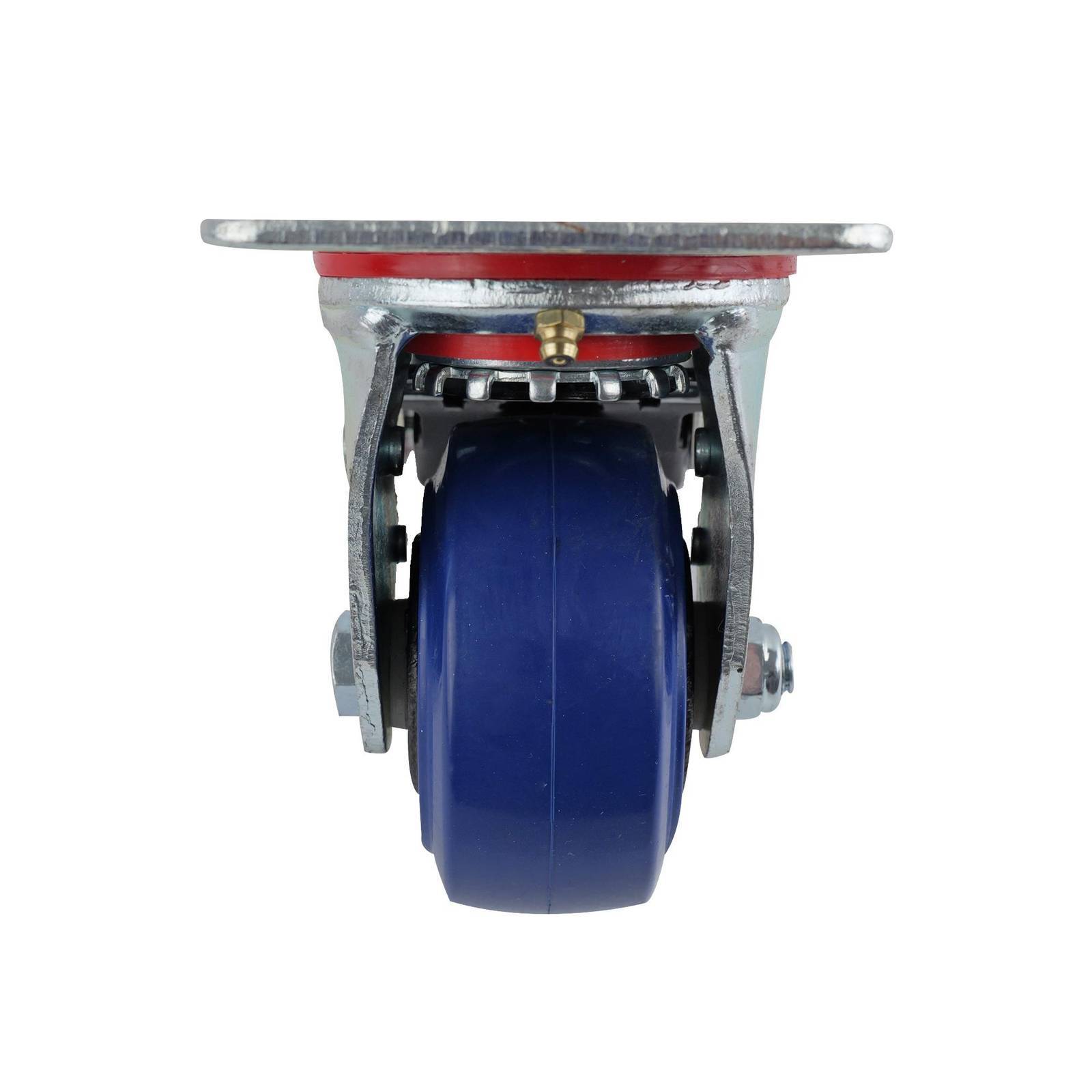

Easyroll 100mm Blue Rubber Swivel Plate Brake J3 Series Castor 200kg
Easyroll 100mm Blue Rubber Swivel Plate Brake J3 Series Castor 200kg is a castor designed for reliable movement of moderately heavy loads using a plate mount system. It features a polypropylene wheel core with a rubber wheel that provides smooth and stable mobility, while the steel housing and ball bearing assembly contribute to its solid construction. The integrated brake and plate swivel attachment offer practical control and manoeuvrability for trade professionals.
Couldn't load pickup availability
- Steel housing ensures robust durability and strength
- Polypropylene wheel core offers lightweight strength and stability
- Rubber wheels deliver reliable traction on various surfaces
- Carbon steel ball bearings allow precise and smooth rotation
- Plate swivel enables secure mounting and flexible movement
- Versatile for indoor and outdoor applications
- Supports heavy loads up to 200kg safely
- Integrated plate brake provides secure positional control
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

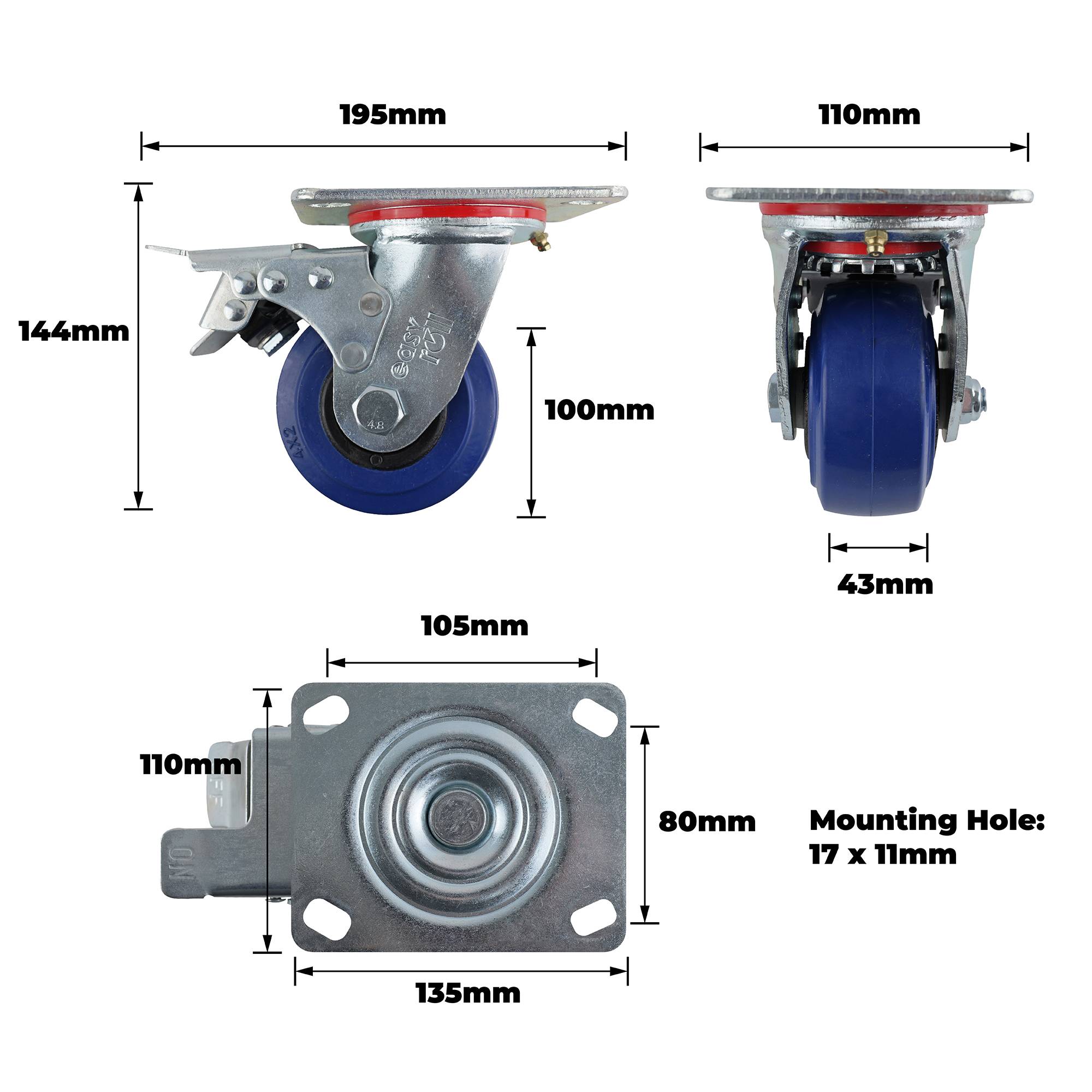

Dimensions
| Product Length (mm) | 195 |
| Product Width (mm) | 110 |
| Product Height (mm) | 144 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 43 |
| Swivel Radius (mm) | 127.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2450 |
| Product Weight (kg) | 2.45 |
| Load Capacity (kg) | 200.0 |
