Easyroll 100mm Blue Rubber Swivel Plate J3 Series Castor 200kg
Easyroll 100mm Blue Rubber Swivel Plate J3 Series Castor 200kg is a plate-mounted castor designed for various equipment handling applications. It features a robust combination of a polypropylene wheel core, steel wheel and housing, along with carbon steel ball bearings for a smooth swivelling action. The integrated plate swivel mechanism supports efficient movement in both indoor and outdoor settings, providing industrial and trade professionals with a reliable, practical solution for mobile equipment.
Couldn't load pickup availability
- Constructed using steel housing and carbon steel bearings
- Distinct red black silver finish for visual identification
- Rubber wheel provides smooth traction and noise control
- Single raceway design simplifies movement and load distribution
- Plate swivel attachment enables accurate positioning and repositioning
- Polypropylene wheel core enhances durability and efficiency
- Designed for indoor and outdoor applications
- Fitted with ball bearing for smooth rotation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Steel |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

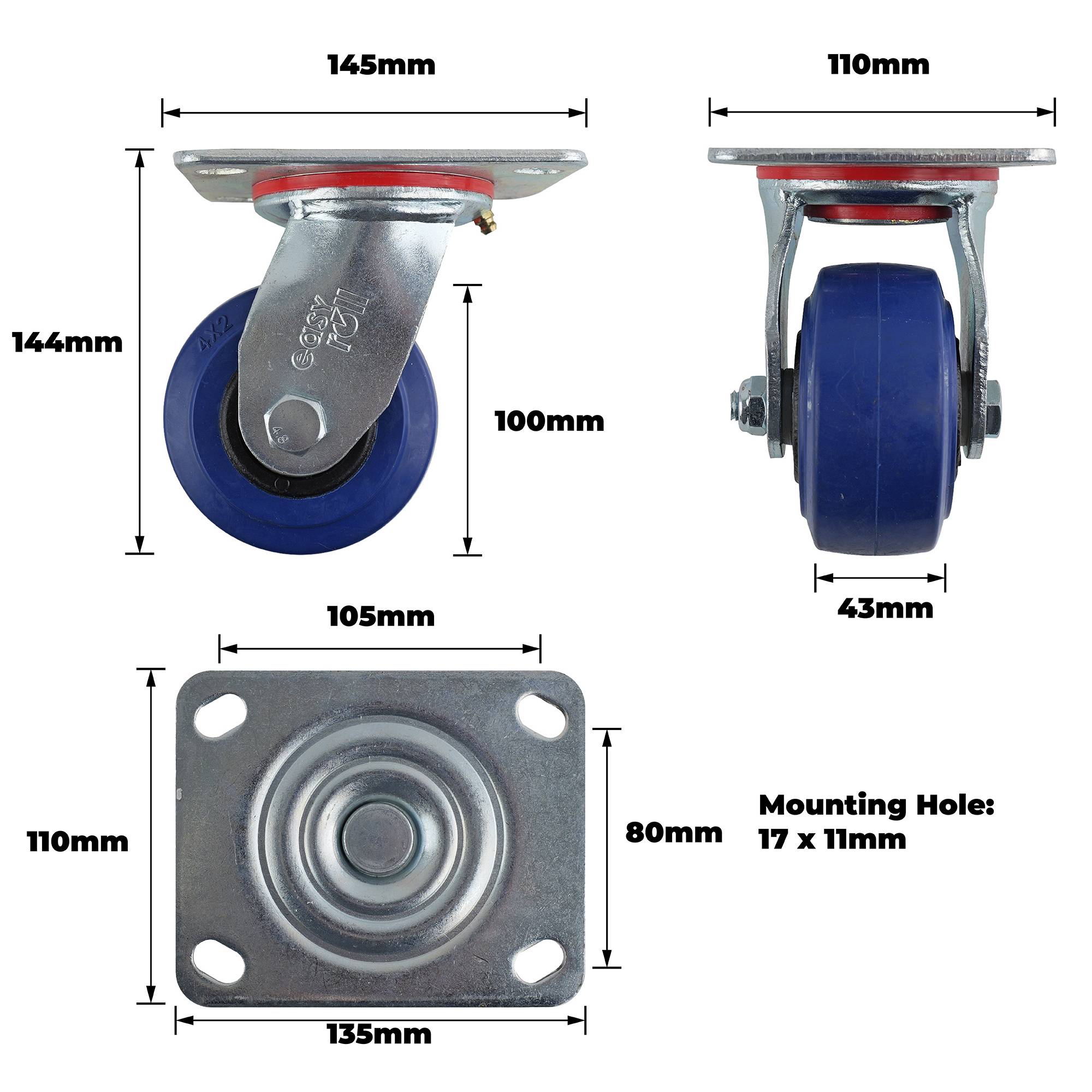

Dimensions
| Product Length (mm) | 145 |
| Product Width (mm) | 110 |
| Product Height (mm) | 144 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 43 |
| Swivel Radius (mm) | 77.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2027 |
| Product Weight (kg) | 2.027 |
| Load Capacity (kg) | 200.0 |
