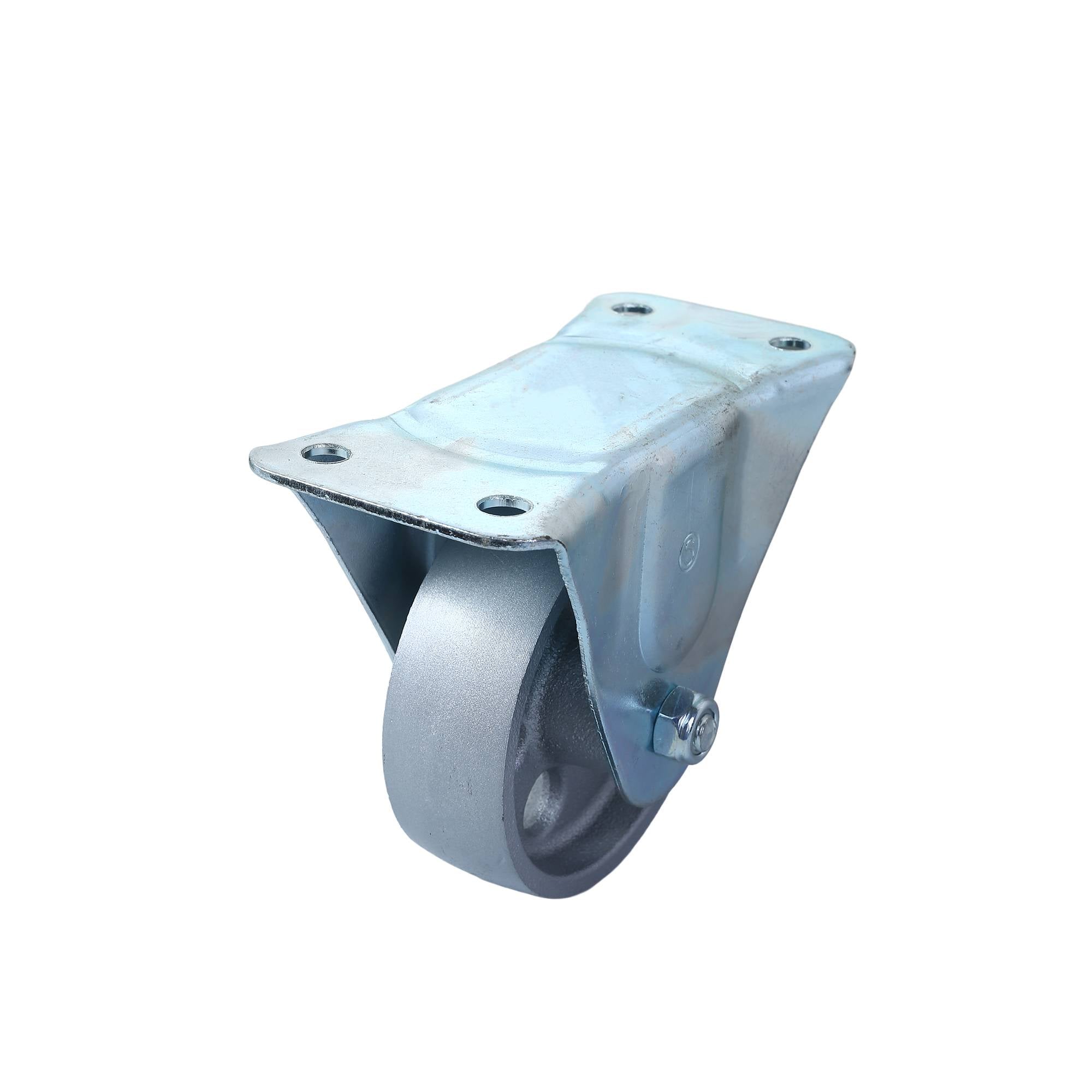

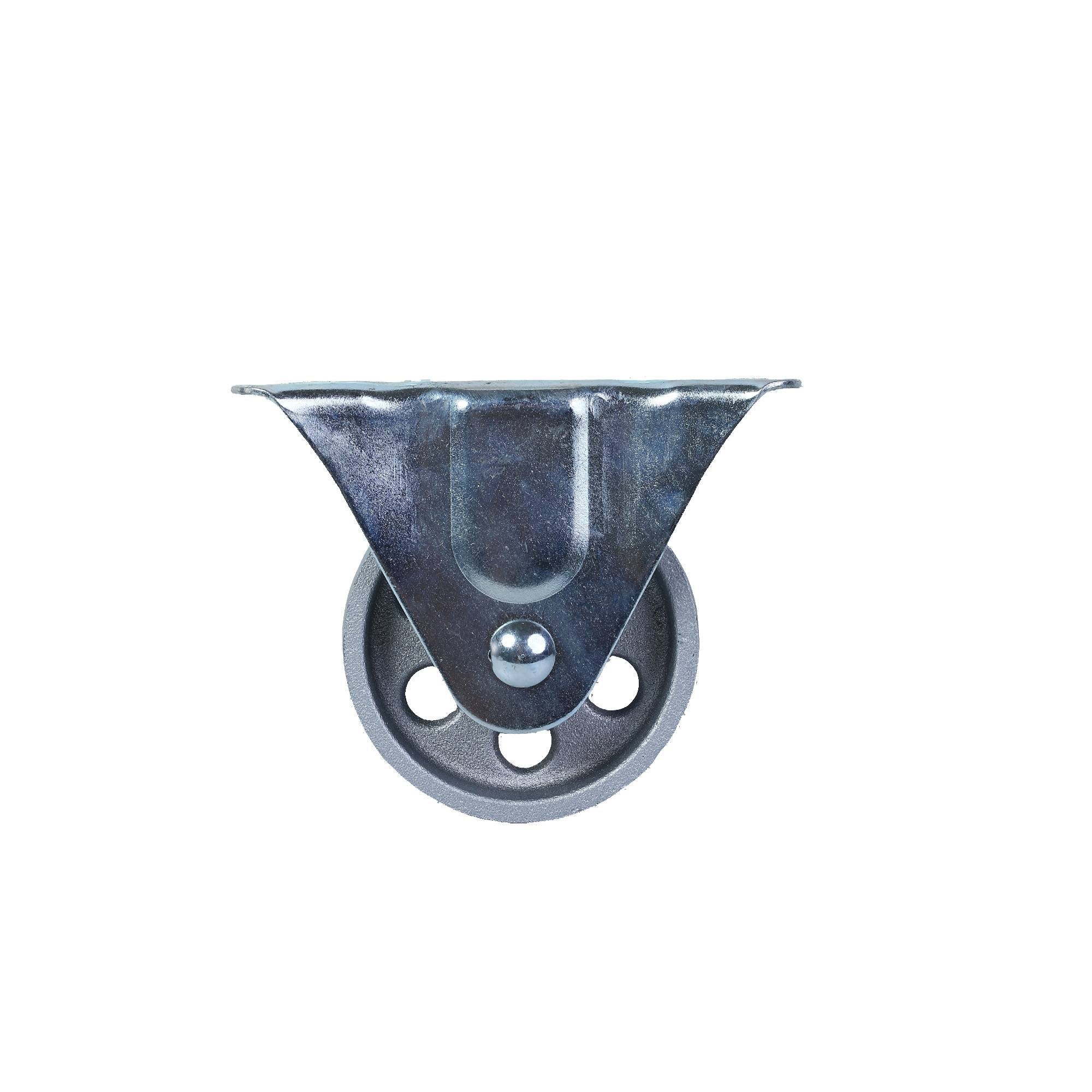

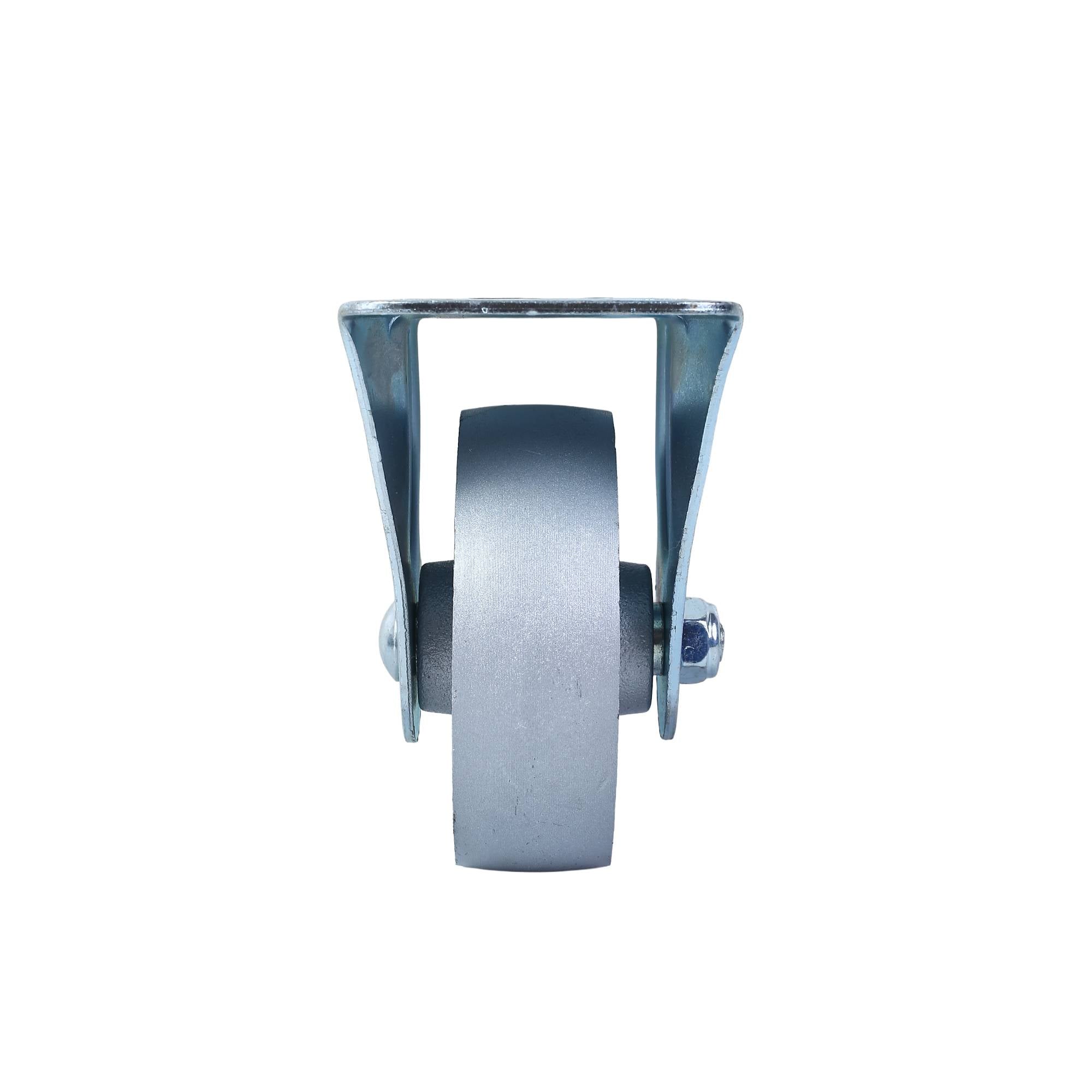

Easyroll 100mm Cast Iron Fixed Plate I2 Series Castor 225kg
Easyroll 100mm Cast Iron Fixed Plate I2 Series Castor 225kg is constructed with a cast iron wheel and wheel core integrated into a steel housing with a plain bearing system. It employs a plate mount fitting with a plate swivel total brake, ensuring controlled movement and secure positioning. Engineered for use by industrial and trade professionals, it offers consistent performance and a load capacity of 225kg for reliable equipment placement.
Couldn't load pickup availability
- Reliable cast iron wheels for prolonged durability and heavy loads
- Robust steel housing with plain bearing ensuring smooth swivel movement
- Total brake attachment enhances manoeuvrability during positional adjustments
- Plate mount design simplifies installation and maintenance
- Cast iron construction supports weight capacity up to 225kg
- Plain bearing mechanism ensures reliable performance over extended use
- Single raceway design provides efficient load distribution and balance
- Constructed in grey and silver for an understated professional appearance
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Grey/Silver |

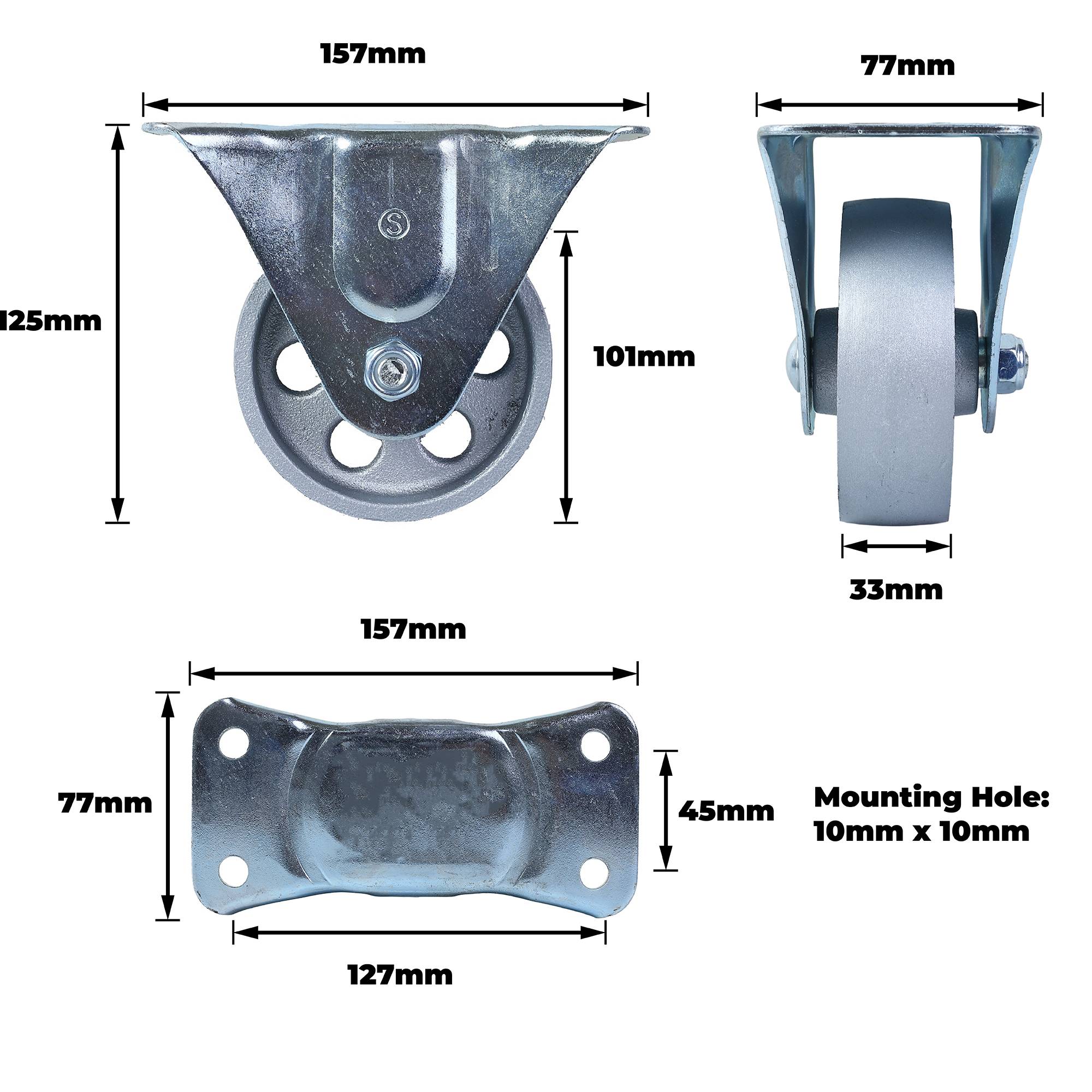

Dimensions
| Product Length (mm) | 157 |
| Product Width (mm) | 77 |
| Product Height (mm) | 125 |
| Wheel Diameter (mm) | 101 |
| Tread Width (mm) | 33 |
| Mounting Hole Dimensions (mm) | 10.3x10.3 |
| Hole Centre Dimensions (LxW) mm | 127x45 |
| Plate Dimensions (LxW) mm | 157x77 |
Weights
| Product Weight (grams) | 1544 |
| Product Weight (kg) | 1.747 |
| Load Capacity (kg) | 225.0 |
