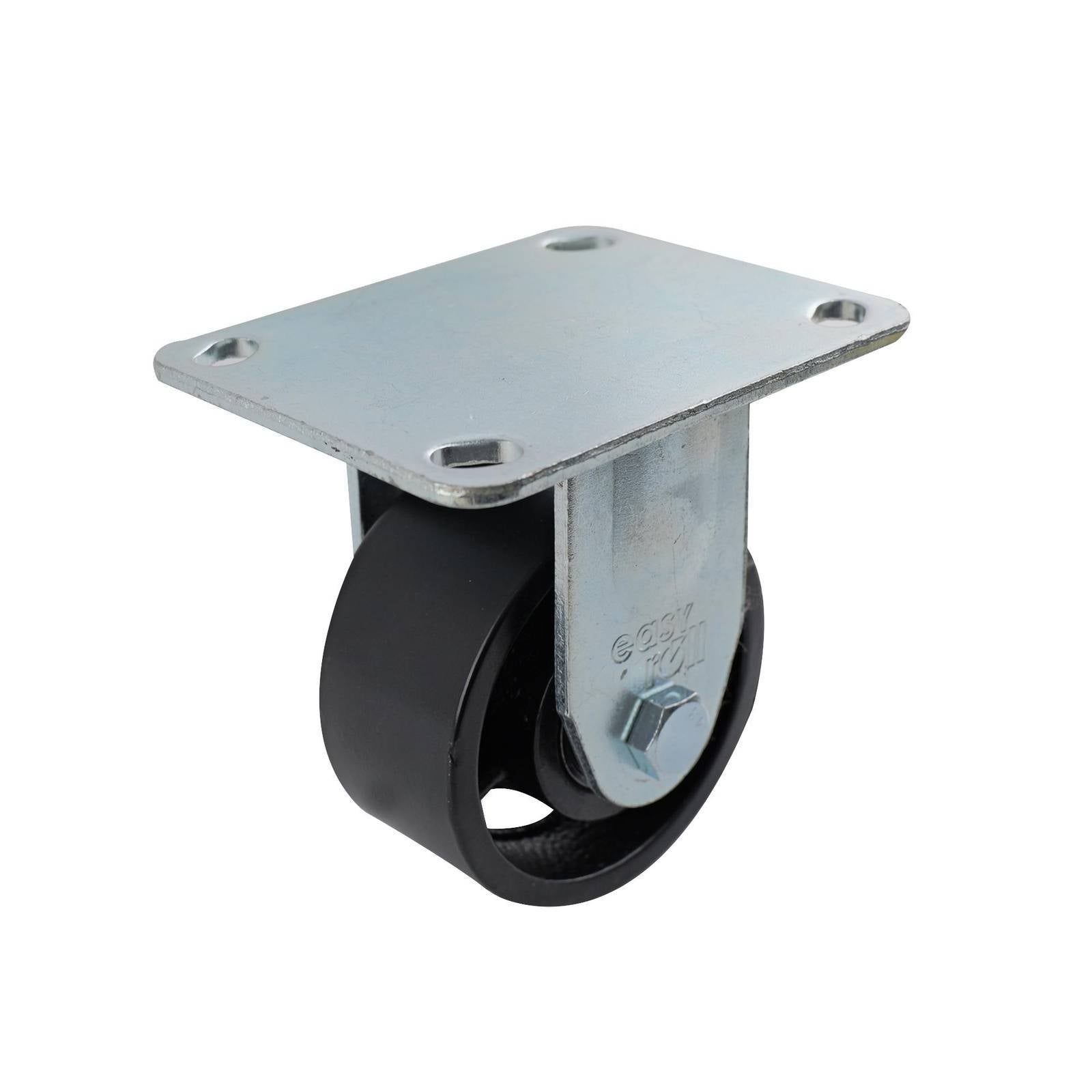

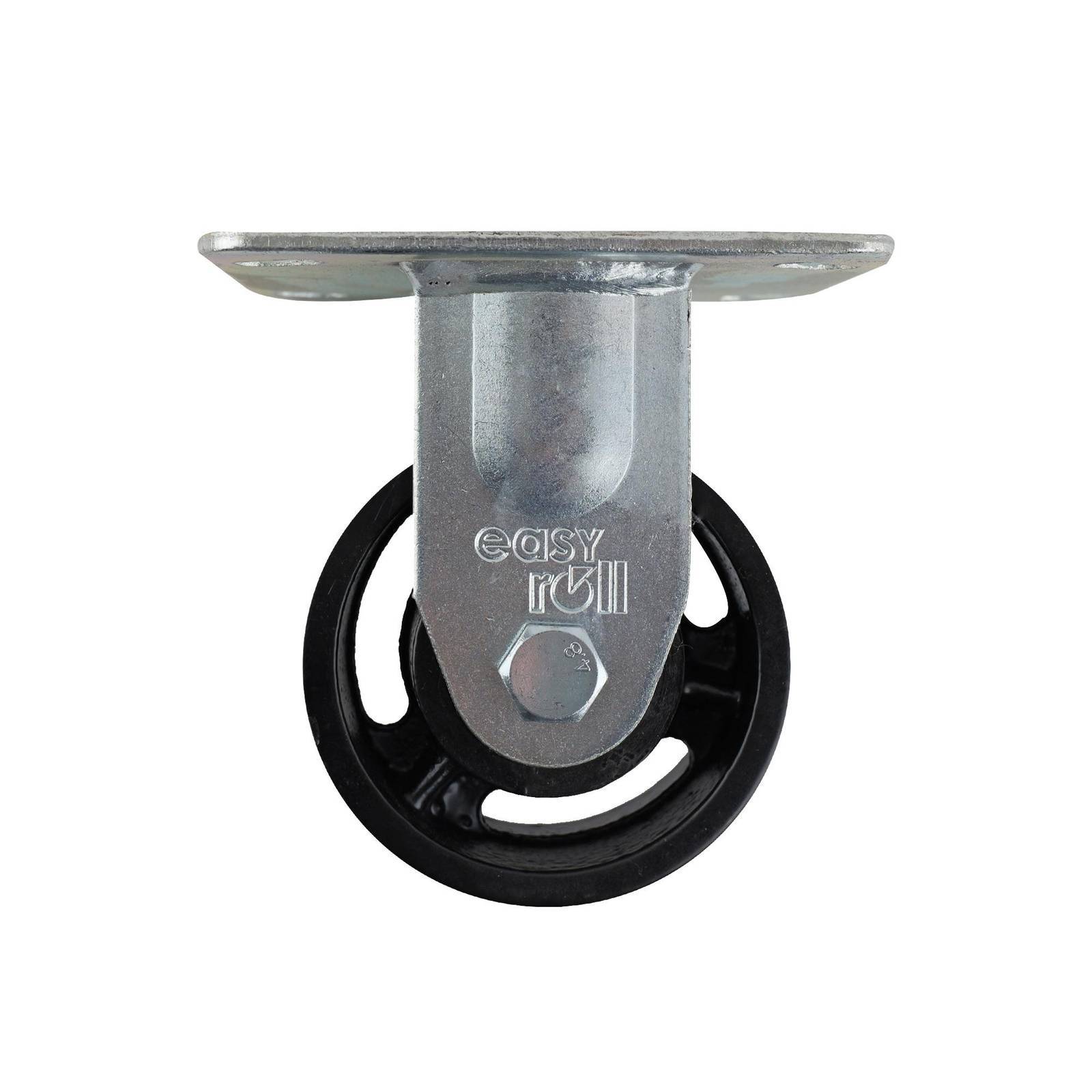

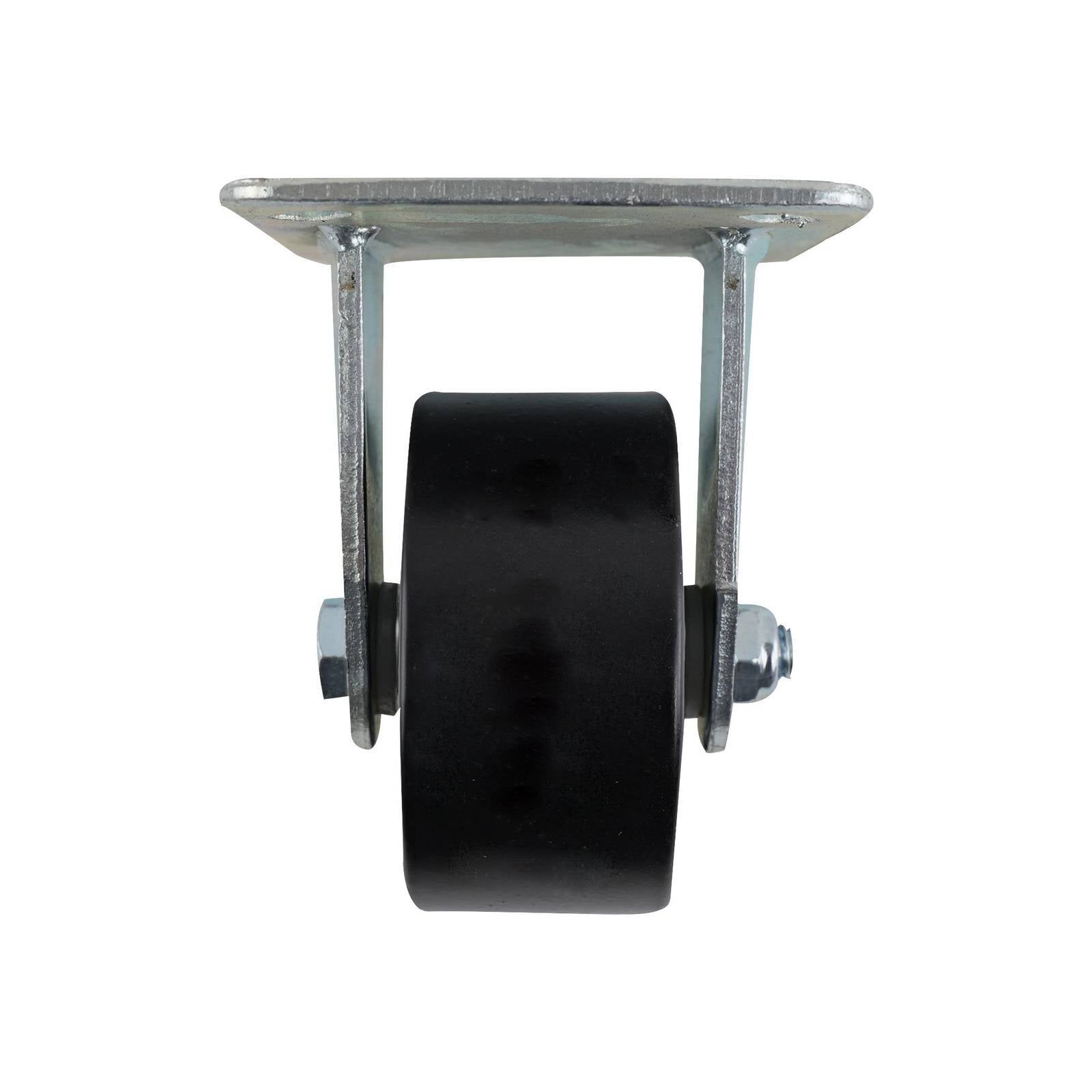

Easyroll 100mm Cast Iron Fixed Plate J3 Series Castor 320kg
Easyroll 100mm Cast Iron Fixed Plate J3 Series Castor 320kg is engineered for practical handling and secure load support. Its robust cast iron wheel and housing, combined with a precise ball bearing mechanism, ensure reliable movement and smooth manoeuvrability. The plate mount with total brake system provides controlled positioning and safe transport. This castor delivers dependable performance and value for trade and industrial professionals seeking a straightforward, durable solution.
Couldn't load pickup availability
- Cast iron wheel core and outer wheel ensures durability
- Steel housing and ball bearing assembly for reliable performance
- Fixed plate fitting offers straightforward installation without complication
- Total brake system provides secure stopping during operation
- Swivel mechanism supports manoeuvrability in tight workspaces
- Suitable for both indoor and outdoor use
- 320kg load capacity supports higher load requirements
- Black and silver finish contributes to sleek visual appeal
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

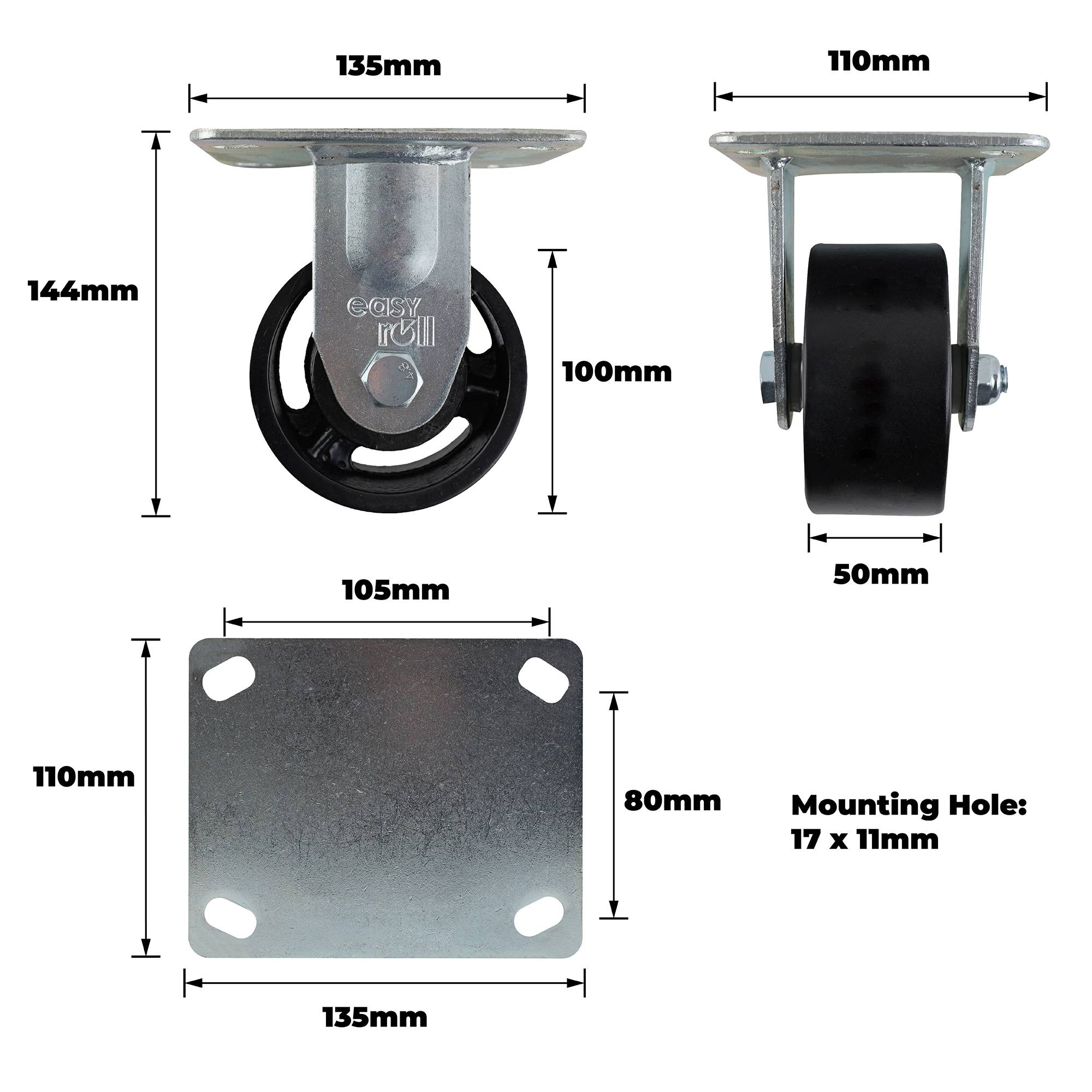

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 110 |
| Product Height (mm) | 144 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2585 |
| Product Weight (kg) | 2.585 |
| Load Capacity (kg) | 320.0 |
