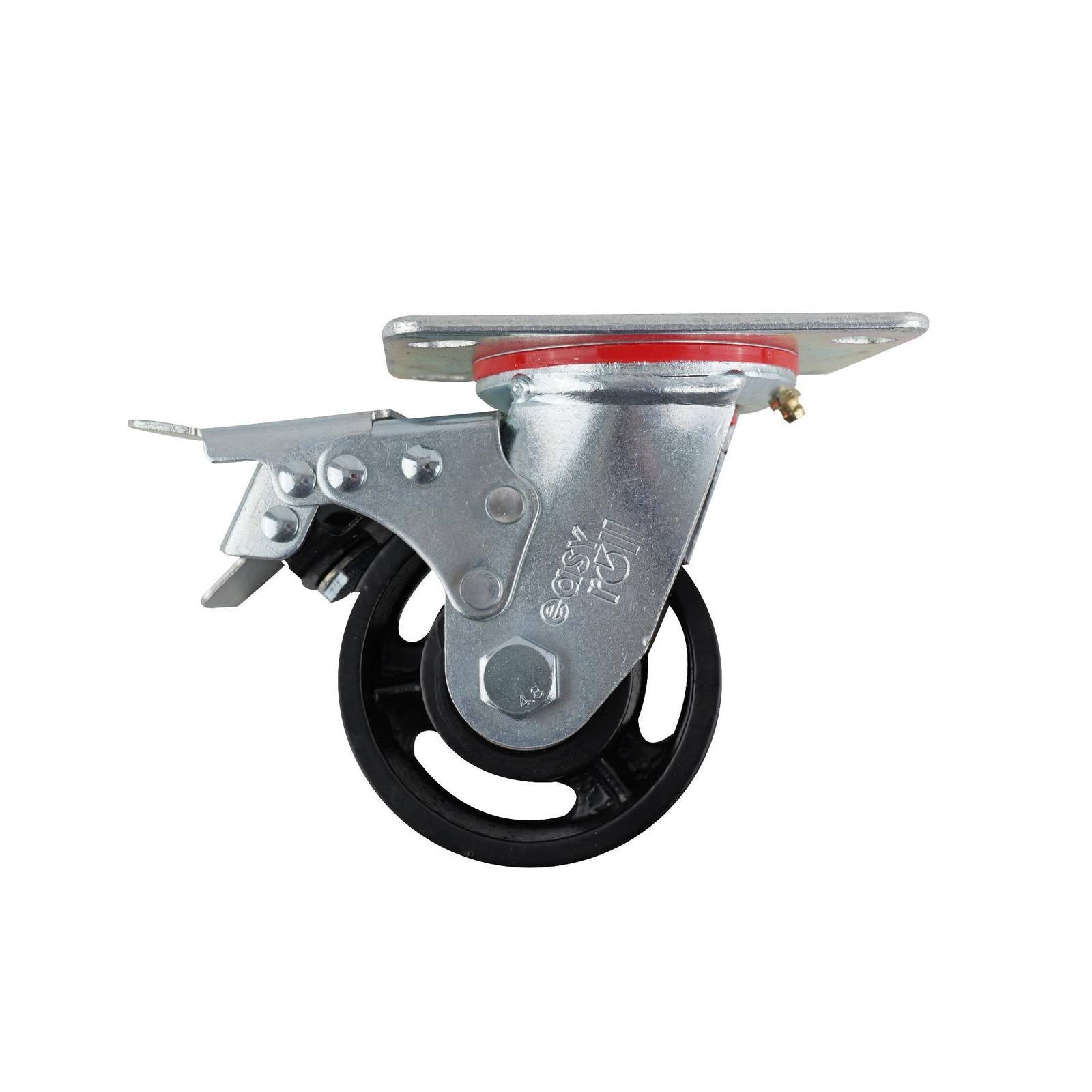

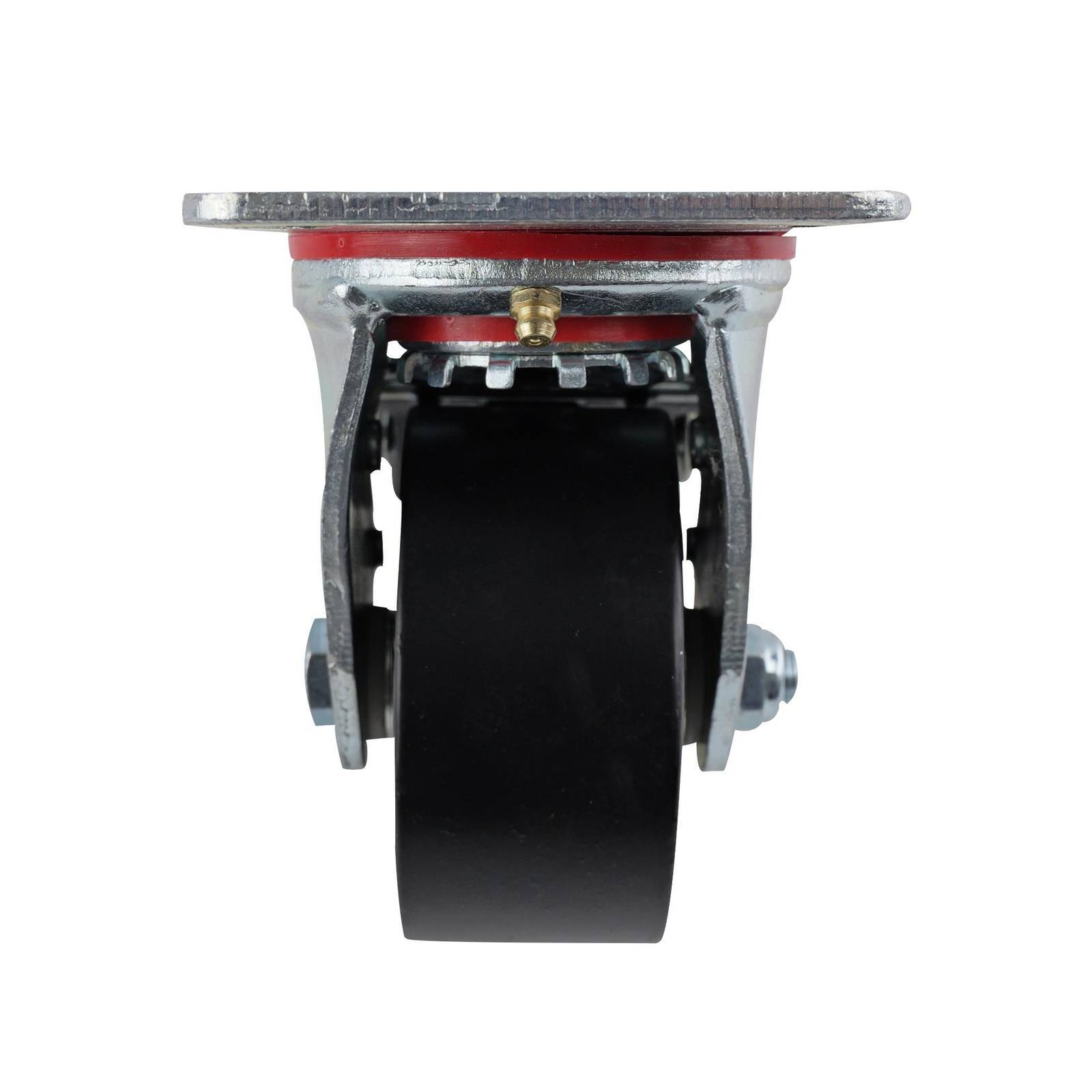

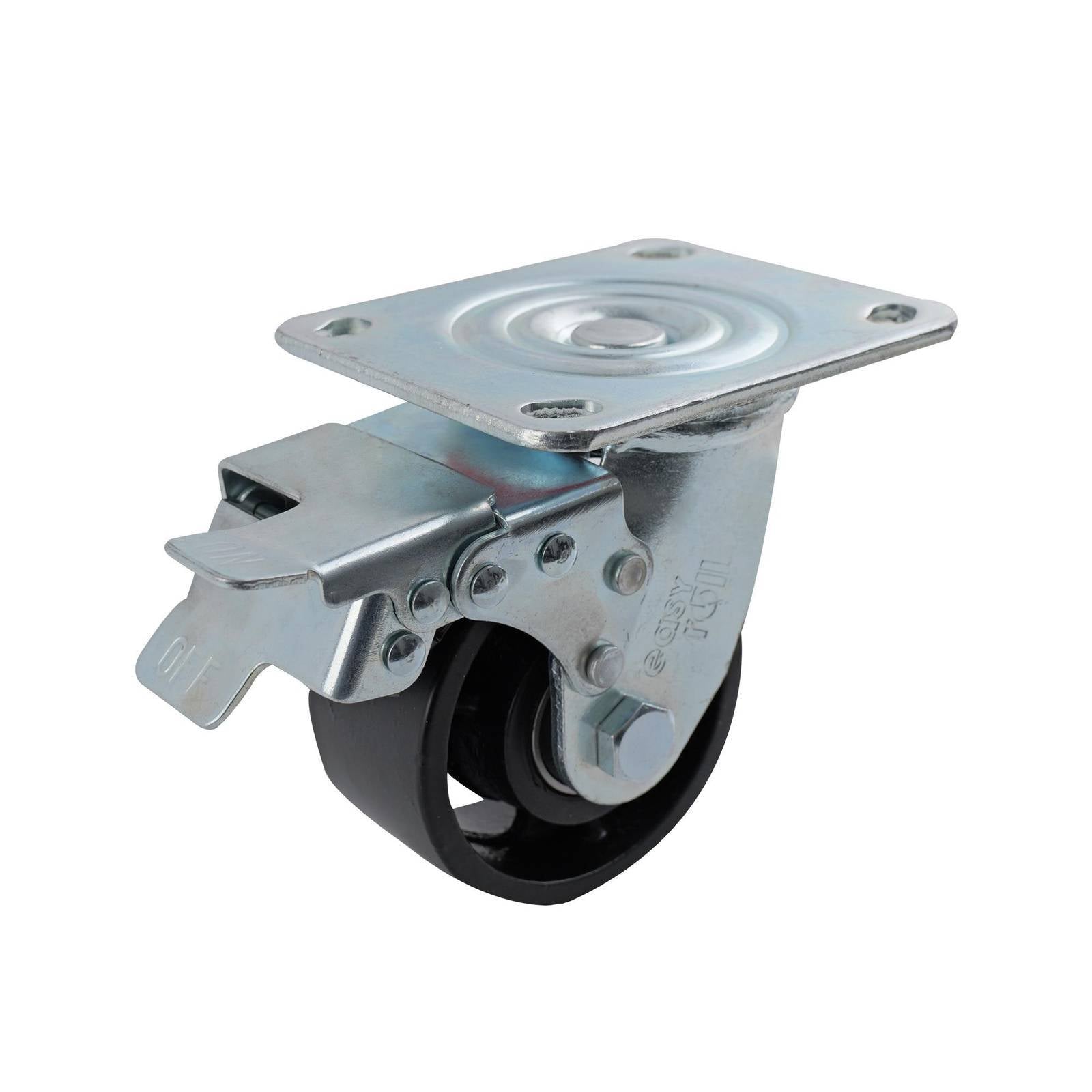

Easyroll 100mm Cast Iron Swivel Plate Brake J3 Series Castor 320kg
Easyroll 100mm Cast Iron Swivel Plate Brake J3 Series Castor 320kg is a precision‐engineered solution featuring a solid cast iron wheel and core, integrated with a ball bearing housed in carbon steel and a plate swivel attachment for secure fitting. It offers dependable manoeuvrability and robust load-bearing support, making it valuable for trade professionals who require reliable movement and straightforward installation in various environments.
Couldn't load pickup availability
- Robust cast iron wheel core for long lasting durability
- Ball bearing mechanism provides smooth, reliable rotation
- Swivel plate attachment enables versatile mounting options
- Steel housing delivers rigid support and improved stability
- Cast iron wheel material offers consistent wear resistance
- Carbon steel bearing boosts rotational performance
- Indoor and outdoor use for flexible installations
- Supports maximum load of 320kg under dynamic conditions
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

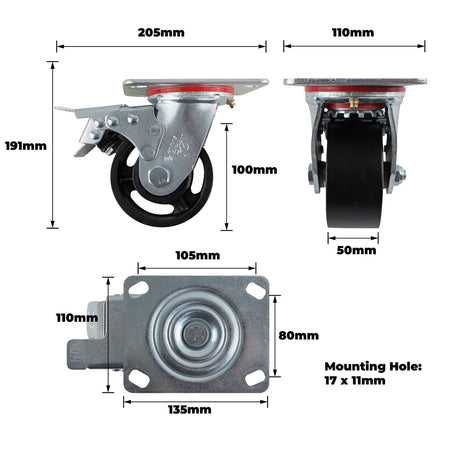

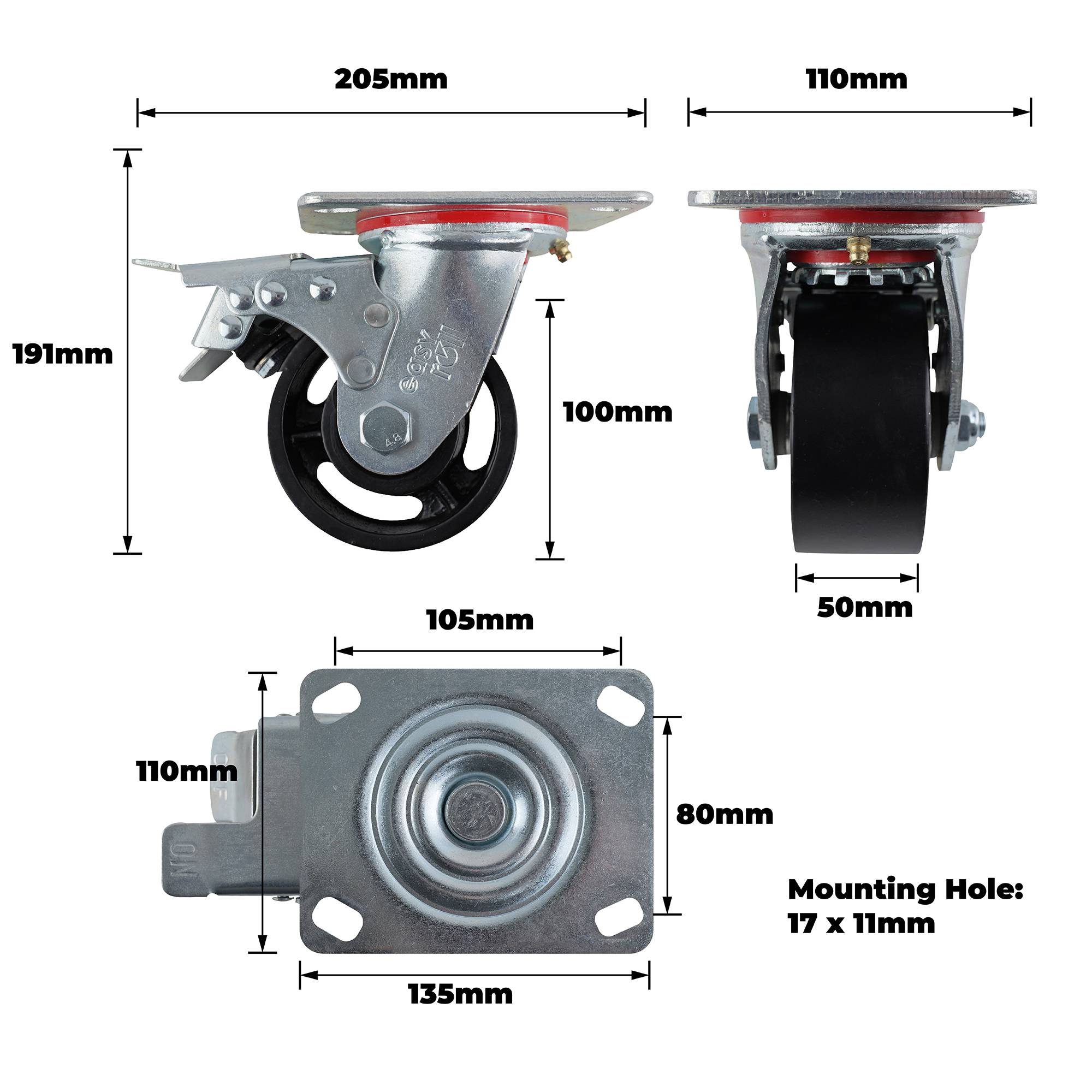

Dimensions
| Product Length (mm) | 205 |
| Product Width (mm) | 110 |
| Product Height (mm) | 191 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 137.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3432 |
| Product Weight (kg) | 3.432 |
| Load Capacity (kg) | 320.0 |
