Easyroll 100mm Grey Rubber Swivel Plate Brake G1 Series Castor 55kg
Easyroll 100mm Grey Rubber Swivel Plate Brake G1 Series Castor 55kg is engineered for trade professionals seeking reliable and precise movement control. The castor features a polypropylene wheel core paired with a thermoplastic rubber wheel, supported by a robust steel housing and bearing. With a plate mount design incorporating a true plate, swivel mechanism and total brake, it provides practical, secure mobility and controlled manoeuvring in indoor applications.
Couldn't load pickup availability
- Steel housing ensures reliable load-bearing performance
- Polypropylene core boosts wheel rigidity
- Thermoplastic rubber wheel supports smooth manoeuvring
- Plain bearing reduces friction during rotation
- Total brake provides complete stop control
- Plate mount design simplifies fitting installation
- Swivel function allows easy directional changes
- Single raceway ensures low resistance during use
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Grey/Black/Silver |

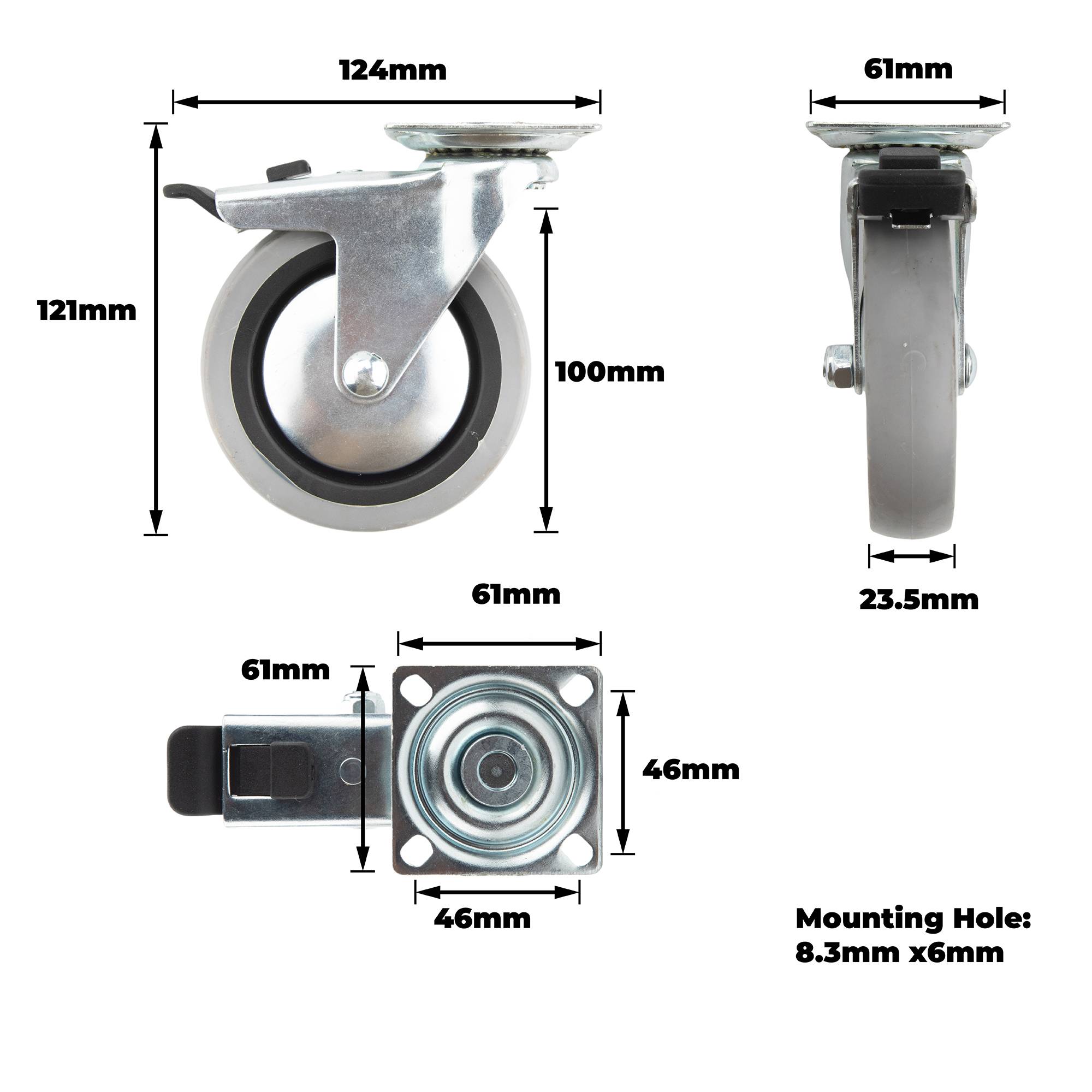

Dimensions
| Product Length (mm) | 124 |
| Product Width (mm) | 61 |
| Product Height (mm) | 121 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 23.5 |
| Swivel Radius (mm) | 93.5 |
| Mounting Hole Dimensions (mm) | 8.3x6 |
| Hole Centre Dimensions (LxW) mm | 46x46 |
| Plate Dimensions (LxW) mm | 61x61 |
Weights
| Product Weight (grams) | 451 |
| Product Weight (kg) | 0.451 |
| Load Capacity (kg) | 55.0 |
