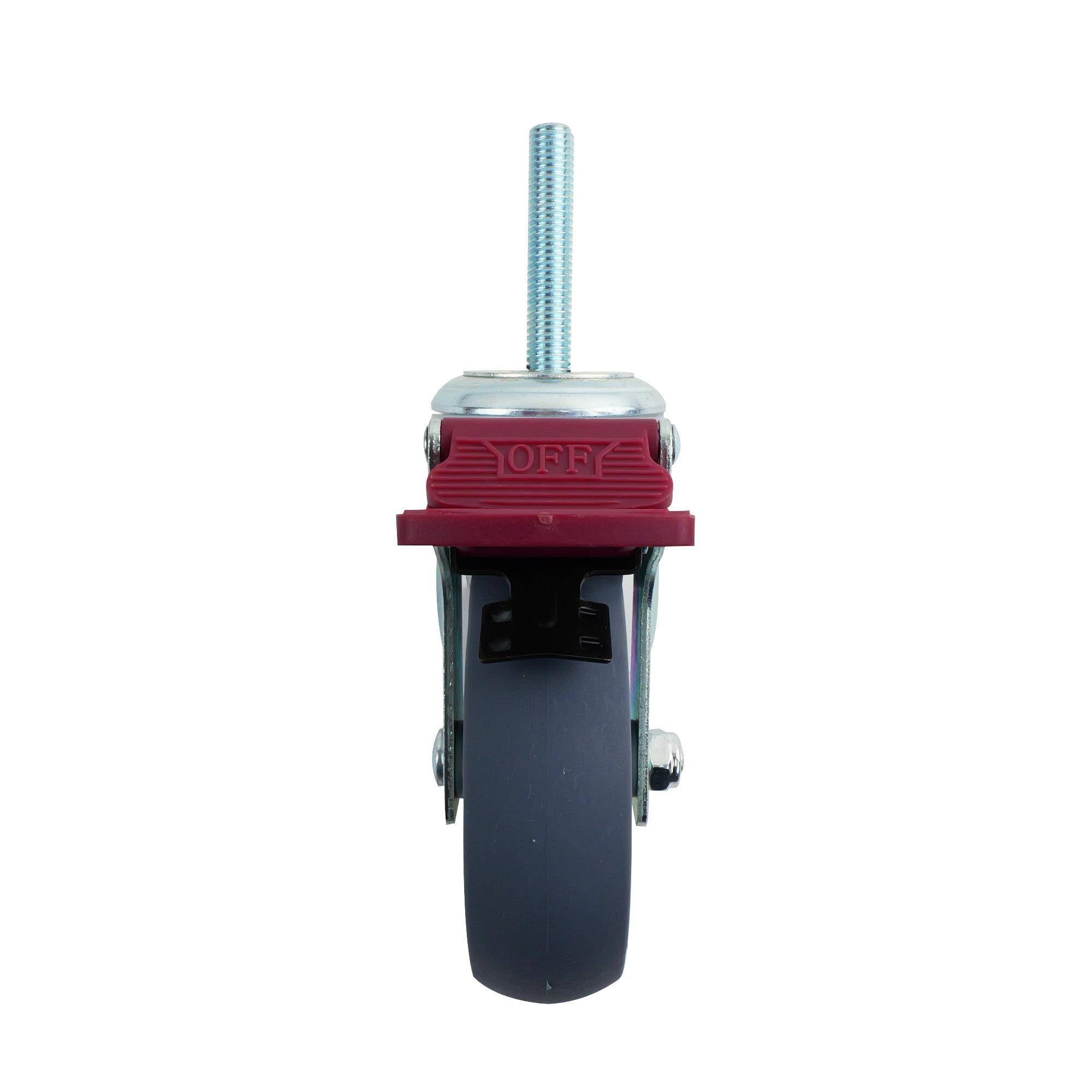

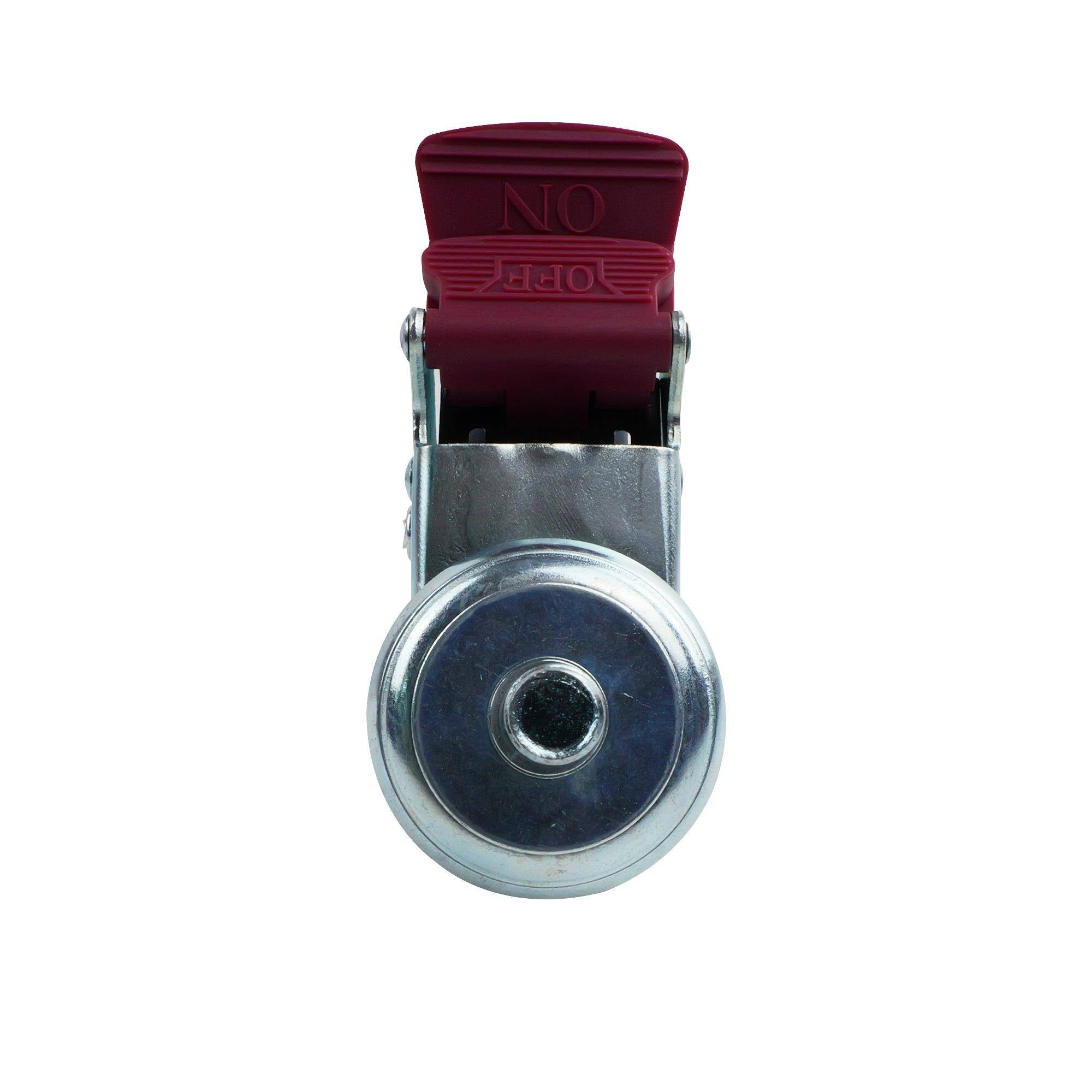

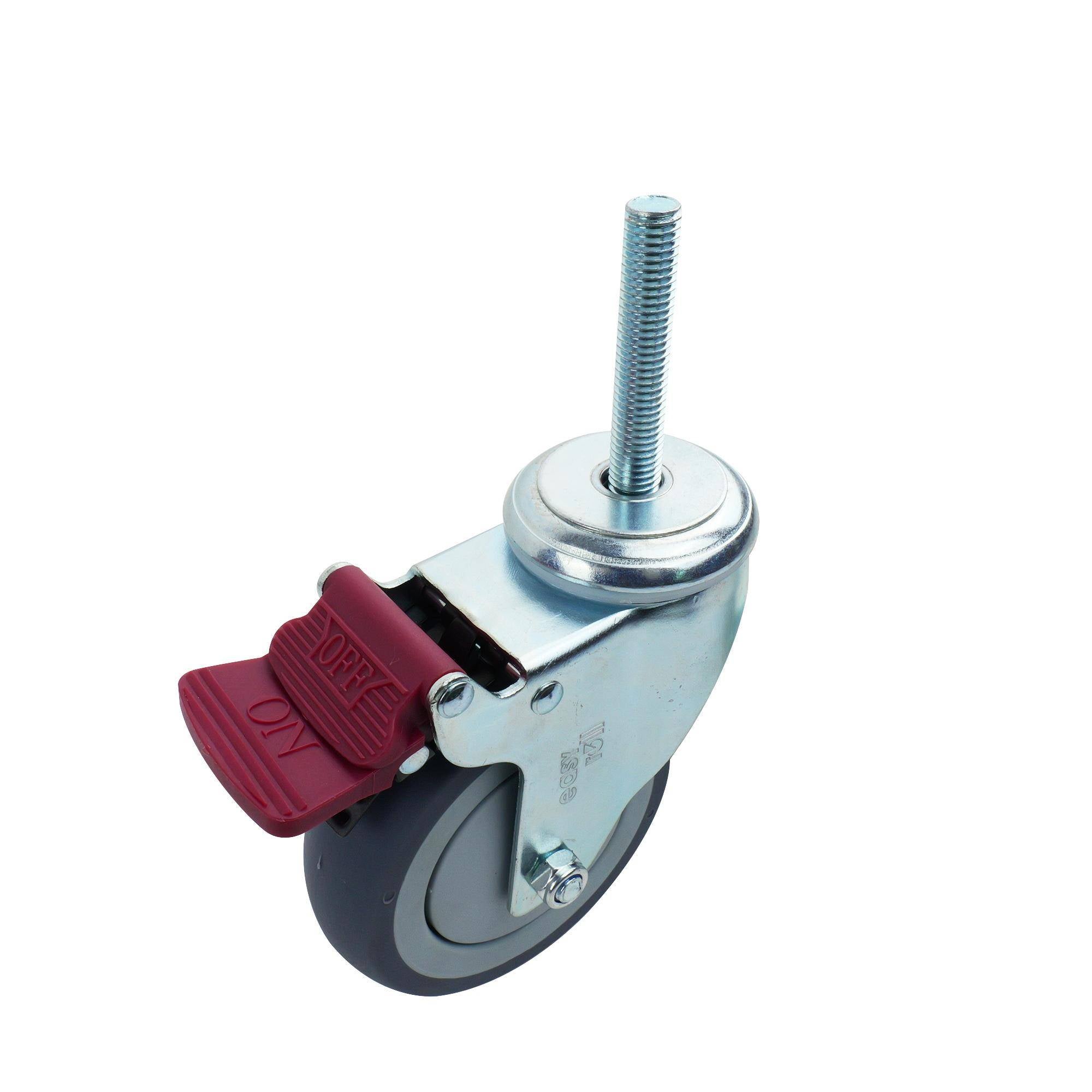

Easyroll 100mm Grey Rubber Swivel Brake G6 Series Castor 120kg
Easyroll 100mm Grey Rubber Swivel Brake G6 Series Castor 120kg is engineered to deliver precise mobility with a polypropylene wheel core and a thermoplastic rubber wheel. Its steel housing and ball bearing assembly provide a robust structure, while the bolt fitting and single raceway design ensure secure installation and controlled movement. The total brake mechanism offers consistent stopping power, supporting the practical requirements of trade professionals in demanding applications.
Couldn't load pickup availability
- Thermoplastic rubber wheel provides wear resistance under heavy loads
- Wheel core manufactured in polypropylene for structural integrity
- Steel housing delivers robust support and durability
- Bearing steel and ball bearings ensure smooth swivel rotation
- Total brake provides confident stopping control
- Bolt hole fitting allows secure installation in varying applications
- Constructed with precision to support a 120kg load
- Available in grey, silver, and red for versatility
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | No |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Fitting Type | Bolt Hole |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Bearing Steel |
| Product Colour | Grey/Silver/Red |

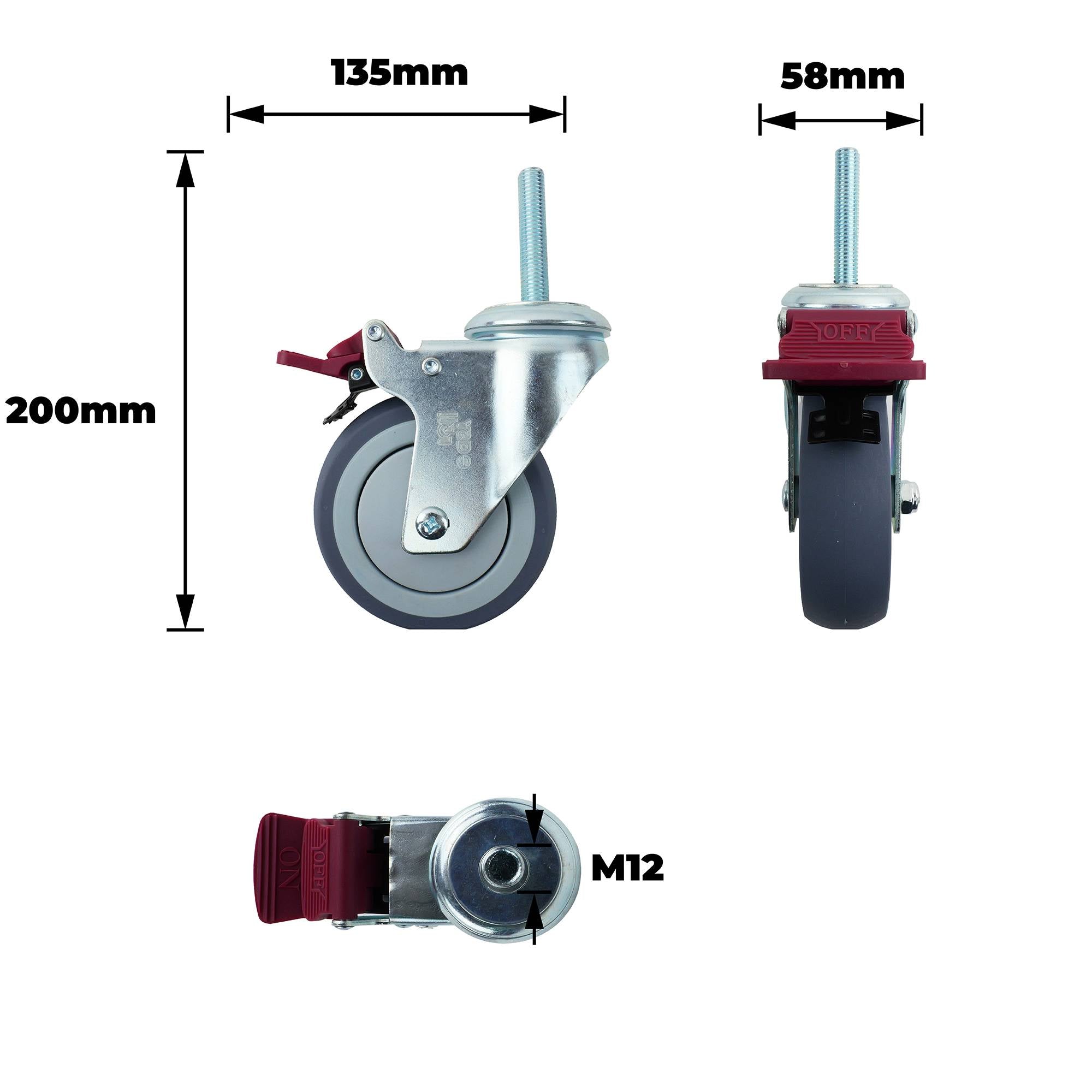

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 58 |
| Product Height (mm) | 200 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 28 |
| Finish Height (mm) | 135 |
| Bolt Thread Length (mm) | 75 |
| Bolt Thread Width (mm) | 12 |
| Mounting Size M | M12 |
Weights
| Product Weight (grams) | 763 |
| Product Weight (kg) | 0.763 |
| Load Capacity (kg) | 120.0 |
