Easyroll 100mm Grey Rubber Fixed Plate I4 Series Castor 100kg
Easyroll 100mm Grey Rubber Fixed Plate I4 Series Castor 100kg is engineered to provide efficient load handling with a robust design and precise movement. It incorporates a steel housing with a thermoplastic rubber wheel and carbon steel ball bearings for reliable operation. A total brake system and bolt hole swivel attachment ensure secure control, while the plate mount fitting simplifies installation. Its practical configuration offers dependable performance for trade professionals in various applications.
Couldn't load pickup availability
- Rigid steel housing with integrated ball bearing
- Durable polypropylene wheel core provides extended performance
- Thermoplastic rubber wheel delivers smooth manoeuvring
- Total brake design ensures immediate motion control
- Bolt hole swivel attachment supports secure castor mounting
- Plate mount fitting enables straightforward installation
- Engineered for use both indoors and outdoors
- Refined grey silver white finish offers distinctive appearance
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Bolt Hole Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Grey/Silver/White |

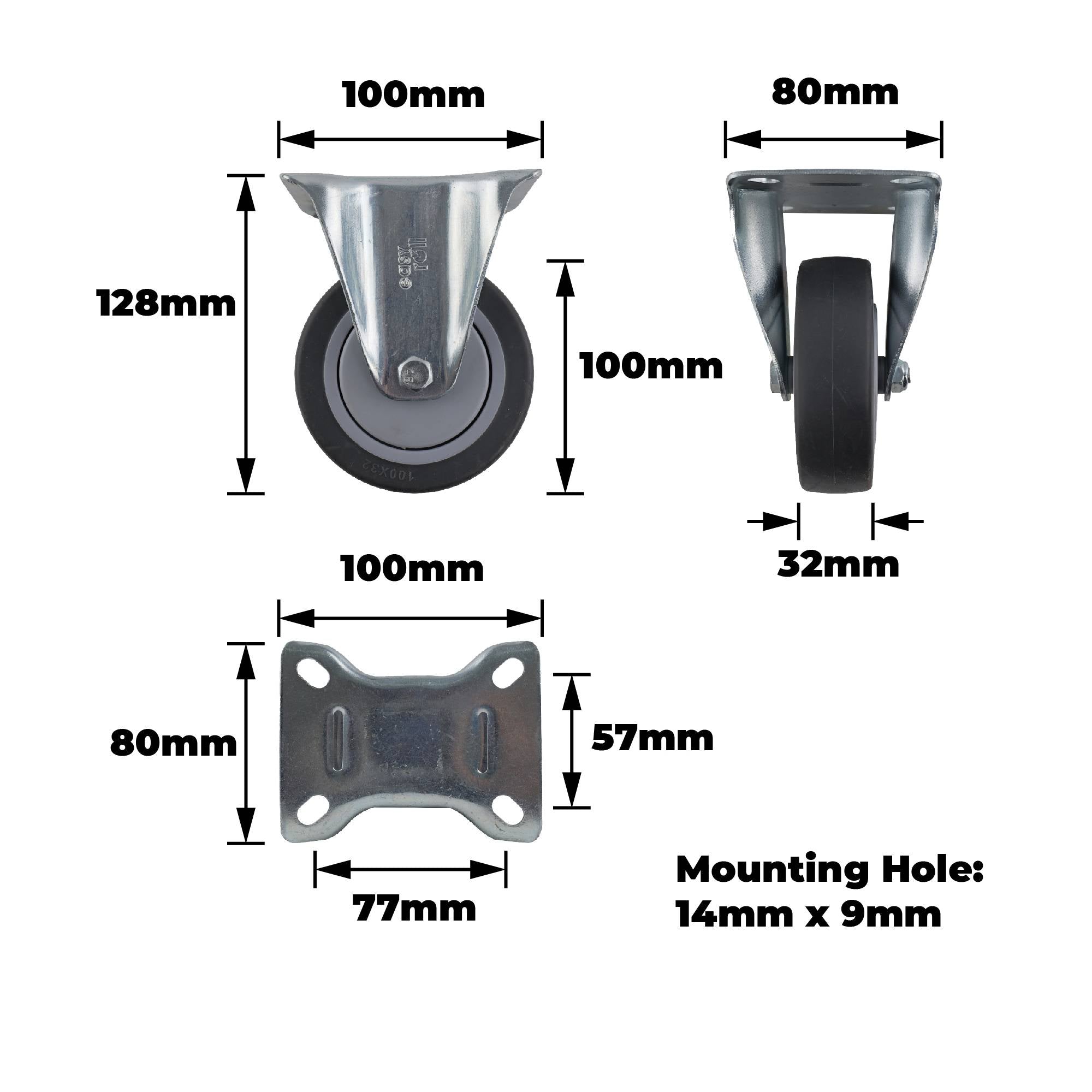

Dimensions
| Product Length (mm) | 100 |
| Product Width (mm) | 80 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 32 |
| Mounting Hole Dimensions (mm) | 14x9 |
| Hole Centre Dimensions (LxW) mm | 77x57 |
| Plate Dimensions (LxW) mm | 100x80 |
Weights
| Product Weight (grams) | 535 |
| Product Weight (kg) | 0.535 |
| Load Capacity (kg) | 100.0 |
