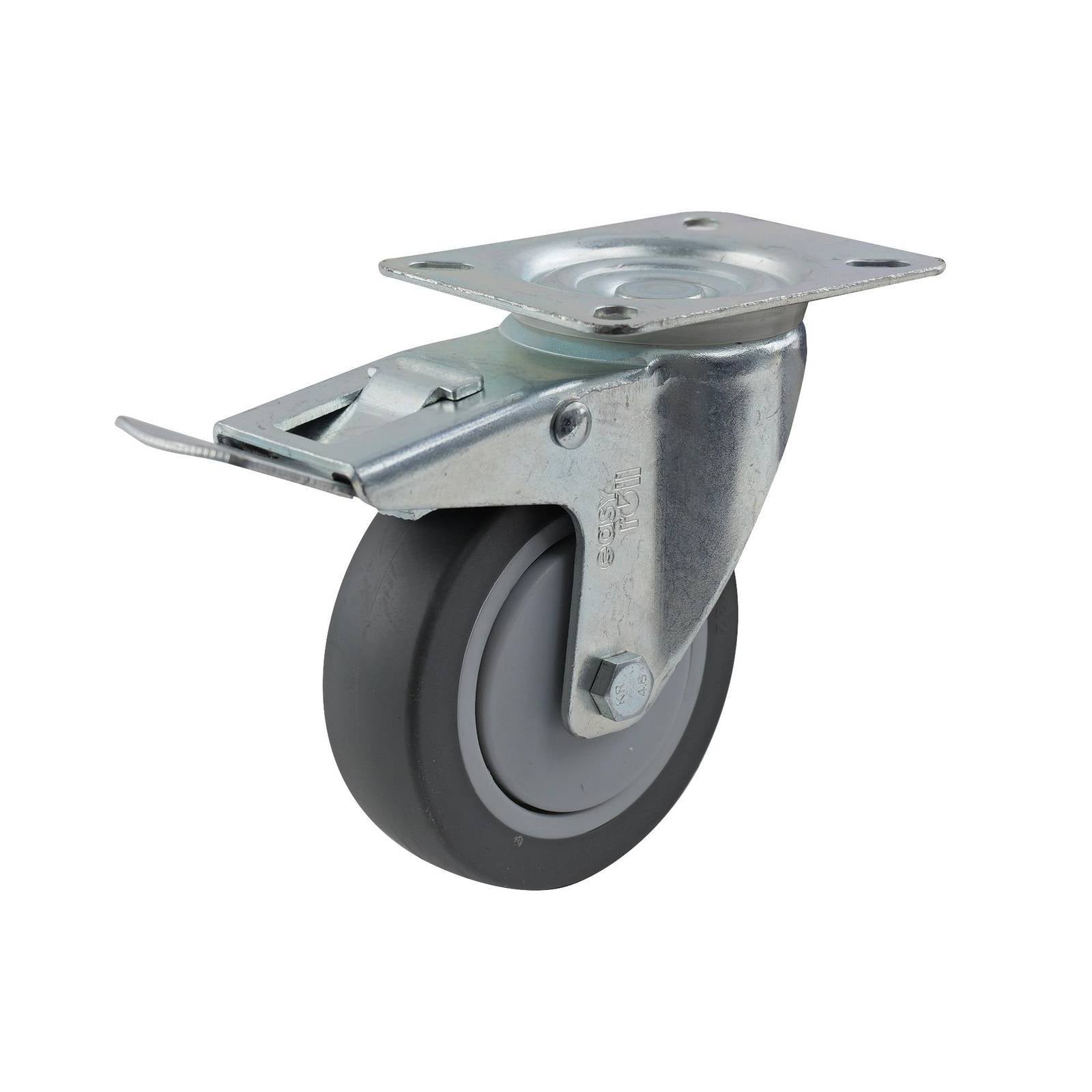

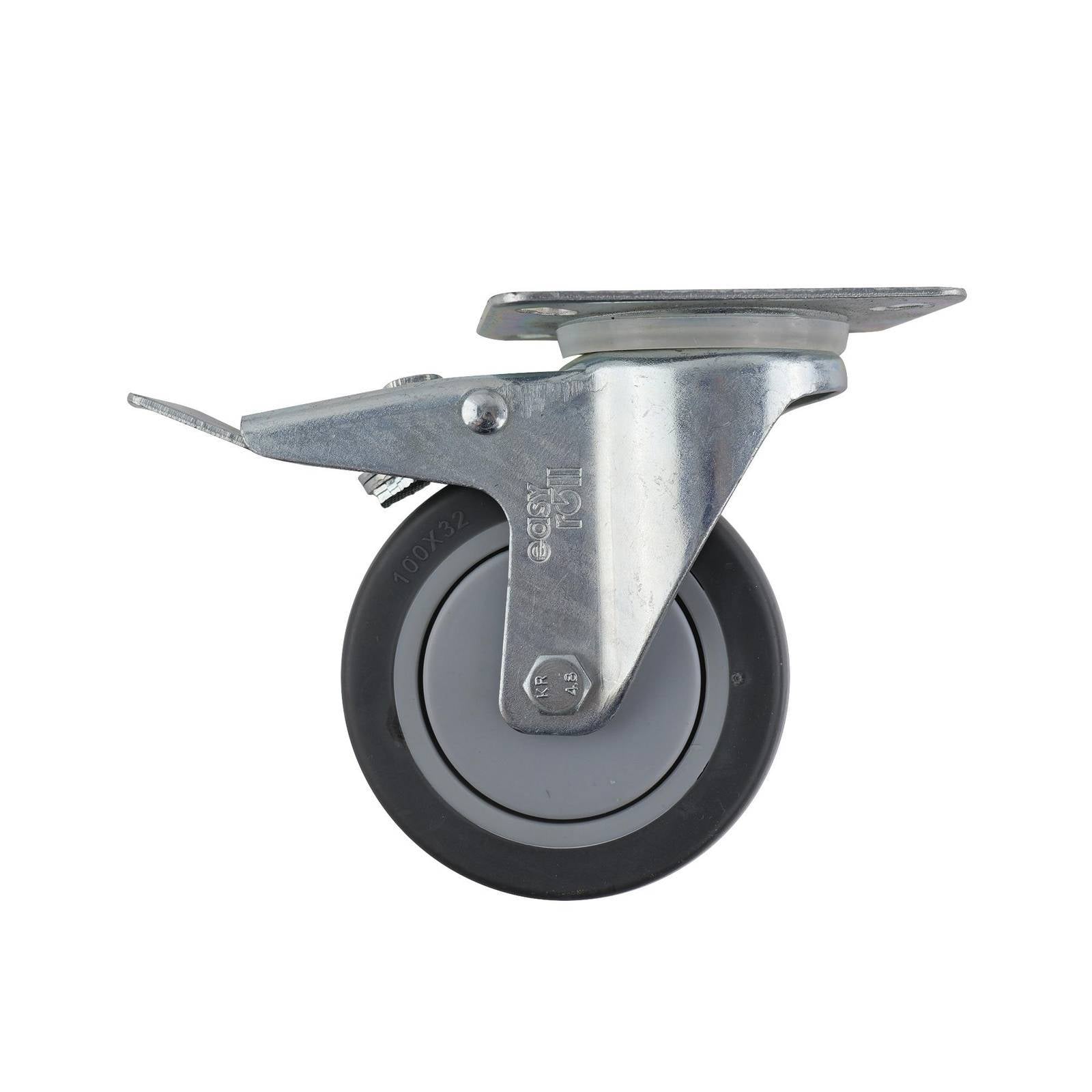

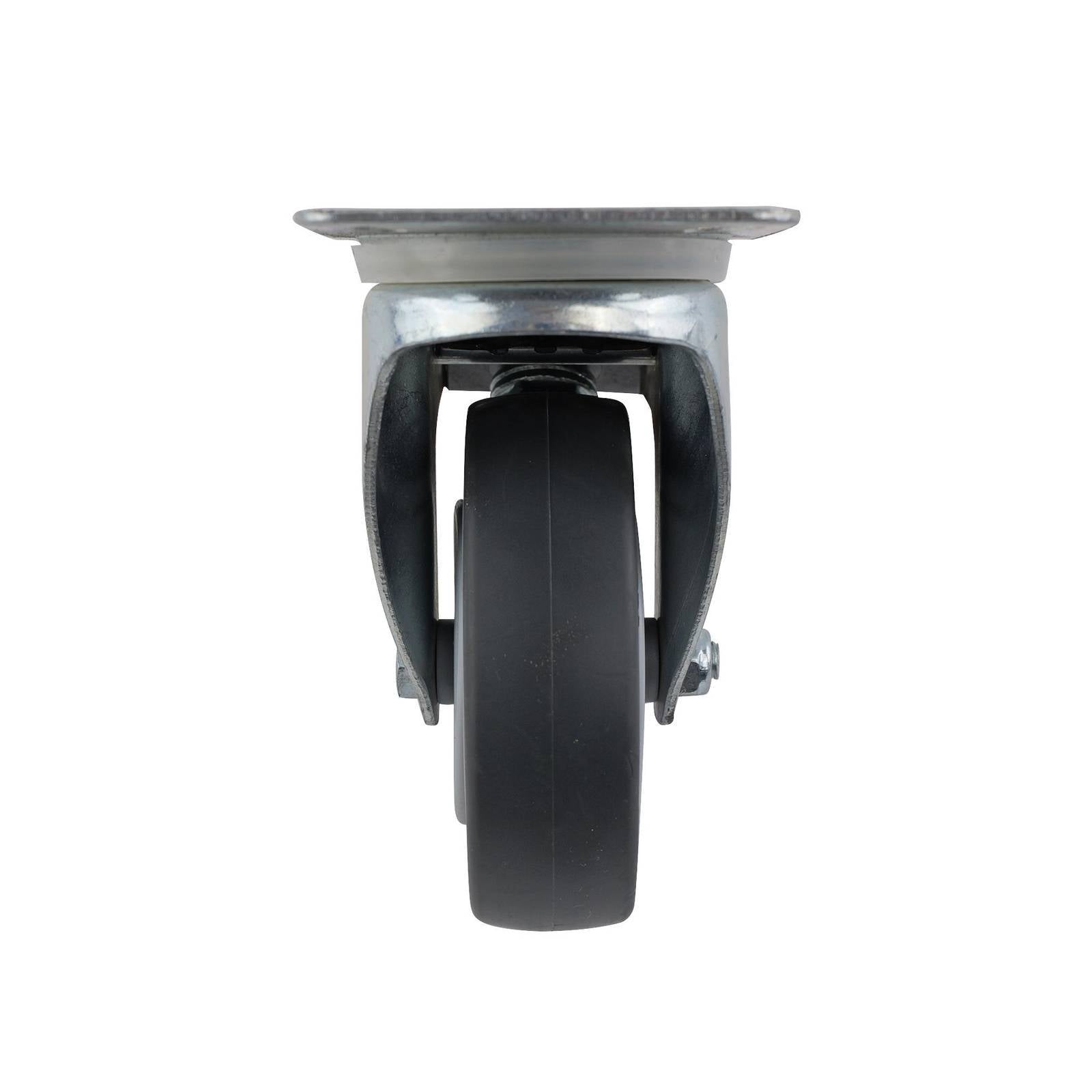

Easyroll 100mm Grey Rubber Swivel Plate Brake I4 Series Castor 100kg
Easyroll 100mm Grey Rubber Swivel Plate Brake I4 Series Castor 100kg is a castor engineered with a 100mm diameter thermoplastic rubber wheel, a polypropylene wheel core, and a robust steel housing featuring carbon steel ball bearings. It integrates a bolt hole swivel mechanism and a plate mount fitting, offering secure and smooth rotation. This castor provides effective mobility and dependable performance for trade professionals seeking reliable, low-maintenance movement solutions.
Couldn't load pickup availability
- Robust steel housing delivers enduring performance
- Polypropylene wheel core enhances stability during frequent use
- Thermoplastic rubber wheels reduce noise and improve traction
- Ball bearing design ensures smooth caster rotation
- Single raceway maintains reliable operation
- Bolt hole swivel attachment offers versatile mounting options
- Works indoors and outdoors
- I4 Series design delivers strong performance
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Bolt Hole Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Grey/Silver/White |

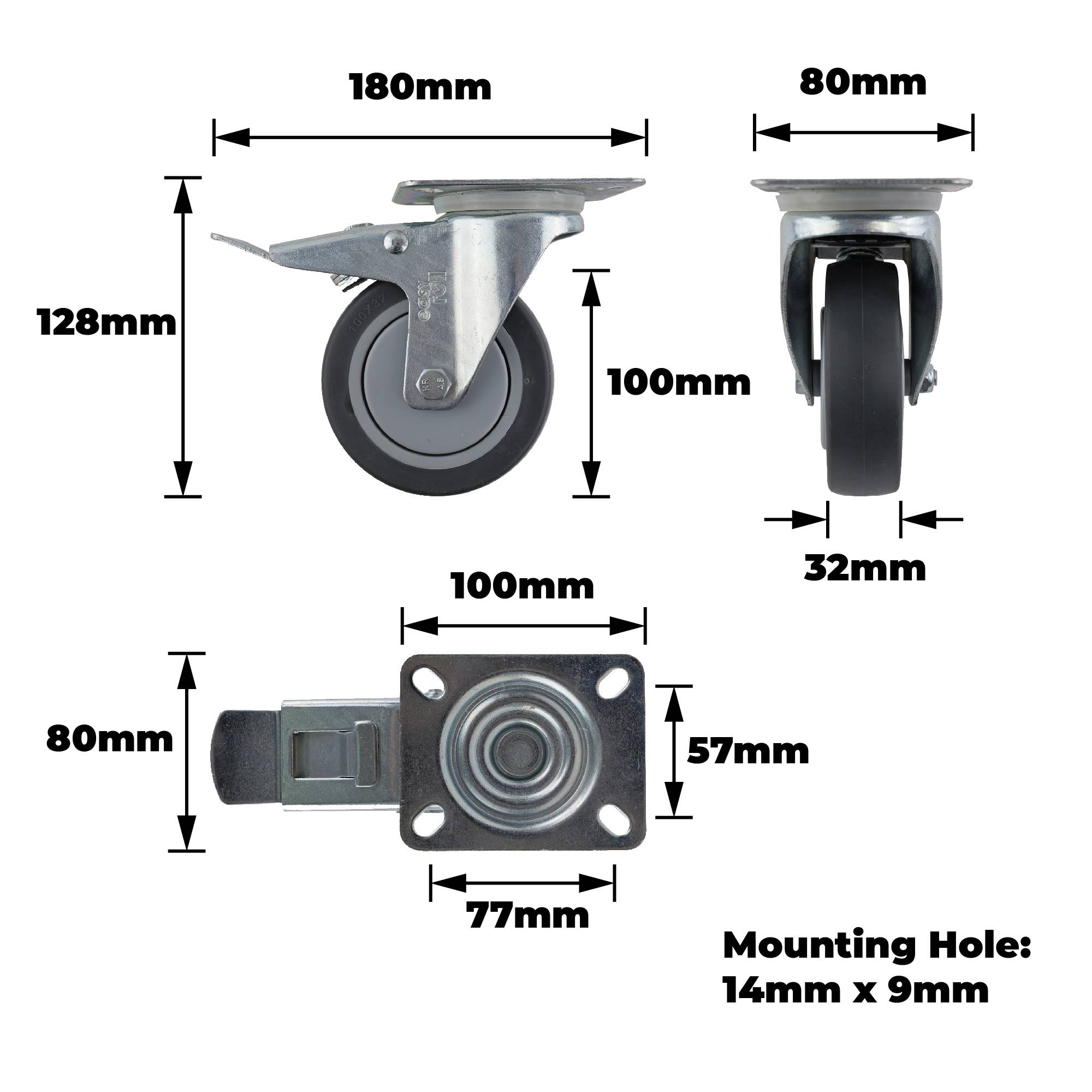

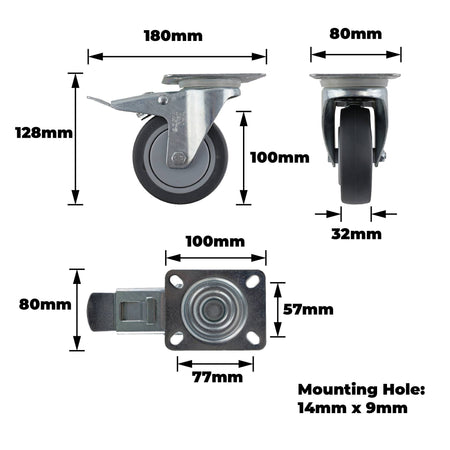

Dimensions
| Product Length (mm) | 180 |
| Product Width (mm) | 80 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 32 |
| Swivel Radius (mm) | 130 |
| Mounting Hole Dimensions (mm) | 14x9 |
| Hole Centre Dimensions (LxW) mm | 77x57 |
| Plate Dimensions (LxW) mm | 100x80 |
Weights
| Product Weight (grams) | 835 |
| Product Weight (kg) | 0.835 |
| Load Capacity (kg) | 100.0 |
