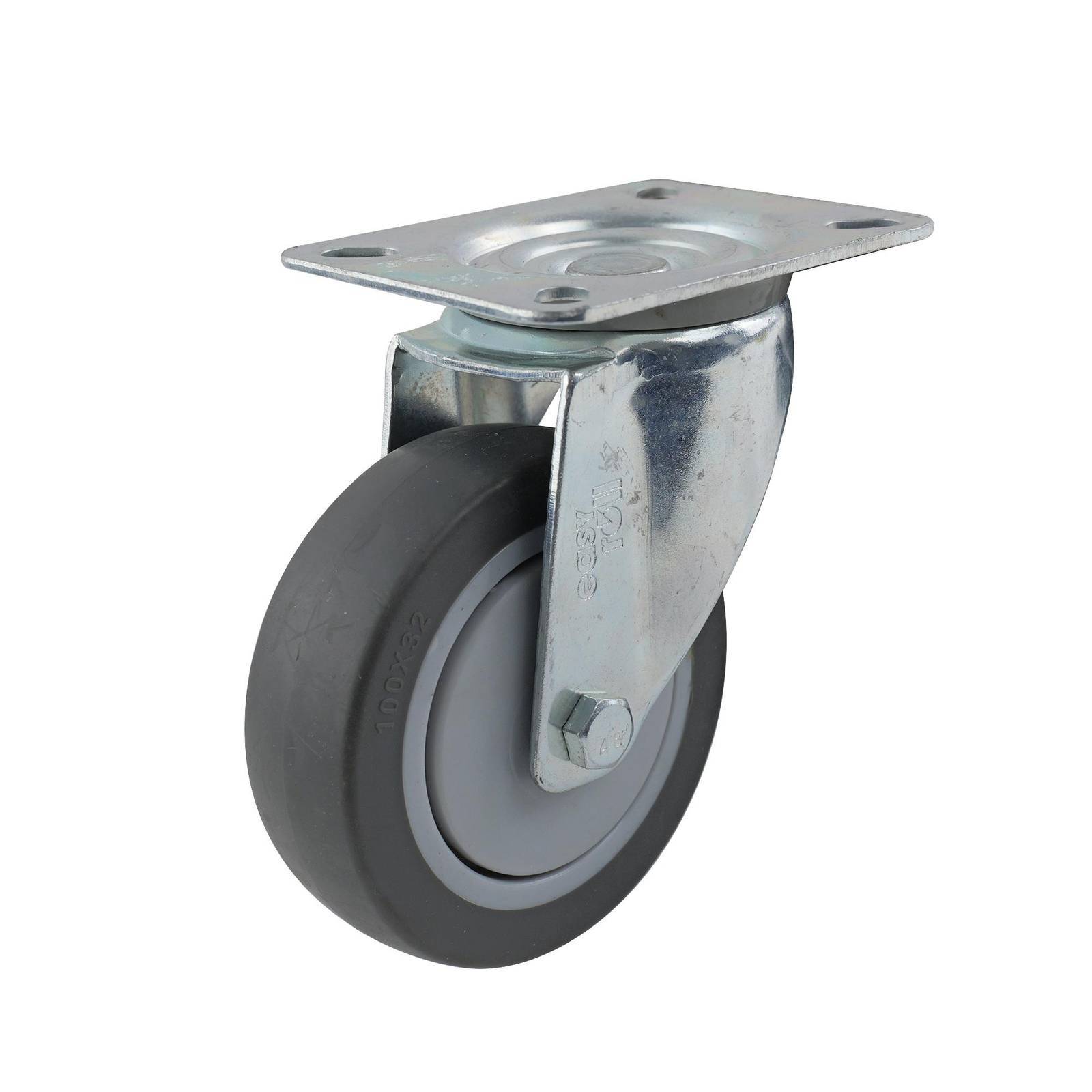

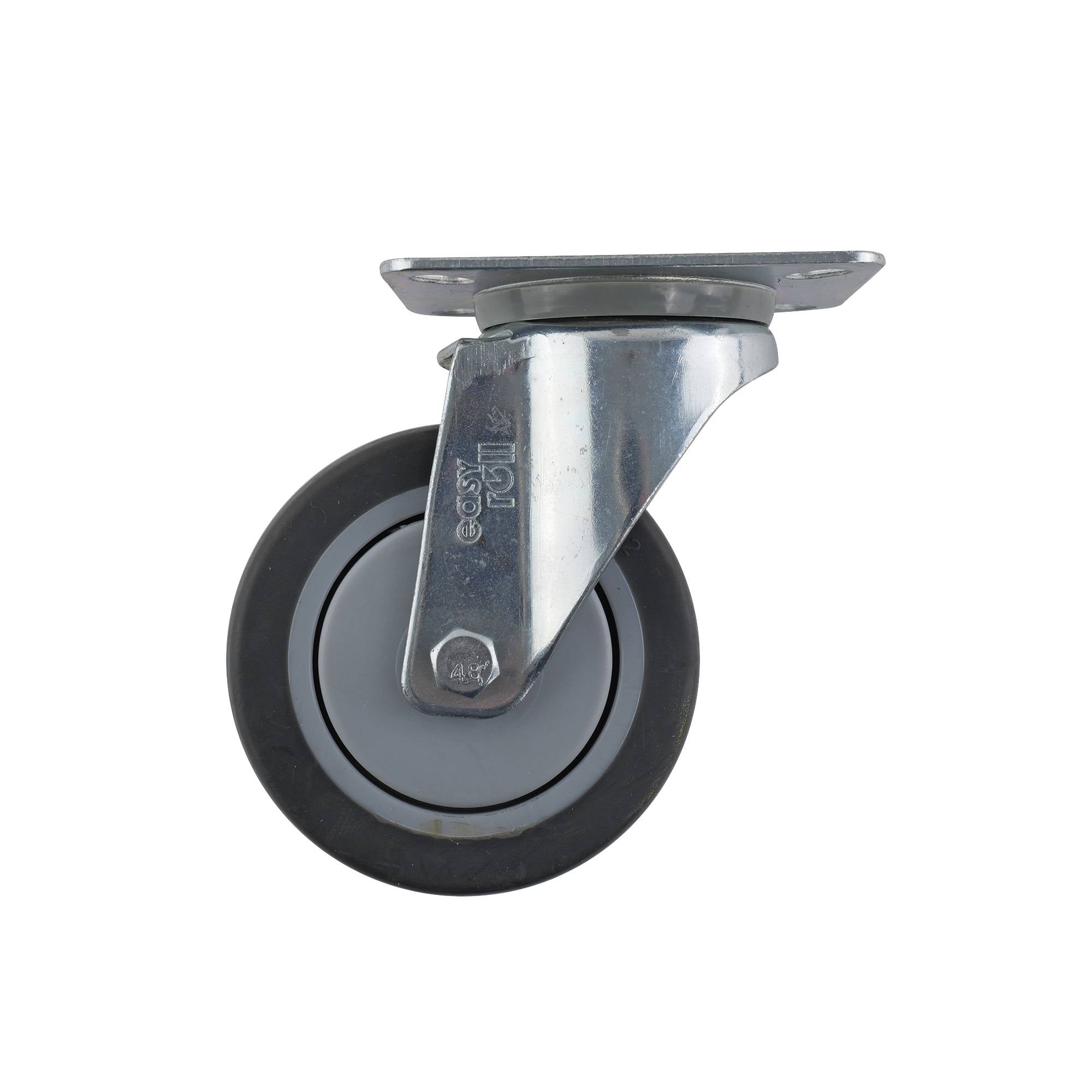

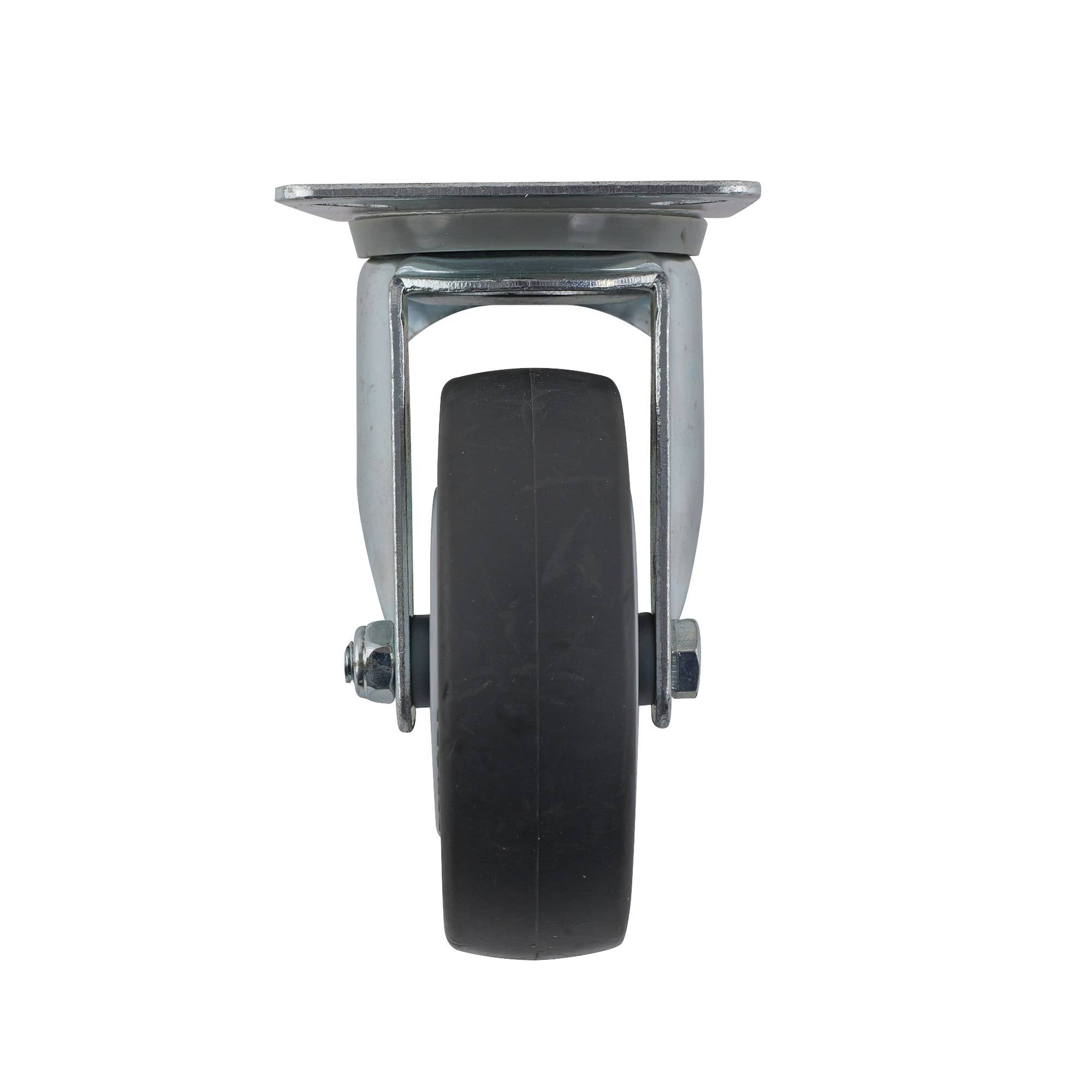

Easyroll 100mm Grey Rubber Swivel Plate I4 Series Castor 100kg
Easyroll 100mm Grey Rubber Swivel Plate I4 Series Castor 100kg is constructed with a polypropylene wheel core and a thermoplastic rubber wheel that offer a durable and low-noise performance. The steel housing and carbon steel ball bearings enable smooth rotation and consistent movement. The bolt hole swivel design and plate mount ensure secure installation while delivering precise manoeuvring on a wide range of surfaces for professionals requiring dependable equipment mobility.
Couldn't load pickup availability
- Steel housing ensures robust construction for prolonged service life
- Thermoplastic rubber wheels reduce floor noise during operation
- Polypropylene wheel core offers reliable strength and impact resistance
- Ball bearings enable smooth movement and efficient steering
- Bolt hole swivel attachment simplifies plate mounting for easy fit
- Suitable for indoor and outdoor applications
- Tested to support a 100kg load for consistent performance
- Single raceway design maintains steady swivel movement efficiently
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Bolt Hole Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Grey/Silver/White |

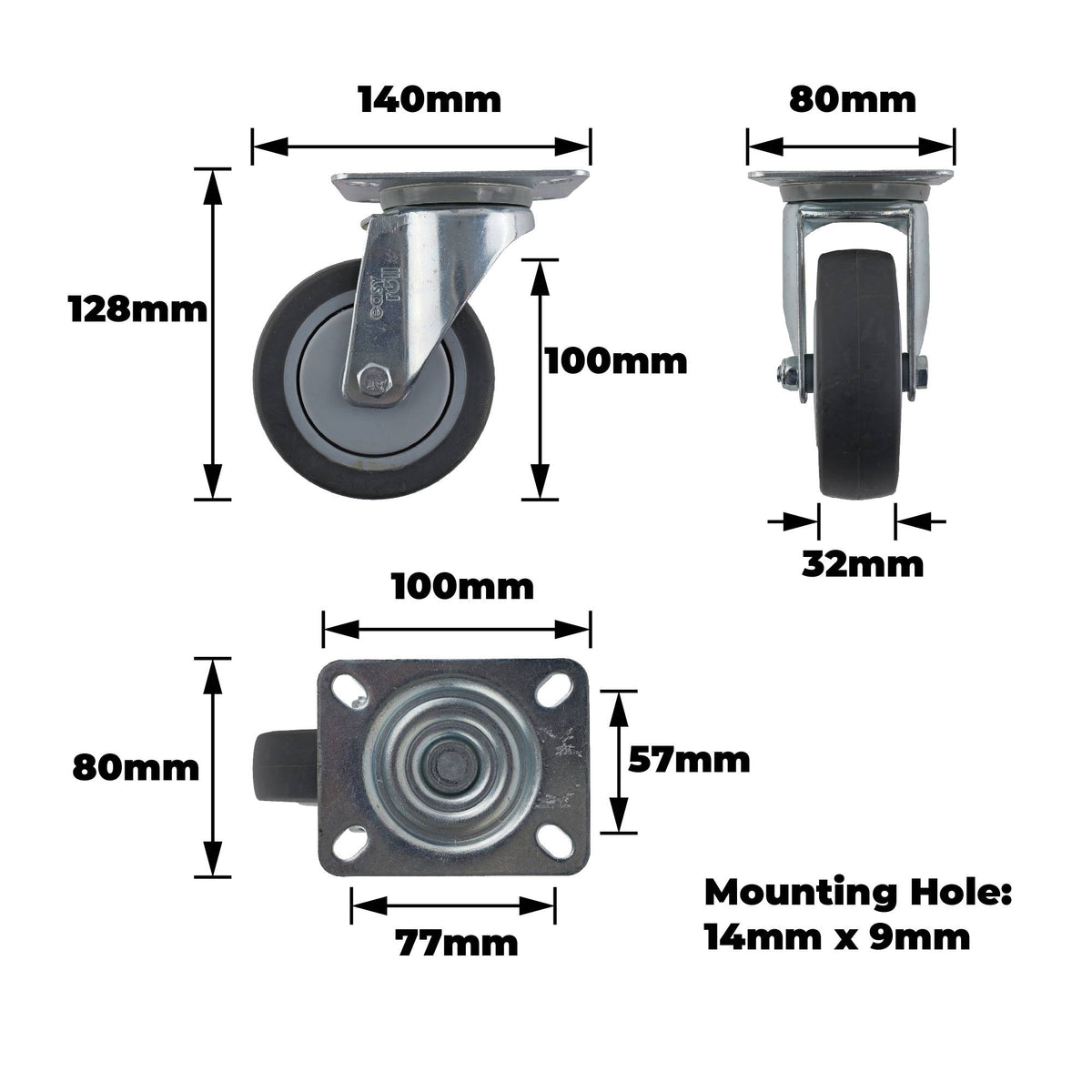

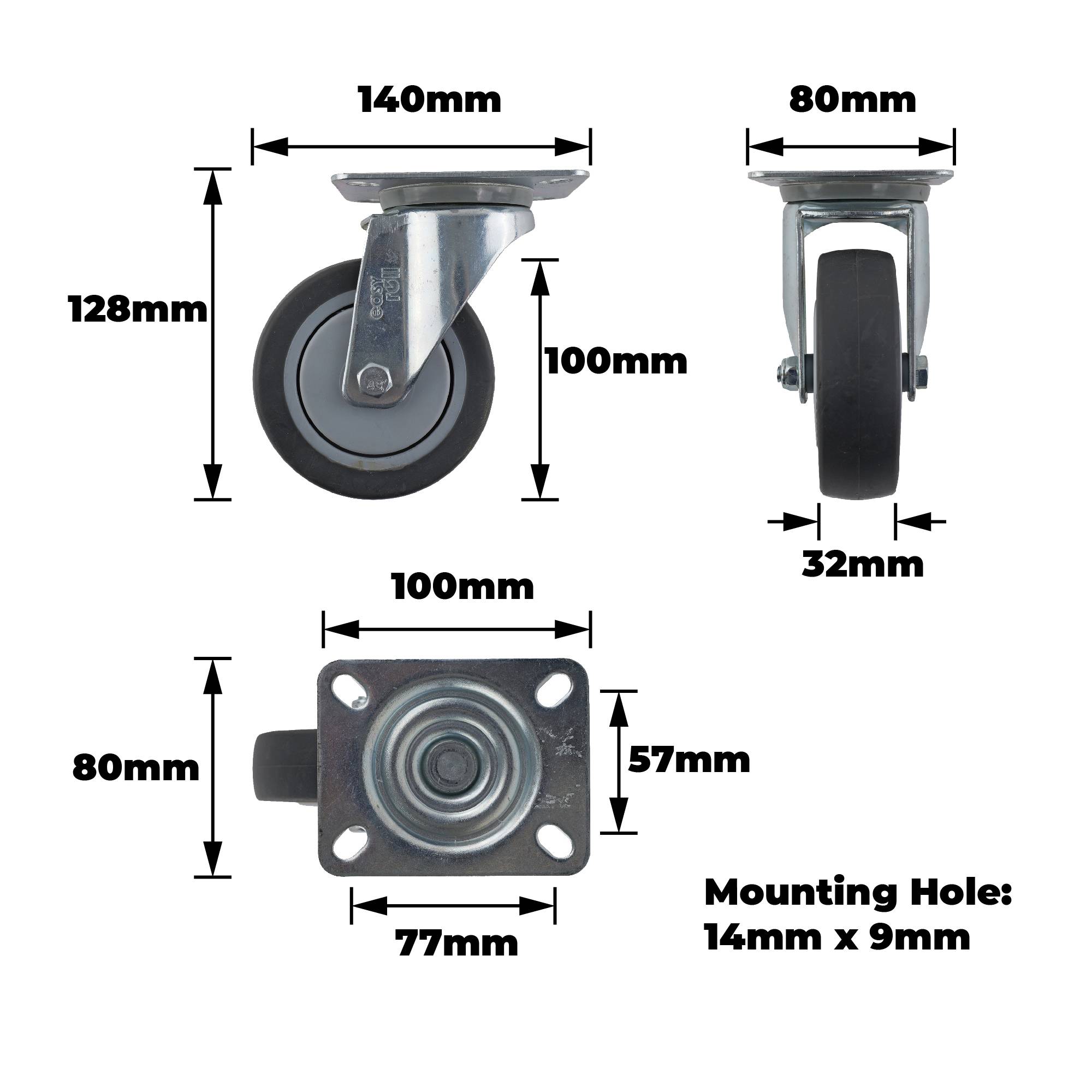

Dimensions
| Product Length (mm) | 140 |
| Product Width (mm) | 80 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 32 |
| Swivel Radius (mm) | 90 |
| Mounting Hole Dimensions (mm) | 14x9 |
| Hole Centre Dimensions (LxW) mm | 77x57 |
| Plate Dimensions (LxW) mm | 100x80 |
Weights
| Product Weight (grams) | 665 |
| Product Weight (kg) | 0.665 |
| Load Capacity (kg) | 100.0 |
