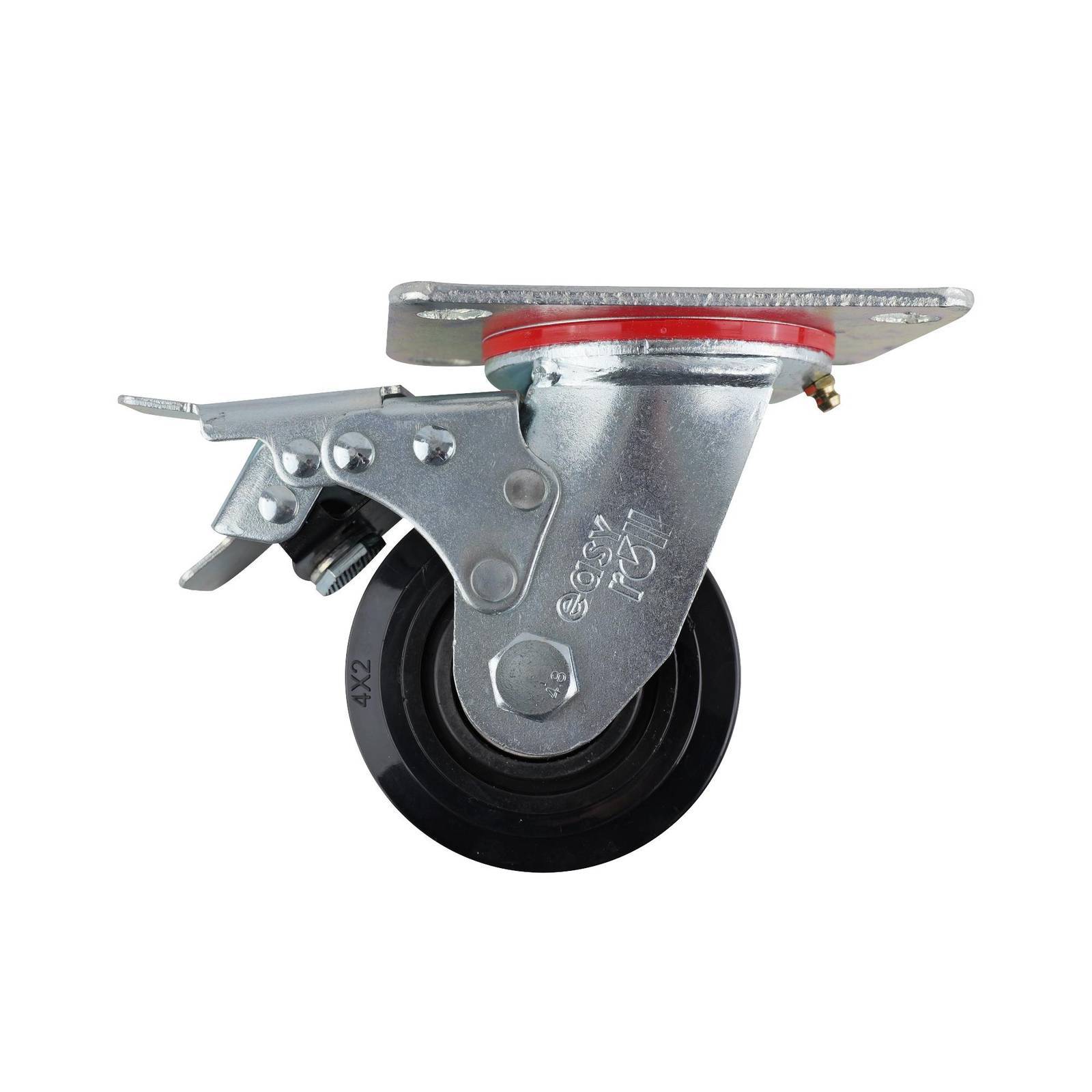

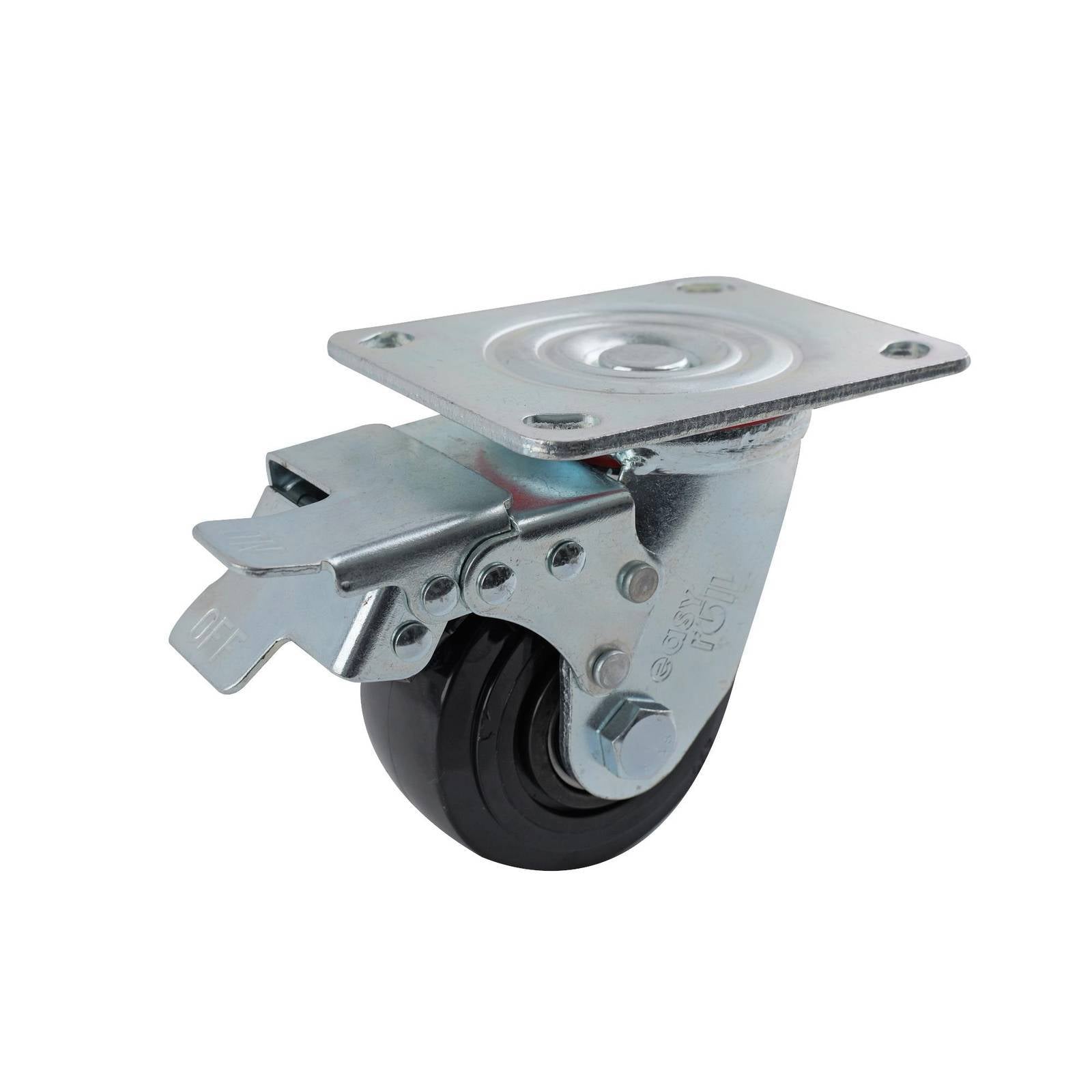

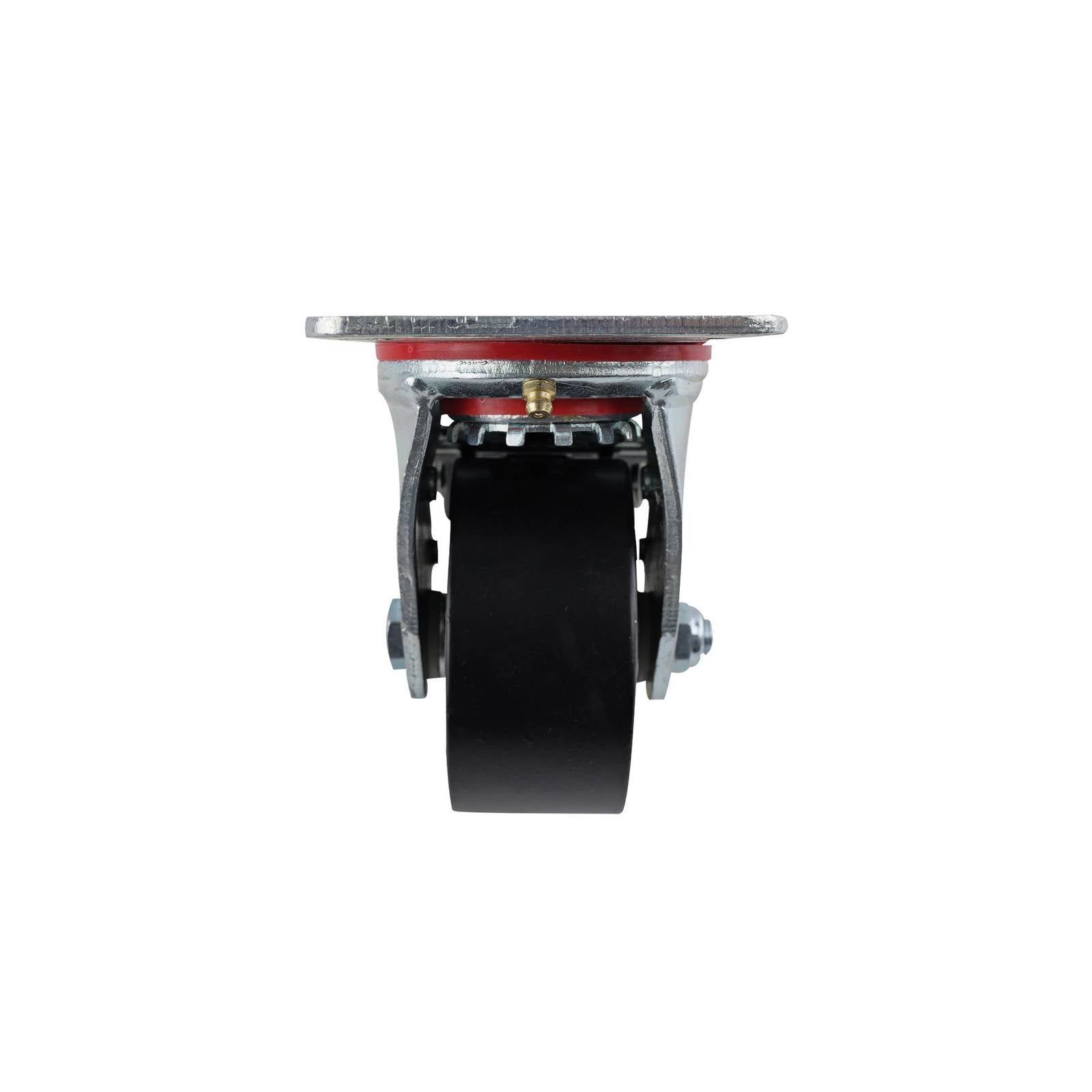

Easyroll 100mm Black Nylon Swivel Plate Brake J3 Series Castor 320kg
Easyroll 100mm Black Nylon Swivel Plate Brake J3 Series Castor 320kg is a precision-engineered castor designed for plate mount applications. It features a steel housing with polypropylene wheel cores and nylon wheels with ball bearings, delivering a dependable swivel capability and total brake mechanism. The combination of these components offers consistent load handling and manoeuvrability, making it a valuable tool for trade professionals managing heavy-duty transport tasks.
Couldn't load pickup availability
- Steel housing offers durable support for heavy load tasks
- Nylon wheel provides low-friction, smooth rotation
- Polypropylene core resists wear under heavy use
- Ball bearings deliver precise movement and stable performance
- Total brake ensures secure stop on each castor
- Plate mount design simplifies fitting on diverse platforms
- Distinct red, black and silver finish aids visual identification
- Rated for heavy loads up to 320 kg capacity
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Nylon |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

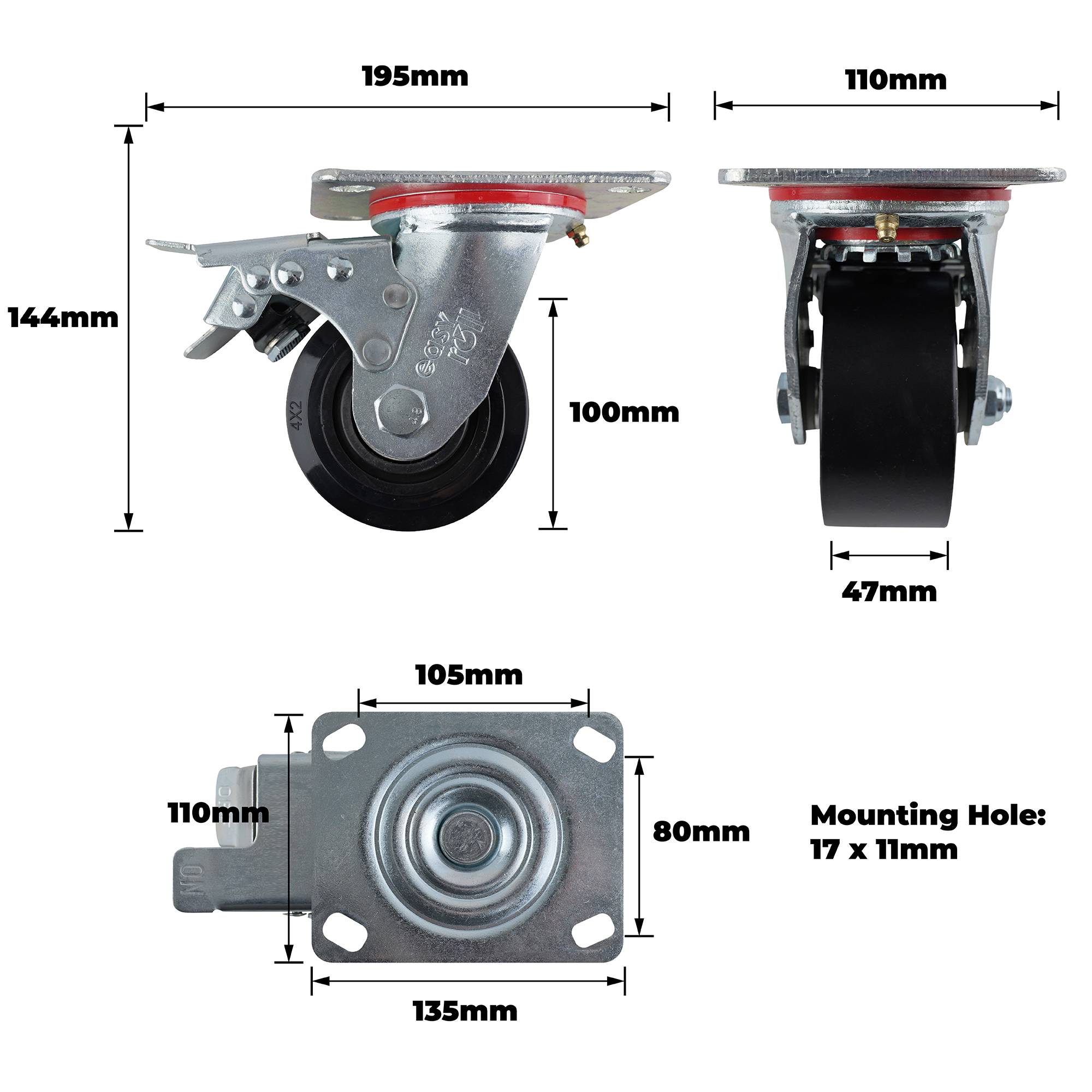

Dimensions
| Product Length (mm) | 195 |
| Product Width (mm) | 110 |
| Product Height (mm) | 144 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 47 |
| Swivel Radius (mm) | 127.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2372 |
| Product Weight (kg) | 2.372 |
| Load Capacity (kg) | 320.0 |
