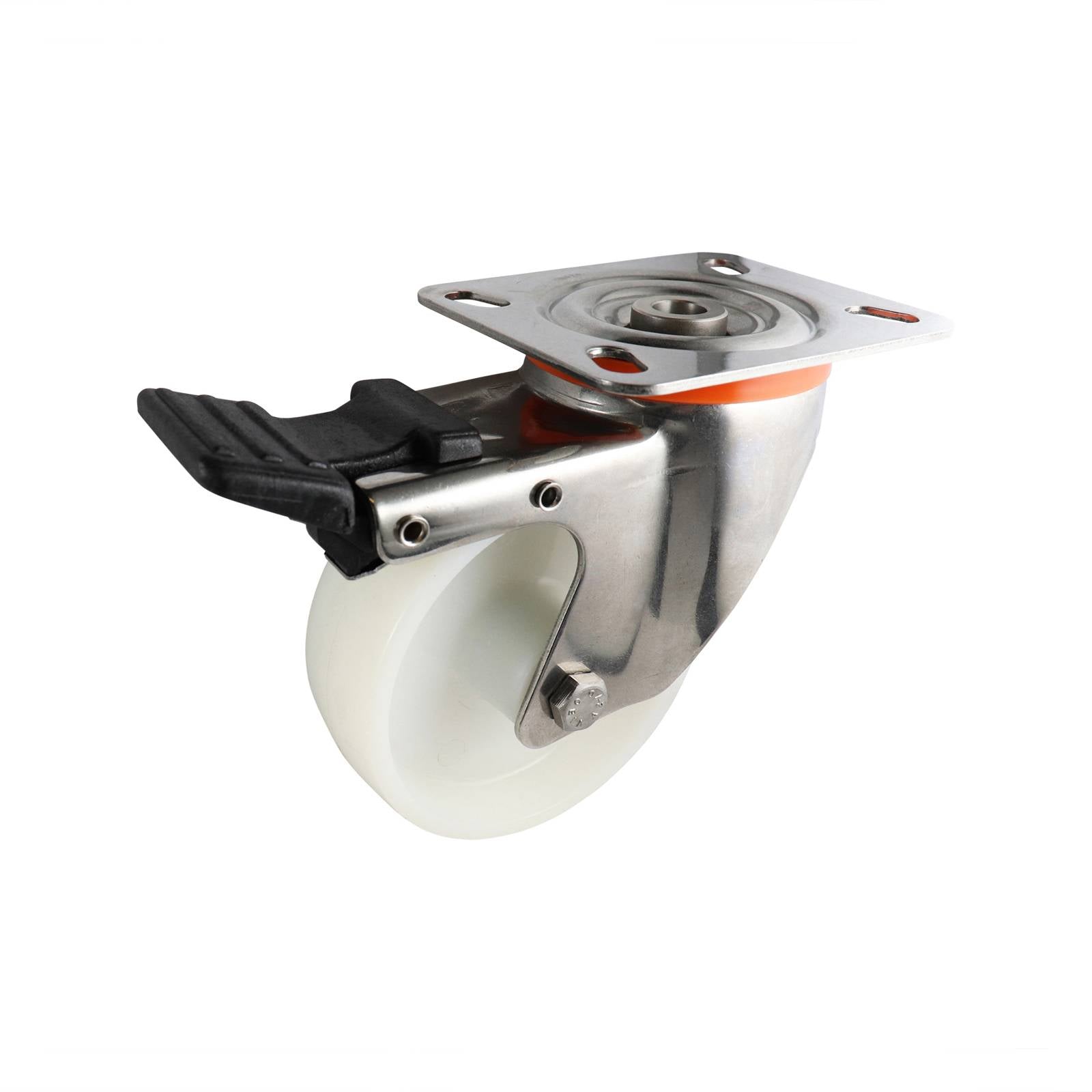

Easyroll 100mm White Nylon Swivel Plate Brake S5 Series Castor 220kg
Easyroll 100mm White Nylon Swivel Plate Brake S5 Series Castor 220kg features a steel housing, polypropylene wheel core and thermoplastic rubber wheel to deliver reliable precision bearing performance and dual raceway stability. It utilises a plate mount with an integrated total brake for controlled motion and secure positioning. The combination of red, white and silver finish supports clear visibility and practical application for industrial and trade professionals seeking robust movement solutions.
Couldn't load pickup availability
- Steel housing provides robust structural integrity
- Precision bearings ensure smooth, reliable swivel operation
- Thermoplastic rubber wheel offers superior abrasion resistance
- 100mm white nylon wheel delivers efficient load handling
- Dual raceway design enhances directional stability and manoeuvrability
- Plate mount fitting enables straightforward, secure installation
- Total brake mechanism provides immediate locking action
- Polypropylene wheel core contributes to overall castor strength
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | No |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Bearing Steel |
| Product Colour | Red/White/Silver |
Dimensions
| Product Length (mm) | 150 |
| Product Width (mm) | 58 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 33 |
| Swivel Radius (mm) | 124 |
| Mounting Hole Dimensions (mm) | 18x9 |
| Plate Dimensions (LxW) mm | 100x85 |
Weights
| Product Weight (grams) | 824 |
| Product Weight (kg) | 0.824 |
| Load Capacity (kg) | 220.0 |
