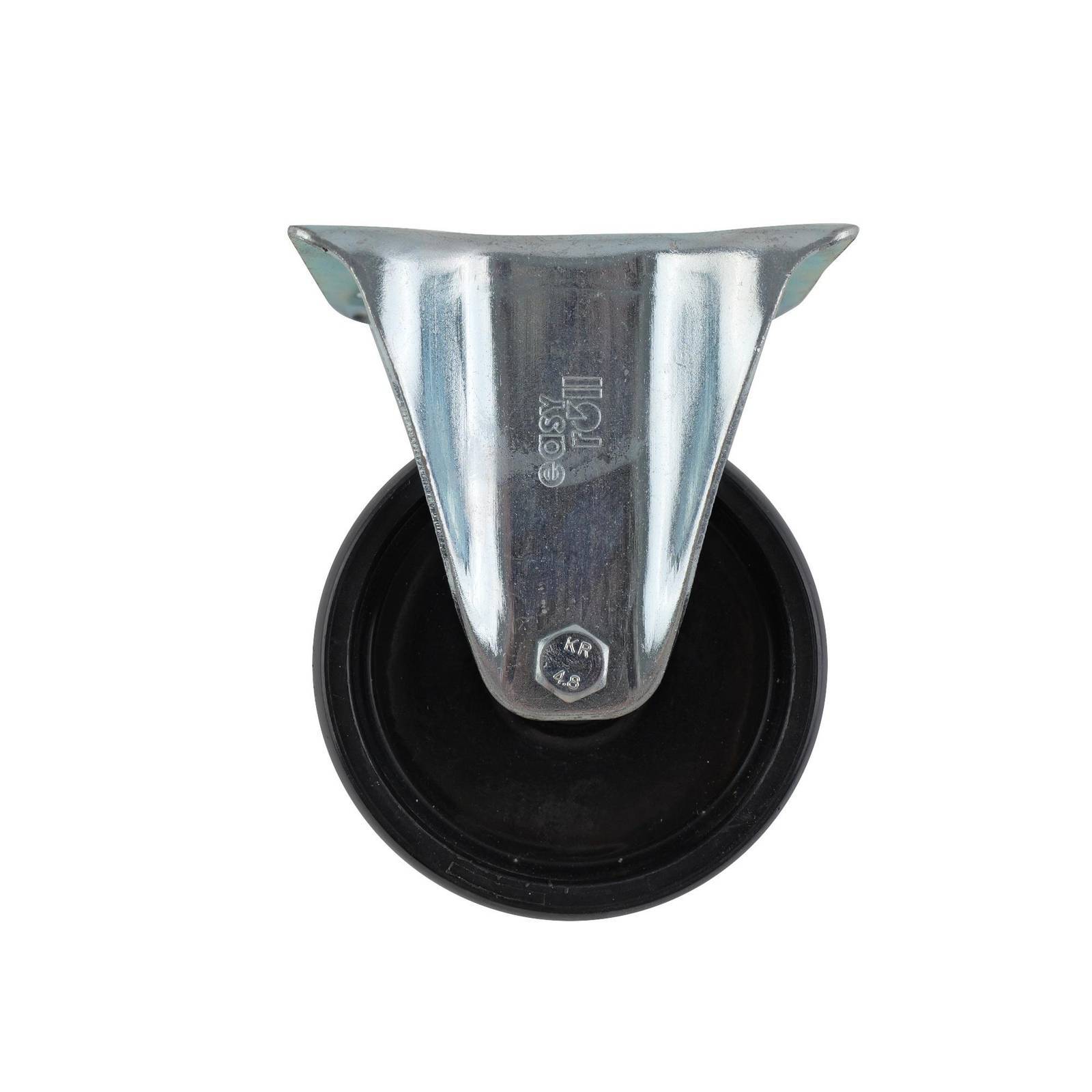

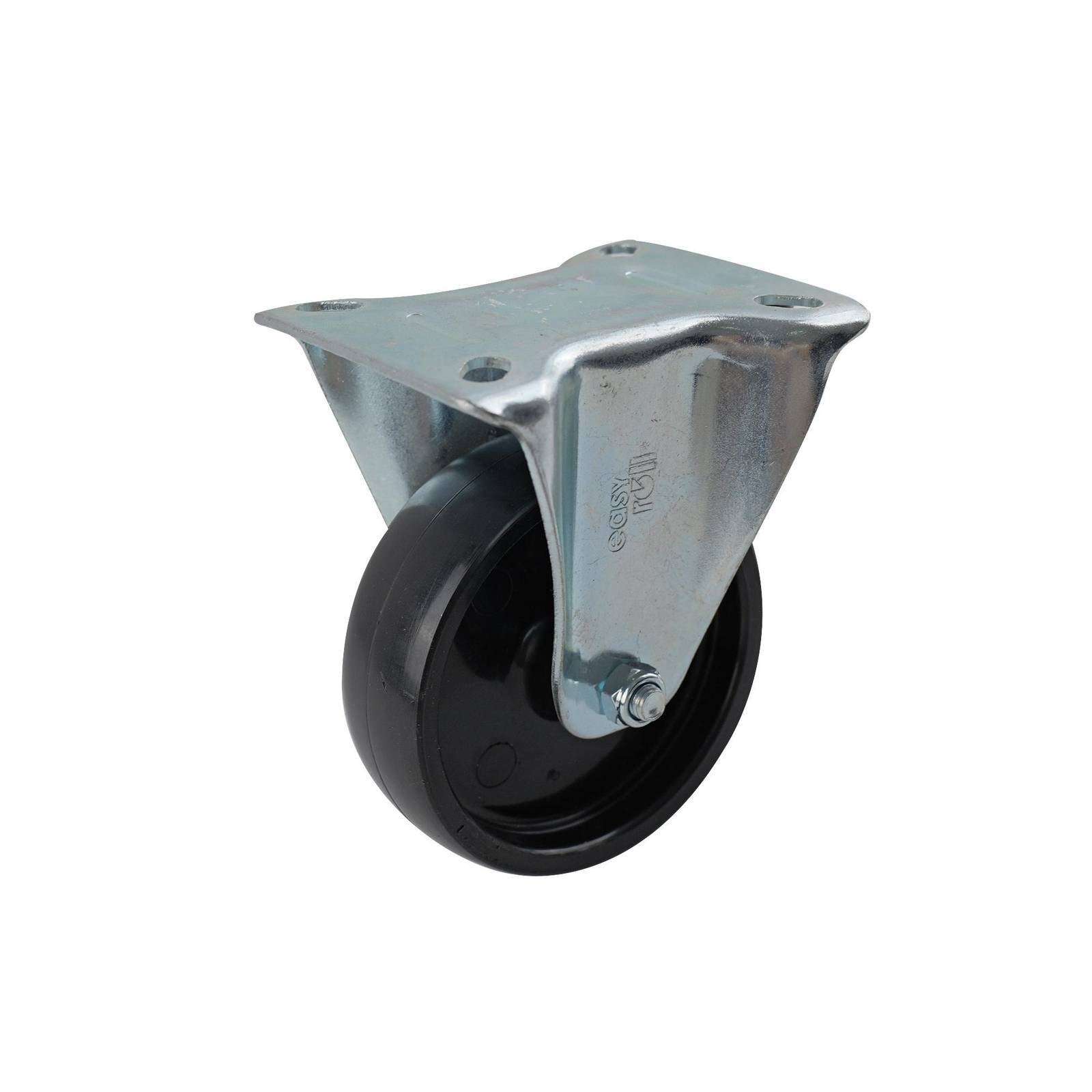

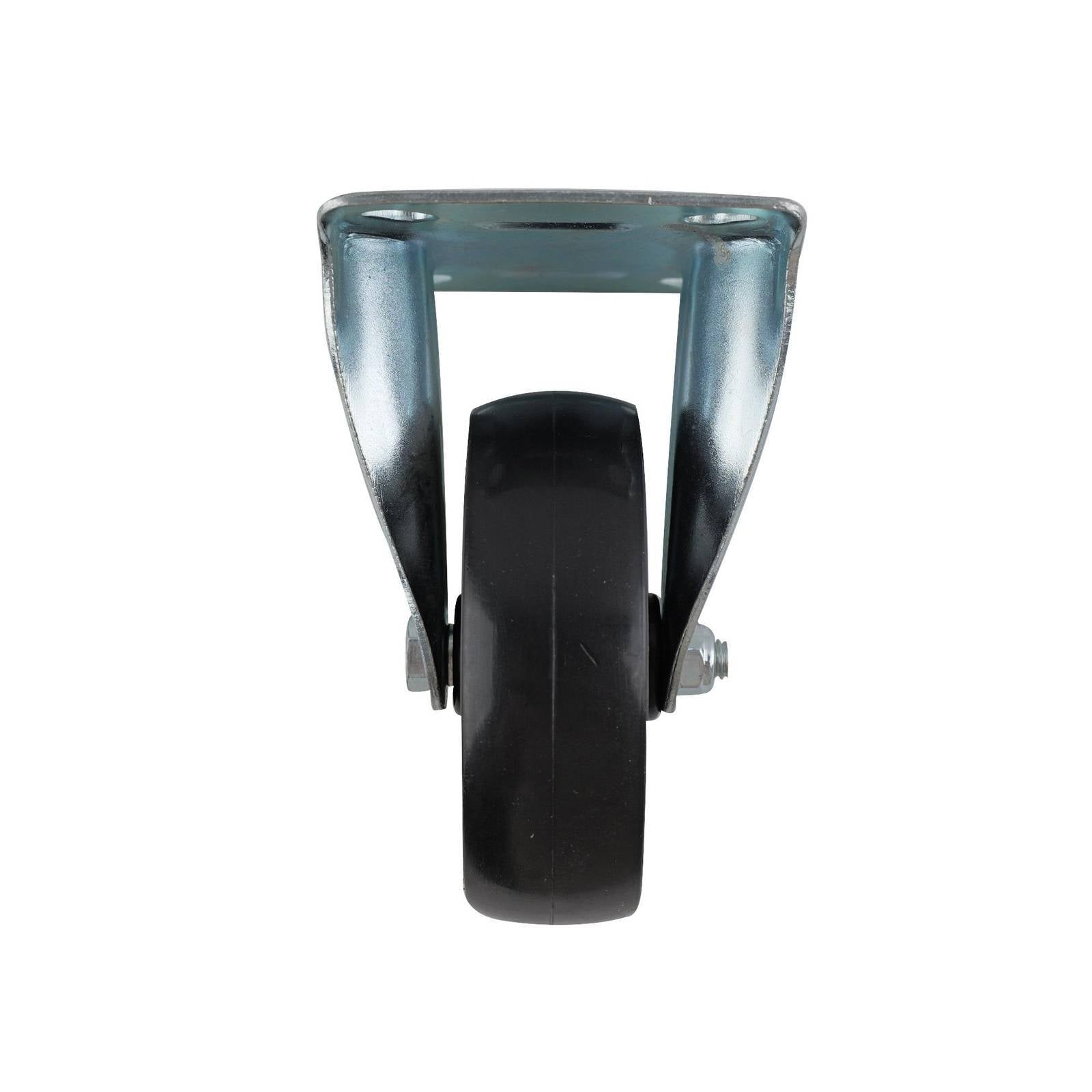

Easyroll 100mm Fixed Plate I4 Series Castor 100kg
Easyroll 100mm Fixed Plate I4 Series Castor 100kg is a plate mount caster designed for professional use in commercial and workshop settings. The castor features a steel housing and steel bearings combined with polypropylene wheel components, offering a robust and stable solution for controlled movement. Its bolt hole swivel total brake system delivers reliable locking and smooth manoeuvrability, meeting the practical demands of trade professionals.
Couldn't load pickup availability
- Robust steel housing ensures long-lasting performance
- Polypropylene wheel and core provide low maintenance operation
- Total brake provides secure stopping
- Bolt hole swivel enhances directional control
- Plate mount fitting simplifies installation
- Suitable for both indoor and outdoor use
- Supports loads up to 100kg with robust design
- Single raceway plain bearing allows smooth movement
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Bolt Hole Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polypropylene |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

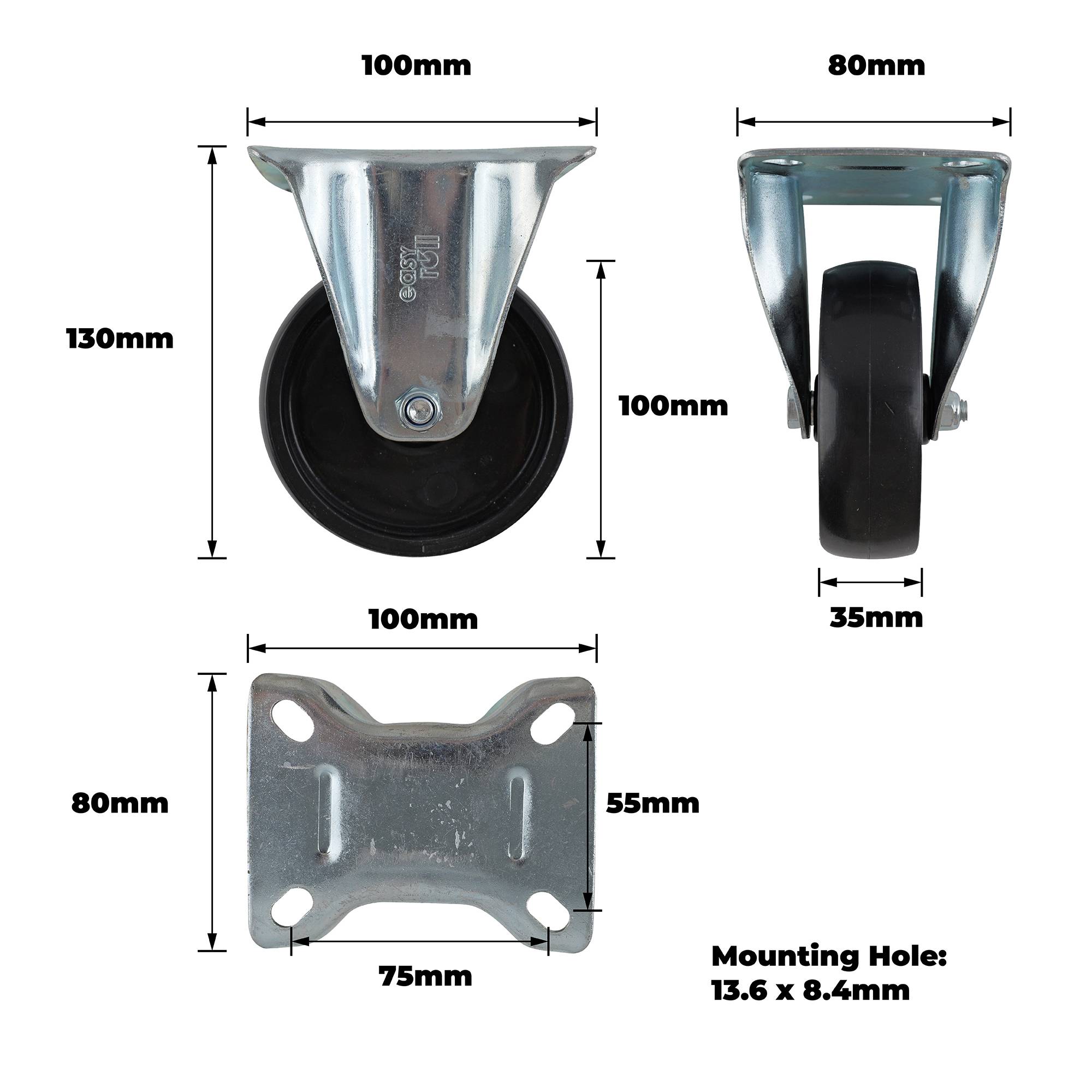

Dimensions
| Product Length (mm) | 100 |
| Product Width (mm) | 80 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 99 |
| Tread Width (mm) | 34 |
| Mounting Hole Dimensions (mm) | 13.6x8.4 |
| Hole Centre Dimensions (LxW) mm | 74X56 |
| Plate Dimensions (LxW) mm | 100X80 |
Weights
| Product Weight (grams) | 457 |
| Product Weight (kg) | 0.457 |
| Load Capacity (kg) | 100.0 |
