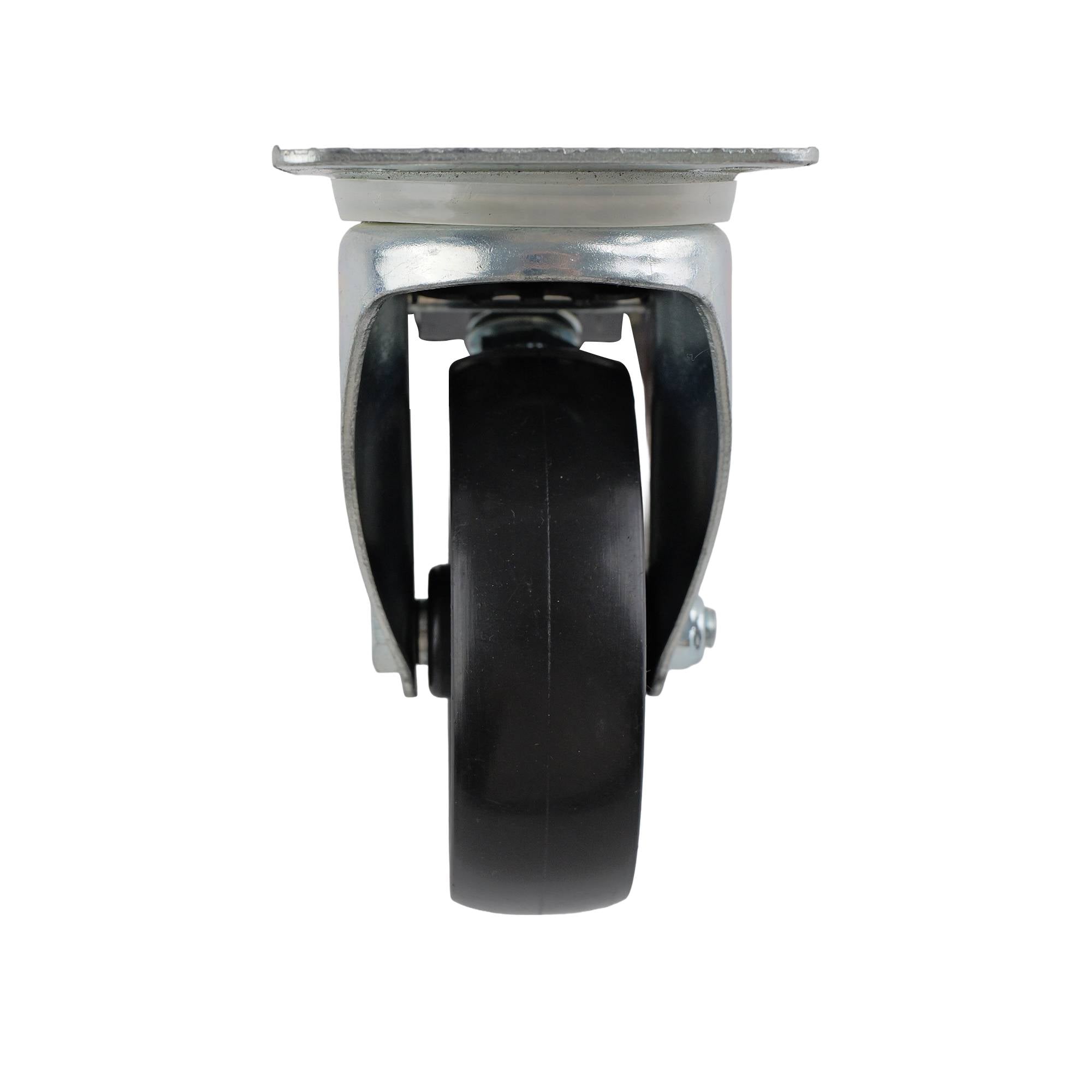

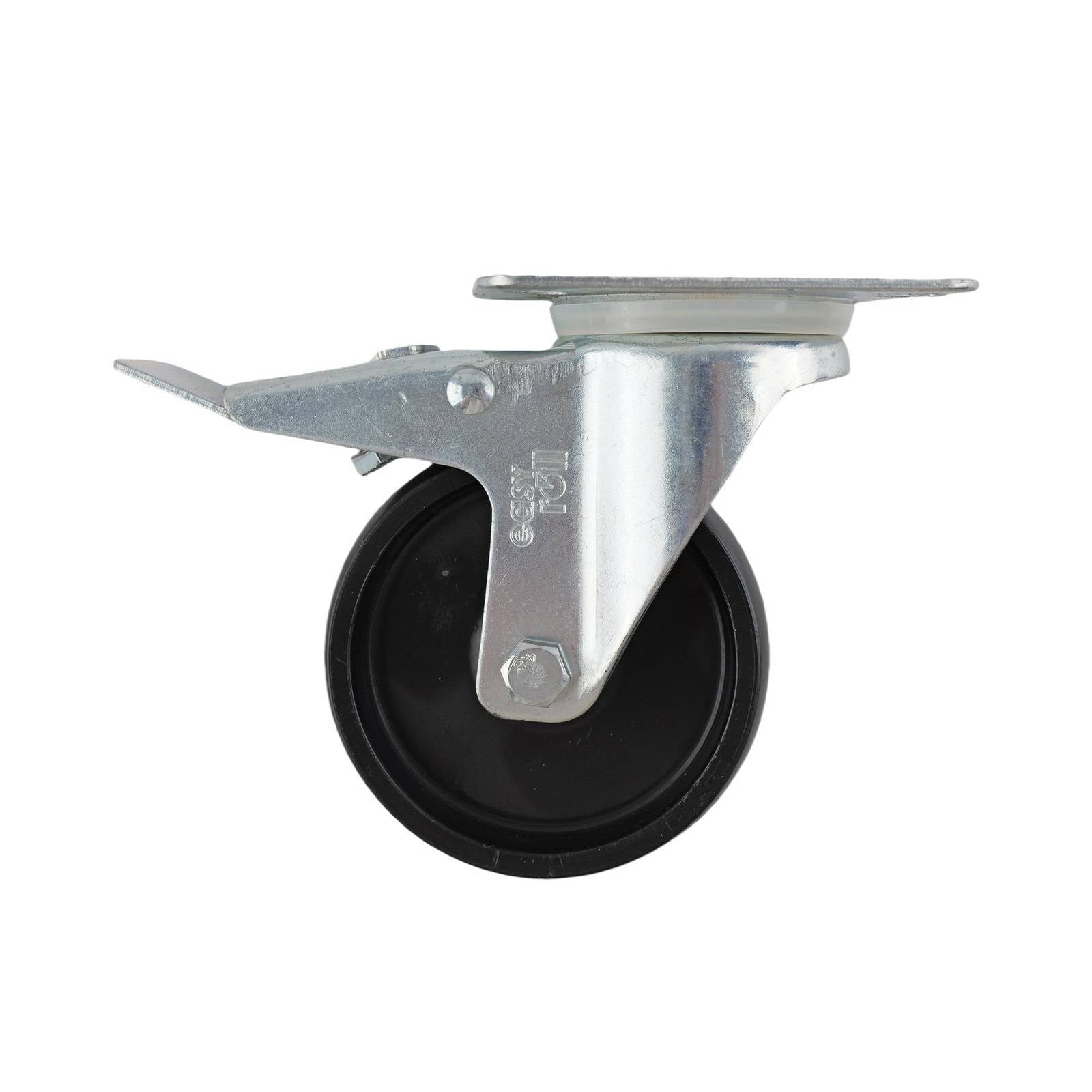

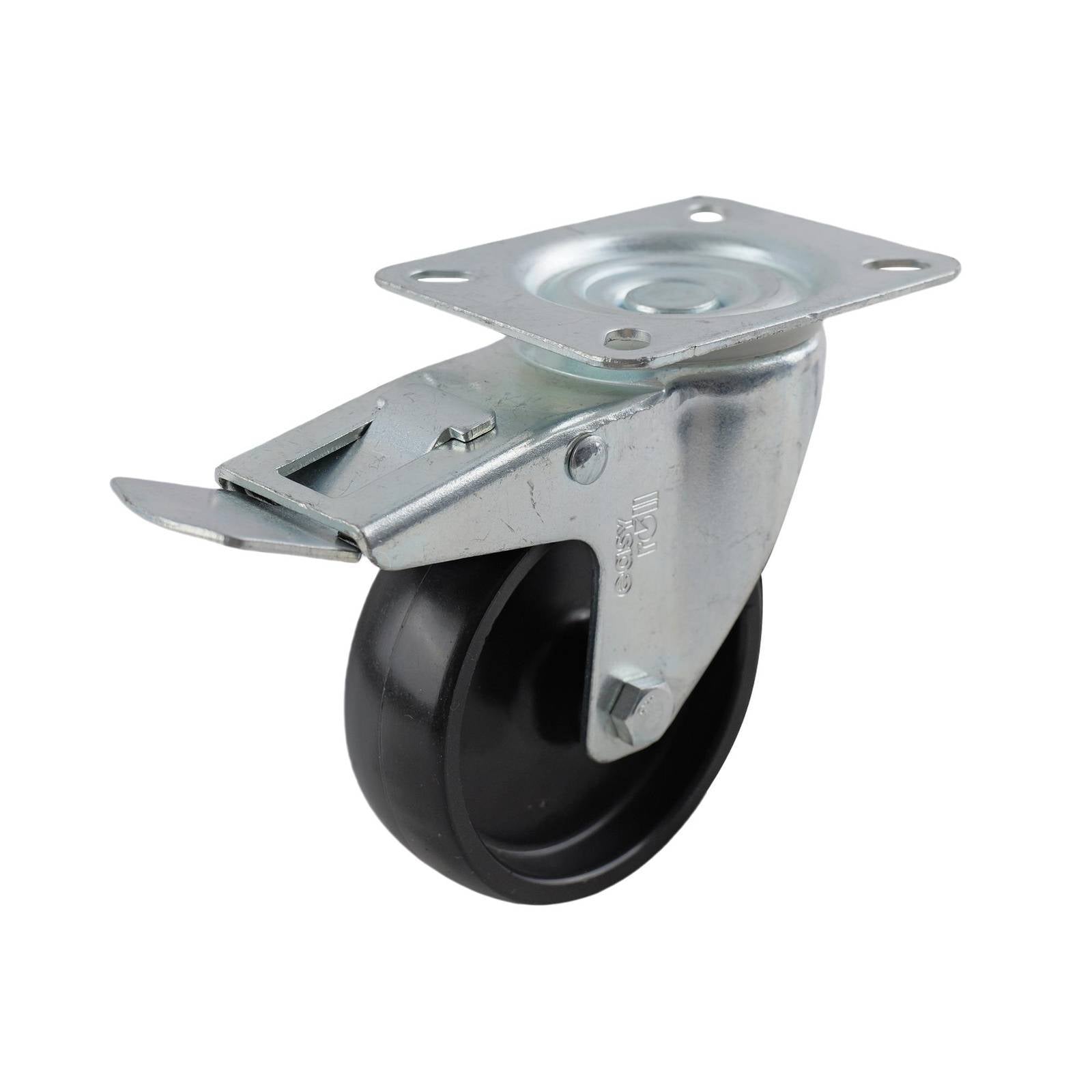

Easyroll 100mm Swivel Plate Brake I4 Series Castor 100kg
Easyroll 100mm Swivel Plate Brake I4 Series Castor 100kg is a castor system engineered for effective load mobility with a 100kg capacity. It features a black/silver finish with a steel housing and ball bearing mechanism, ensuring consistent performance. The polypropylene wheel core and wheel offer reliability over varied surfaces. The plate swivel design along with the plate mount fitting supports smooth integration with different platforms, providing functionality and durability for trade professionals.
Couldn't load pickup availability
- Swivel plate provides flexible movement
- Plate mount fitting ensures secure attachment
- Polypropylene wheel and core deliver low maintenance performance
- Integrated ball bearing reduces friction in single raceway system
- Steel bearing enhances durability and smooth operation
- Polypropylene components provide resilient wear resistance
- Versatile design accommodates multiple operational demands
- Black and silver finish offers clear visual identification
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polypropylene |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

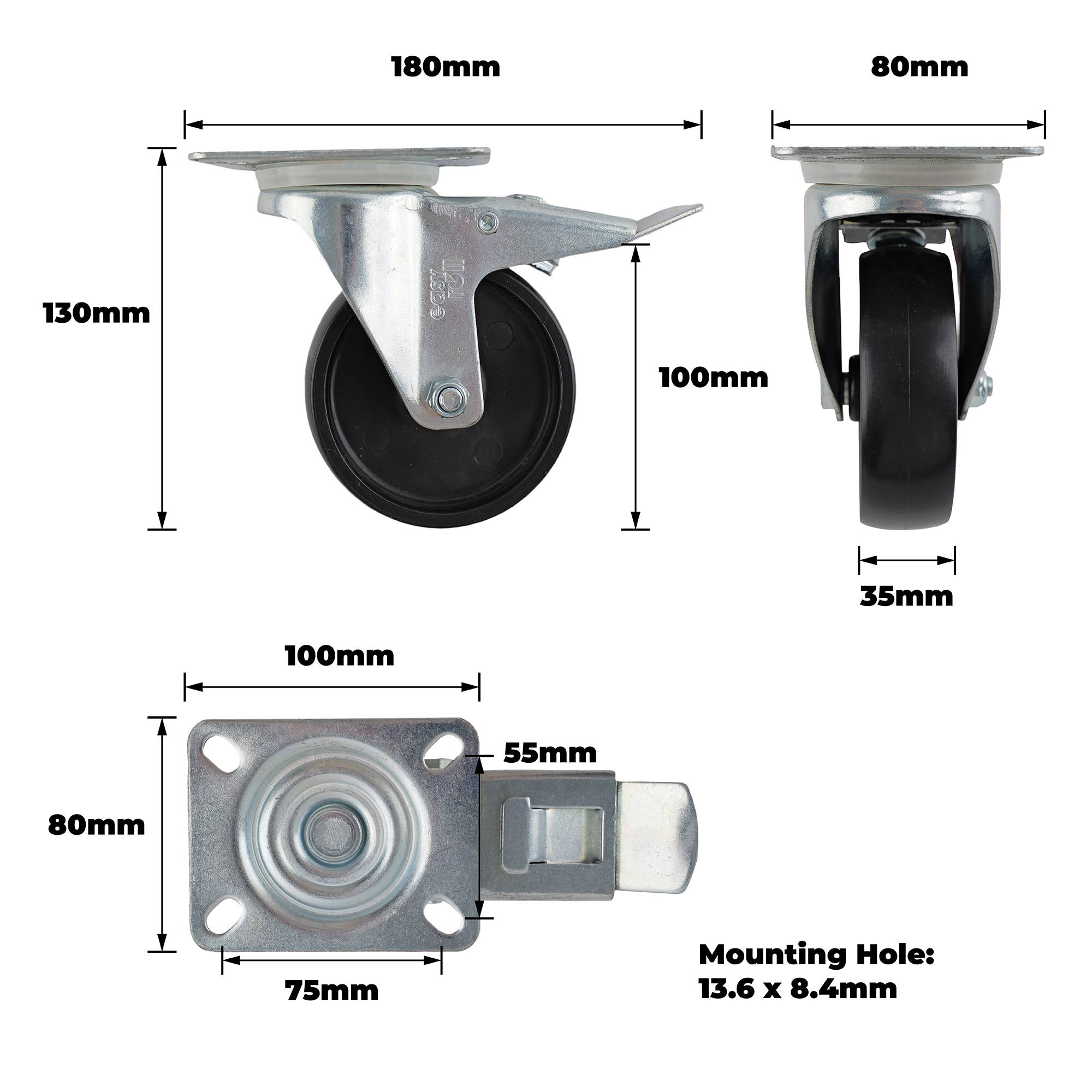

Dimensions
| Product Length (mm) | 180 |
| Product Width (mm) | 80 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 98 |
| Tread Width (mm) | 34 |
| Swivel Radius (mm) | 130 |
| Mounting Hole Dimensions (mm) | 13.6x8.4 |
| Hole Centre Dimensions (LxW) mm | 74X56 |
| Plate Dimensions (LxW) mm | 100X80 |
Weights
| Product Weight (grams) | 760 |
| Product Weight (kg) | 0.76 |
| Load Capacity (kg) | 100.0 |
