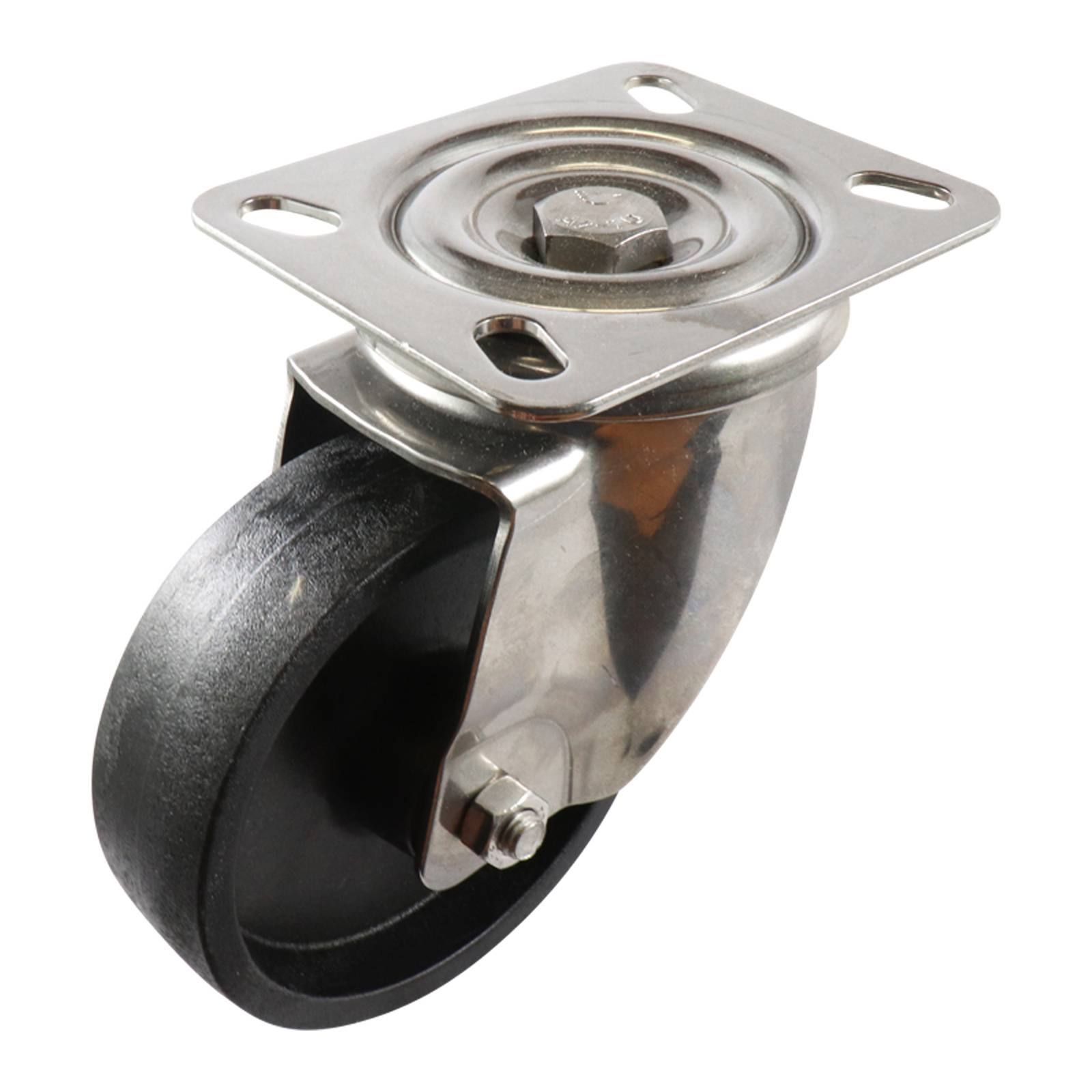

Easyroll 100mm High Temperature Swivel Plate S3 Series Castor 220kg
Easyroll 100mm High Temperature Swivel Plate S3 Series Castor 220kg is a robust caster designed with a thermoplastic high-temperature wheel and dual raceway for enhanced performance. Its steel housing and bearings work with a polypropylene wheel core and body to offer dependable load support up to 220kg. Designed for professional applications, the caster features a total brake system and plate swivel fitting, ensuring straightforward mounting and effective performance in demanding trade settings.
Couldn't load pickup availability
- Thermoplastic high-temperature wheel delivers reliable load performance
- Dual raceway design enhances stability and manoeuvrability
- Plain steel bearing offers smooth swivel action
- High-strength steel housing supports robust load capacity
- Welded plate mount ensures secure installation
- Polypropylene wheel core delivers durability and lightweight performance
- Total brake mechanism provides precise motion control
- Engineered design minimises maintenance and assembly time
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | No |
| Bearing Type | Plain Bearing |
| Raceway Type | Dual |
| Brake Type | Total |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polypropylene |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black |
Dimensions
| Product Length (mm) | 118 |
| Product Width (mm) | 59 |
| Product Height (mm) | 128 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 33 |
| Swivel Radius (mm) | 92 |
| Mounting Hole Dimensions (mm) | 18x9 |
| Plate Dimensions (LxW) mm | 100x85 |
Weights
| Product Weight (grams) | 860 |
| Product Weight (kg) | 0.86 |
| Load Capacity (kg) | 220.0 |
