Easyroll 100mm Urethane I3 Series Castors 230kg 1PC
Home use, DIY, Manufacturing, Factory, Work site
High quality medium industrial 100mm Red Urethane castor with 230Kg capacity. The red urethane tread is hard wearing while being softer than nylon. This offers some floor protection.
Suitable for use on, sales counters, dollies, trolleys, tool boxes, stillages, engine cranes, workshop equipment, vending machines, arcade games, general materials handling
Couldn't load pickup availability
- Robust & attractive Zinc plated housing is suited to all medium Industrial applications
- Double headset bearing for strength and a smooth swivelling action, plus a total locking brake for securing the unit in place.
- Red urethane tread is hard wearing while being softer than nylon. This offers some floor protection.
- Double Precision bearings in the wheel for low rolling resistance and minimal push effort
- Headset seals & Thread Guards protect the bearings from dust & grime, lowering the maintenance & increasing the life of the castor
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total Lock |
| Attachments | Plate Swivel Brake |
Construction
| Wheel Core Material | Nylon |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red |

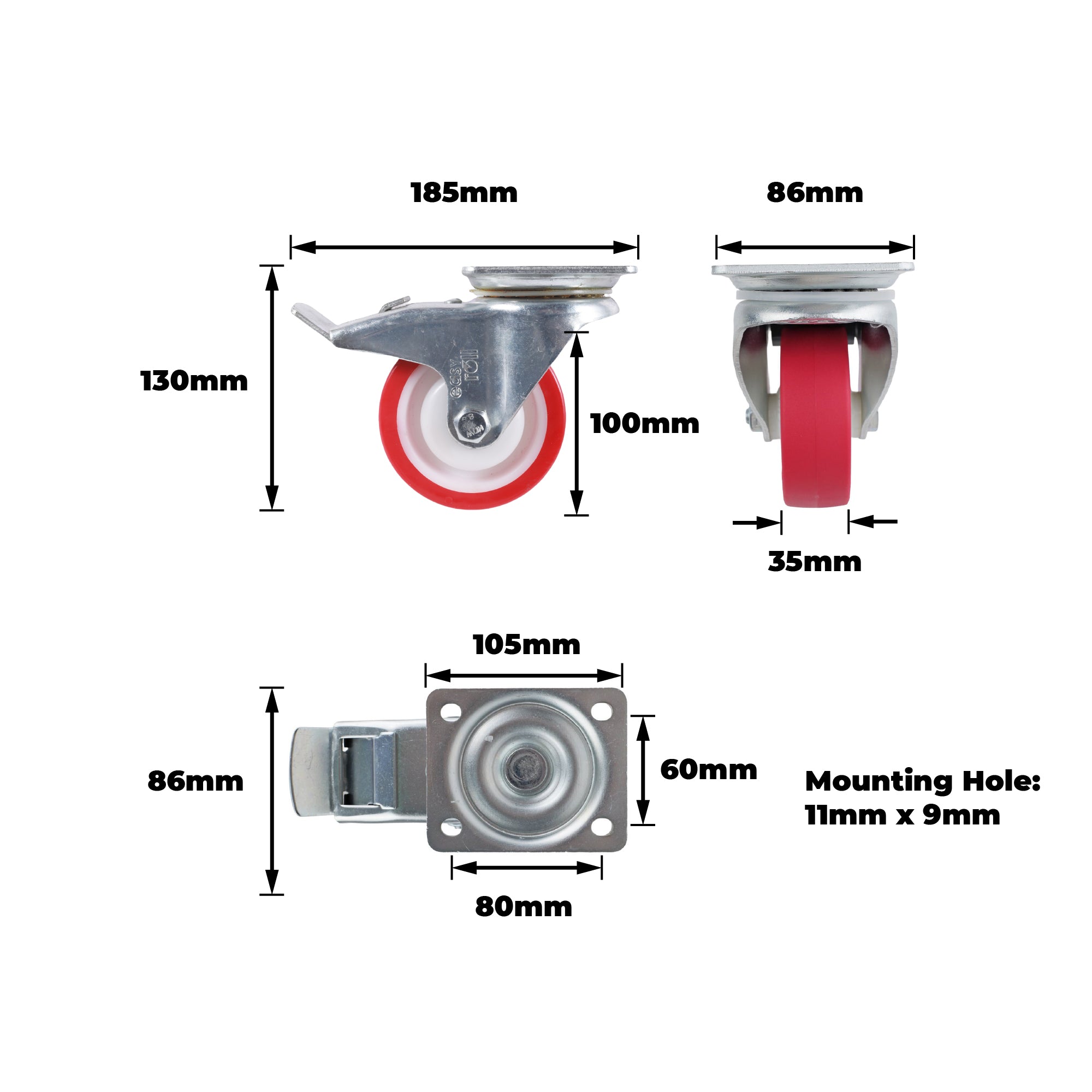

Dimensions
| Product Length (mm) | 185 |
| Product Width (mm) | 86 |
| Product Height (mm) | 130 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 35 |
| Swivel Radius (mm) | 132.5 |
| Mounting Hole Dimensions (mm) | 11x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1341 |
| Product Weight (kg) | 1.341 |
| Load Capacity (kg) | 230.0 |
