Easyroll 100mm Urethane Swivel Plate I4 Series Castor 100kg
Easyroll 100mm Urethane Swivel Plate I4 Series Castor 100kg is constructed with a nylon wheel core and polyurethane wheel that promote durability and precision in movement. The steel housing and ball bearing assembly ensure reliable performance while the plate mount with bolt hole swivel attachment provides secure installation. It is suited for professional applications, offering practical mobility and efficiency both indoors and outdoors for trade professionals seeking robust load handling.
Couldn't load pickup availability
- Robust steel housing with durable carbon steel bearings
- Nylon core with polyurethane outer wheel for longevity
- Ball bearing design ensures smooth reliable swivel movement
- Bolt hole swivel fitting allows quick and secure installation
- Plate mount offers simple integration with equipment
- Engineered for indoor and outdoor use
- True plate structure ensures reliable load-bearing performance
- Thermoplastic rubber wheels provide robust heat resistance and traction
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Bolt Hole Swivel |
Construction
| Wheel Core Material | Nylon |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Black |

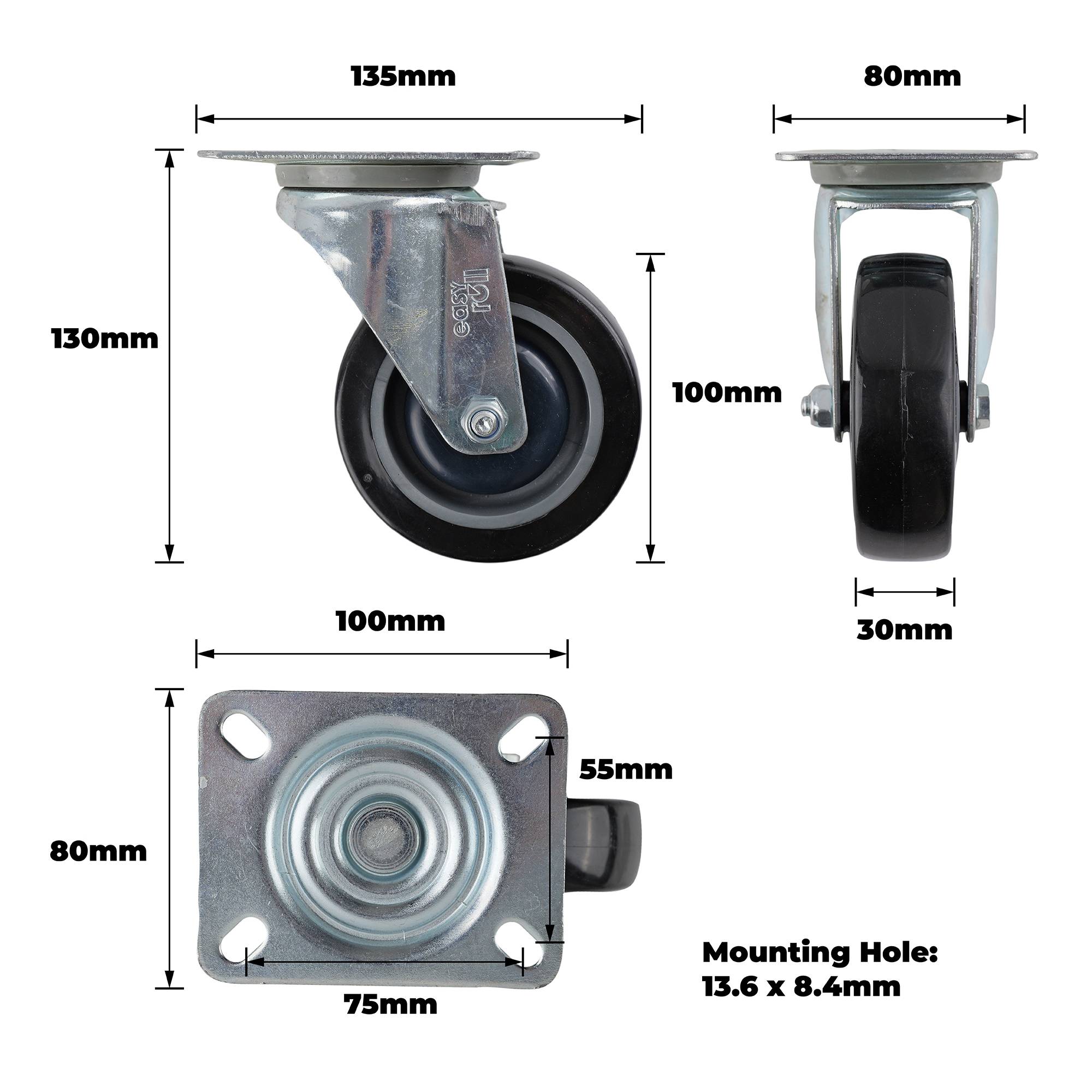

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 80 |
| Product Height (mm) | 131 |
| Wheel Diameter (mm) | 98 |
| Tread Width (mm) | 32 |
| Swivel Radius (mm) | 85 |
| Mounting Hole Dimensions (mm) | 13.6x8.4 |
| Hole Centre Dimensions (LxW) mm | 74X56 |
| Plate Dimensions (LxW) mm | 100X80 |
Weights
| Product Weight (grams) | 640 |
| Product Weight (kg) | 0.64 |
| Load Capacity (kg) | 100.0 |
