Easyroll 100mm Red Urethane Swivel Plate Brake J2 Series Castor 280kg
Easyroll 100mm Red Urethane Swivel Plate Brake J2 Series Castor 280kg is a robust mobility solution featuring a polyurethane wheel with a polypropylene core and a carbon steel ball bearing system housed in steel. It utilises a plate swivel mechanism with a plate mount design that supports smooth and controlled movement. The product is engineered for reliable performance across varied work environments, offering technical advantages that benefit trade professionals seeking dependable material handling.
Couldn't load pickup availability
- Steel housing provides strong durability and stability
- Red black and silver design for clear visual identification
- Ball bearing enables smooth low friction movement
- Polyurethane wheel material offers resilient quiet roll performance
- Plate mount design simplifies easy installation
- Swivel plate attachment enhances manoeuvrability
- Polypropylene core supports load distribution
- Engineered for reliable performance in varied environments
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

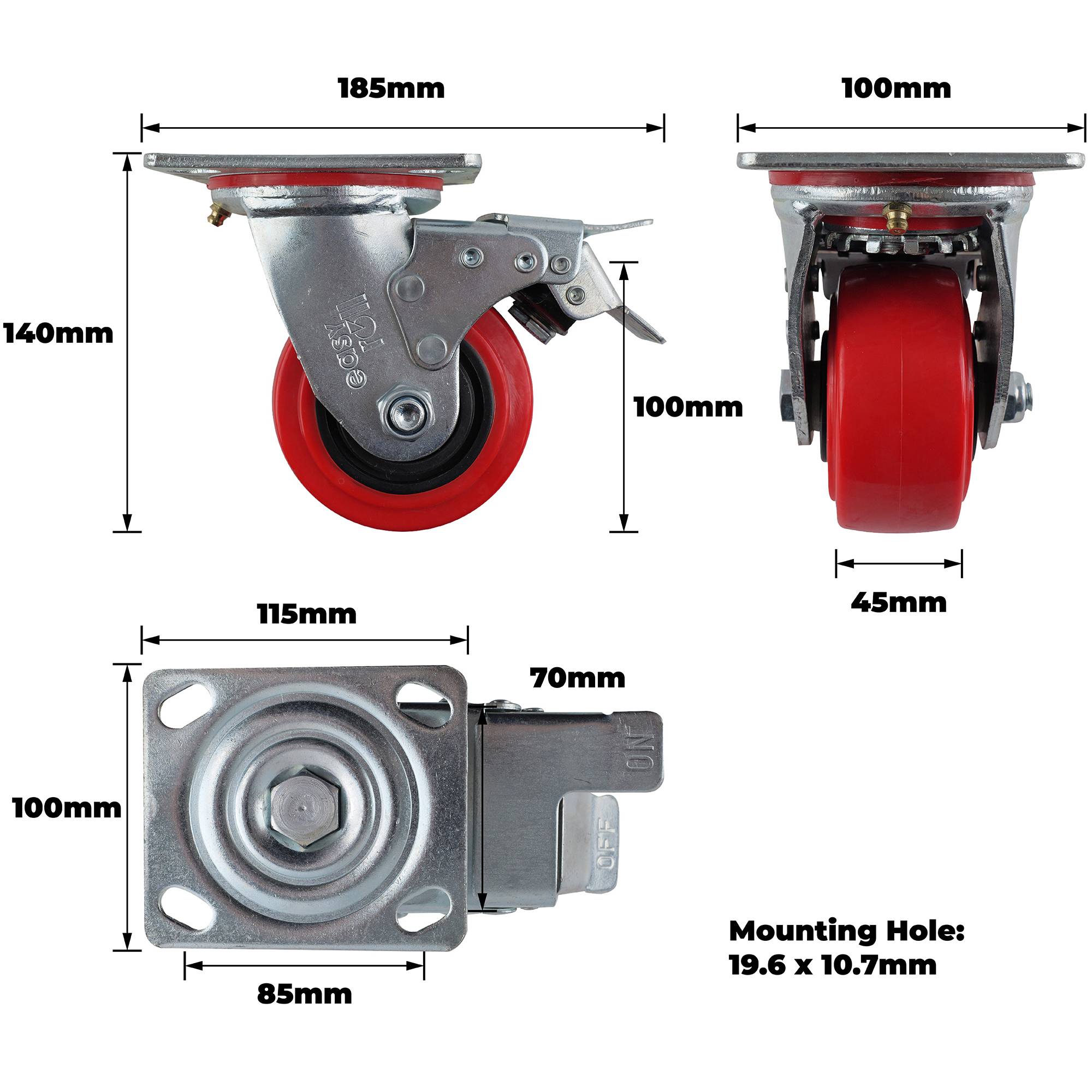

Dimensions
| Product Length (mm) | 185 |
| Product Width (mm) | 100 |
| Product Height (mm) | 138 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 45 |
| Swivel Radius (mm) | 127.5 |
| Mounting Hole Dimensions (mm) | 19.6x10.7 |
| Hole Centre Dimensions (LxW) mm | 85x70 |
| Plate Dimensions (LxW) mm | 115x100 |
Weights
| Product Weight (grams) | 2260 |
| Product Weight (kg) | 2.26 |
| Load Capacity (kg) | 280.0 |
