Easyroll 100mm Red Urethane Swivel Plate J2 Series Castor 280kg
Easyroll 100mm Red Urethane Swivel Plate J2 Series Castor 280kg is a reliable mobility solution featuring a nylon wheel core and a polyurethane wheel for consistent performance. It incorporates a steel housing, carbon steel ball bearings, and a full bolt mounting plate with a total brake. Designed for versatile use by trade professionals, it offers smooth manoeuvrability, secure locking and sound engineering, supporting efficient operations in diverse work settings.
Couldn't load pickup availability
- Robust steel housing for structural integrity
- Polyurethane wheel with nylon core for durability
- Equipped with carbon steel ball bearing for smooth rotation
- Plate mount design ensures stable, secure fitting
- Swivel total brake enables controlled stopping motion
- Single raceway design maintains consistent movement performance
- Supports loads up to 280kg reliably
- Engineered for both indoor and outdoor usage
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Nylon |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

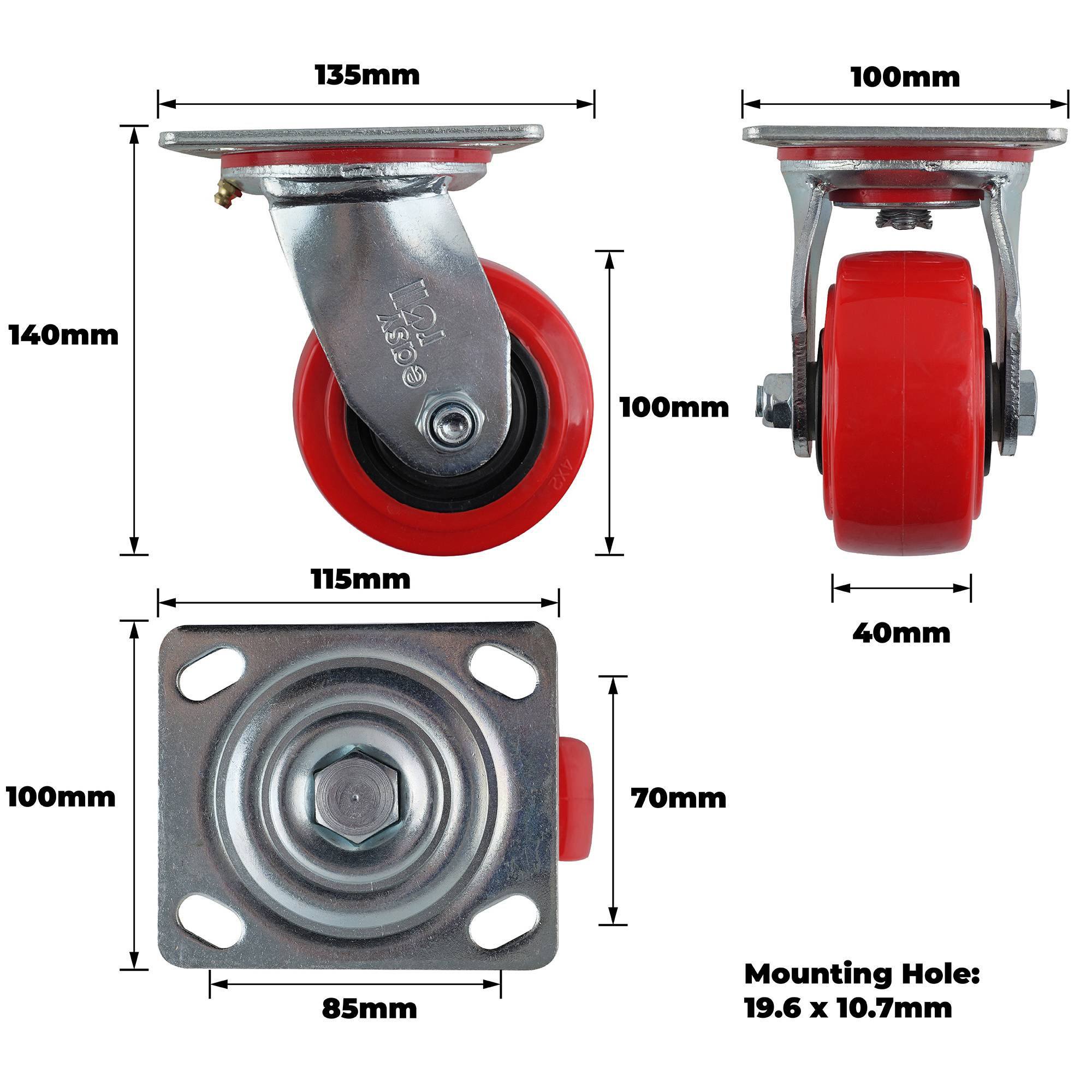

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 100 |
| Product Height (mm) | 140 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 42 |
| Swivel Radius (mm) | 77.5 |
| Mounting Hole Dimensions (mm) | 19.6x10.7 |
| Hole Centre Dimensions (LxW) mm | 85x70 |
| Plate Dimensions (LxW) mm | 115x100 |
Weights
| Product Weight (grams) | 1838 |
| Product Weight (kg) | 1.838 |
| Load Capacity (kg) | 280.0 |
