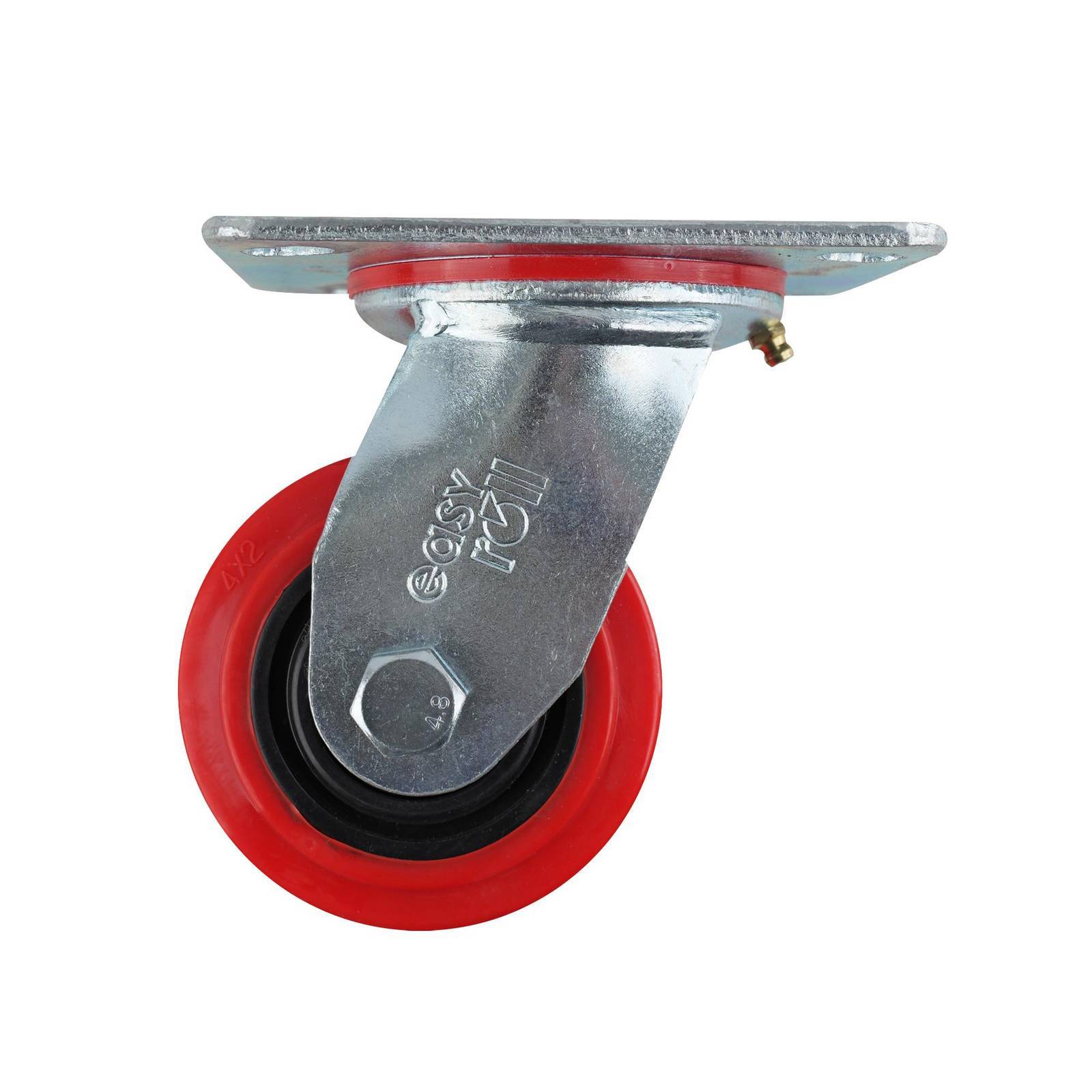

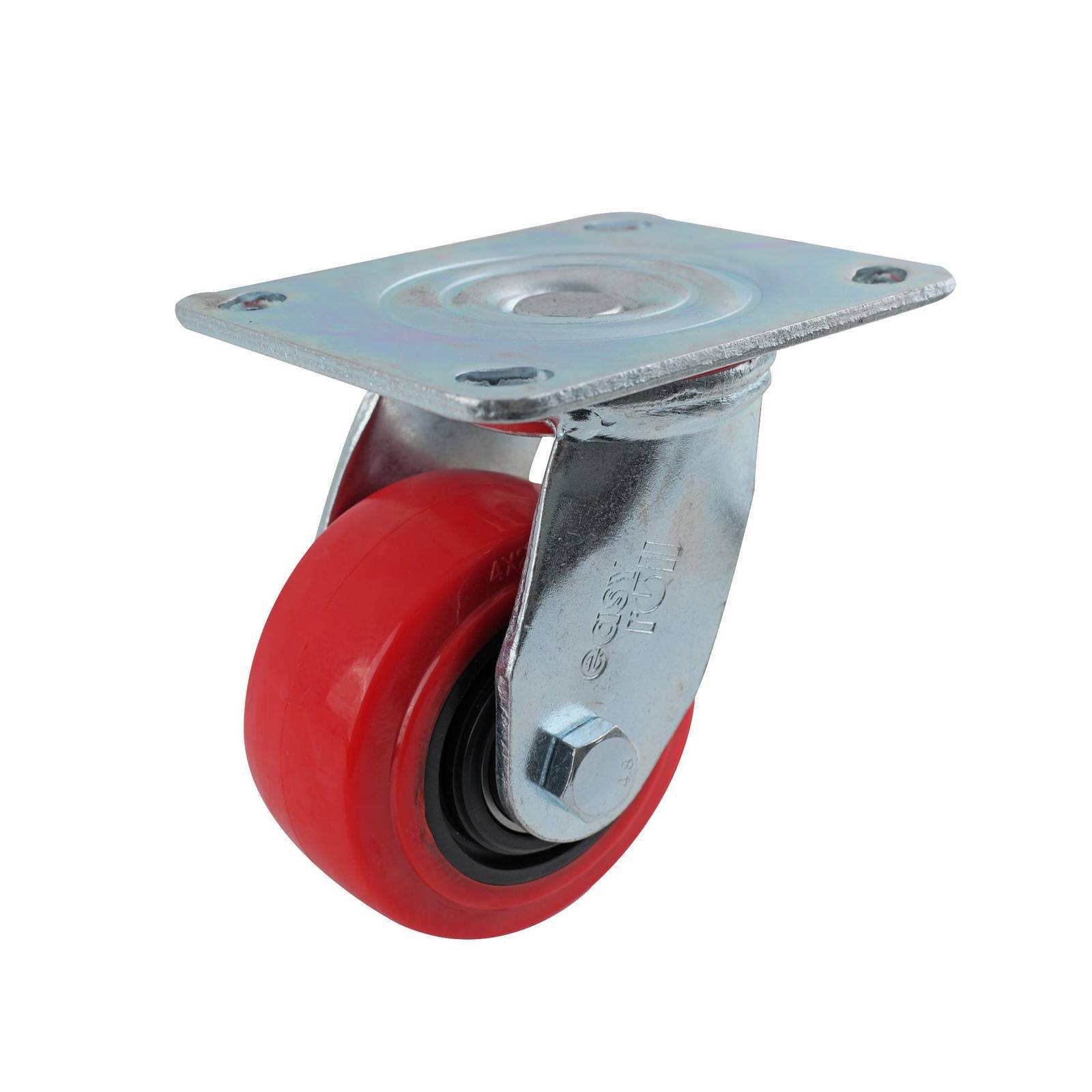

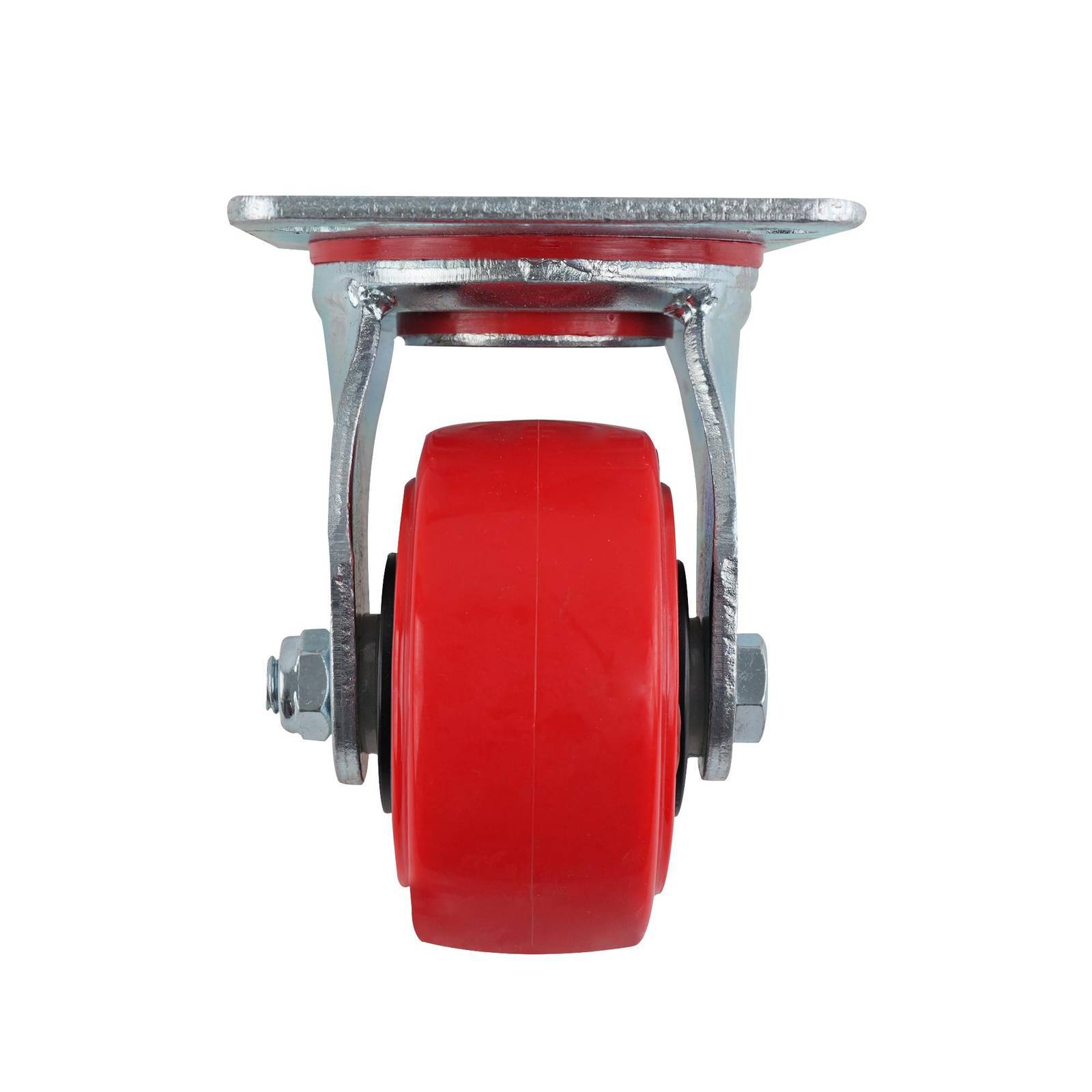

Easyroll 100mm Red Urethane Swivel Plate J3 Series Castor 280kg
Easyroll 100mm Red Urethane Swivel Plate J3 Series Castor 280kg is designed with a plate mount interface to simplify equipment relocation. Constructed with a robust steel housing and precision ball bearings, it features a polypropylene wheel core combined with a polyurethane overlay for dependable performance. Its total brake and thoughtful engineering deliver secure movement for trade professionals, providing straightforward operation and reliable service in diverse applications.
Couldn't load pickup availability
- Sturdy steel housing supports reliable operational durability
- Total brake provides dependable stopping capability
- Polypropylene core and rubber wheel support precise load movements
- Ball bearing ensures smooth swivel action
- Plate mount fitting enables quick installation
- Robust carbon steel bearing supports heavy load capacity
- Designed for outdoor and indoor performance
- Red black and silver finish offers professional appearance
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

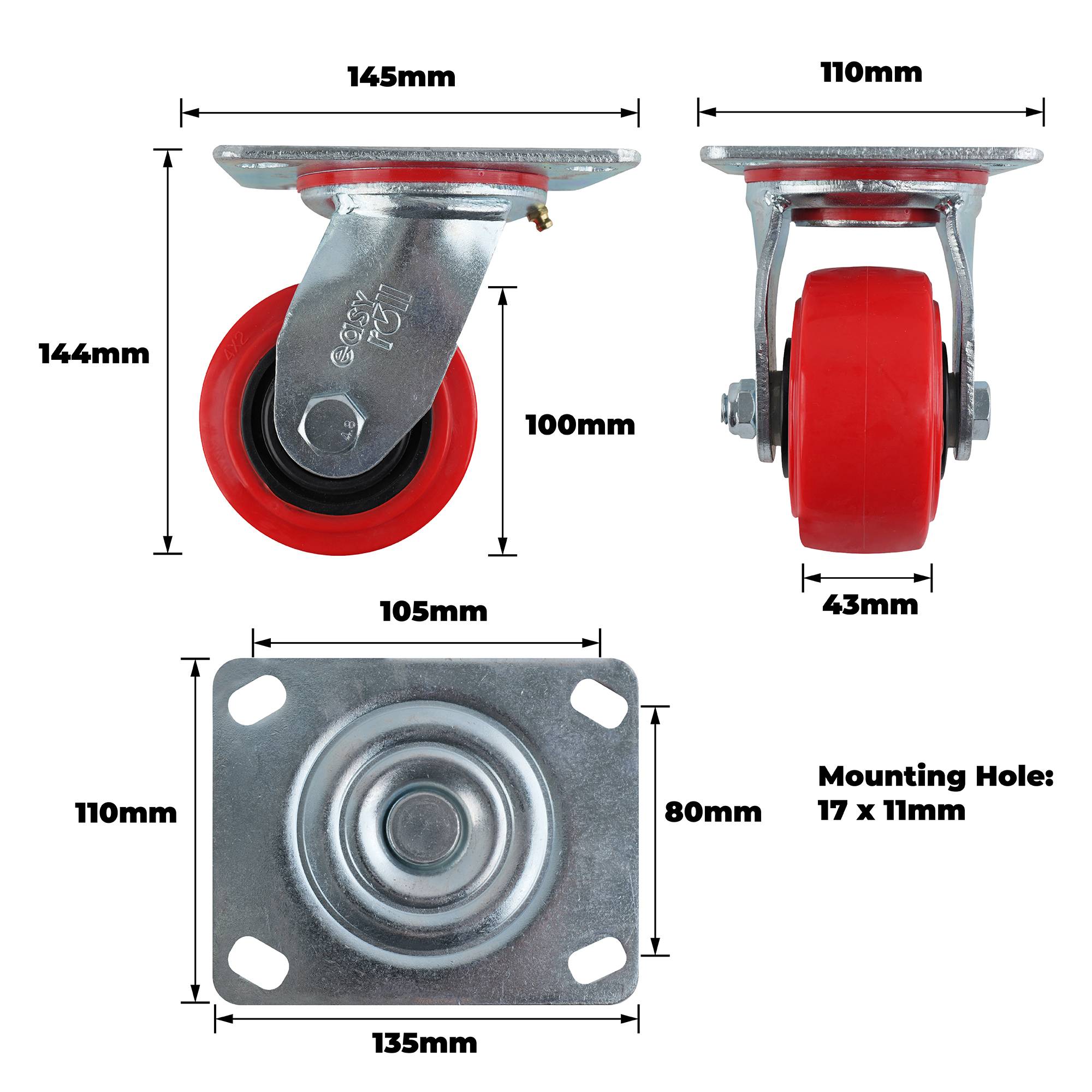

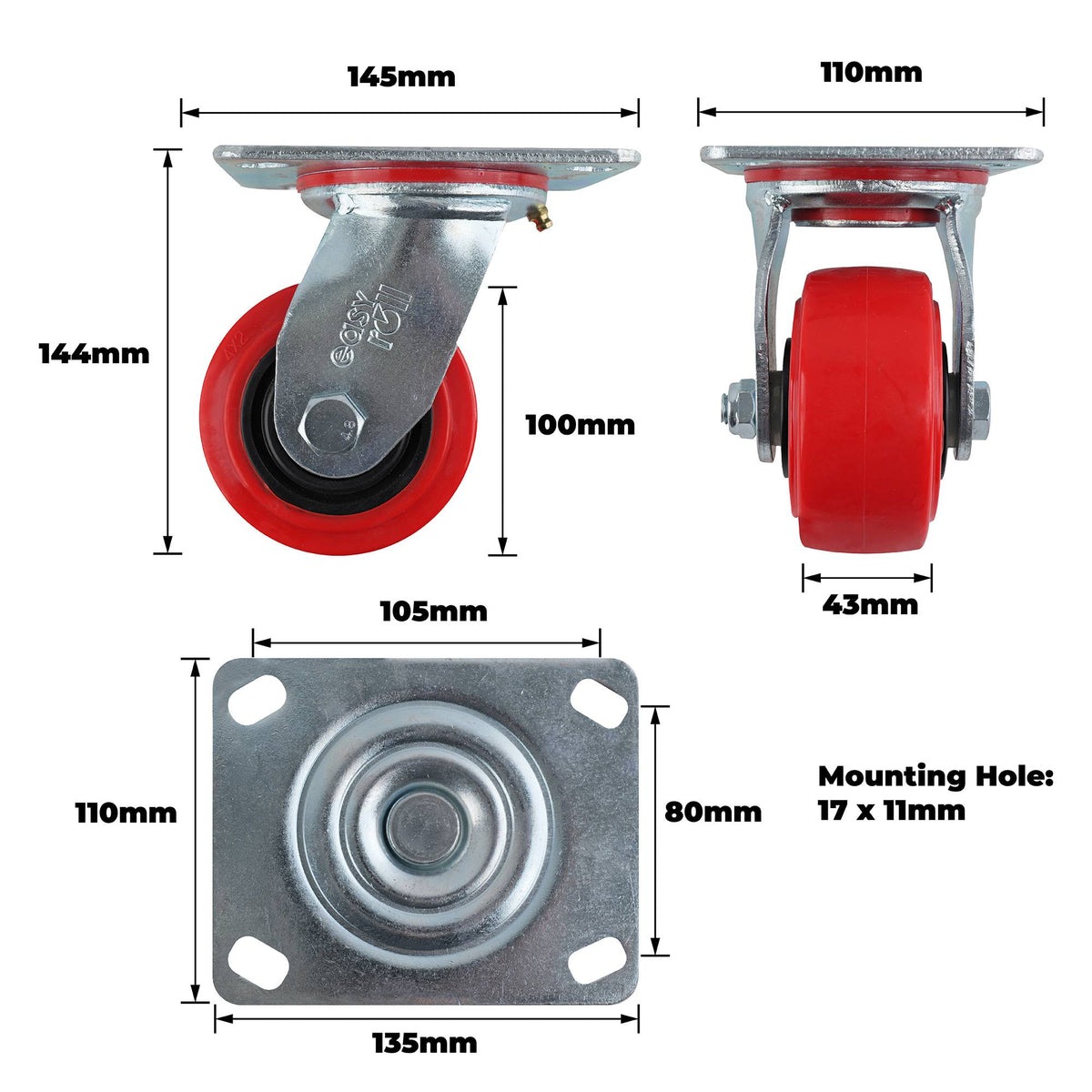

Dimensions
| Product Length (mm) | 145 |
| Product Width (mm) | 110 |
| Product Height (mm) | 144 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 43 |
| Swivel Radius (mm) | 77.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 1946 |
| Product Weight (kg) | 1.946 |
| Load Capacity (kg) | 280.0 |
