Easyroll 100mm Urethane Cast Iron Swivel Plate J2 Series Castor 320kg
Easyroll 100mm Urethane Cast Iron Swivel Plate J2 Series Castor 320kg is a plate-mounted caster featuring a steel wheel core, polyurethane wheel and cast iron components that work together for stable movement. It is designed with a robust steel housing and ball bearing mechanism, ensuring controlled rotation and precise directional control in trade applications. Its single raceway and plate rigid attachment provide durability and effective load manoeuvrability.
Couldn't load pickup availability
- Robust steel housing ensures secure and stable caster performance
- Polyurethane and cast iron wheel combination for smooth manoeuvring
- Ball bearing mechanism minimises friction and eases rotation
- Single raceway design maintains precise caster tracking
- Durable carbon steel bearings sustain long-term performance
- Rigid plate mount provides secure attachment for caster installation
- True plate design offers stable and reliable platform
- Designed for versatility across indoor and outdoor settings
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Steel |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

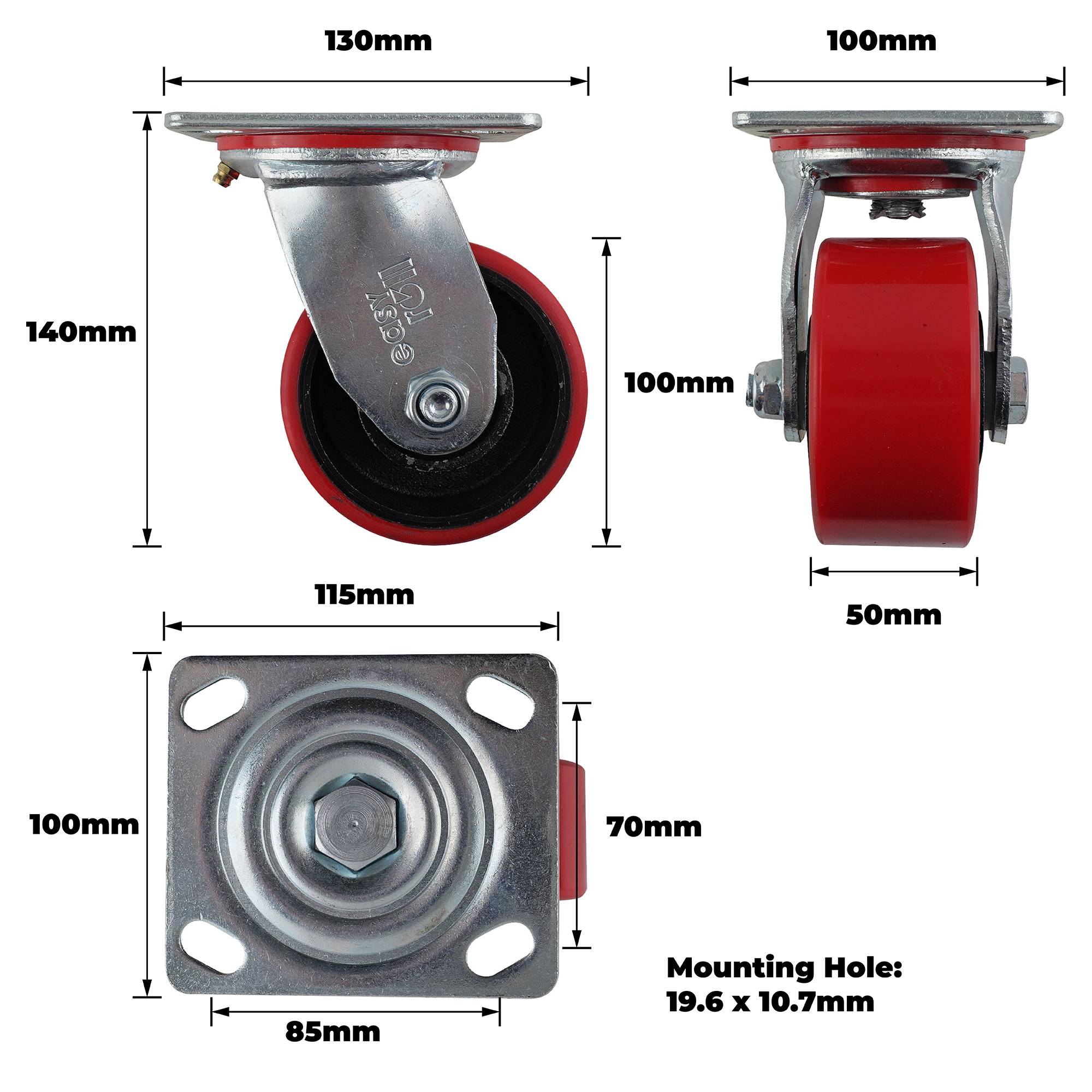

Dimensions
| Product Length (mm) | 130 |
| Product Width (mm) | 100 |
| Product Height (mm) | 140 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 52 |
| Swivel Radius (mm) | 72.5 |
| Mounting Hole Dimensions (mm) | 19.6x10.7 |
| Hole Centre Dimensions (LxW) mm | 85x70 |
| Plate Dimensions (LxW) mm | 115x100 |
Weights
| Product Weight (grams) | 2492 |
| Product Weight (kg) | 2.492 |
| Load Capacity (kg) | 320.0 |
