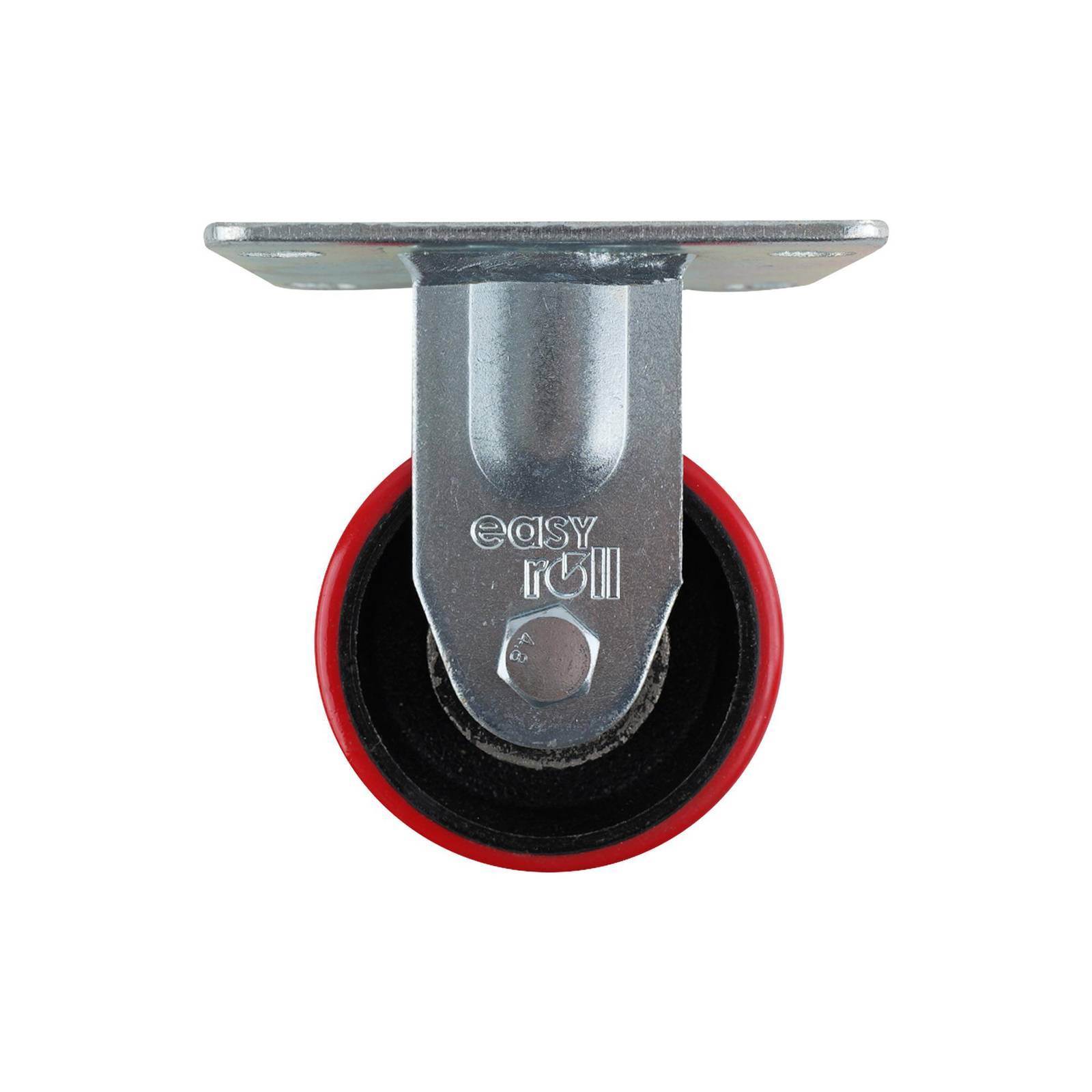

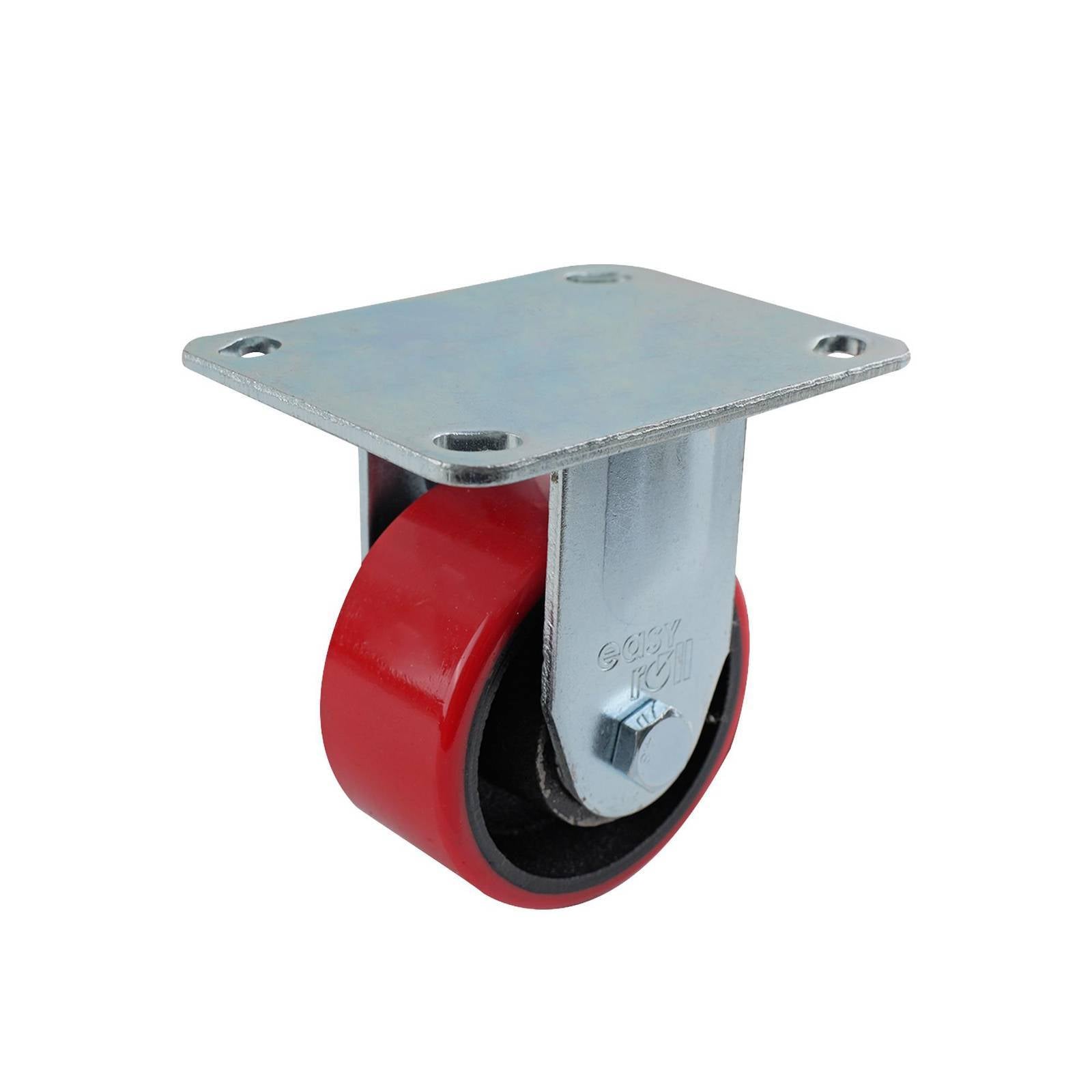

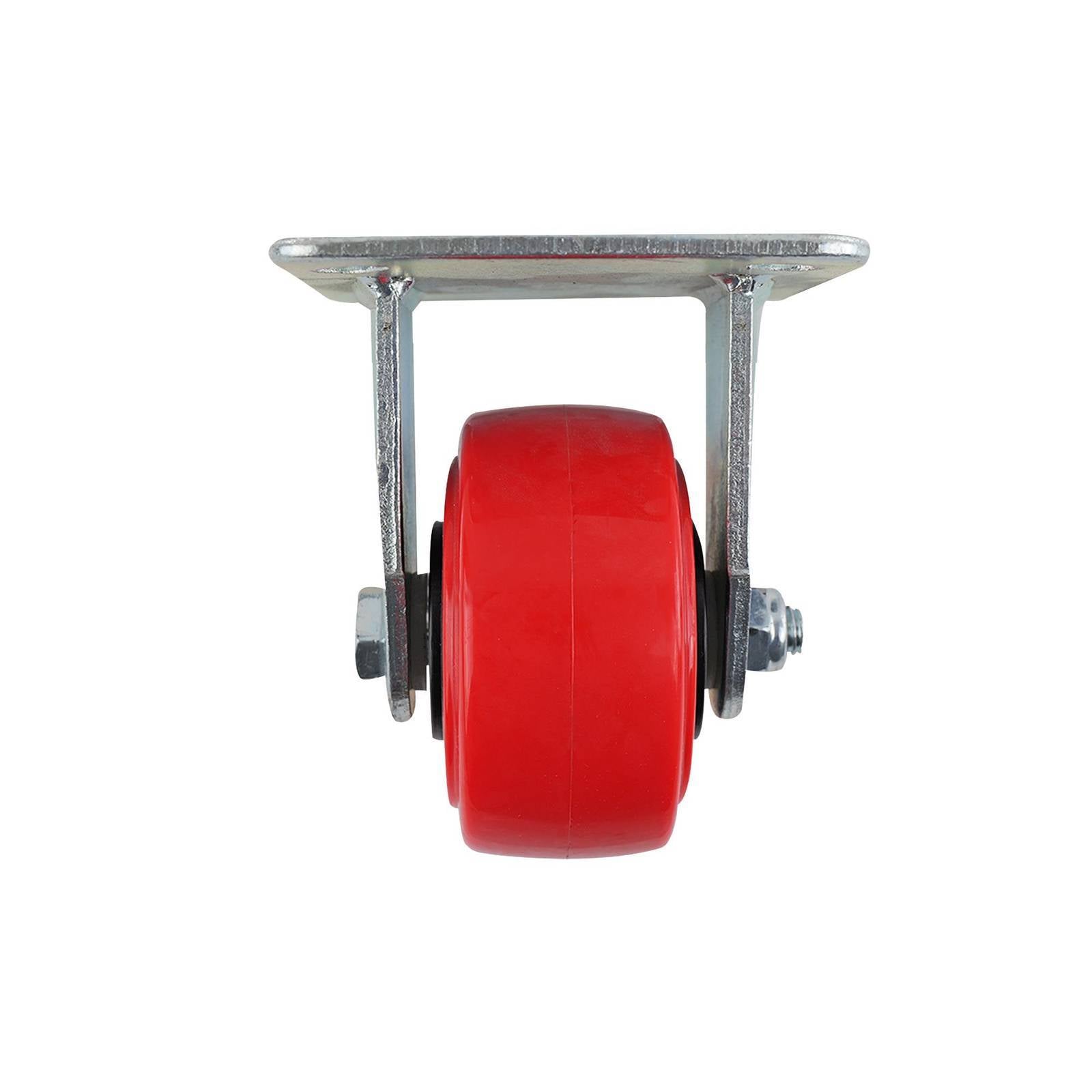

Easyroll 100mm Urethane Cast Iron Fixed Plate J3 Series Castor 320kg
Easyroll 100mm Urethane Cast Iron Fixed Plate J3 Series Castor 320kg is engineered for precise movement and load management in trade applications. It features a polyurethane wheel paired with a cast iron design, and a steel housing with carbon steel ball bearings ensure smooth rotation. The plate mount and integrated total brake offer controlled movement and secure stopping power, while the combination of robust materials provides a reliable solution for demanding operational tasks.
Couldn't load pickup availability
- Robust steel housing supports plate mounted design for stability
- Urethane wheel provides low noise and enduring performance
- Ball bearing system ensures smooth movement with reduced friction
- Red black silver finish showcases robust engineered design
- Polypropylene core boosts durability and impact resistance
- Total brake allows immediate load control when required
- Single raceway design reduces maintenance and enhances performance
- Plate mount fitting supports rapid and secure installation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

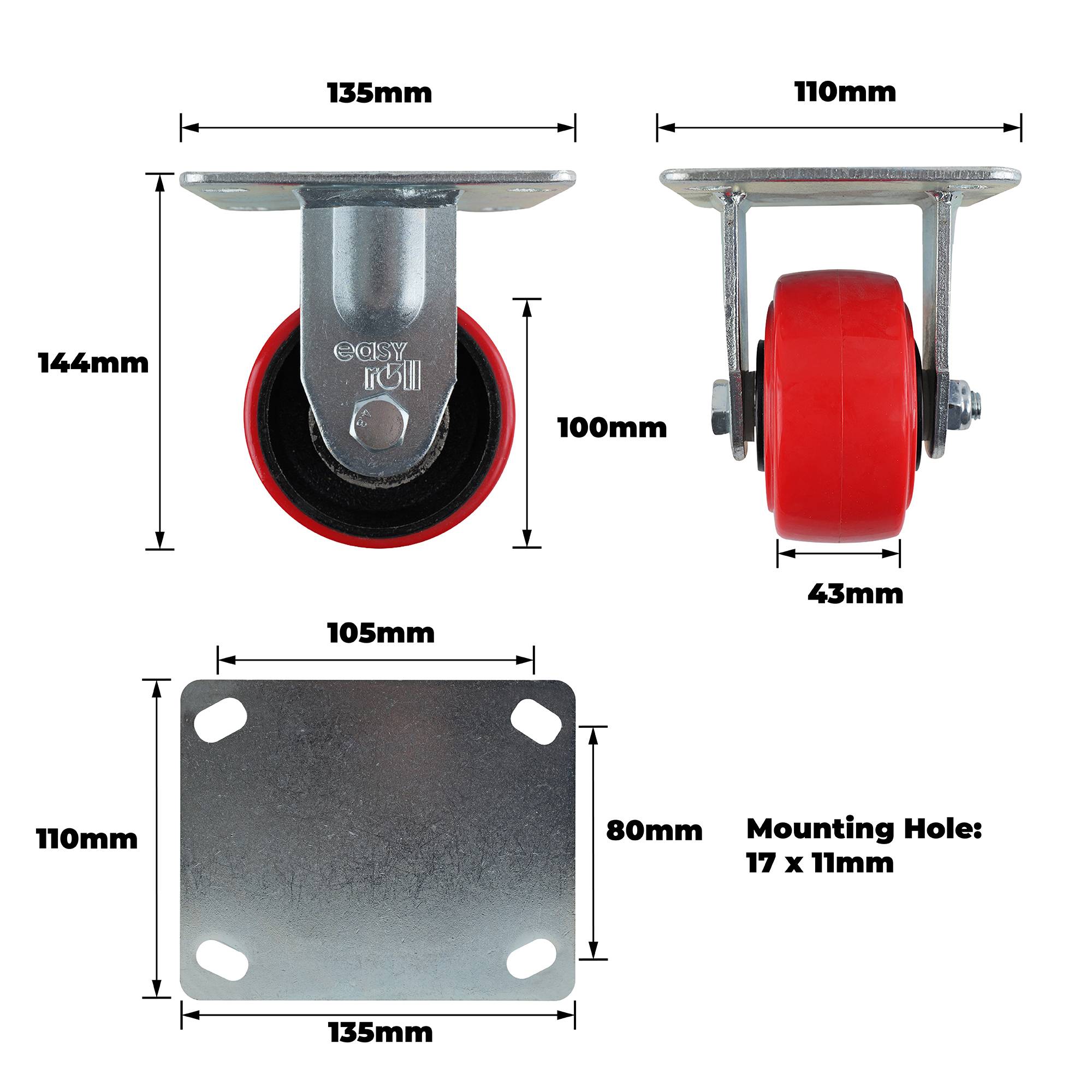

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 110 |
| Product Height (mm) | 144 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 43 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2206 |
| Product Weight (kg) | 2.206 |
| Load Capacity (kg) | 320.0 |
